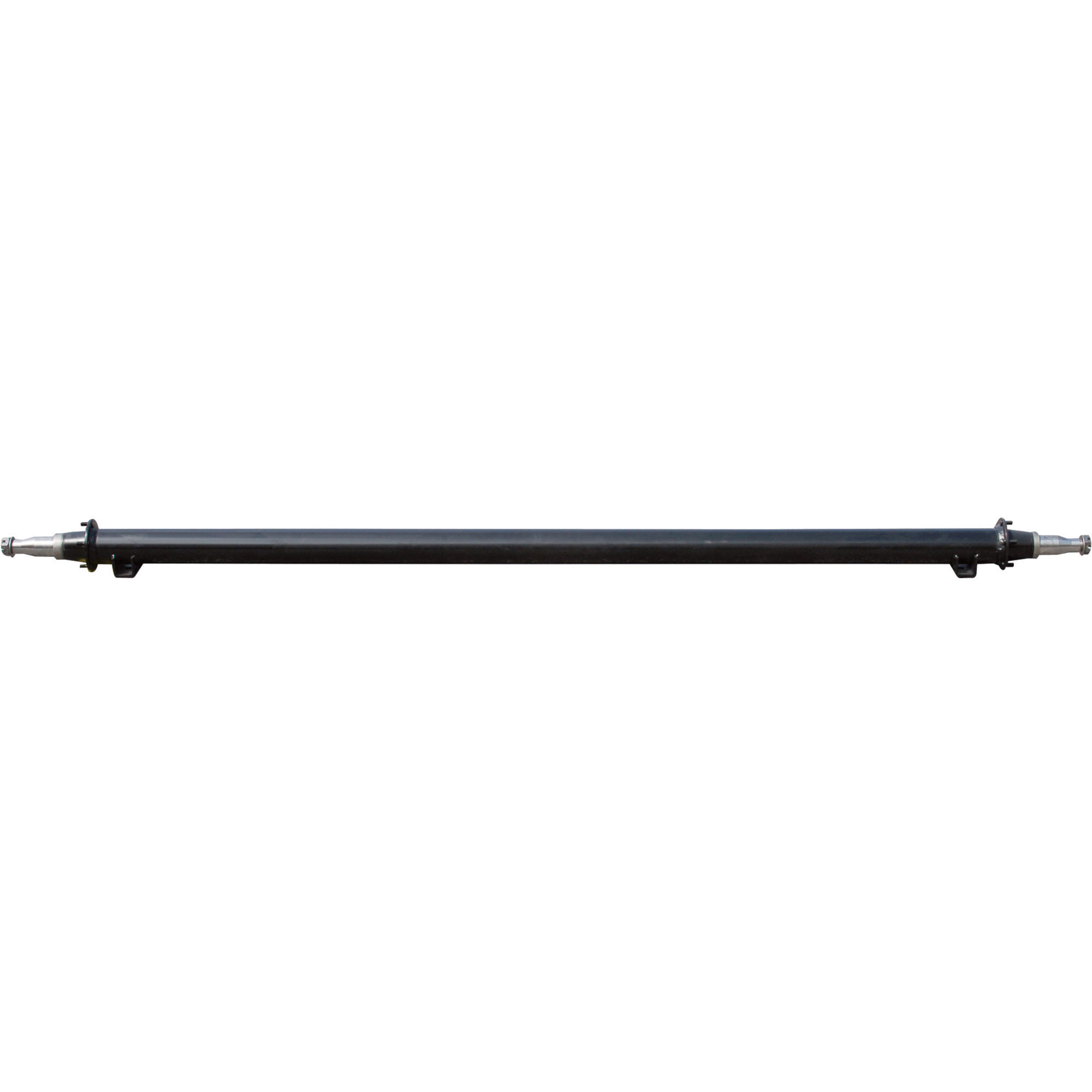

Ultra-Tow 6000-Lb. Capacity Spring Trailer Axle, 89in. Hubface, 74in. Spring Center, 95 1/4in. Length, Straight

Item# 32837
Ultra-Tow 6000-Lb. Capacity Spring Trailer Axle, 89in. Hubface, 74in. Spring Center, 95 1/4in. Length, Straight

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow 6000-Lb. Capacity Spring Trailer Axle, 89in. Hubface, 74in. Spring Center, 95 1/4in. Length, Straight

Click or Tap image to Zoom

  • Beam only flanged design can be used as an idler or brake axle
  • Fast Lube spindles allow you to re-grease the bearings without removing the hubs
  • Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal
  • 3.0in. diameter round tube steel axle is powder-coated for durability
  • Underslung with fixed spring centers

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Rugged Ultra-Tow spring trailer axle features Fast Lube spindles that allow you to re-grease the bearings without removing the hubs (hubs not included). Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal. Round tube steel axle is powder-coated for durability, underslung with fixed spring centers. Axle includes castle nuts, cotter pins, and washers. Made in U.S.A.

What's Included

    (1) Axle beam (1) Hardware kit (castle nuts, cotter pins, washers)

Features + Benefits

  • Beam only flanged design can be used as an idler or brake axle
  • Fast Lube spindles allow you to re-grease the bearings without removing the hubs
  • Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal
  • 3.0in. diameter round tube steel axle is powder-coated for durability
  • Underslung with fixed spring centers
  • Straight axle
  • Built-in brake flanges
  • 6000-lb. capacity
  • 89in. hubface
  • 74in. spring center
  • 95 1/4in. overall length
  • 1 3/4in. inner bearing
  • 1 1/4in. outer bearing
  • 2.25in. seal
  • Shackle set not included

Key Specs

AttributeSpecification

item#

32837

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

55.0 LB

Max. Spring Centers Length

74 in

Weight Capacity

6,000 lb

Axle Tube Type

Round

Seal Size ID

2.25 in
AttributeSpecification

Bearing Size ID

1.75 in

Bearing Size OD

1.25 in

Axle Outside Diameter

3 in

Springs Included

No

Cambered

Yes

Hubs Included

No

Brakes Included

No

Track Length

89 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. What hubs and springs recomend for

    1 answer

    1. Trailer hub items 57207 and 572071 will work with this axle. The leaf trailer spring, item 125209 will also work.

      Helpful?

  2. How many holes are in the flange that connects to the brake backing plate?

    My axle has 5 holes

    1 answer

    1. On the Ultra-Tow 6000-Lb. Capacity Spring Trailer Axle there are 5 holes on the flange that connects to the brake backing plate.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
