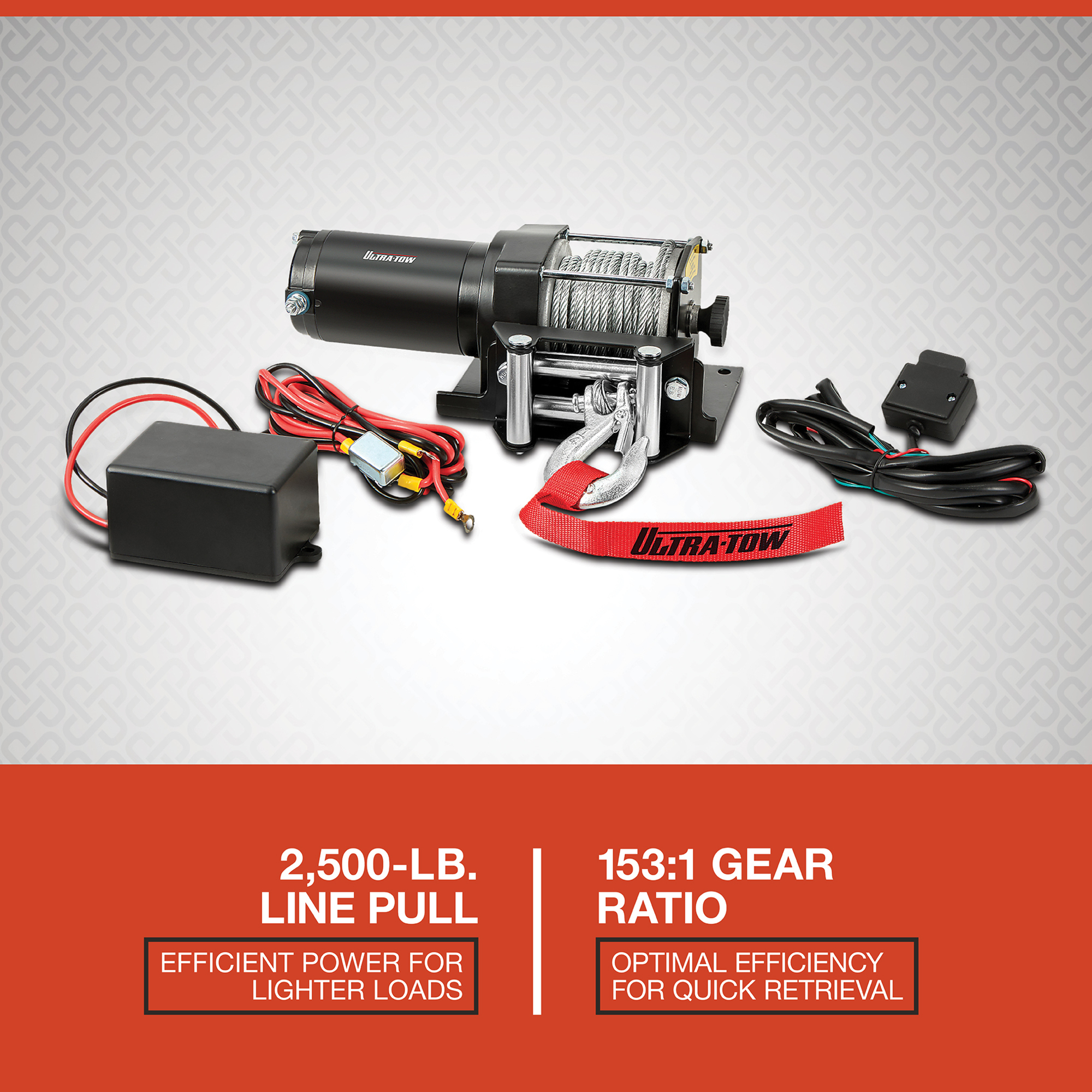

Ultra-Tow 12 Volt DC ATV/UTV Winch, 2500-Lb. Capacity, Galvanized Wire Rope

Item# 4995885
"Ultra-Tow 12 Volt DC ATV/UTV Winch, 2500-Lb. Capacity, Galvanized Wire Rope"
Ultra-Tow 12 Volt DC ATV/UTV Winch, 2500-Lb. Capacity, Galvanized Wire Rope

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow 12 Volt DC ATV/UTV Winch, 2500-Lb. Capacity, Galvanized Wire Rope

Click or Tap image to Zoom

$99.99

  • Shipping:

    Available now
    $19.99 Same Day

  • Store Pickup:

    4 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Powerful 12V, 1 HP motor delivers up to 132 Amps max. and 2,500-lb. capacity line pull
  • Motor brake and auto load holding for safe operation
  • Planetary gears with 153:1 gear ratio
  • 13 ft./min. line speed
  • 40ft.L x 5/32in. dia. strong and durable galvanized steel wire winch rope

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Ultra-Tow 12 Volt DC-Powered ATV/UTV Winch with 2,500-lb. pulling capacity delivers dependable power and performance in the field. The winch is powered by a 12V, 1 HP motor that goes where you need it to go and is tough enough to stand up to the task at hand. Includes a roller fairlead, hook and mounting hardware.

What's Included

    (1) Winch (1) Roller fairlead (1) Hook (1) Set of mounting hardware

Downloads

Product Manual

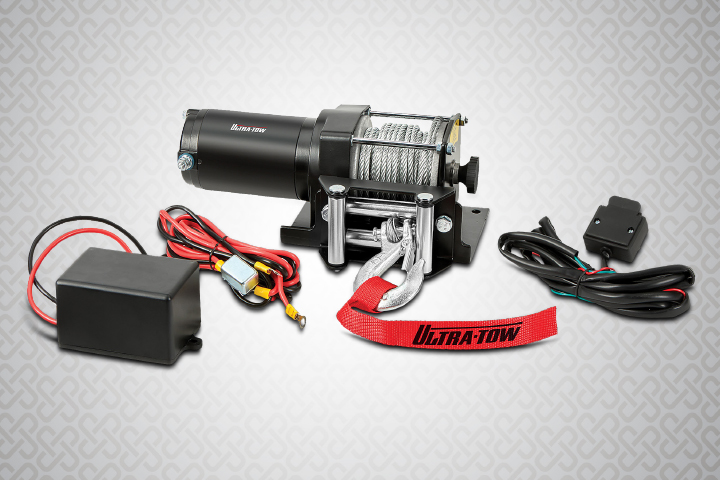

COMPACT AND VERSATILE

Ideal for smaller ATVs and UTVs, this winch delivers 2,500-lb. line pull for RELIABLE PERFORMANCE FOR PULLING EQUIPMENT, vehicles, or debris

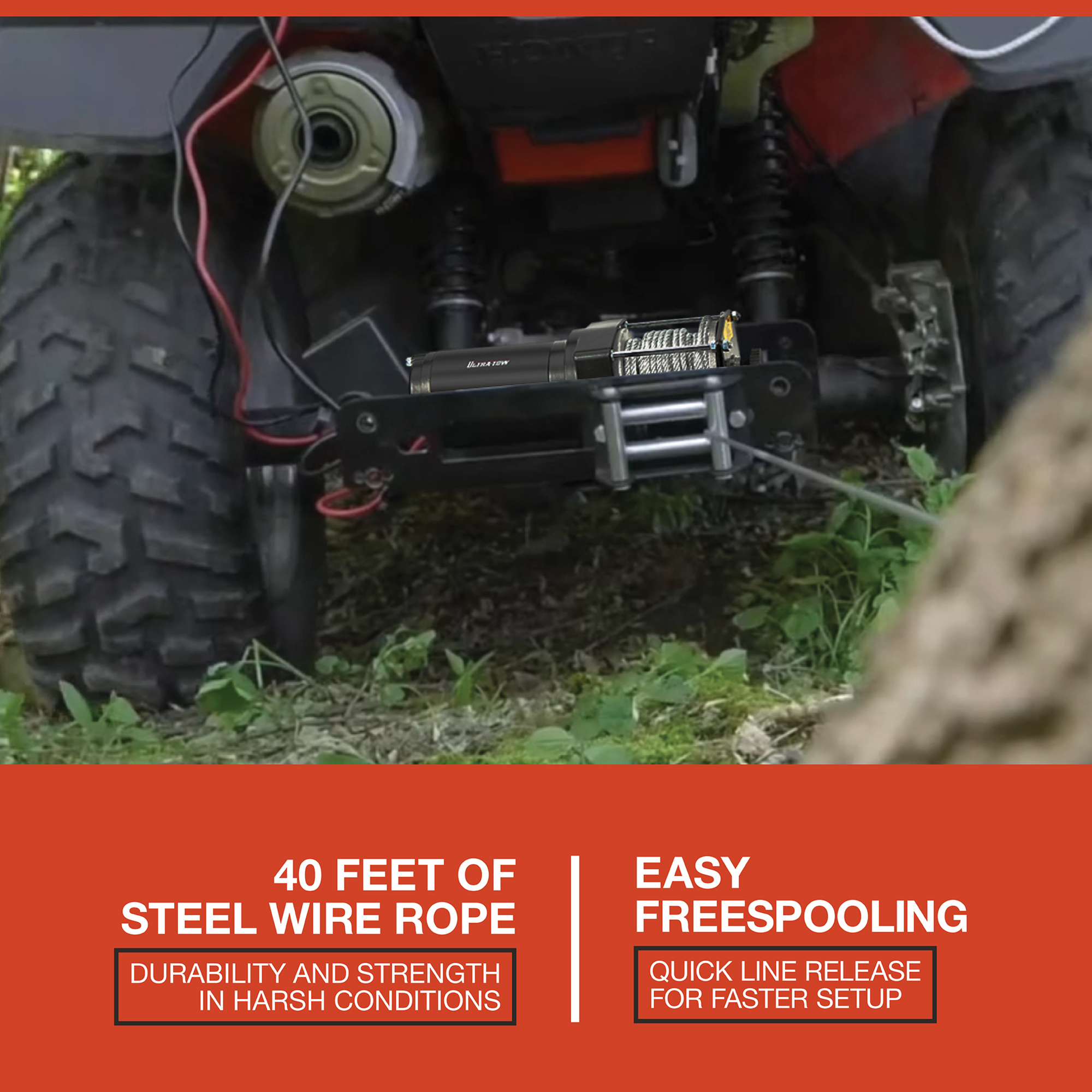

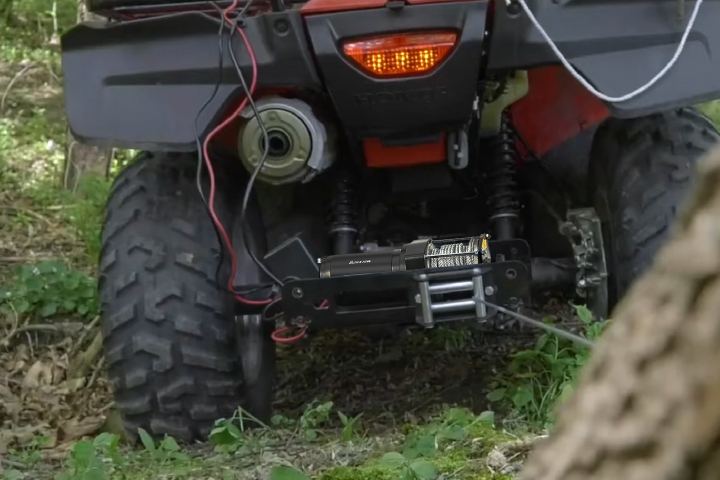

QUICK LINE DEPLOYMENT

Features a FREESPOOLING SETTING FOR FAST and EFFORTLESS LINE OUT, enhancing setup efficiency and readiness for immediate use

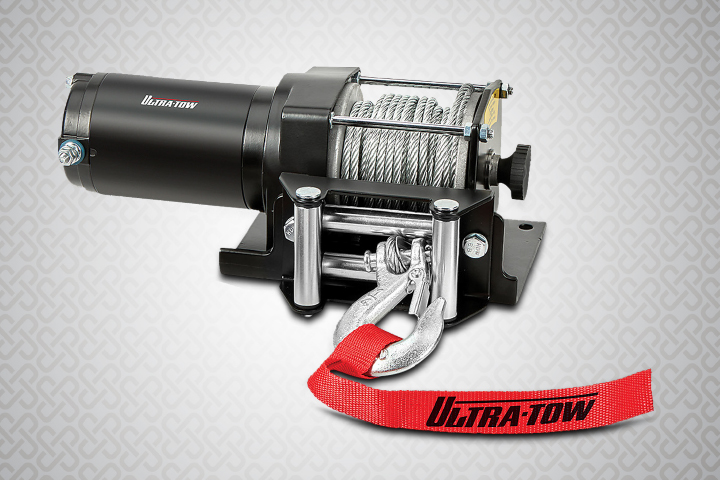

DURABLE AND RELIABLE

Constructed to withstand rough conditions with a ROLLER FAIRLEAD that guides the ROPE SMOOTHLY ONTO THE DRUM

Features + Benefits

  • Powerful 12V, 1 HP motor delivers up to 132 Amps max. and 2,500-lb. capacity line pull
  • Motor brake and auto load holding for safe operation
  • Planetary gears with 153:1 gear ratio
  • 13 ft./min. line speed
  • 40ft.L x 5/32in. dia. strong and durable galvanized steel wire winch rope
  • Remote control with 7ft. cord for quick and easy control from up to 7ft. away from the winch
  • Convenient freespooling setting for fast and easy line out
  • Comes complete with roller fairlead, hook and mounting hardware
  • DC-powered operation

Key Specs

AttributeSpecification

item#

4995885

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

29.0 LB

Horsepower

1 HP

Capacity (Line Pull)

2,500 lb

Volts

12

Max. Amps

132

Application

ATV

Gear Type

Planetary

Line Speed

13 ft./min.

Gear Ratio

153:1

Rope Length

40 ft
AttributeSpecification

Rope Diameter

5/32 in

Rope Material

Galvanized Steel

Brake Type

Motor

Remote

Yes

Remote Cord Length

7 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Roller

Underwater Use

No

Mounting Hardware Included

Yes

Dimensions L x W x H (in.)

11.0 x 4.0 x 4.0 in

Product Weight

19.0000 lb

Reviews

Questions & Answers

27 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. What is red wire for on remote?

    1 answer

    1. The small red wire runs from the on/off switch to the ignition and is used only to turn the unit on or off with the key.

      Helpful?

  2. What is the bolt spacing on the fairlead? Is it the standard 4 7/8”?

    1 answer

    1. The bolt holes of the fairlead are spaced 4.29" (109mm) apart on center. The hole diameter is approximately 0.35" (9mm).

      Helpful?

  3. Is there a way to connect the winch power to my trailer plug at my hitch?

    1 answer

    1. The winch is designed to connect directly to a 12 volt battery. It is not able to be wired into the trailer light plug.

      Helpful?

  4. How long is the battery power cord

    1 answer

    1. The power cord is 70.87 inches long.

      Helpful?

  5. Does it come with the remote control

    1 answer

    1. The winch will come with a remote control. Remote control will have a 7ft cord to easily control from up to 7 feet away from the winch.

      Helpful?

  6. Does the automatic load holding work if power is lost?

    1 answer

    1. The brake will still work if the power is lost.

      Helpful?

  7. Is it waterproof?

    1 answer

    1. The winch is not waterproof. The winch should be protected from the elements and kept dry.

      Helpful?

  8. I need the solenoid assembly for a 2500 winch is this item sold separately?

    1 answer

    1. Parts are not available for this winch.

      Helpful?

  9. Can you get a longer range remote control?

    1 answer

    1. Please view item #4995973 for a wireless remote that extends range, allowing winch operation from up to 50 feet away.

      Helpful?

  10. long is the duty cycle or time of operation? How long can you run it?

    1 answer

    1. This winch has a 5% duty cycle. At maximum load, it must be allowed to rest for 15 seconds after every 45 seconds of continuous operation.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
