This tire changer has a max wheel diameter of 47" and a wheel width from 3" to 15". The inside rim clamp range is 15" to 28", and the outside rim clamp range is 13" to 24".

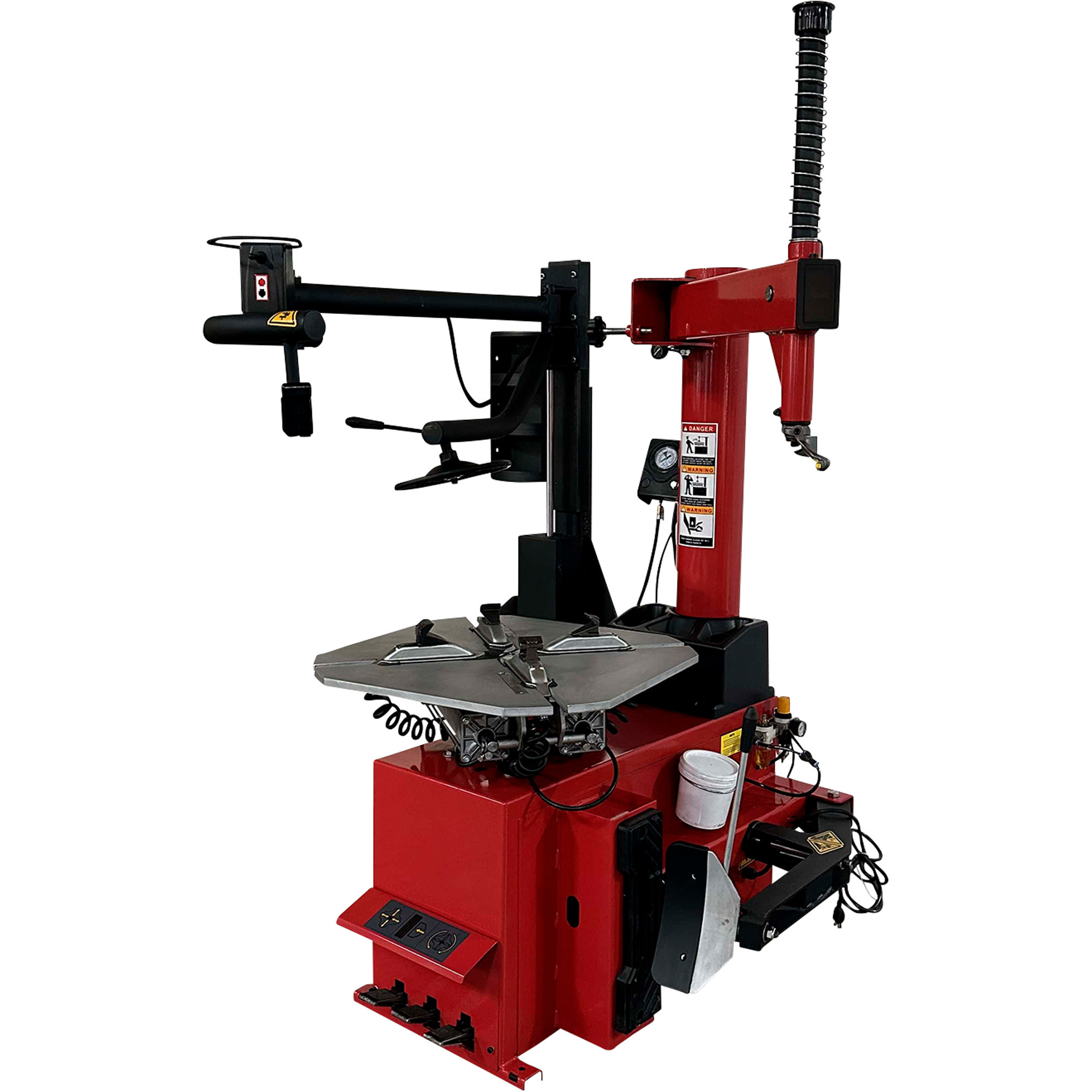

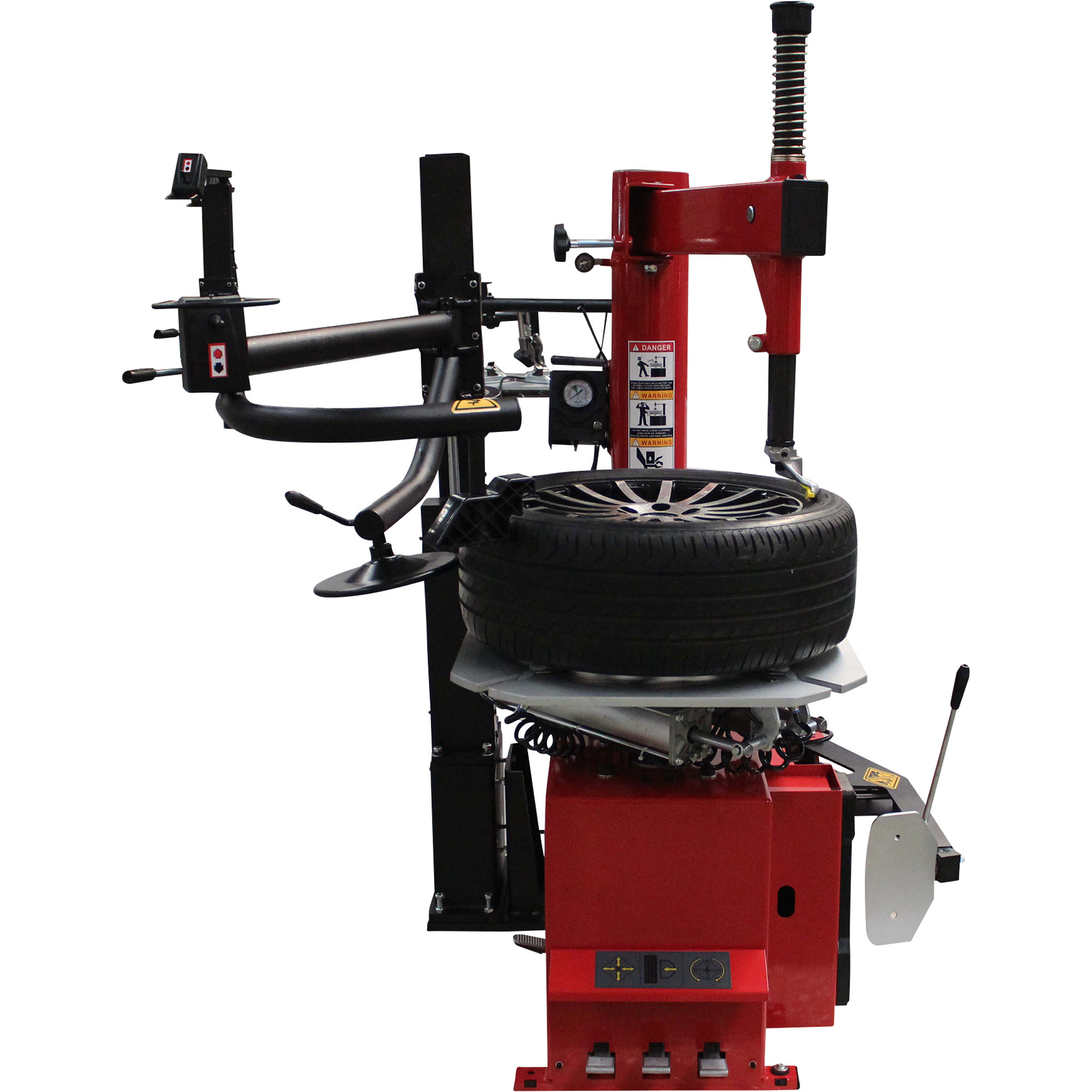

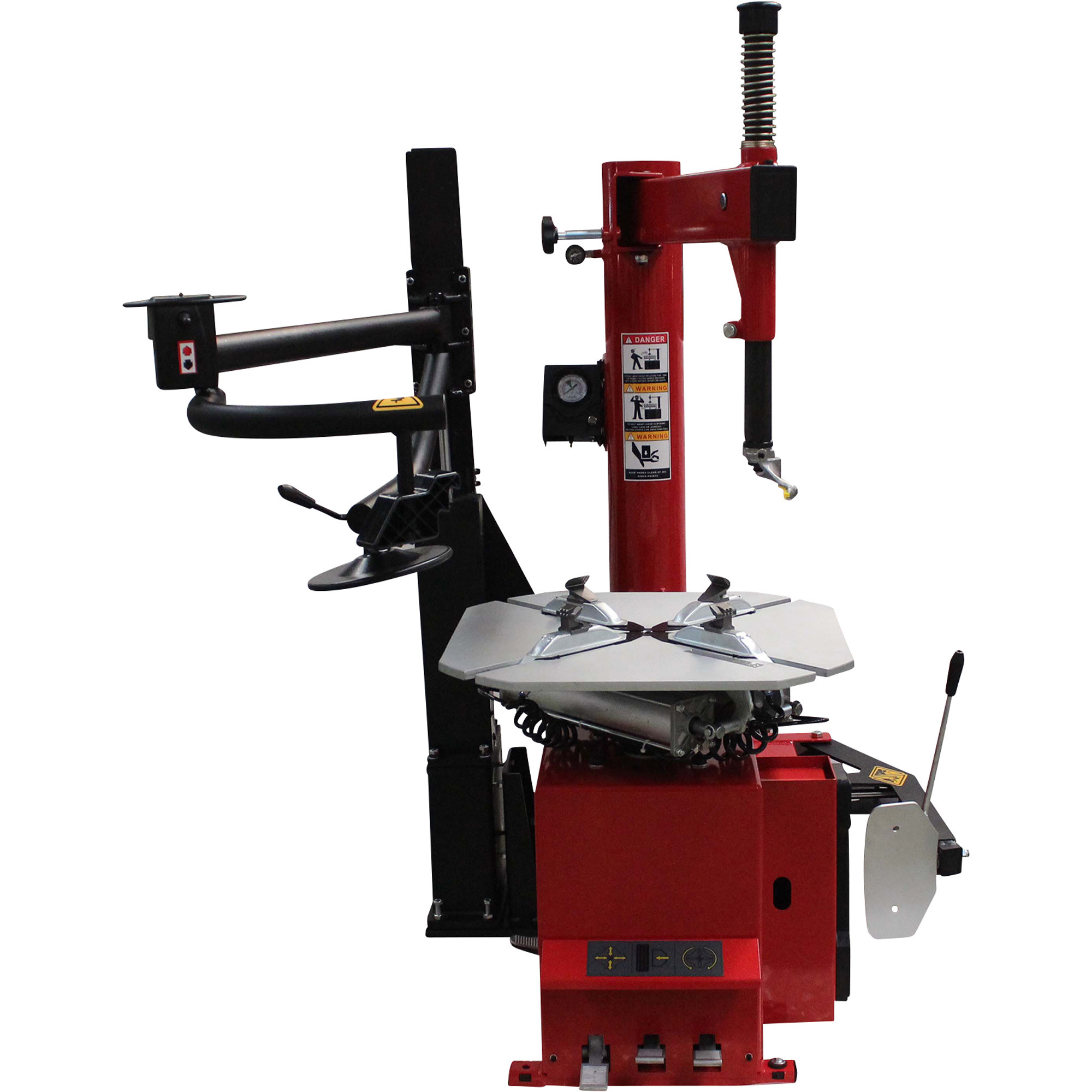

Tuxedo Swing-Arm Tire Changer with Assist Arm, 37in.L x 54in.W x 47in.H, Model# TC-950-WPA
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$4487.49
- Oversized turntable handles tires to 47in. diameter and rim widths to 15in.
- Pneumatic press arm assists the operator in safely changing low profile wheels
- Double Bead Blaster bead seating inflation jets are integrated into the clamping jaws, ensuring safe and quick inflation
- Side-mounted bead breaker
- Built-in air regulator, dryer and lubricator
See full description
What's Included
- (1) Swing-arm tire changer with assist arm
Features + Benefits
- Oversized turntable handles tires to 47in. diameter and rim widths to 15in.
- Pneumatic press arm assists the operator in safely changing low profile wheels
- Double Bead Blaster bead seating inflation jets are integrated into the clamping jaws, ensuring safe and quick inflation
- Side-mounted bead breaker
- Built-in air regulator, dryer and lubricator
- Twin clamping cylinders provide more power to hold the most difficult rims
- Scratch-resistant design never contacts the rim during the process, eliminating accidental damage
- 4 pneumatic clamps
- Dual-action air cylinders
- Item too large for lift gate; Requires forklift on site for unloading
See All Tire Changers
See All Tuxedo Tire Changers
Currently Viewing This Product
Specifications
Specifications
Tuxedo Swing-Arm Tire Changer with Assist Arm, 37in.L x 54in.W x 47in.H, Model# TC-950-WPA
TSI Manual Tire Changing Station, Without Floor Plate, Model# CH-22/23
Ranger Swing-Arm Tire Changer, Model# R980XR
Ideal Motorcycle/ATV Tire Changer with Assist Arm, 2 HP, 110 Volts, Model# TC-400M-B-PL230-K
Power Type
Same
Electric
Manual
Electric
-
Control Type
Same
Foot Pump
-
Foot Pump
Foot Pump
Volts
Same
115
-
220
110
Product Type
Same
Electric Tire Changer
Manual Tire Changer
Electric Tire Changer
Electric Tire Changer
Horsepower
Same
1.5 HP
-
3 HP
2 HP
Drive Type
Same
Belt
-
Belt
Belt
Max. Pressure
Same
125 PSI
-
165 PSI
125 PSI
Max. Bead Breaking
Same
15 in
24.5 in
-
-
Material
Same
Steel
Steel
Steel
Steel
Dimensions L x W x H (in.)
Same
37 x 54 x 47
24.0 x 25.5 x 35.5 in
43.0 x 51.0 x 44.0 in
30 X 39 X 49.5 in
Product Weight
Same
-
lb
716.0000 lb
530 lb
Motor Phase
Same
-
-
Single-phase
-
