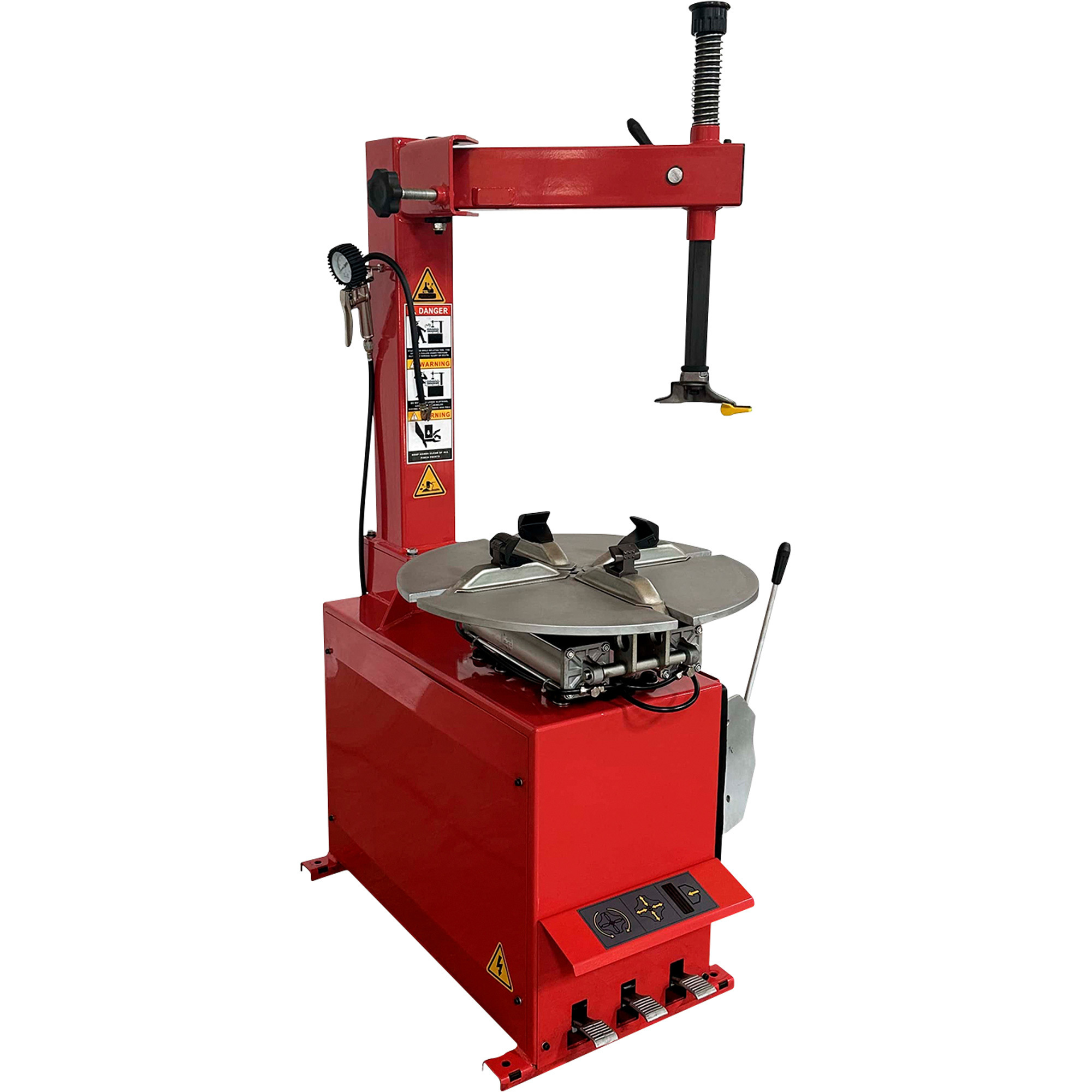

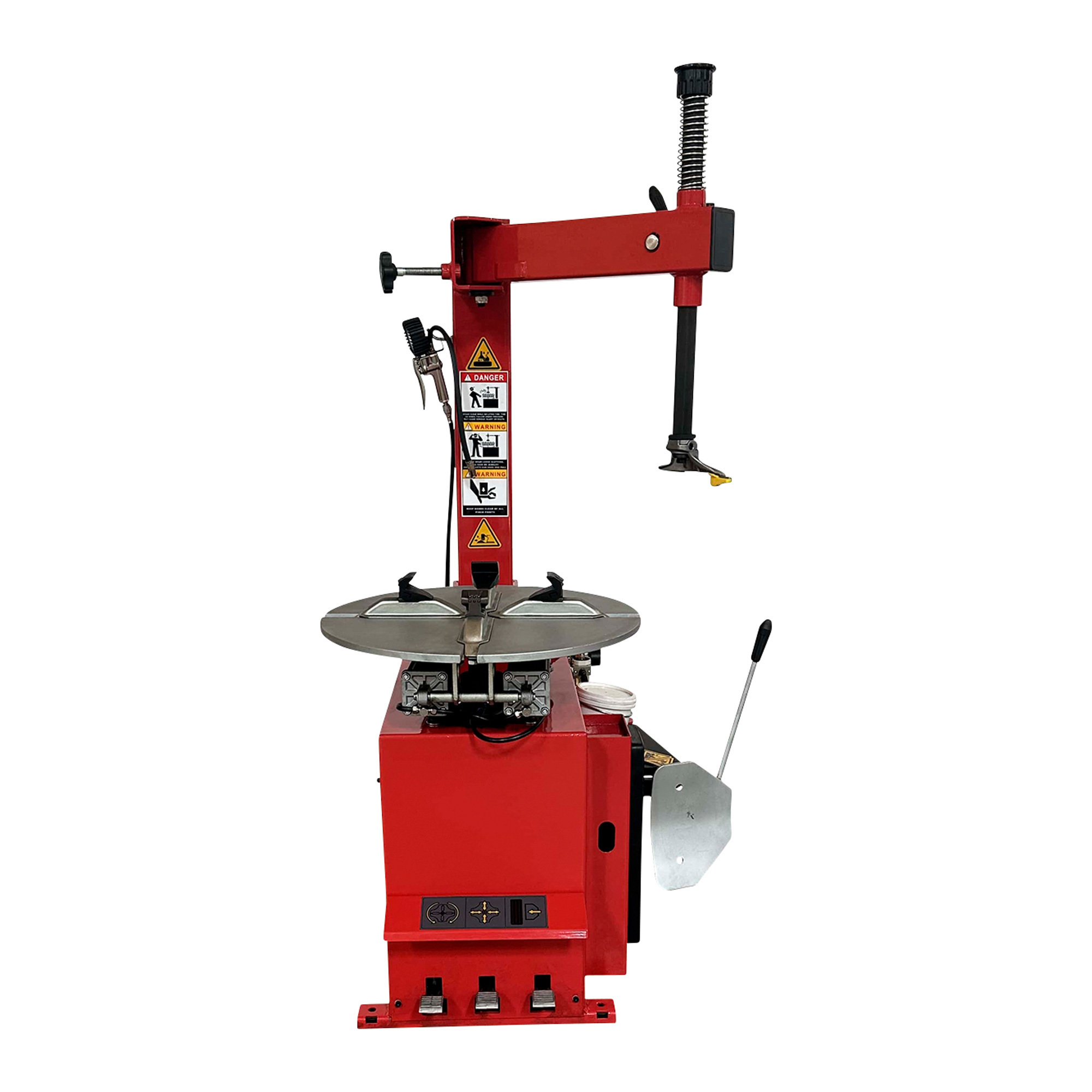

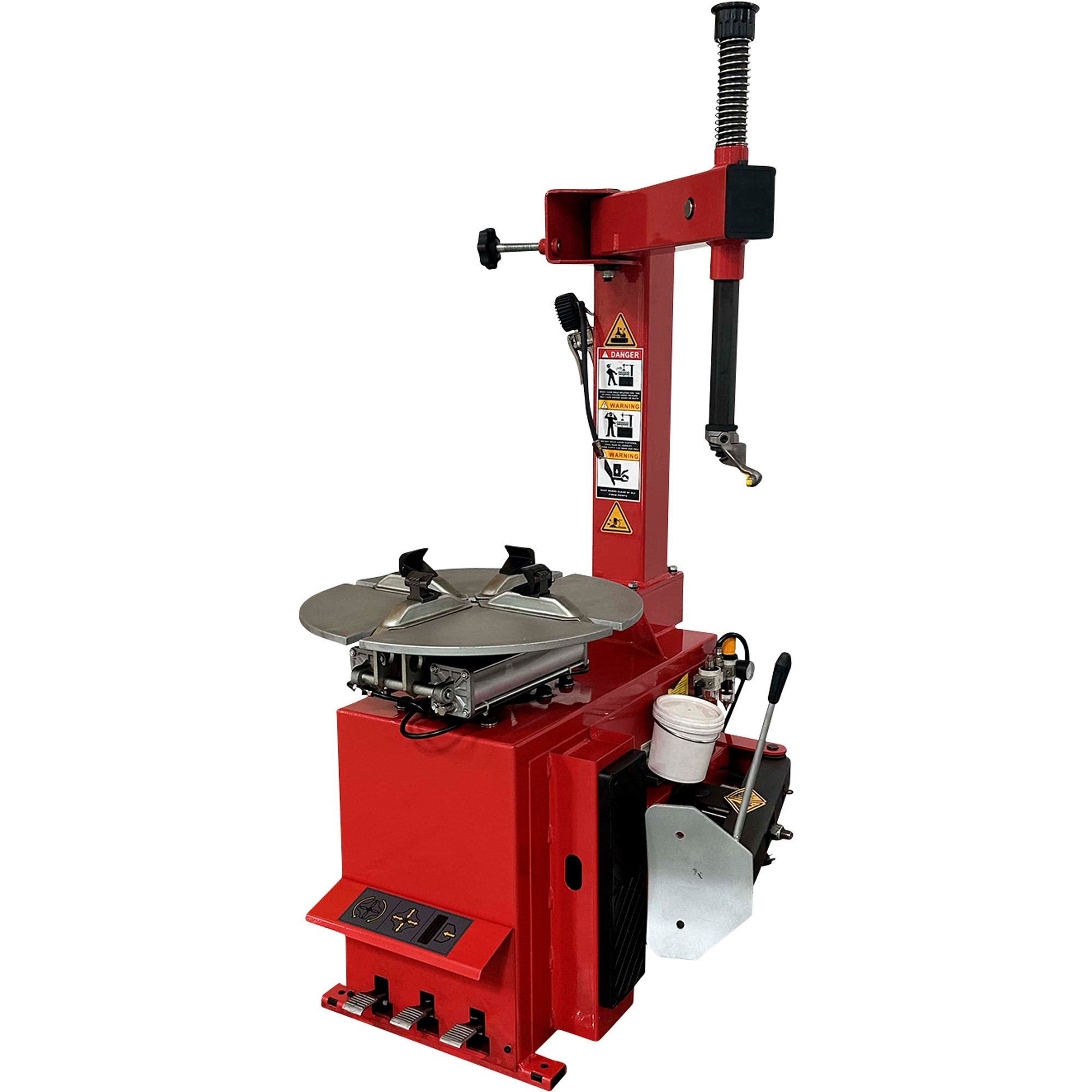

Tuxedo Economy Swing-Arm Tire Changer, 30in.L x 39in.W x 60in.H, Model# TC-430

Item# 79566
"Tuxedo Economy Swing-Arm Tire Changer, 30in.L x 39in.W x 60in.H, Model# TC-430"
Tuxedo Economy Swing-Arm Tire Changer, 30in.L x 39in.W x 60in.H, Model# TC-430

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tuxedo Economy Swing-Arm Tire Changer, 30in.L x 39in.W x 60in.H, Model# TC-430

Click or Tap image to Zoom

$2074.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Swing arm design for easy manual operation
  • 4 pneumatic clamps are teamed with double acting cylinders
  • Side mounted bead breaker
  • 12in. to 21in. maximum inside rim diameter
  • 10in. to 18in. maximum outside rim diameter

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Tuxedo Economy Swing-Arm Tire Changer is priced for the do-it-yourselfer who wants to change tires in their own garage. The swing-arm style changer is a solid manual operation performer on tires up to 37 3/4in. dia. with an inside rim dia. of 12in. to 21in., and an outside rim dia. of 10in. to 18in. Bead blaster not included. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by flatbed truck Monday--Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What's Included

    (1) Swing-arm tire changer (1) Water separator (1) Lubricator (1) Pressure regulator
Play Item Video

Features + Benefits

  • Swing arm design for easy manual operation
  • 4 pneumatic clamps are teamed with double acting cylinders
  • Side mounted bead breaker
  • 12in. to 21in. maximum inside rim diameter
  • 10in. to 18in. maximum outside rim diameter
  • 37 3/4in. maximum wheel diameter
  • Includes water separator, lubricator and pressure regulator
  • 125 PSI operating pressure
  • Item too large for lift gate; Requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

79566

Brand

Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

460.0 LB

Power Type

Electric

Control Type

Foot Pump

Volts

115
AttributeSpecification

Product Type

Electric Tire Changer

Horsepower

1.5 HP

Drive Type

Belt

Max. Pressure

125 PSI

Max. Bead Breaking

12 in

Material

Steel

Dimensions L x W x H (in.)

30 x 39 x 60 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. is the total height to the top of the red or is it the whole entire object to the top of the crank bar when extended all the way up?

    1 answer

    1. The height would be to the top of the red arm on the tire changer.

      Helpful?

  2. what is the shipping crate dimensions ?

    1 answer

    1. The shipping dimensions will be 30'' long, 39'' wide, and 38'' high.

      Helpful?

  3. Would this work on skid steer tires.  10.5x16.5

    1 answer

    1. The 16.5" rim diameter will work with this changer as long as the maximum wheel diameter does not exceed 37.8".

      Helpful?

  4. Is it possible to purchase the bead breaking head individually?

    1 answer

    1. Please contact the manufacturer directly for ordering individual parts.

      Helpful?

  5. Does it come with the plastic guards that go on the head ?

    1 answer

    1. This item does not include the plastic guards.

      Helpful?

  6. will this need air supply or is it built in

    1 answer

    1. The tire changer requires an air compressor to operate. It does not have a built in compressor.

      Helpful?

  7. will this machine mount and dismount tires on a 19.5 x 7 dually wheel

    1 answer

    1. The maximum wheel diameter 37.8". Maximum wheel width 3" -11". The rim diameter inside is 12"-21". The rim diameter is outside 10"-18".

      Helpful?

  8. Is the turn table electric motor driven,

    1 answer

    1. The turn table is used with an electric motor.

      Helpful?

  9. Are there motorcycle rim adaptors available for thid unit

    1 answer

    1. The adaptor is model number TC-MC-AN and the arm will be model number TC-400M-B-PL230. Accessories are available through the manufacturer.

      Helpful?

  10. What is the cubic feet per minute of this unit?

    1 answer

    1. Per the manufacturer, this tire changer requires 8-10 BAR, which equates to 33.68-42.10 CFM.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
