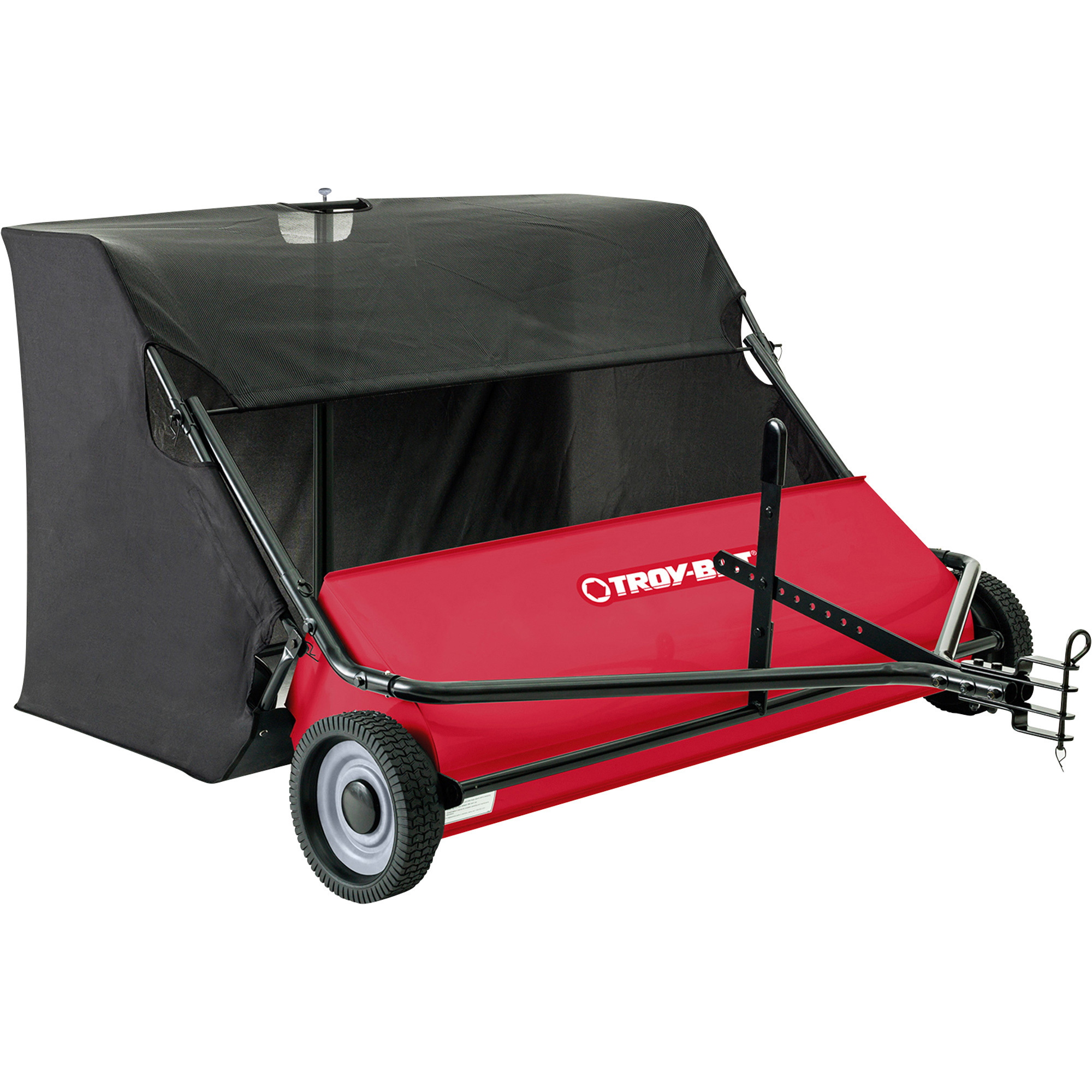

Troy-Bilt Lawn Sweeper, 42in.W, 22 Cu. Ft., Model# TB-4222LS

Item# 113714
Troy-Bilt Lawn Sweeper, 42in.W, 22 Cu. Ft., Model# TB-4222LS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Troy-Bilt Lawn Sweeper, 42in.W, 22 Cu. Ft., Model# TB-4222LS

Click or Tap image to Zoom

  • 42in. sweep path; 22 cu. ft. capacity hopper promotes fast yard cleanup
  • Easily collects leaves, grass clippings, pine needles, pine cones, sticks, twigs and nuts

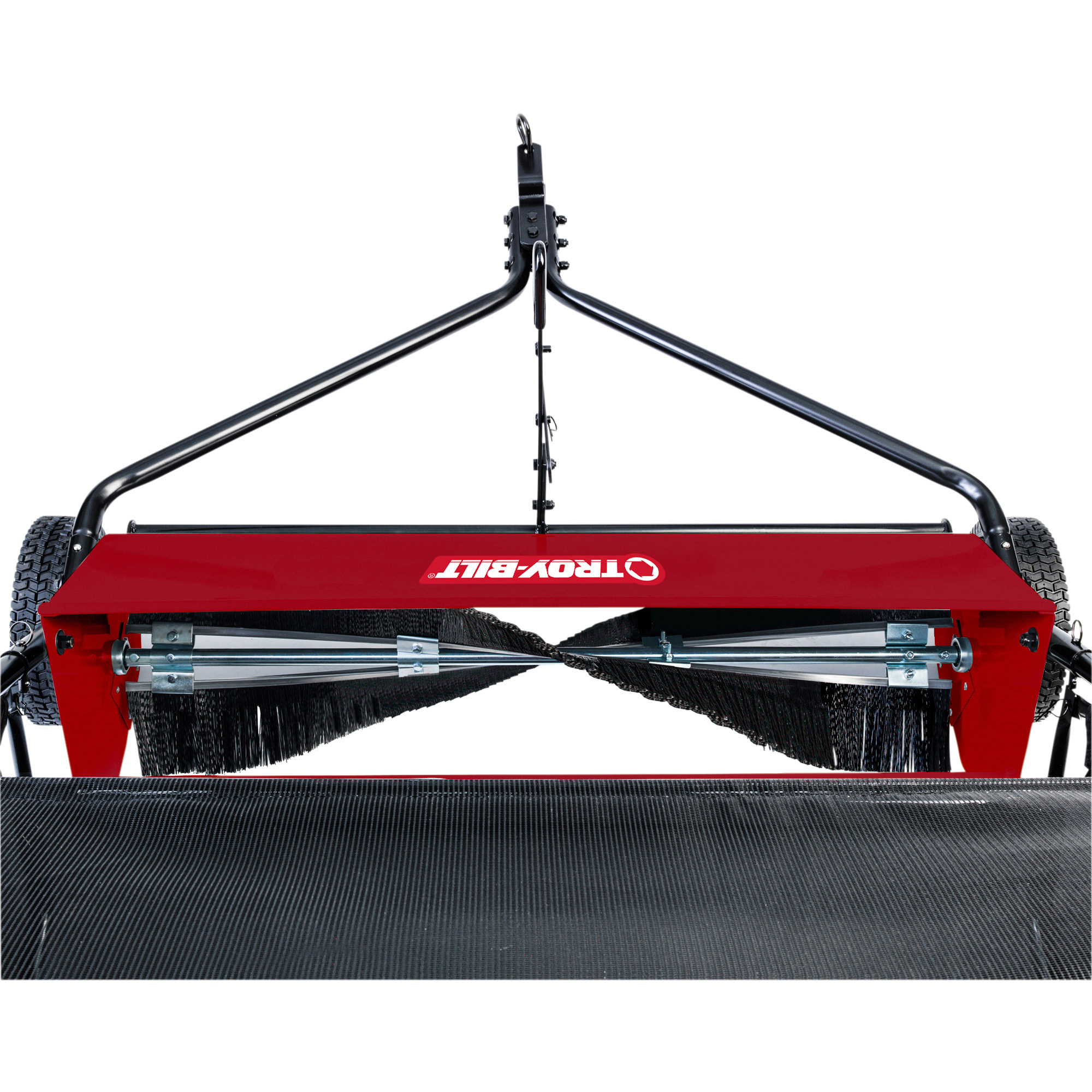

  • Patented 11in. spiral brush for efficient sweeping
  • 4.5 to 1 brush-to-wheel turning ratio for faster pickup with less effort
  • 11in. semi-pneumatic wheels for smooth rolling on most terrain

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Troy-Bilt Lawn Sweeper features an extra-large capacity 22 cu. ft. heavy-duty collector bag and a 42in. wide sweeping path that allows you to get your lawn care finished much more quickly than by hand raking. The exclusive patented spiral brush sweeps in an extremely efficient fashion while putting less stress on the gears for longer life. A "no-slip" positive lock height adjustment will not vibrate out of position and has easy-to-remember height settings. The easy-empty hopper empties just by pulling a rope right from the seat of your tractor. The sweeper stands upright and bag folds for compact storage.

What's Included

    (1) Lawn sweeper (1) Collection bag

Downloads

Product Manual

Features + Benefits

  • 42in. sweep path; 22 cu. ft. capacity hopper promotes fast yard cleanup
  • Easily collects leaves, grass clippings, pine needles, pine cones, sticks, twigs and nuts
  • Patented 11in. spiral brush for efficient sweeping
  • 4.5 to 1 brush-to-wheel turning ratio for faster pickup with less effort
  • 11in. semi-pneumatic wheels for smooth rolling on most terrain
  • Sealed ball bearings on brush axle
  • Durable Troy-Bilt red and black powder-coat finish resists rust and corrosion for longer life
  • Extra-long hitch pin with 3-prong clevis for use with varying mower hitch heights
  • No-slip positive lock height adjustment will not vibrate out of position and has easy-to-remember height settings
  • 3-position hitch adjustment allows for efficient and level operation with any tractor hitch height without the use of easy to lose spacer rings
  • An extra-wide 9in. dia. chute is less likely to clog, especially when sweeping damp grass clippings that can clump together
  • One-pull, easy-empty hopper

Key Specs

AttributeSpecification

item#

113714

Brand

Troy-Bilt

Manufacturer's Warranty

3 year limited warranty

Ship Weight

89.0 LB

Working Width

42 in

Product Type

Tow-Behind
AttributeSpecification

Frame Material

Steel

Housing Material

Steel

Adjustable

No

Wheel Type

Semipneumatic

Product Weight

89 lb

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Does this model have plastic or steel gears

    1 answer

    1. The lawn sweeper would have a hardened plastic wheel that turns on pinion metal gears.

      Helpful?

  2. How many steps to set up? How long does it take

    1 answer

    1. Assembly is required on the item. There are 16 steps to assemble. The main sweeping unit with brushes/wheels and hood will come pre assembled. Assembly time can vary from 30-45 minutes depending on the person. Assembly instructions are included.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
