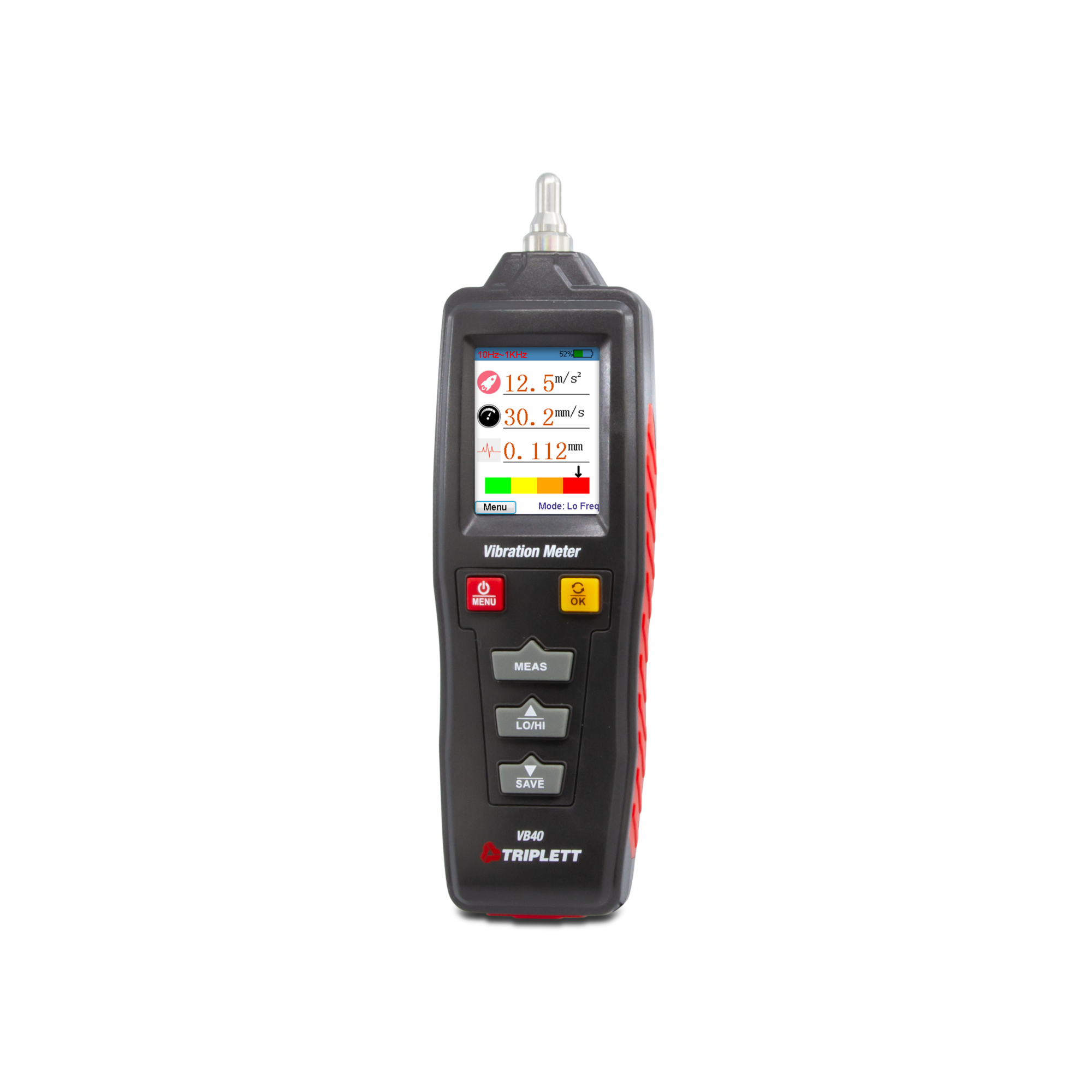

Triplett VB40 Vibration Meter

Item# 7066125
Triplett VB40 Vibration Meter

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett VB40 Vibration Meter

Click or Tap image to Zoom

$329.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • On the spot vibration meter for assessing equipment health or conducting maintenance
  • Acceleration: 0.1 to 199.9m/s2; 655.8ft/sec2;20.3g Velocity: 0.1 to 199.9mm/s, 7.87in/s; 2.00cm/s; 200mm/s Displacement: 0.001 to 1.999mm
  • Frequency ranges: 10Hz to 1KHz (LO) and 1KHz to 4KHz (HI)
  • Resolution to 0.1m/s2; 0.1mm/s
  • Basic accuracy of ±(5% + 2 digits)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett VB40 Vibration Meter is a versatile and feature-rich instrument designed for precise vibration measurement and analysis in various industrial applications. With wide-ranging capabilities, including adjustable acceleration, velocity, and displacement settings, this meter provides accurate readings across diverse frequency spectrums. Complete with short probe (installed on meter) and long probe sensor attachment, (2) 1.5V x AAA batteries, and a hard carry case.

What's Included

    (1) Vibration Meter

Features + Benefits

  • On the spot vibration meter for assessing equipment health or conducting maintenance
  • Acceleration: 0.1 to 199.9m/s2; 655.8ft/sec2;20.3g Velocity: 0.1 to 199.9mm/s, 7.87in/s; 2.00cm/s; 200mm/s Displacement: 0.001 to 1.999mm
  • Frequency ranges: 10Hz to 1KHz (LO) and 1KHz to 4KHz (HI)
  • Resolution to 0.1m/s2; 0.1mm/s
  • Basic accuracy of ±(5% + 2 digits)
  • LCD Auto-screen rotation -screen automatically adjusts its orientation based on the device's physical orientation
  • Store and View Files/ Manual Recall - 500 Total Readings (5 groups of 100 readings per group)
  • Machine Level Setting allows for user setting baseline or reference level for vibration on a particular machine
  • Worklight for working in dimly lit areas
  • Selectable Auto Power Off Time of 0 to 9 mins

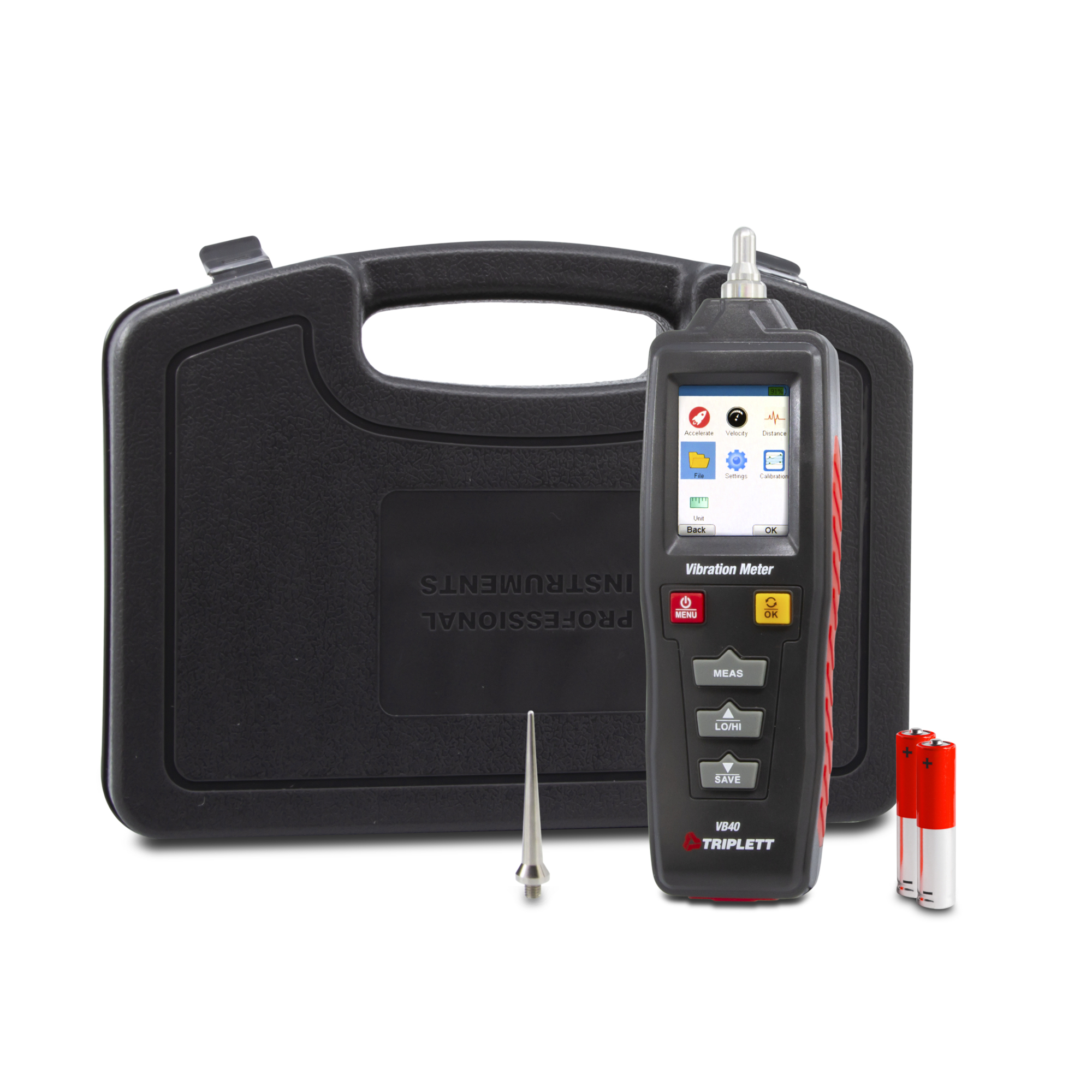

  • Includes short probe (installed on meter) and long probe sensor attachment, (2) 1.5V x AAA batteries, and a hard carry case.

Key Specs

AttributeSpecification

item#

7066125

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.35 LB

Functions (qty.)

1

Display Type

LCD

Battery Size

AAA

Low Battery Indicator

Yes

Battery Type

AAA
AttributeSpecification

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Calibration Certificate Included

No

Application

Designed for precise vibration measurement and analysis in various industrial applications

Includes

Includes short probe (installed on meter) and long probe sensor attachment, (2) 1.5V x AAA batteries, and a hard carry case.

Product Weight

0.3500 lb

Dimensions L x W x H (in.)

6.5 x 2.75 x 1.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
