For thicknesses less than 0.39 in. (10 mm), the measurement accuracy is ±0.01 in. (0.1 mm). For thicknesses 0.39 in. (10 mm) or greater, the accuracy is ±(1% of the measured thickness plus 0.01 in. (0.1 mm)).
Discount Details
- The promo code 290262 must be entered on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $250 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax, & shipping.
- Promo code not valid on prior purchases or on Honda & Stihl products, and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited time offer. Subject to change without notice.

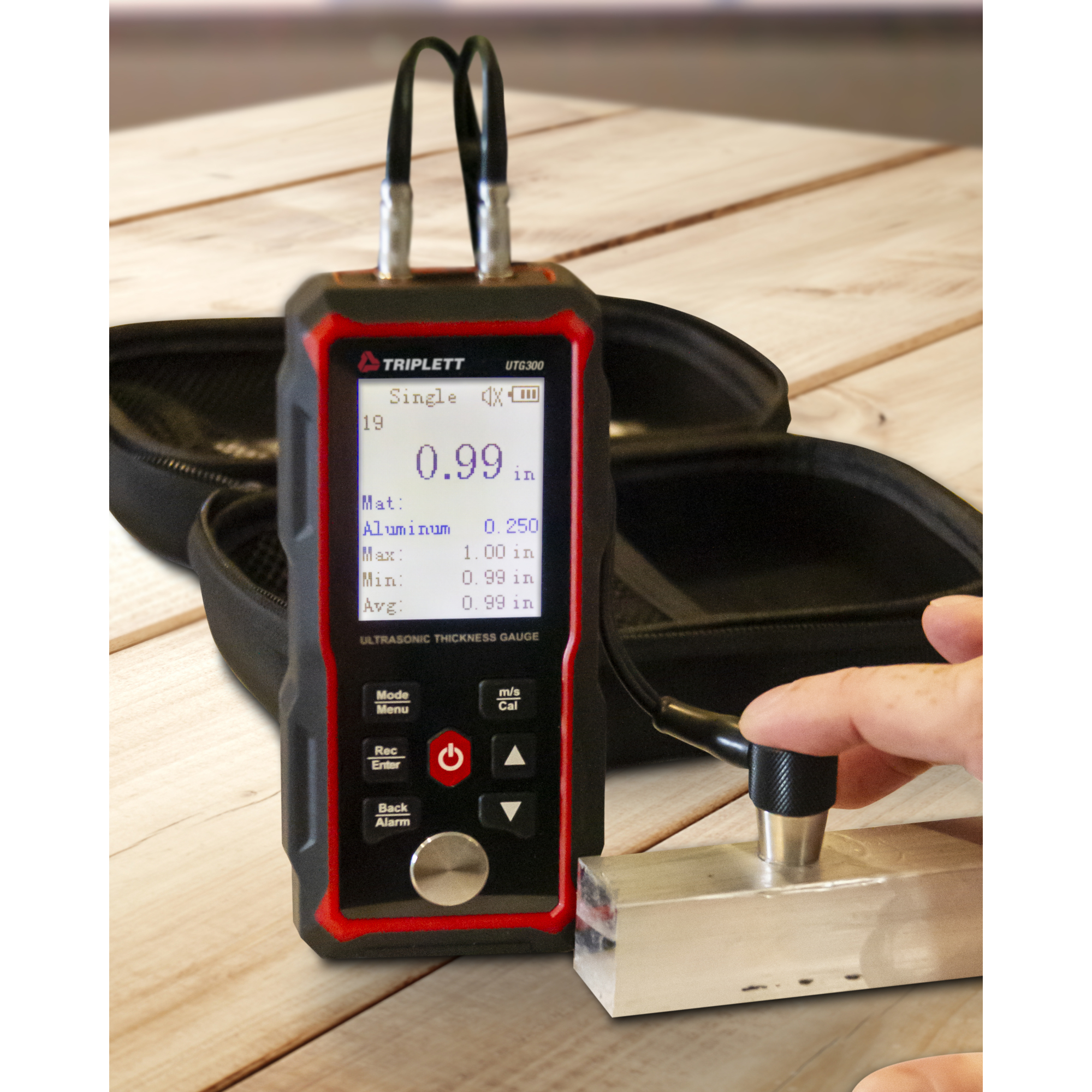

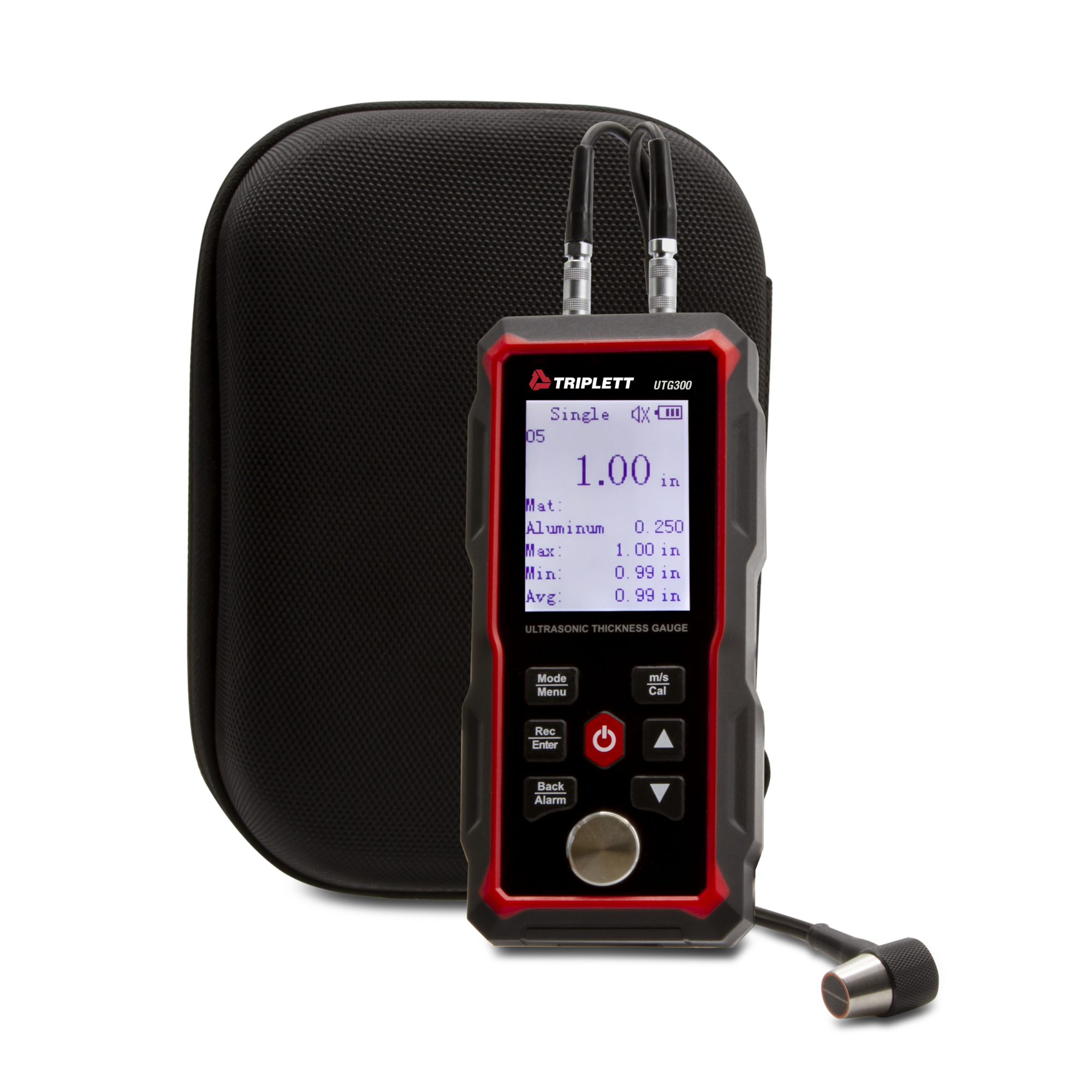

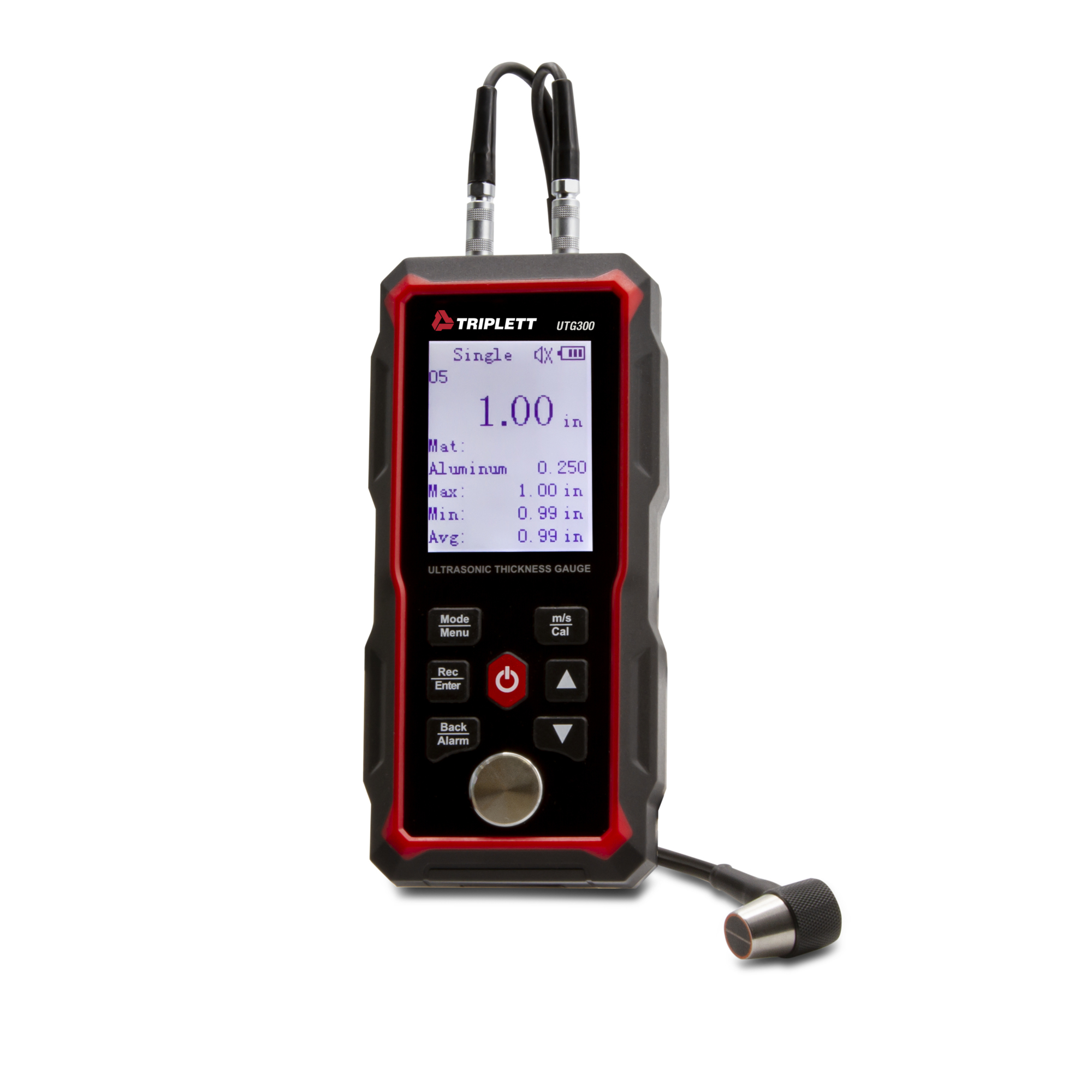

Triplett UTG300 Ultrasonic Thickness Gauge

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedStore Pickup:
Not available - online only
- Measures the thickness of steel, stainless steel, brass, copper, iron, lead, glass and more
- Measurement range from 0.04 to 11.81" (1.00 to 300.00mm)
- 2.4" monochrome dot matrix display
- Single measurement, or continuous with real-time min/max/avg
- Switchable Metric (mm) or Imperial (inches) readout
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Ultrasonic Thickness Gauge
Features + Benefits
- Measures the thickness of steel, stainless steel, brass, copper, iron, lead, glass and more
- Measurement range from 0.04 to 11.81" (1.00 to 300.00mm)
- 2.4" monochrome dot matrix display
- Single measurement, or continuous with real-time min/max/avg
- Switchable Metric (mm) or Imperial (inches) readout
- High/Low alarms when the reading is higher or lower than the user settable reference and limit values
- Manually store 300 records with measured value/min/max/avg and sound velocity
- Low battery indicator
- USB-C interface for charging only (Uses any standard 5V/1A charger, not included)
- Includes 5MHz probe, built-in 3.7V 2000mAh lithium battery with USB type C charging cable, and couplant (0.7oz/20g pouch)
Key Specs
| Attribute | Specification |
|---|---|
item# | 7065641 |
Brand | Triplett |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 0.15 LB |
Functions (qty.) | 1 |
Battery Size | Other |
Low Battery Indicator | Yes |
Battery Type | Other |
| Attribute | Specification |
|---|---|
Battery Included | Yes |
Water Resistant | No |
Power Source | Battery |
Calibration Certificate Included | No |
Application | Detect the thinning of pipes and pressure vessels from corrosion and make accurate measurements of plates and machined parts widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields |
Includes | Includes 5MHz probe, built-in 3.7V 2000mAh lithium battery with USB type C charging cable, and couplant (0.7oz/20g pouch) |
Product Weight | 0.1500 lb |
Dimensions L x W x H (in.) | 5.0 x 2.0 x 7.5 in |
Reviews
Questions & Answers
Questions
-
· a month ago
what is the accuracy tolerance of the thickness
1 answer-
ProductExpert5· 13 days ago
Helpful?
-
Warranty
Manufacturer's Warranty
1 year limited warranty
