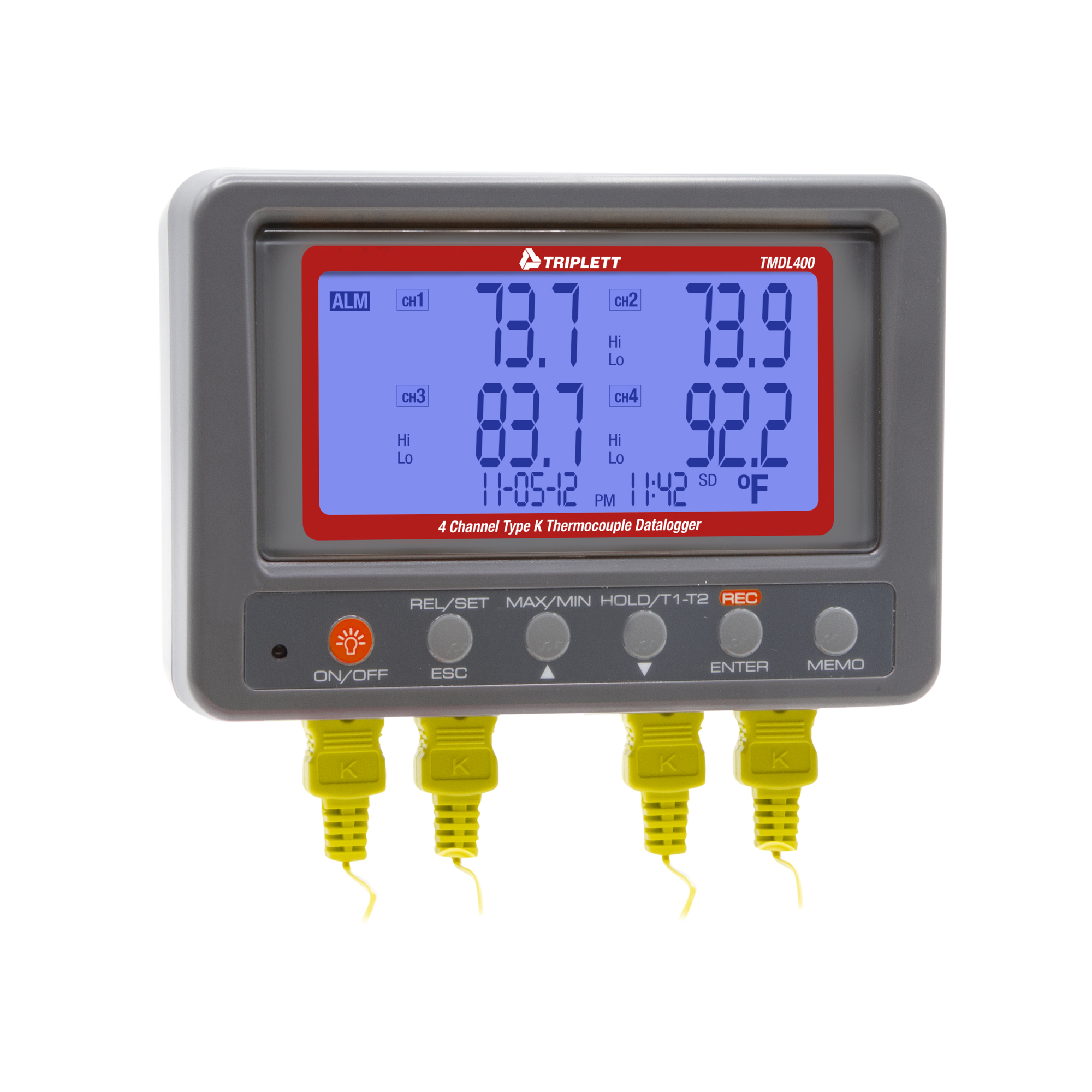

Triplett TMDL400 4 Channel Type K Thermocouple Datalogger (SD)

Item# 7064752
Triplett TMDL400 4 Channel Type K Thermocouple Datalogger (SD)

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett TMDL400 4 Channel Type K Thermocouple Datalogger (SD)

Click or Tap image to Zoom

$341.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

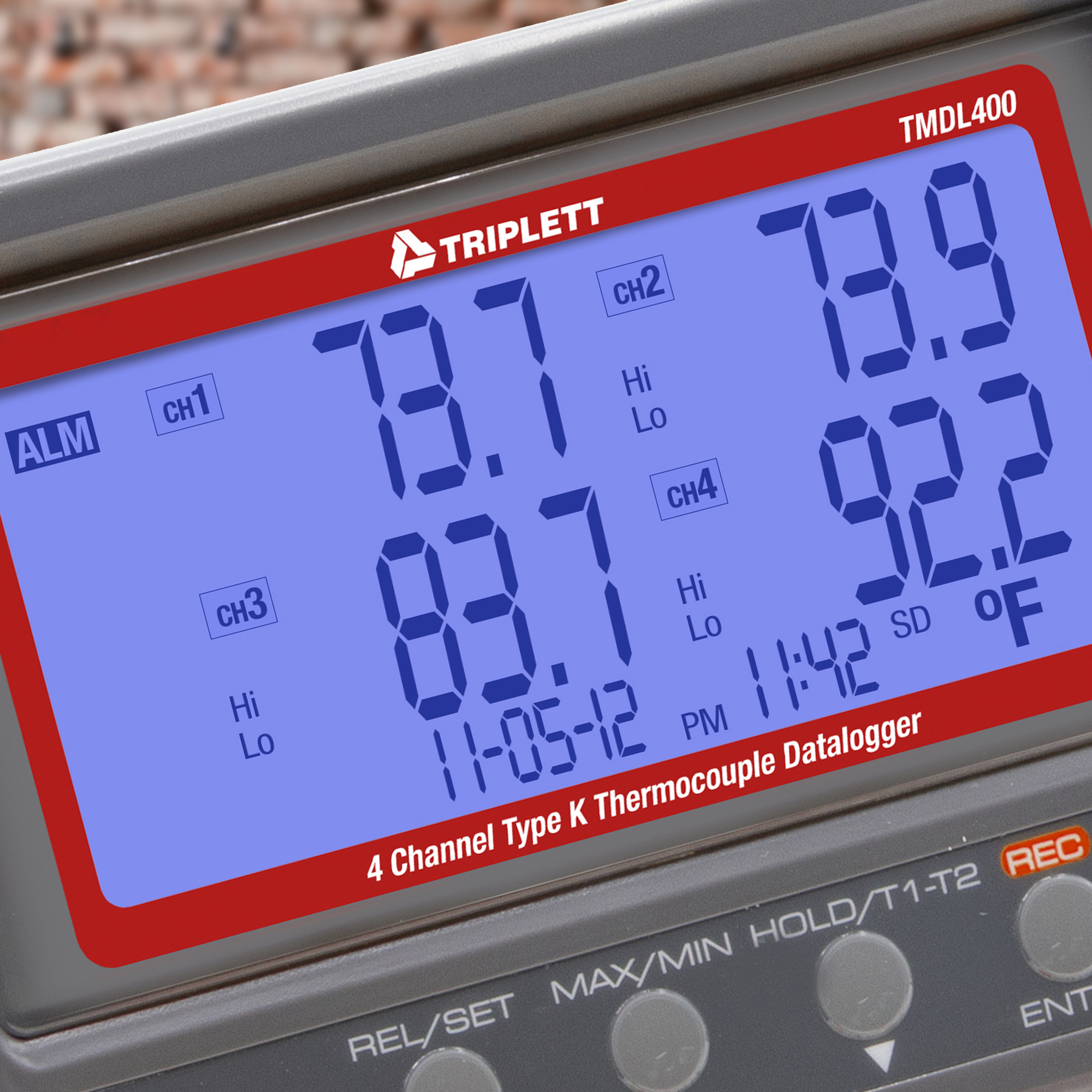

  • Multi-Channel Display: Backlit LCD simultaneously displays four-channel temperature, date, time, and T1-T2.
  • High-Capacity Datalogging: Datalogs multiple files, each containing up to 30,000 readings.
  • Adjustable Sampling Rate: Features a customizable sampling rate from 1 second to 90 minutes.

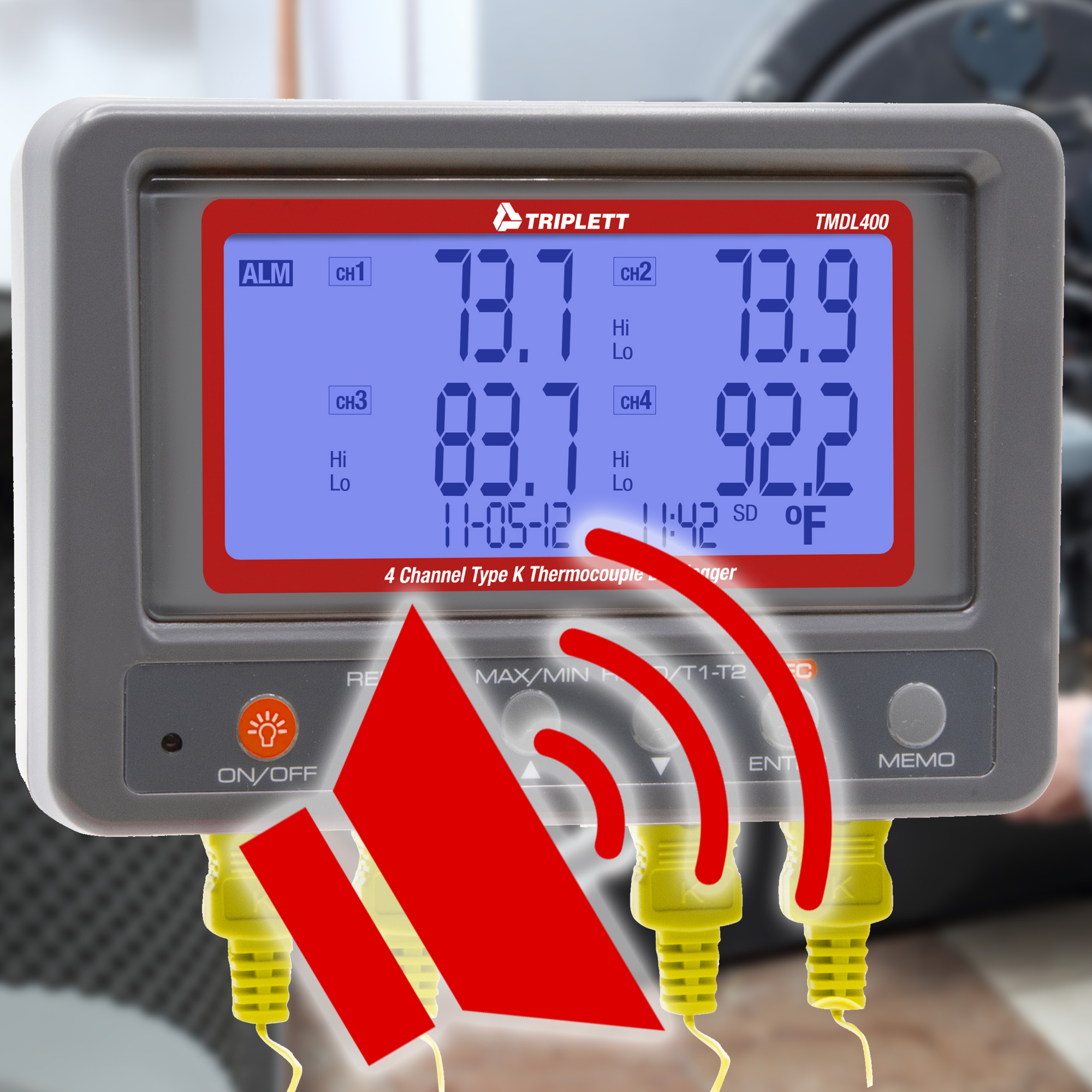

  • Programmable Alerts: User-programmable audible and visual high/low alarms for each channel.
  • Probe Compensation: Adjustable offset for probe compensation on each channel.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett Model TMDL400 4-Channel Type K Thermocouple Datalogger is a precision instrument for comprehensive temperature monitoring. Equipped with a backlit LCD, this datalogger simultaneously displays temperature readings across four channels, along with date, time, and T1-T2. Its versatile functionality enables measurements of surface temperatures of solids, liquids, and ambient air temperature. The TMDL400 can datalog multiple files, each containing up to 30,000 readings, with a customizable sampling rate between 1 second to 90 minutes. Features include a programmable start time, user-configurable audible and visual high/low alarms per channel, and an adjustable offset for probe compensation. Also included are Min/Max recording capabilities, a Data Hold function, and an auto power-off feature with disable function to conserve battery life. This wall-mountable device Includes (4) AA batteries, (4) Type K Thermocouple bead probes, SD Card, and Universal AC Adapter (100-240V) with 3 plugs (US,UK, EU). 1-year warranty.

What's Included

    (1) 4 Channel Type K Thermocouple Datalogger (SD)

Features + Benefits

  • Multi-Channel Display: Backlit LCD simultaneously displays four-channel temperature, date, time, and T1-T2.
  • High-Capacity Datalogging: Datalogs multiple files, each containing up to 30,000 readings.
  • Adjustable Sampling Rate: Features a customizable sampling rate from 1 second to 90 minutes.
  • Programmable Alerts: User-programmable audible and visual high/low alarms for each channel.
  • Probe Compensation: Adjustable offset for probe compensation on each channel.
  • T1-T2 Display: One-button operation for displaying T1-T2 (Channel 1 - Channel 2 only).
  • Min/Max Records: Captures and stores the highest and lowest readings over time.
  • Data Hold Function: Freezes readings on the display for easy viewing.
  • Auto Power-Off & Wall-Mountable: Offers an auto power-off feature with disable for battery conservation and can be conveniently mounted on the wall for easy access.

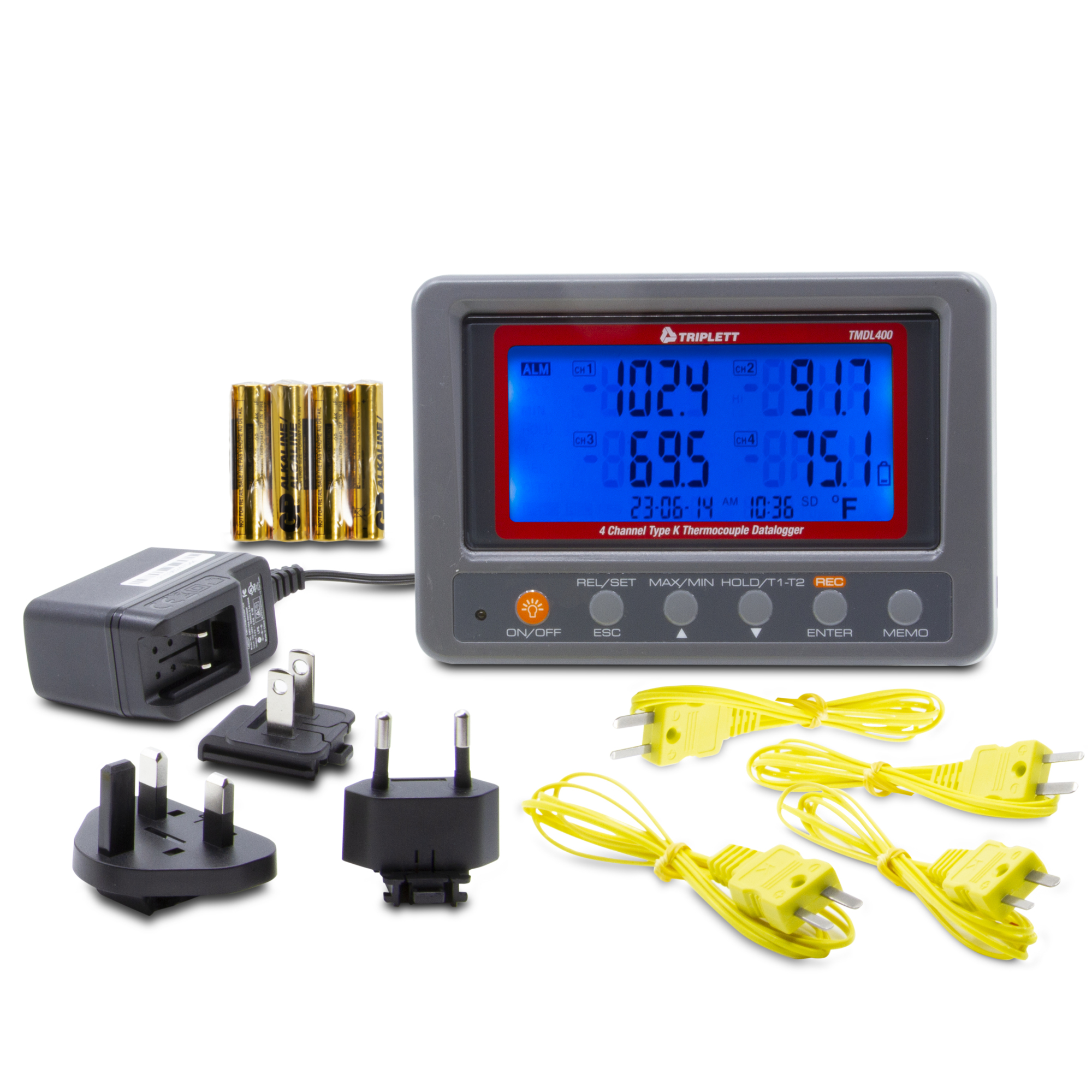

  • Includes 4 AA batteries, (4) Type K Thermocouple bead probes, SD Card, and Universal AC Adapter (100-240V) with 3 plugs (US,UK, EU)

Key Specs

AttributeSpecification

item#

7064752

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.2 LB

Functions (qty.)

4

Display Type

LCD

Battery Size

AA

Low Battery Indicator

Yes

Battery Type

AA
AttributeSpecification

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Calibration Certificate Included

No

Application

Simultaneously displays temperature readings across four channels, along with date, time, and T1-T2

Includes

Includes 4 AA batteries, (4) Type K Thermocouple bead probes, SD Card, and Universal AC Adapter (100-240V) with 3 plugs (US,UK, EU)

Product Weight

0.2000 lb

Dimensions L x W x H (in.)

5.0 x 4.0 x 1.5 in
