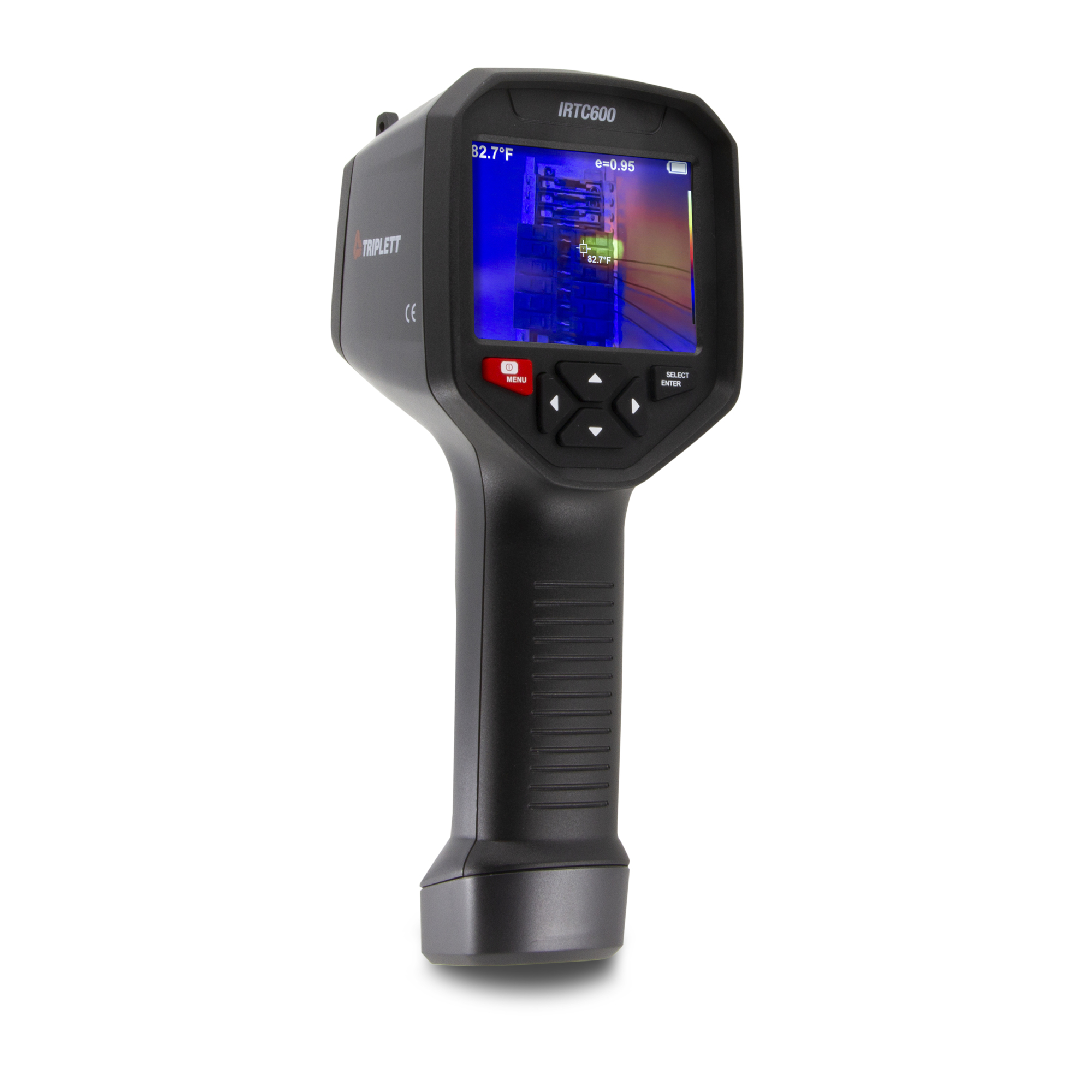

Triplett, Thermal Imaging Camera with Visible Light Camera, Model# IRTC600

Item# 5851496
Triplett, Thermal Imaging Camera with Visible Light Camera, Model# IRTC600

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett, Thermal Imaging Camera with Visible Light Camera, Model# IRTC600

Click or Tap image to Zoom

$878.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Hot or cold spots quickly indicate where potential issues are located
  • Infrared/Visible Light/Fusion display modes
  • 220 x 160 pixels (35,200) with ?70mk Thermal Sensitivity (NETD)
  • Selectable degree of fusion between IR and visible image (0%,25%,50%,75% and 100%)
  • Center spot and high/low temperature tracking on image

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

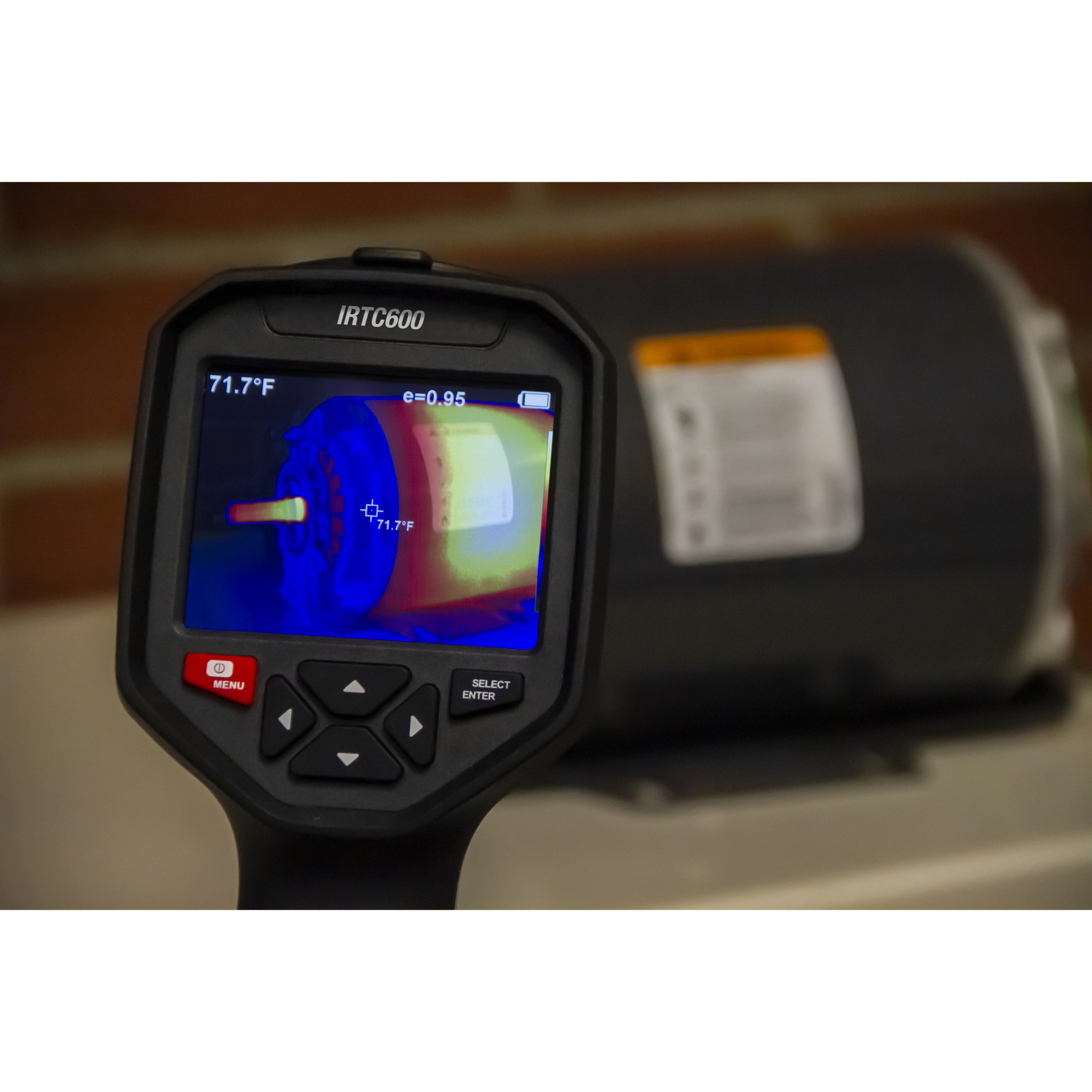

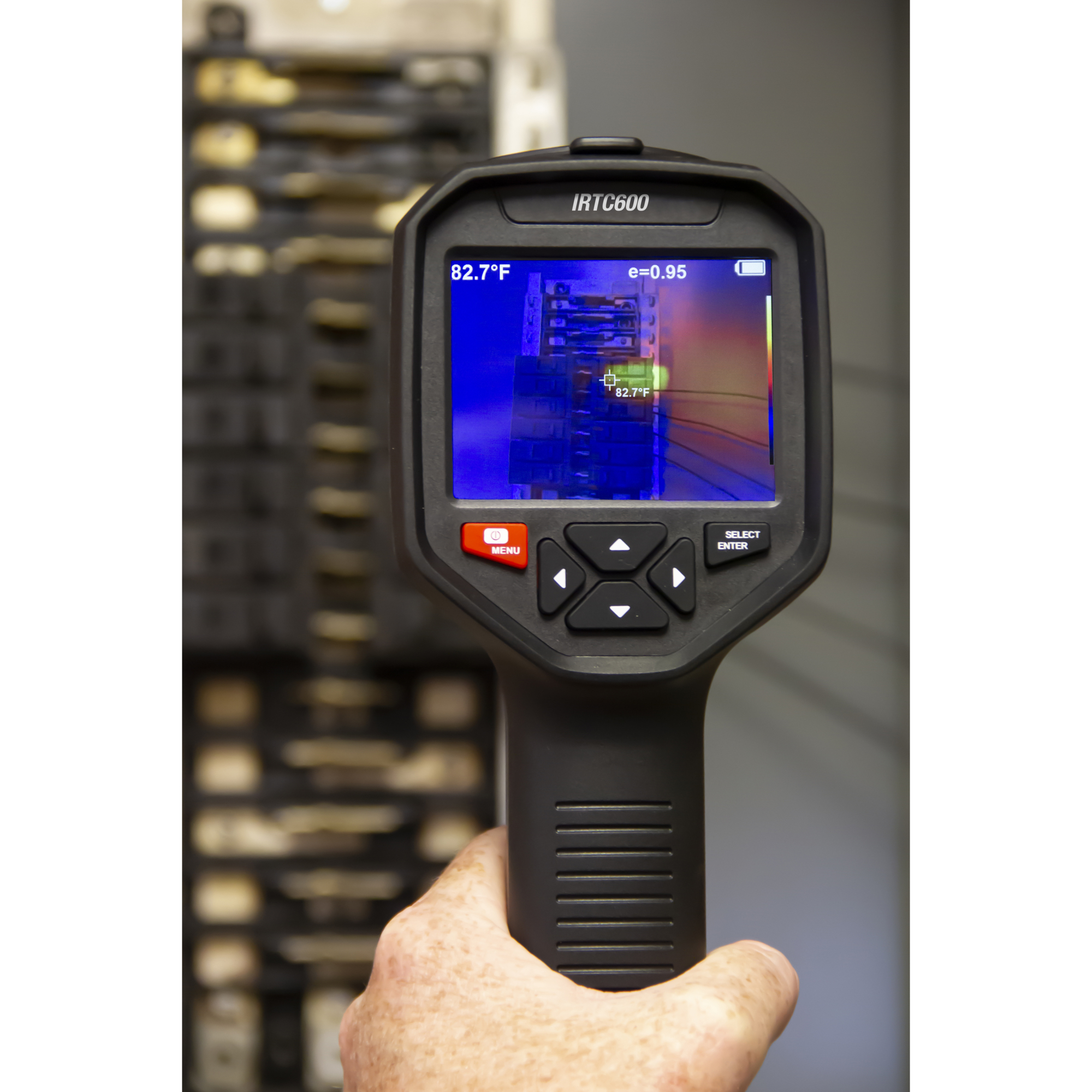

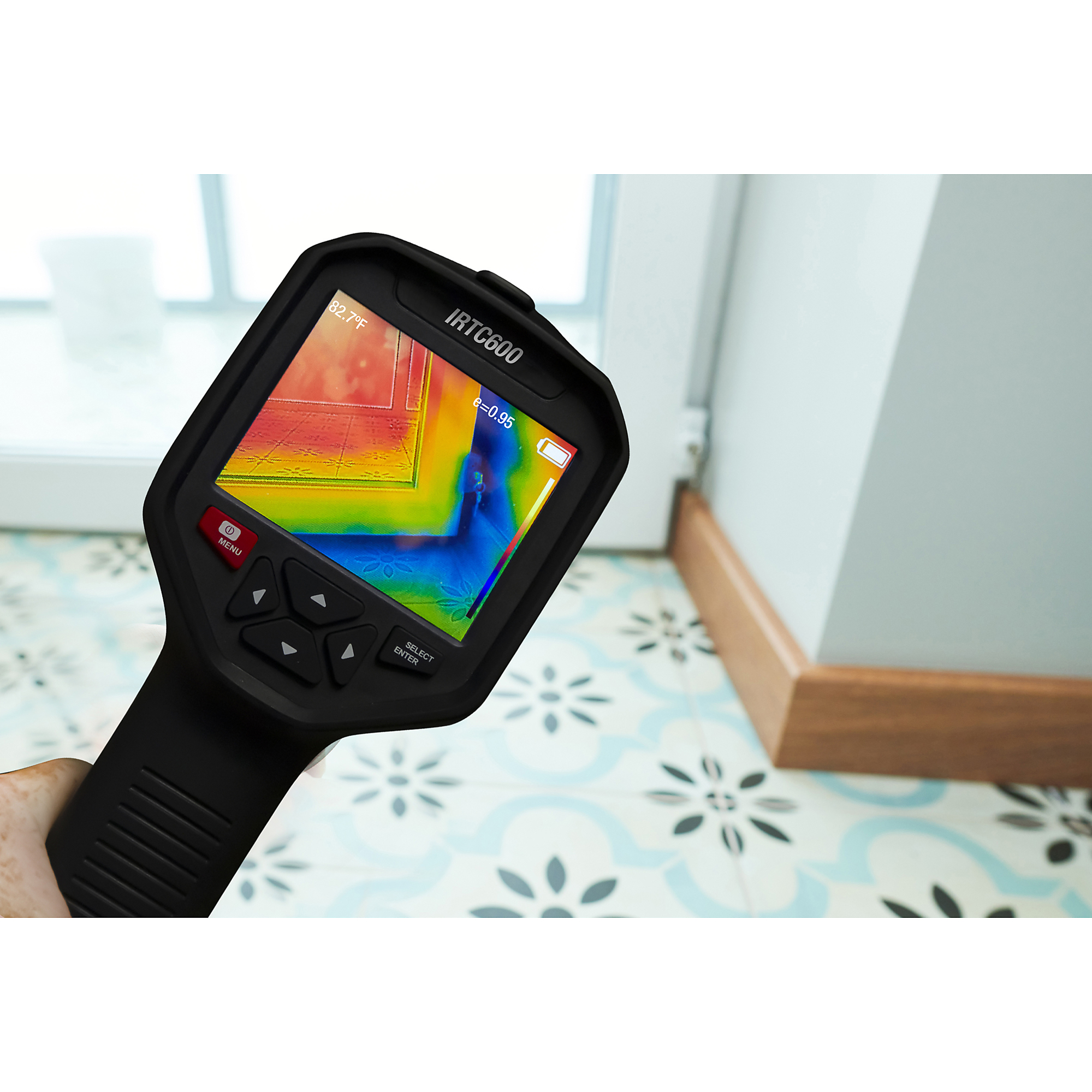

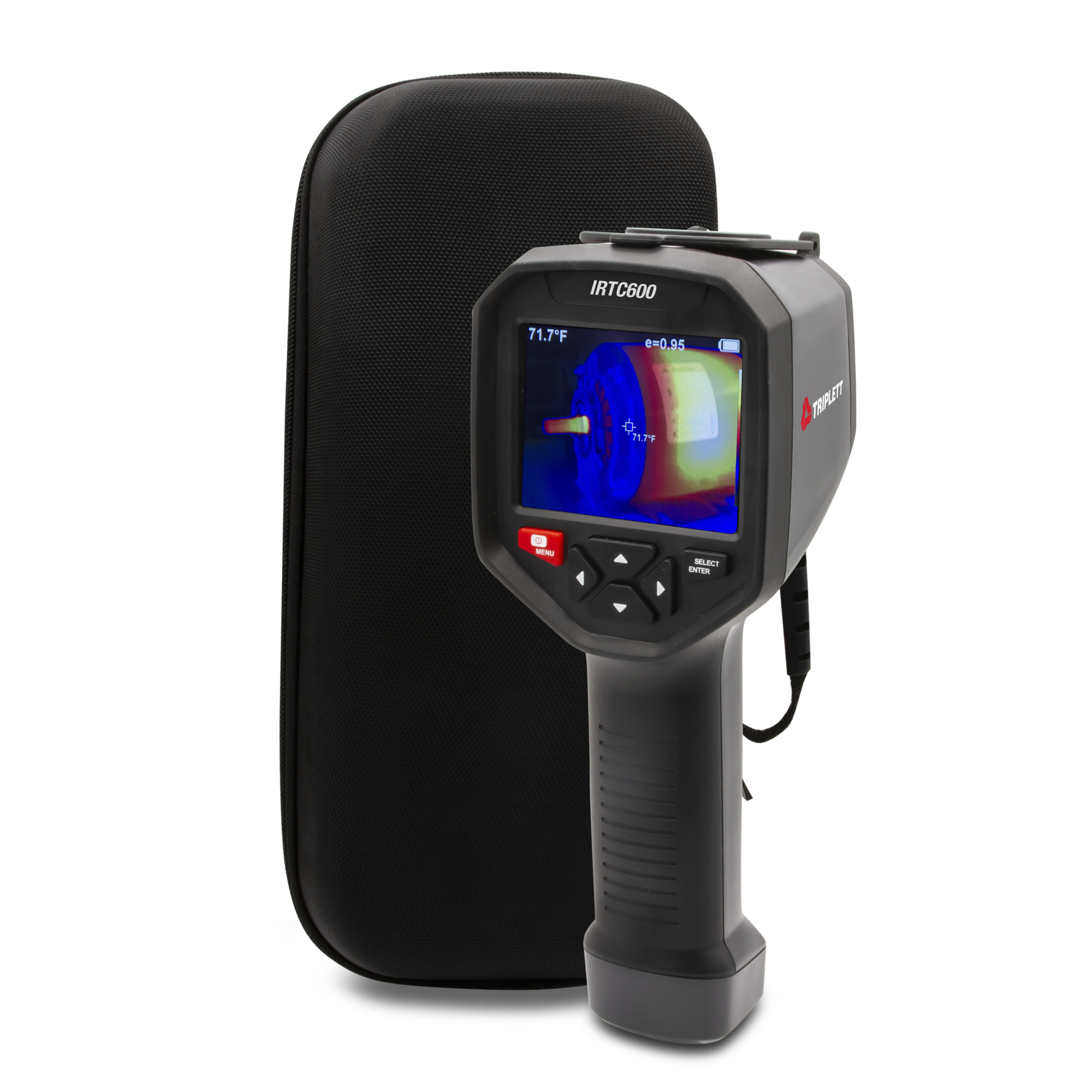

The Triplett Model IRTC600 Thermal Imaging Camera can be used for preventative maintenance and troubleshooting of electrical and HVAC systems, mechanical breakdowns, water leaks and moisture buildup, heat loss from missing insulation and faulty windows/doors, automotive repair, and other places to find hidden leaks and hot spots. The thermal imager has a built-in visible light camera (640 x 480) that allows you to select Infrared/Visible Light/Fusion display modes. Infrared mode has a 220 x 160 pixel (35,200) thermal detector with ?70mk Thermal Sensitivity (NETD) that displays center spot and high/low temperature tracking on a 3.2in. (81.3mm) fixed focus, color TFT display with 320 x 240 resolution. Additional features include a user-selectable degree of fusion between IR and visible image (0%,25%,50%,75% and 100%), easy-to-use menu, real time clock/calendar, and Auto power off with disable. Use the on-board image index to view video (.mp4) and images (.jpg) or transfer them to your PC via USB interface that is also used to recharge the thermal imager. Includes rechargeable 3.7V Lithium Ion battery, USB cable, AC adapter/charger, software, and pouch case. 1-year warranty.

What's Included

    (1) Thermal Imaging Camera (1) rechargeable 3

Features + Benefits

  • Hot or cold spots quickly indicate where potential issues are located
  • Infrared/Visible Light/Fusion display modes
  • 220 x 160 pixels (35,200) with ?70mk Thermal Sensitivity (NETD)
  • Selectable degree of fusion between IR and visible image (0%,25%,50%,75% and 100%)
  • Center spot and high/low temperature tracking on image
  • Easy-to-use menu
  • Real time clock/calendar
  • On-screen image index for viewing videos and pictures
  • Auto power off with disable

Key Specs

AttributeSpecification

item#

5851496

Brand

Triplett

Manufacturer's Warranty

12 months parts/12months labor
AttributeSpecification

Ship Weight

3.4 LB

Product Weight

lb

Dimensions L x W x H (in.)

8.8 x 4.1 x 3.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
