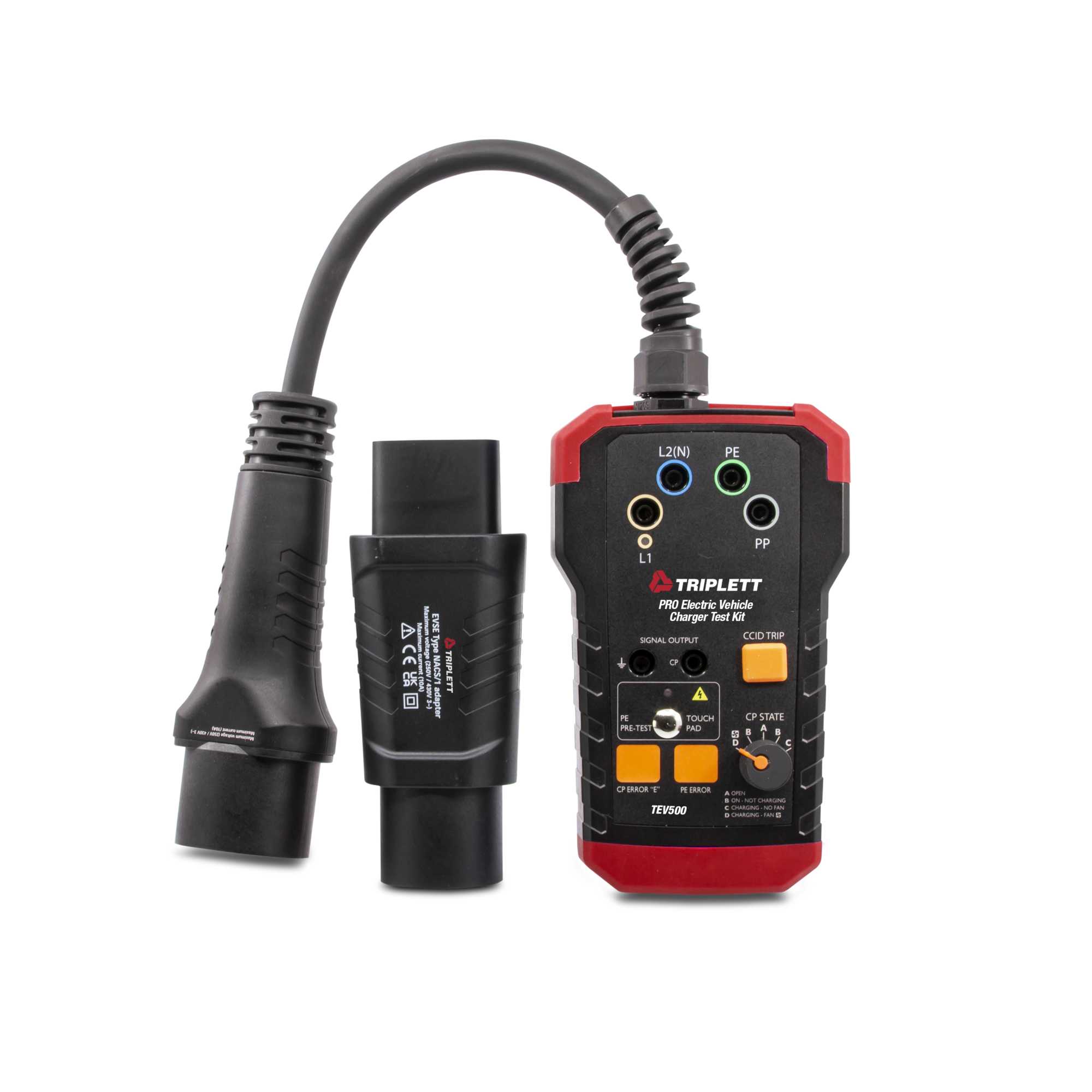

Triplett TEV500 Pro Electric Vehicle Charger Test Kit

Item# 7065632
Triplett TEV500 Pro Electric Vehicle Charger Test Kit

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett TEV500 Pro Electric Vehicle Charger Test Kit

Click or Tap image to Zoom

$769.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Test charging stations for both basic & advanced diagnostic requirements
  • PE Pre-Test: Allows testing the PE conductor for possible presence of dangerous voltage against earth
  • Control Pilot (CP) State (Vehicle Simulation): With the CP State rotary switch selector various vehicle states can be simulated
  • CP Signal State Output: For use with an oscilloscope to check the waveform and amplitude of the CP signals
  • CP Error “E” simulation: Simulate the behavior of the station when there is an established short circuit between CP and PE

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

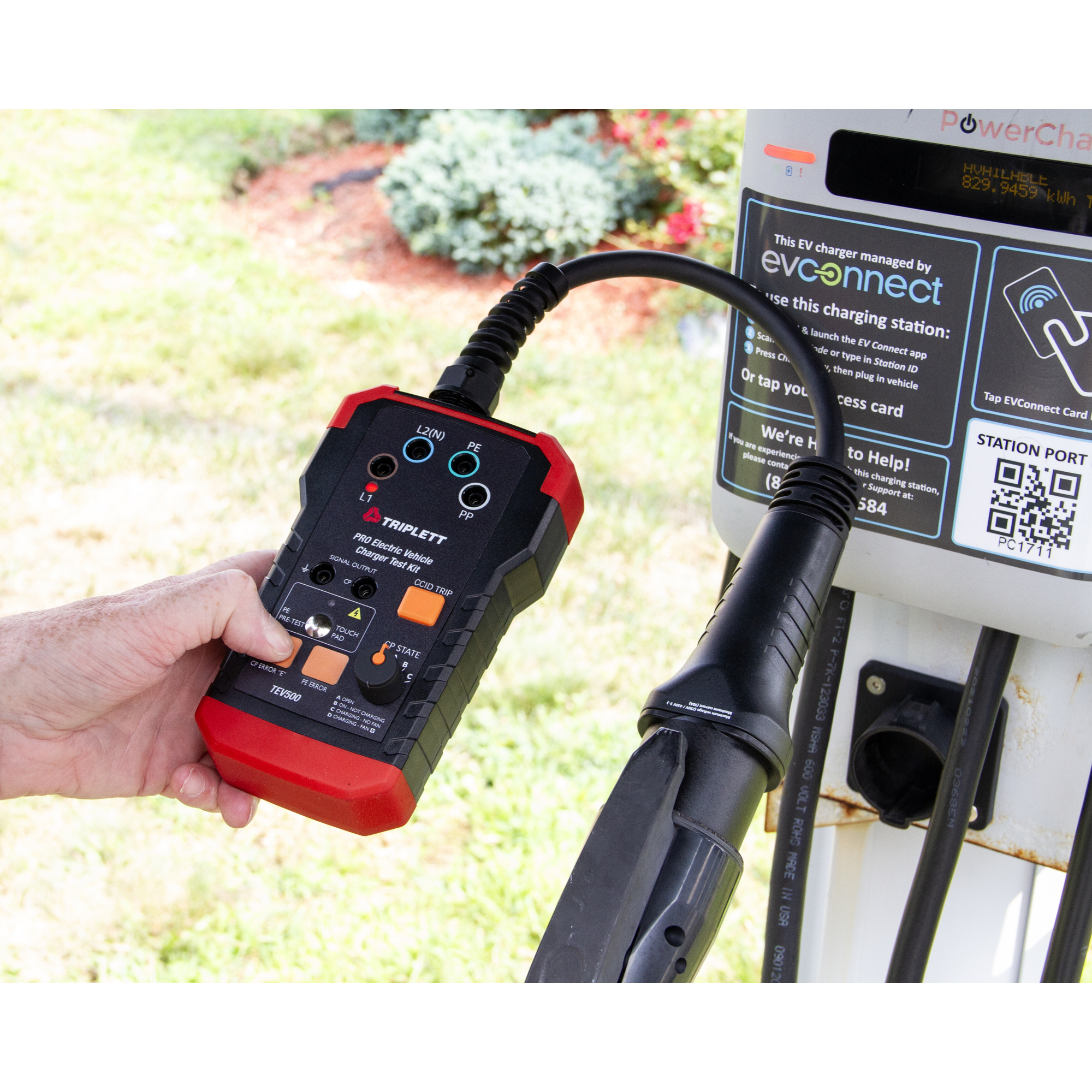

The Triplett Model TEV500 PRO Electric Vehicle Charger Test Kit tests charging stations using basic advanced diagnostics. PE Pre-Test checks the PE conductor for the possible presence of dangerous voltage against earth. With the CP (Control Pilot) State rotary switch selector various vehicle states can be simulated. You can use the CP Signal output terminals to connect your oscilloscope to check the waveform and amplitude of the CP signal. CP Error “E” simulates the behavior of the station when there is an established short circuit between CP and PE. PE Error (Earth Fault) simulates interruption of the PE conductor. When the CCID TRIP Test Button is pressed, a connection between L1 and PE is established and CCID from the station should abort charging process. A phase indicator LED will illuminate when phase voltage on L1 is present at the charging connector. The Measuring Terminal Outputs L1, L2(N), PE and PP are directly connected to the L1, L2(N), PE and PP conductors of the tested charging station. You can use your digital multimeter for quickly viewing voltage readings on these lines. SAE J1772 complies with North American standards. Includes (1) IEC62196-2 Type 1 female to male adaptor/converter and pouch case.

What's Included

    (1) Pro Electric Vehicle Charger Test Kit

Features + Benefits

  • Test charging stations for both basic & advanced diagnostic requirements
  • PE Pre-Test: Allows testing the PE conductor for possible presence of dangerous voltage against earth
  • Control Pilot (CP) State (Vehicle Simulation): With the CP State rotary switch selector various vehicle states can be simulated
  • CP Signal State Output: For use with an oscilloscope to check the waveform and amplitude of the CP signals
  • CP Error “E” simulation: Simulate the behavior of the station when there is an established short circuit between CP and PE
  • PE Error (Earth Fault) simulation: Simulates interruption of the PE conductor
  • CCID TRIP Test Button: When pressed a connection between L1 and PE is established and CCID from the station should abort charging process
  • Phase indicator LED: When phase voltage on L1 is present at the charging connector, the LED indicator will illuminate
  • Measuring Terminal Outputs L1, L2(N), PE and PP: Directly connected to L1, L2(N), PE and PP conductors of the tested charging station. It is allowed to use these for measuring purposes only and can be used with any Digital Multimeter for viewing voltage readings
  • SAE J1772 -Complies with North American standards

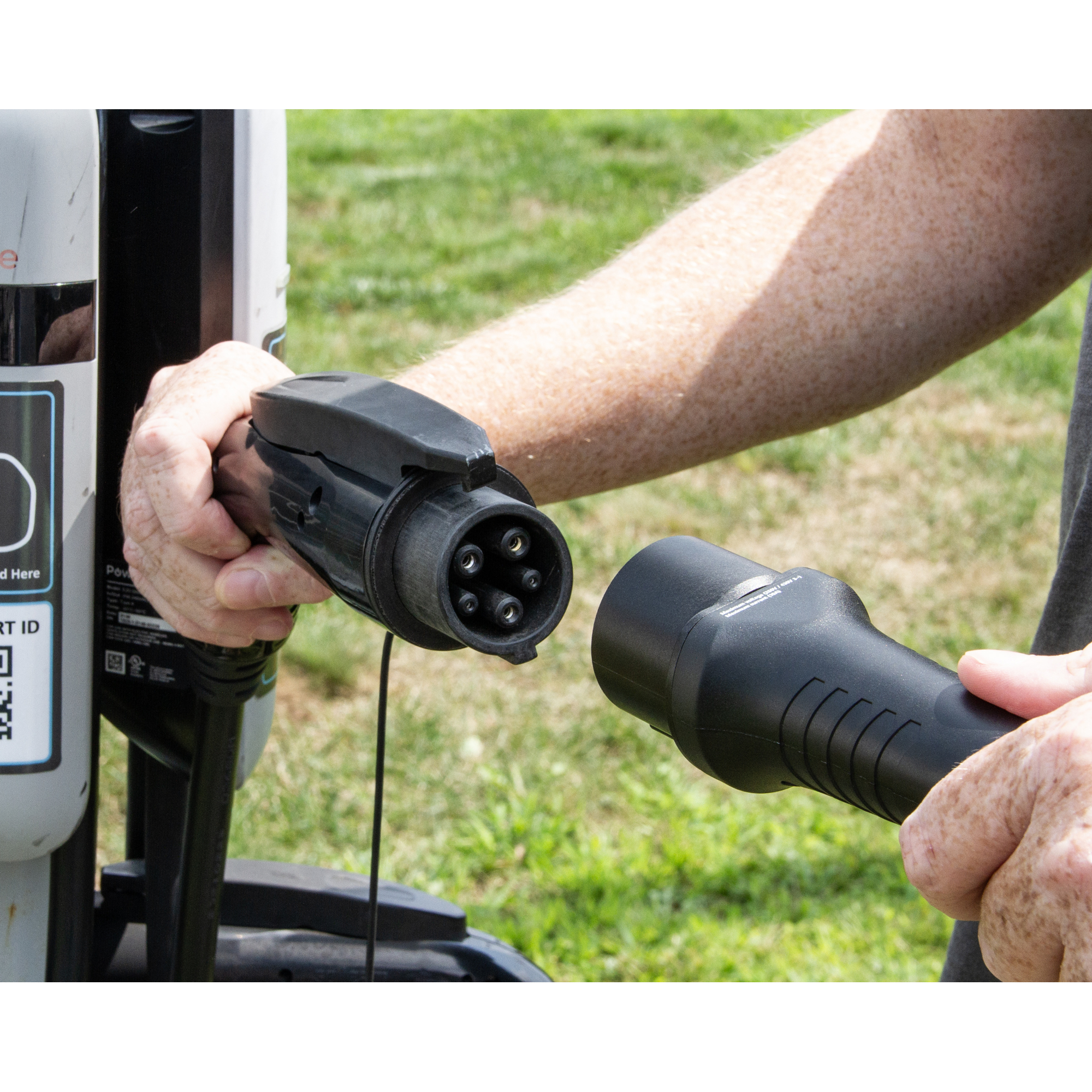

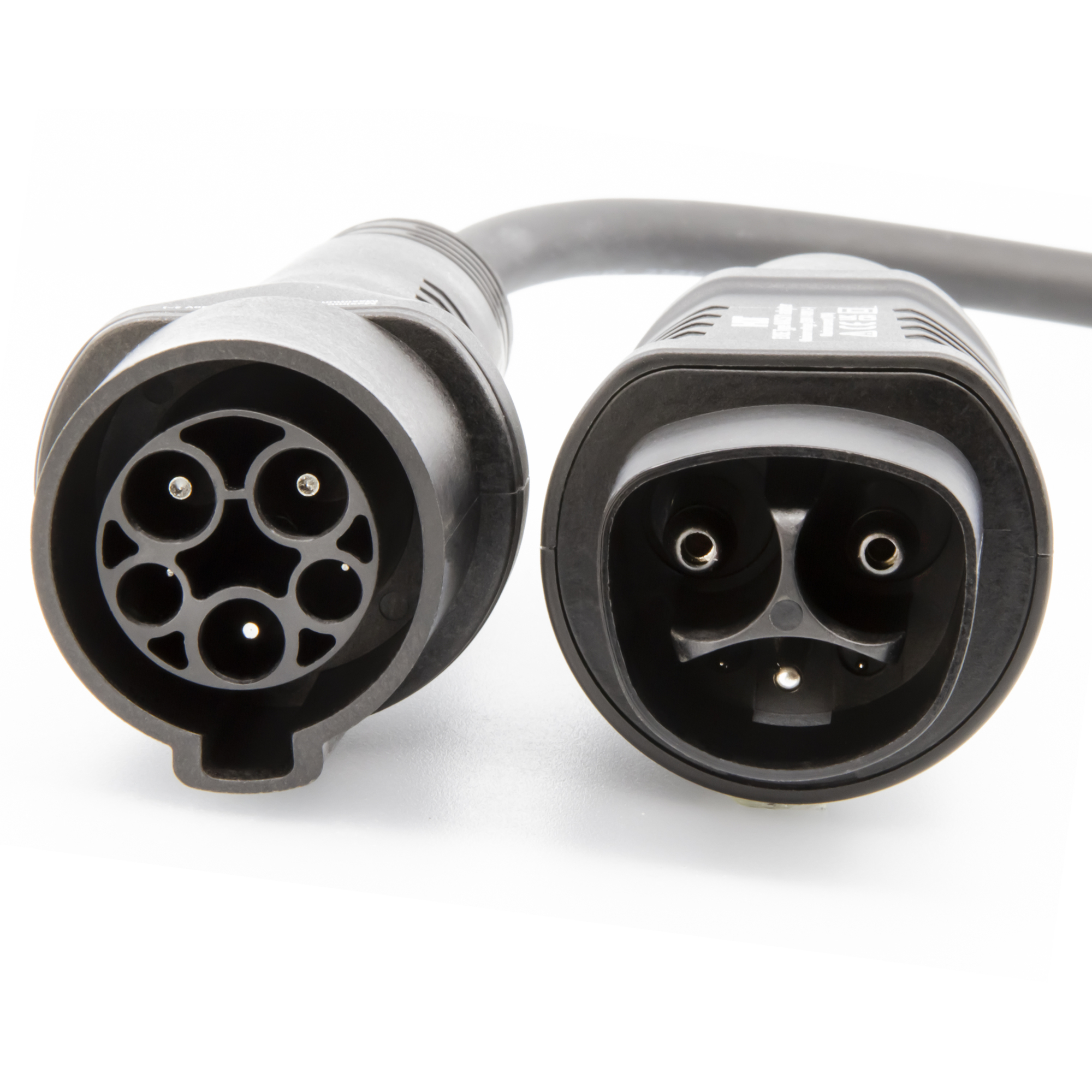

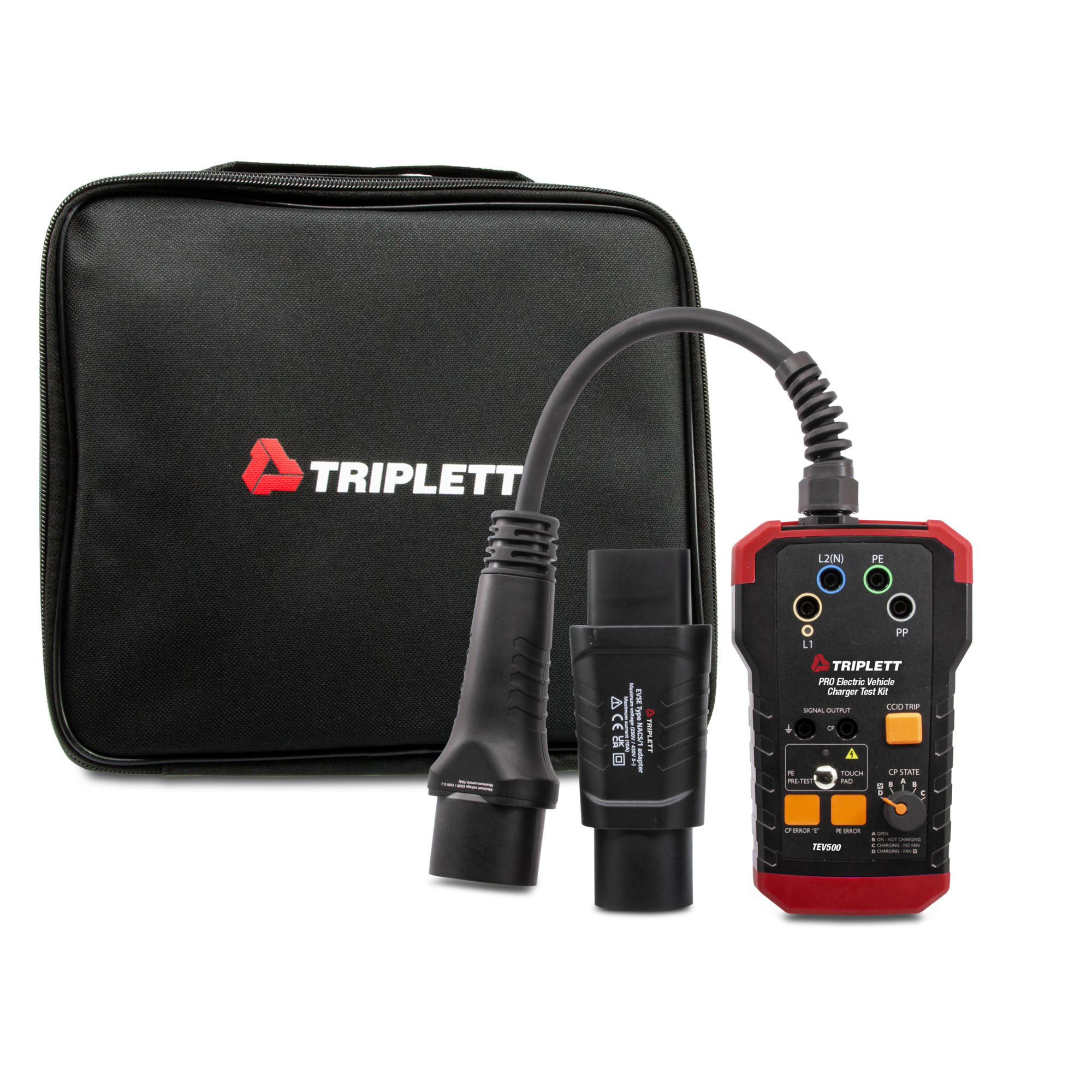

  • Includes (1) IEC62196-2 Type 1 female to male adaptor/converter and pouch case

Key Specs

AttributeSpecification

item#

7065632

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.75 LB

Functions (qty.)

1
AttributeSpecification

Calibration Certificate Included

No

Application

Test charging stations for both basic & advanced diagnostic requirements

Includes

Includes (1) IEC62196-2 Type 1 female to male adaptor/converter and pouch case

Product Weight

1.7500 lb

Dimensions L x W x H (in.)

10.5 x 10.0 x 3.25 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
