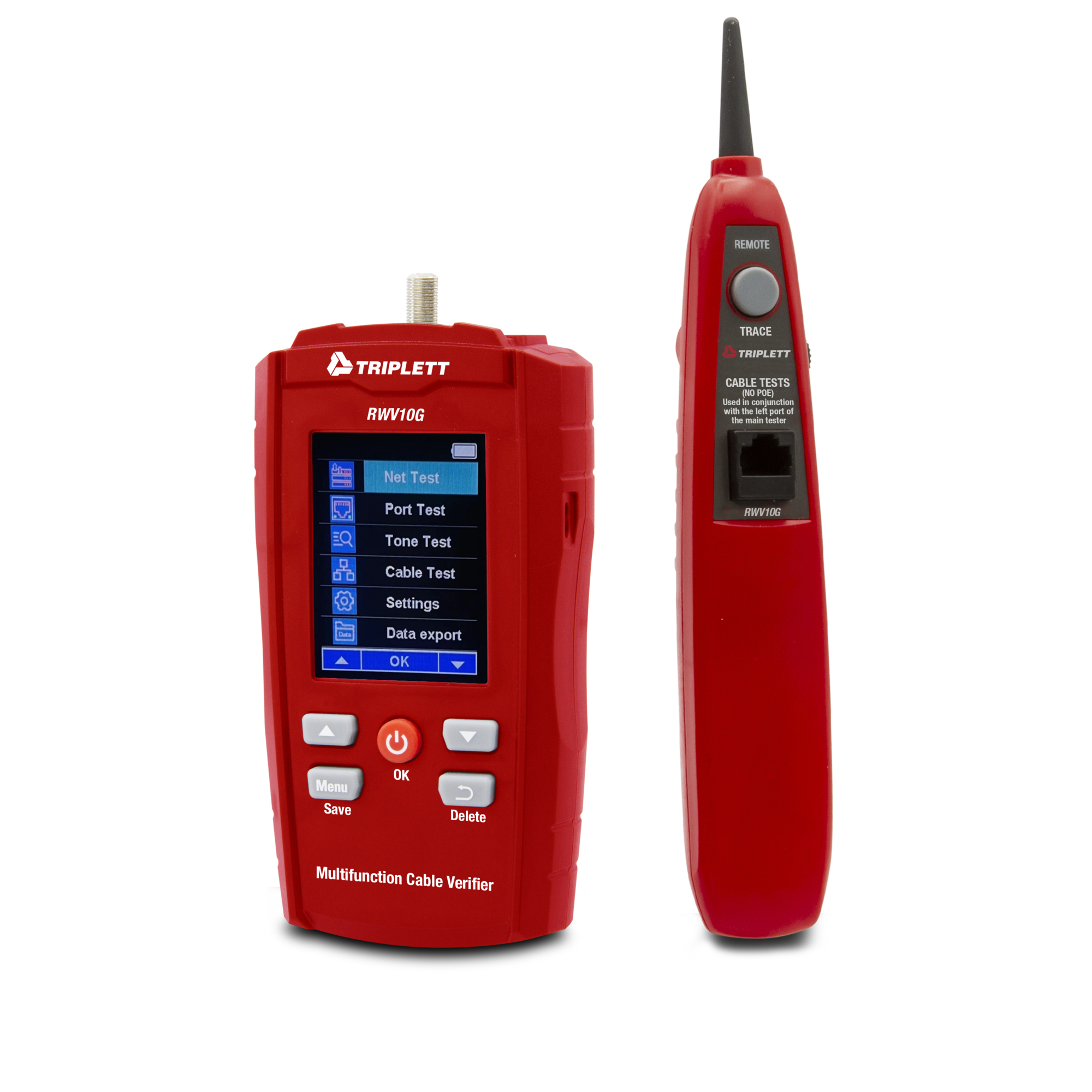

Triplett RWV10G Real World LAN and Cable Verifier

Item# 7065536
Triplett RWV10G Real World LAN and Cable Verifier

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett RWV10G Real World LAN and Cable Verifier

Click or Tap image to Zoom

$714.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Speed tests (10MB, 100MB, 1Gb and 10Gb) on full color display
  • Cable type (CAT 3, 5, 5E, 6, 6A, 7, UTP & STP)
  • Displays port speed, duplex, and data levels of all pairs using real data from your hub, switch or PC
  • Cable length (real 1 nanosecond TDR)
  • Opens, shorts, split pairs, split distance

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett RWV10G Real World LAN and Cable Verifier is break-through technology that brings cable and network verification and testing to a whole new level of reality. Unlike traditional testers, the RWV10G uses digital circuitry and digital testing techniques to perform its tasks. It works with UTP and all Ethernet devices. These tests include traditional TIA568 cable verification (length, opens, shorts, split pairs, wire map) for UTP (unshielded twisted pair). Plus RWV10G's own sophisticated crosstalk, timing and cable parameter tests that yield a UTP cable's category (CAT3, CAT5, CAT5E, CAT6, CAT7) and speed capability (10M, 100M, 1G, 10G). In addition, the RWV10G can use your own network devices (hubs, switches, PCs) to test UTP cables with live data and, the RWV10G analyzes links and data from all types of hubs, switches and PCs. It performs both single sided tests for advertised speed (10M, 100M, 1G, 10G and duplex) and inline tests (between devices) for negotiated speed. The engine of the RWV10G circuitry is capable of 1 nanosecond resolution. It also works with coax cable and can test for the length of the cable, opens, shorts, wiremap and distance to any faults that might exist. As with UTP, coax can be toned with the toner feature and test results can be stored for later printing in the RWV10G's memory. Includes Remote Probe, (2) RJ45 to RJ45 cables, RJ45 to F cable, USB cable, (1) 9V and (3) AA batteries. 1 year warranty.

What's Included

    (1) Real World LAN and Cable Verifier

Features + Benefits

  • Speed tests (10MB, 100MB, 1Gb and 10Gb) on full color display
  • Cable type (CAT 3, 5, 5E, 6, 6A, 7, UTP & STP)
  • Displays port speed, duplex, and data levels of all pairs using real data from your hub, switch or PC
  • Cable length (real 1 nanosecond TDR)
  • Opens, shorts, split pairs, split distance
  • Skew, Propagation delay

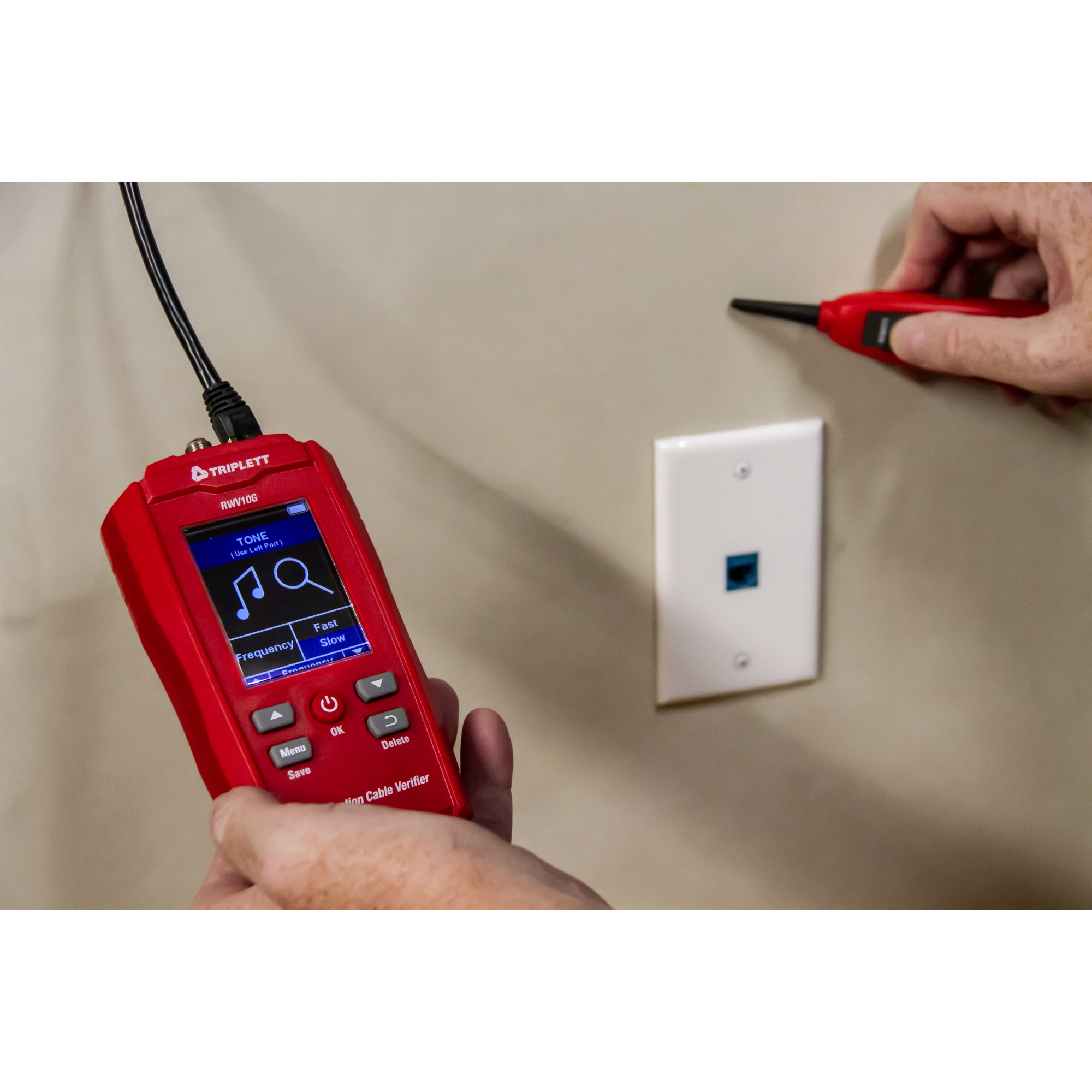

  • Tone mode for tracing and troubleshooting
  • PoE Detection
  • Stores 250 tests for print “receipt” to document test results
  • Port blink test

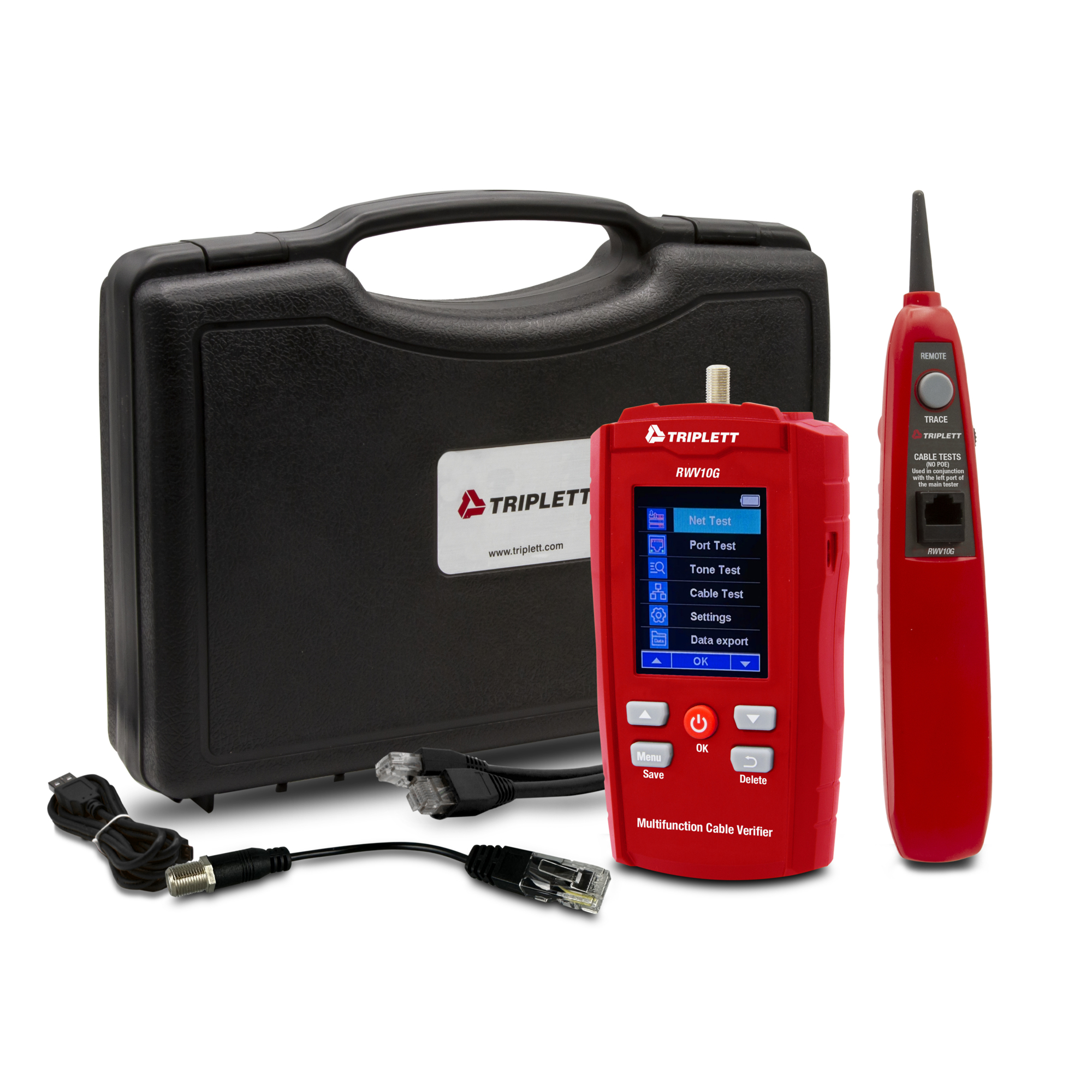

  • Includes Remote Probe, (2) RJ45 to RJ45 cables, RJ45 to F cable, USB cable, (1) 9V and (3) AA batteries

Key Specs

AttributeSpecification

item#

7065536

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.28 LB

Functions (qty.)

1

Display Type

Analog

Battery Size

9V

Low Battery Indicator

Yes

Battery Type

Other
AttributeSpecification

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Calibration Certificate Included

No

Application

For a new level of cable and network verification and testing

Includes

Includes Remote Probe, (2) RJ45 to RJ45 cables, RJ45 to F cable, USB cable, (1) 9V and (3) AA batteries

Product Weight

3.2800 lb

Dimensions L x W x H (in.)

12.3 x 4.0 x 9.25 in
