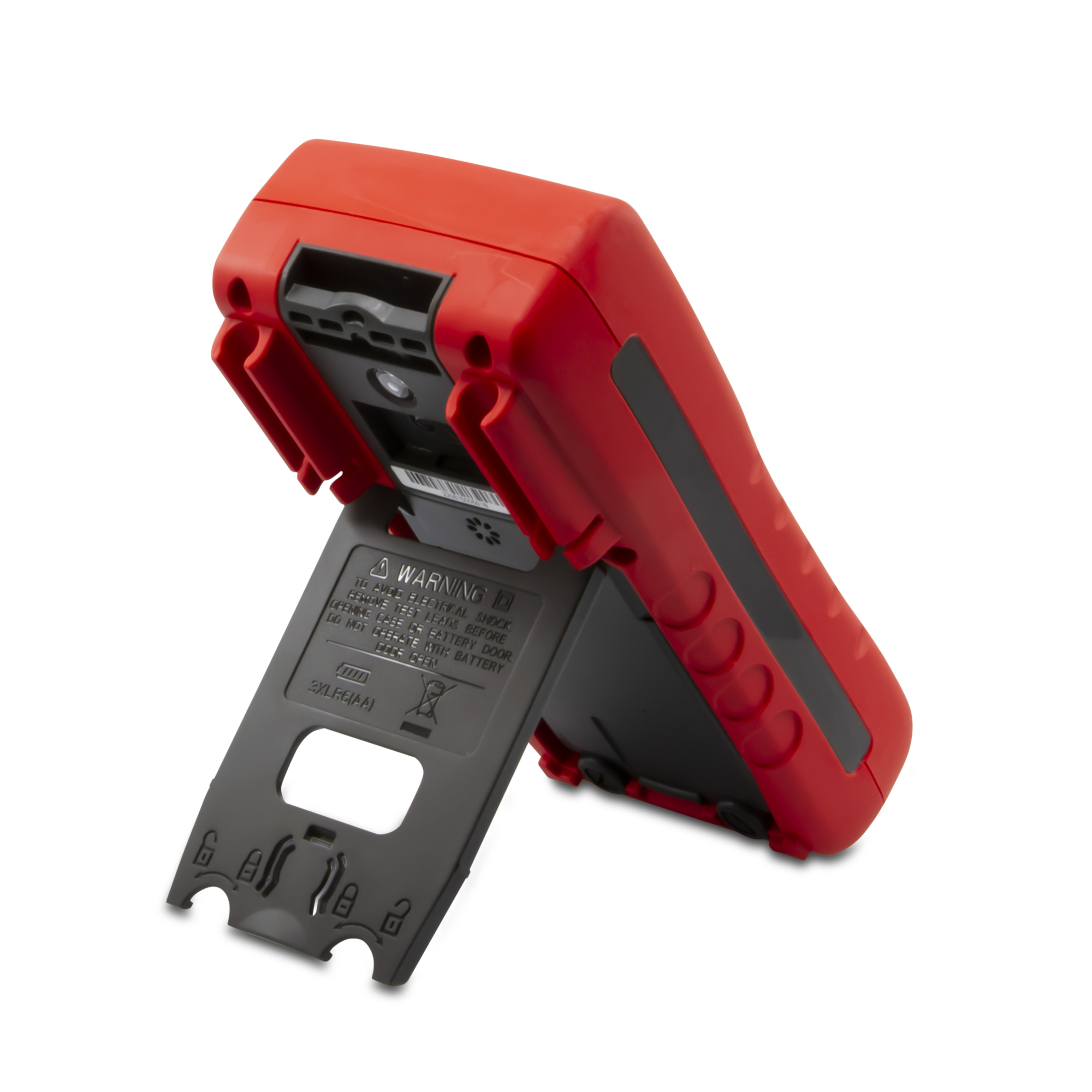

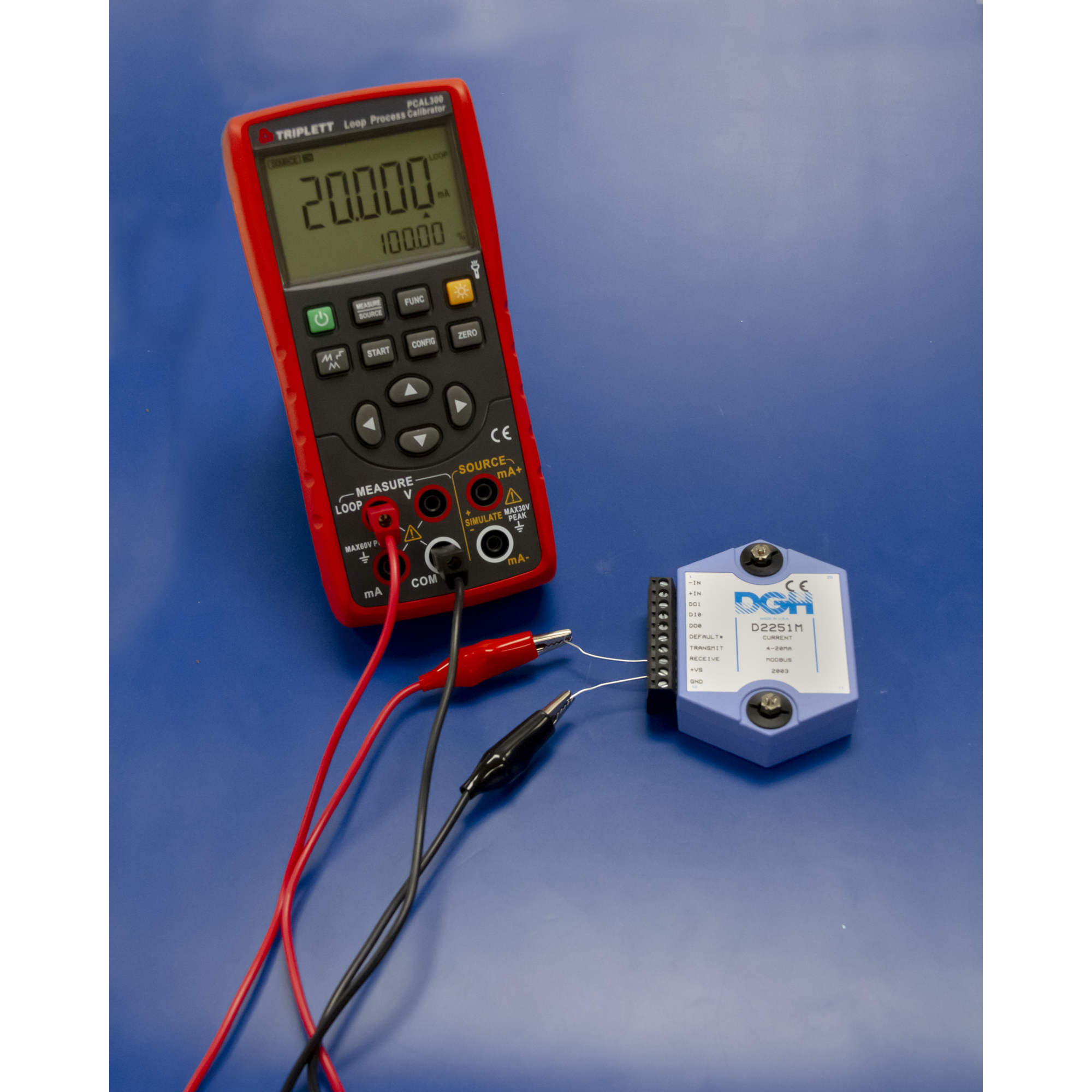

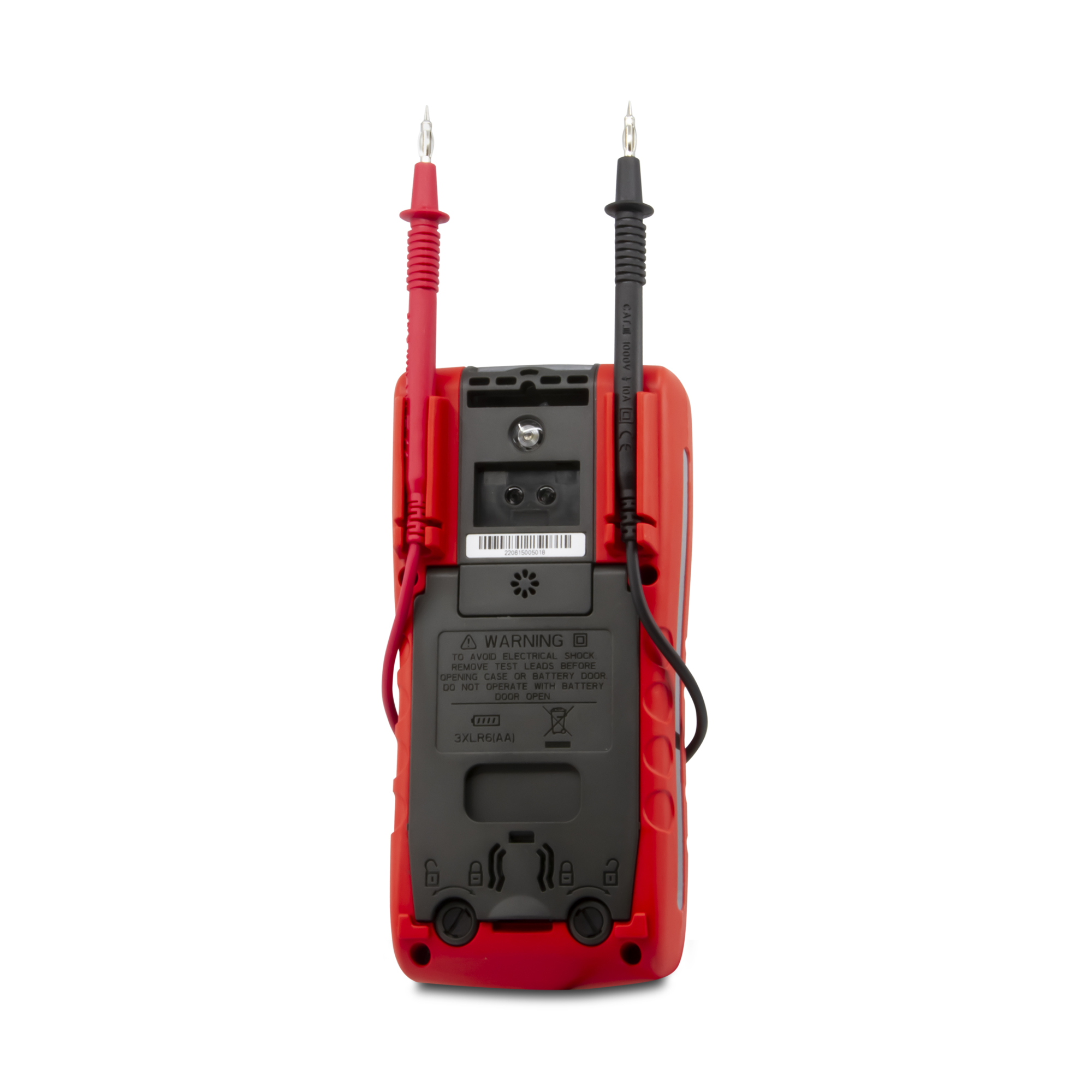

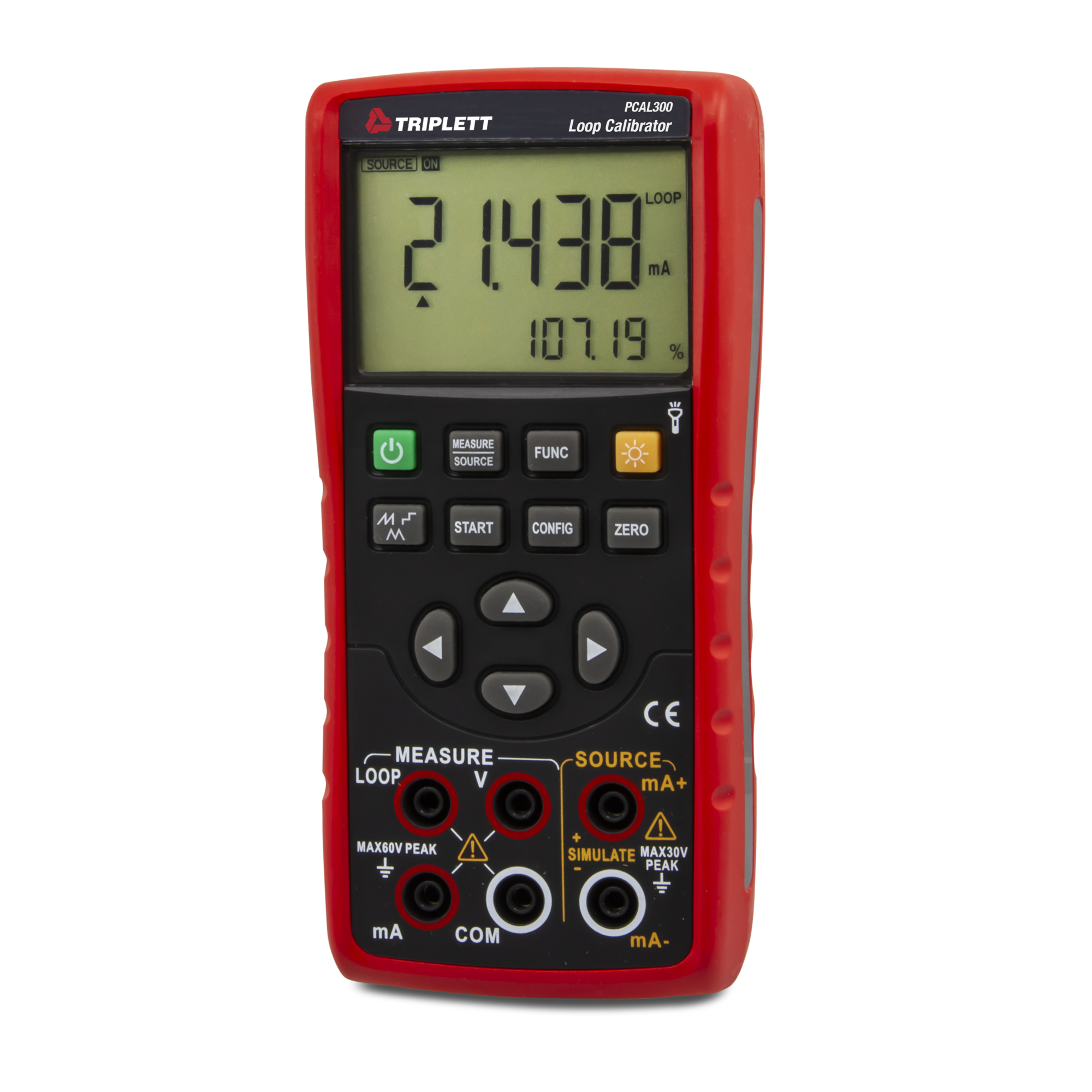

Triplett PCAL300 Loop Process Calibrator

Item# 7064795
Triplett PCAL300 Loop Process Calibrator

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett PCAL300 Loop Process Calibrator

Click or Tap image to Zoom

$549.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Easily measure DC voltage/current and source DC mA current
  • Source and measure accuracy up to 0.02%
  • Simultaneously provides 24V loop power to transmitter while conducting mA current measurement
  • Adjustable 0-20mA/4-20mA span with % readout
  • Automatic sawtooth or triangular output current step function

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett PCAL300 Loop Process Calibrator for benchtop and field industrial process device testing and calibration can easily measure DC voltage/current and source DC mA current with an accuracy of 0.02%. It can simultaneously provide 24V loop power to transmitter while conducting mA current measurement. In addition, it features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off, and a built-in flashlight. Includes test leads, (3) AA batteries, (4) spare fuses, and latch key (for opening battery door). 1-year warranty.

What's Included

    (1) Loop Process Calibrator

Features + Benefits

  • Easily measure DC voltage/current and source DC mA current
  • Source and measure accuracy up to 0.02%
  • Simultaneously provides 24V loop power to transmitter while conducting mA current measurement
  • Adjustable 0-20mA/4-20mA span with % readout
  • Automatic sawtooth or triangular output current step function
  • Built-in Flashlight
  • Auto power off

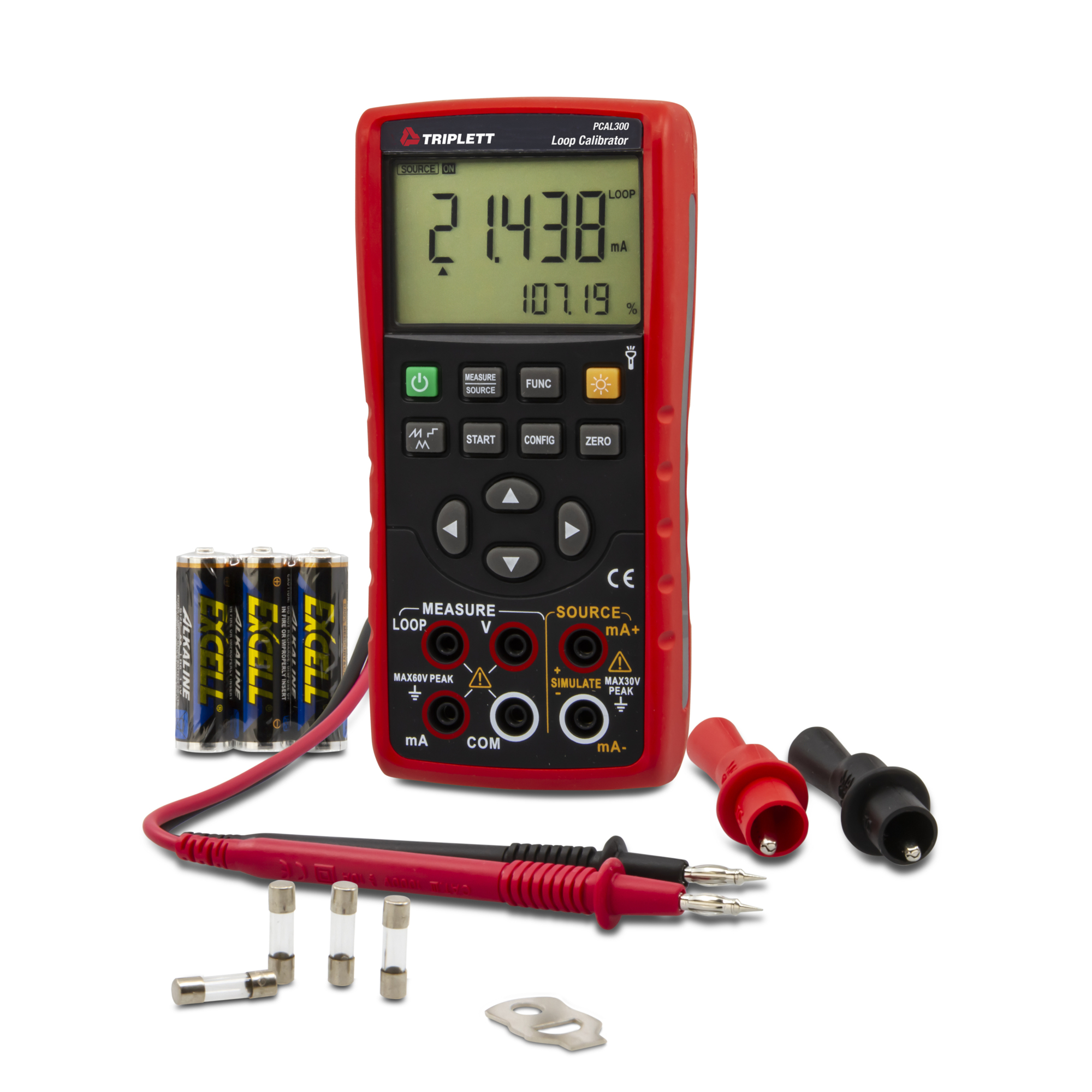

  • Includes test leads, (3) AA batteries, (4) spare fuses, and latch key (for opening battery door).

Key Specs

AttributeSpecification

item#

7064795

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.8 LB

Functions (qty.)

3

Display Type

LCD

Max. DC Volts

36

Max. DC Amps

30

Battery Size

AAA

Low Battery Indicator

Yes
AttributeSpecification

Battery Type

AAA

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Calibration Certificate Included

No

Application

Easily measure DC voltage/current and source DC mA current and simultaneously provide 24V loop power to transmitter while conducting mA current measurement

Includes

Includes test leads, (3) AA batteries, (4) spare fuses, and latch key (for opening battery door).

Product Weight

1.8000 lb

Dimensions L x W x H (in.)

9.5 x 7.5 x 3.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
