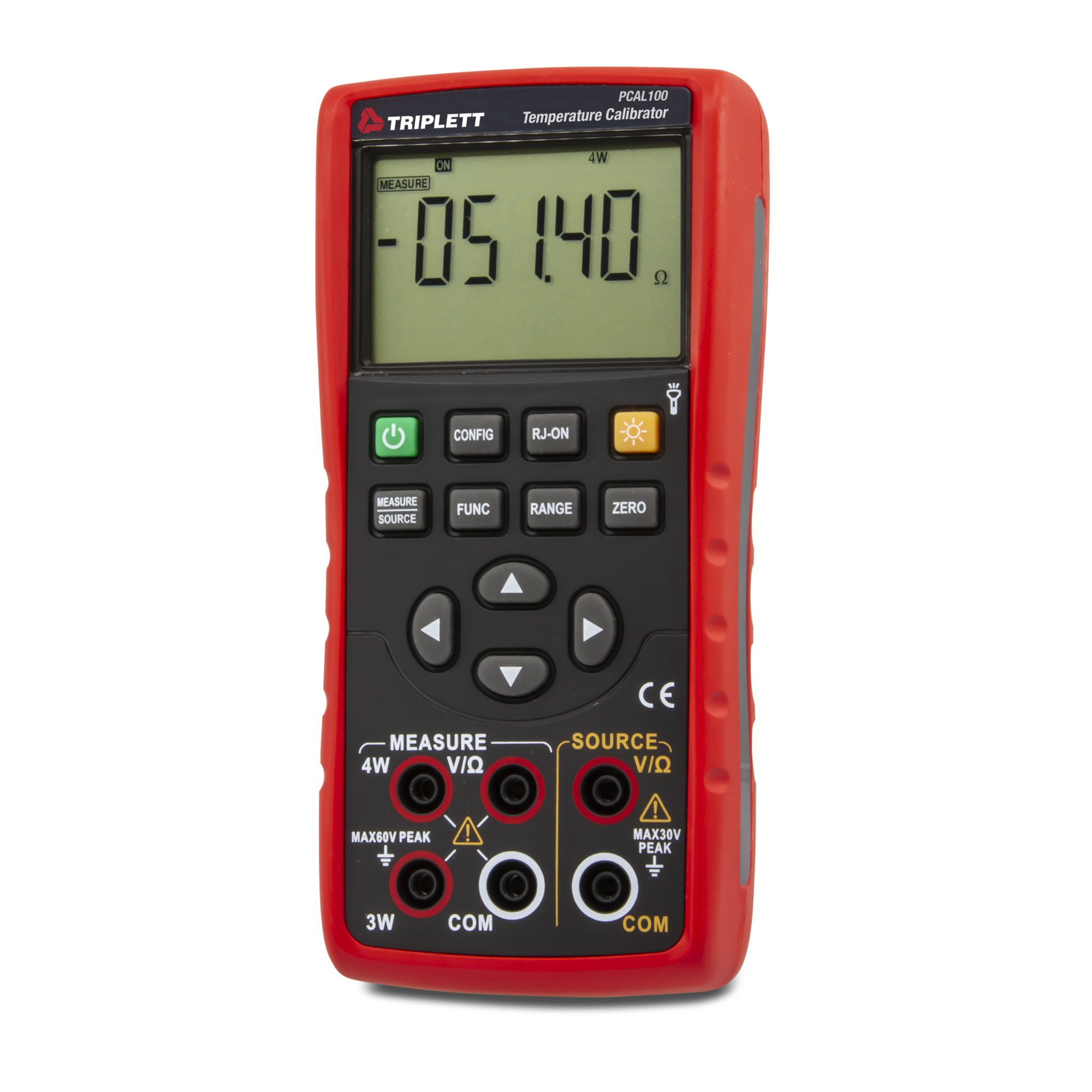

Triplett PCAL100 Temperature Calibrator

Item# 7066029
Triplett PCAL100 Temperature Calibrator

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett PCAL100 Temperature Calibrator

Click or Tap image to Zoom

$494.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Easily measure and source voltage, resistance, and temperature process parameters in one tool
  • Source and measure accuracy up to 0.05%
  • Measure and source 11 Thermocouple and 5 RTD types
  • Adjustable temperature compensation
  • 2, 3 and 4 wire resistance and thermal resistance (RTD) measurement

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett PCAL100 Multifunction Process Calibrator combines voltage, resistance, and temperature process functions in one unit for a wide range of industrial applications. It features source and measure accuracy up to 0.05%, 2-, 3- and 4-wire resistance and thermal resistance (RTD) measurement and can measure and source 11 Thermocouple and 5 RTD types. Additional features include adjustable temperature compensation, built-in flashlight, and Auto power off to conserve battery life. Includes test leads, thermocouple adapter, (3) AA batteries, and latch key (for opening battery door). 1-year warranty.

What's Included

    (1) Temperature Calibrator

Features + Benefits

  • Easily measure and source voltage, resistance, and temperature process parameters in one tool
  • Source and measure accuracy up to 0.05%
  • Measure and source 11 Thermocouple and 5 RTD types
  • Adjustable temperature compensation
  • 2, 3 and 4 wire resistance and thermal resistance (RTD) measurement
  • Built-in flashlight
  • Auto power off

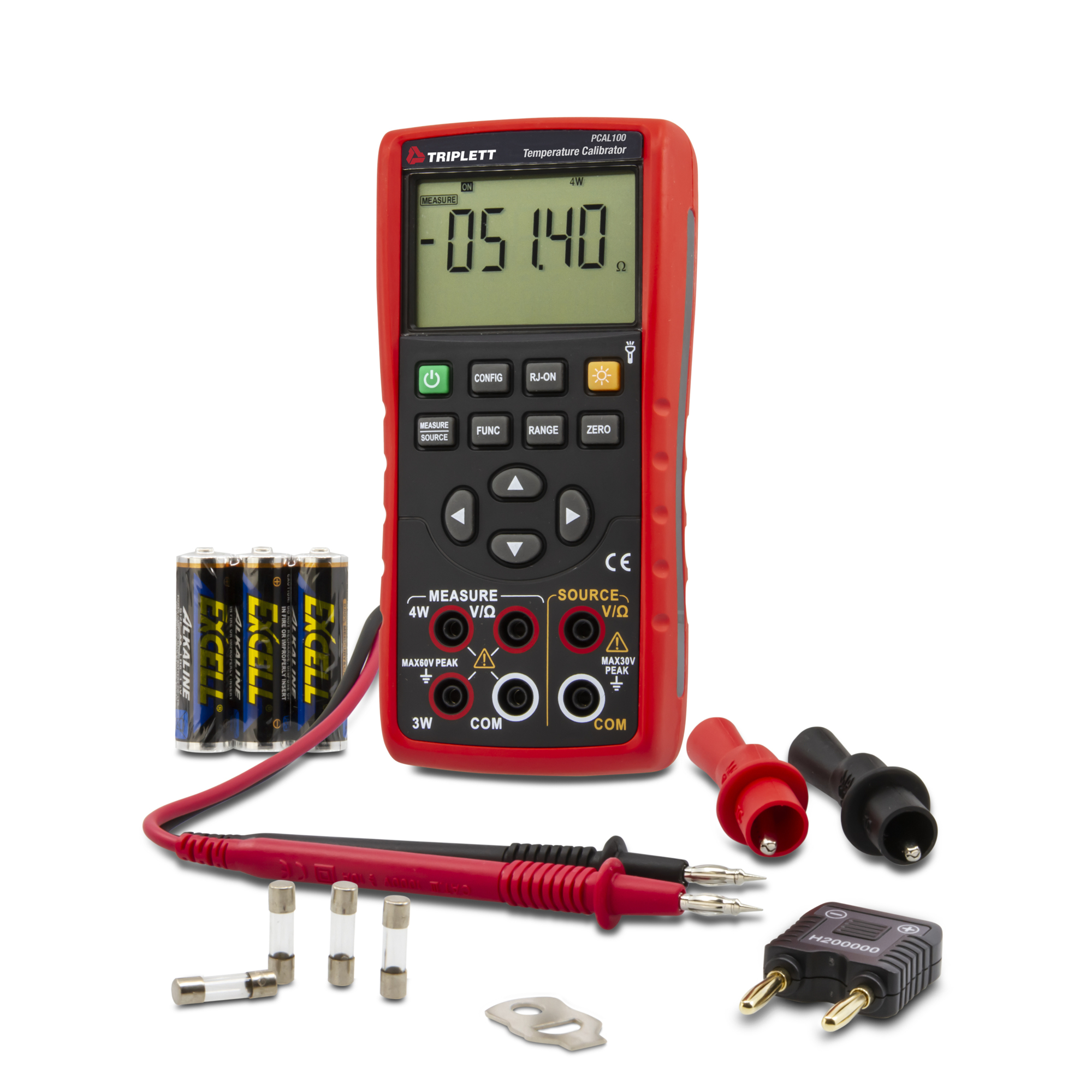

  • Includes test leads, thermocouple adapter, (3) AA batteries, and latch key (for opening battery door)

Key Specs

AttributeSpecification

item#

7066029

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.5 LB

Functions (qty.)

5

Display Type

LCD

Max. DC Volts

36

Max. Resistance

5000

Battery Size

AAA

Low Battery Indicator

Yes
AttributeSpecification

Battery Type

AAA

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Calibration Certificate Included

No

Max. Ohms

5,000

Application

Easily measure and source voltage, resistance, and temperature process parameters in one tool

Includes

Includes test leads, thermocouple adapter, (3) AA batteries, and latch key (for opening battery door)

Product Weight

0.5000 lb

Dimensions L x W x H (in.)

10.0 x 3.0 x 2.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
