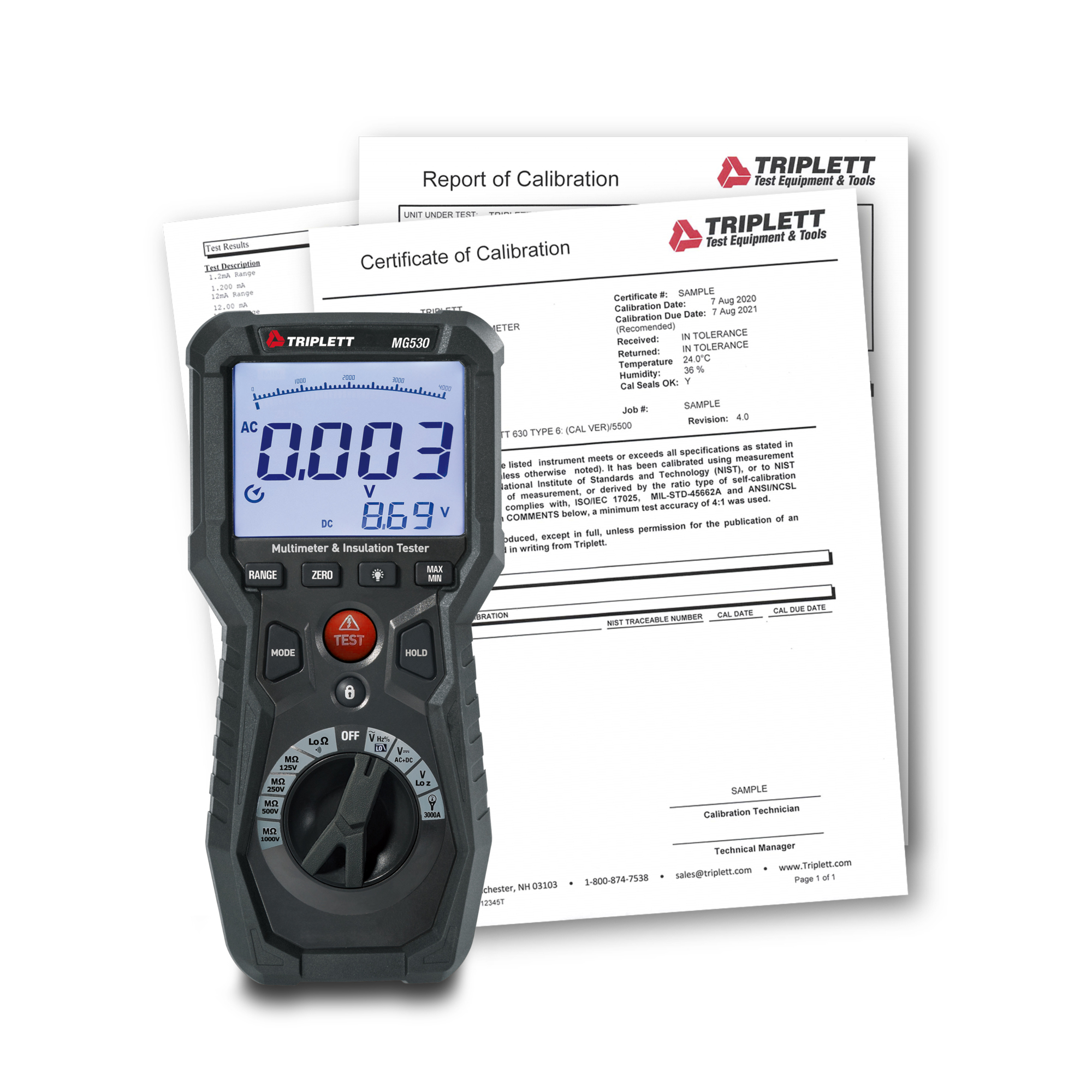

Triplett MG530-NIST MG530 Insulation Tester with Certificate of Traceability to N.I.S.T.

Item# 7064883
Triplett MG530-NIST MG530 Insulation Tester with Certificate of Traceability to N.I.S.T.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett MG530-NIST MG530 Insulation Tester with Certificate of Traceability to N.I.S.T.

Click or Tap image to Zoom

$714.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Insulation Resistance to 4000M?
  • 125V, 250V, 500V, and 1000V Test Voltages
  • Lock Power feature for hands-free operation
  • Live circuit voltage indicator
  • AC/DC Voltage, Resistance, Frequency, and Continuity measurement

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett MG530-NIST with Certificate of Traceability to N.I.S.T. tests Insulation Resistance to 4000M? using four test voltages (125V, 250V, 500V, and 1000V), and also measures AC/DC Voltage, Resistance, Frequency, and Continuity. Additional features include a Lock Power function for hands-free operation, Min/Max Hold records highest and lowest readings, Data Hold to "freeze" the reading on the display, and a backlit 4000 count LCD display with bargraph. In addition, it has a LoZ (impedance) mode for identifying ghost voltages and LPF (low pass filter) mode for filtering frequency and harmonic interference when measuring variable frequency drives, Auto Power off with disable, Low voltage indicator, and a CAT IV 600V safety rating. Includes test leads, (6) AA batteries, carrying case and Certificate of Traceability to N.I.S.T. 1-year warranty.

What's Included

    (1) MG530 Insulation Tester with NIST

Features + Benefits

  • Insulation Resistance to 4000M?
  • 125V, 250V, 500V, and 1000V Test Voltages
  • Lock Power feature for hands-free operation
  • Live circuit voltage indicator
  • AC/DC Voltage, Resistance, Frequency, and Continuity measurement
  • 3000A AC Current using optional flex clamp
  • LoZ (impedance) mode for identifying ghost voltages
  • LPF (low pass filter) for filtering frequency and harmonic interference when measuring variable frequency drives

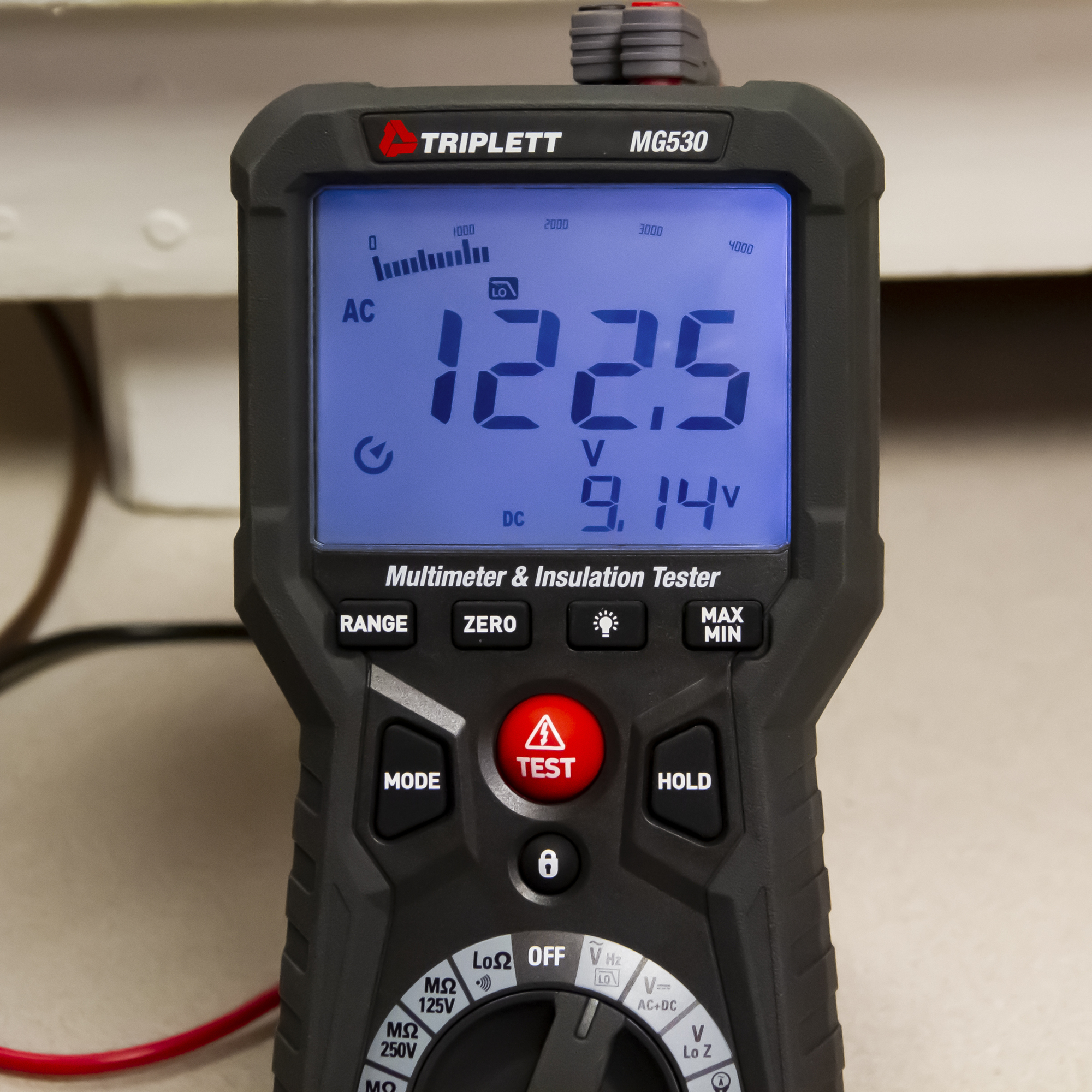

  • Backlit 4000 count LCD display with bargraph
  • CAT IV 600V

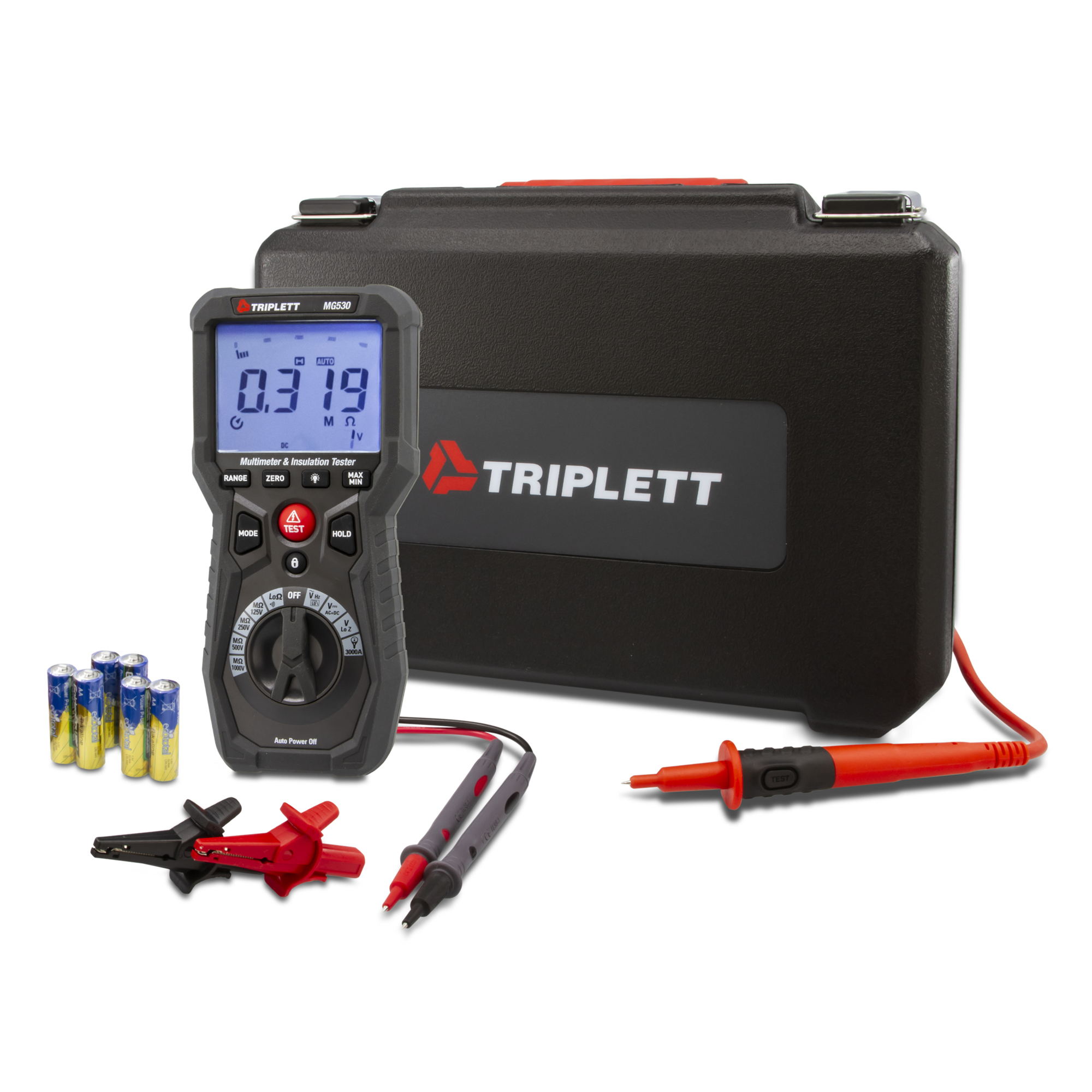

  • Includes test leads, (6) AA batteries, carrying case and Certificate of Traceability to N.I.S.T..

Key Specs

AttributeSpecification

item#

7064883

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.0 LB

Functions (qty.)

6

Display Type

LCD

Circuit or Voltage Tester

Circuit Tester

Max. DC Volts

1000

Max. AC Volts

1000

Max. Resistance

4000

Battery Size

AA

Low Battery Indicator

Yes
AttributeSpecification

Battery Type

AA

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Live Circuit Detection

Yes

UL Listed

No

Calibration Certificate Included

Yes

Max. Ohms

400

Application

Test insulation resistance up to 4000M?. Additionally, it can measure AC/DC Voltage, Resistance, Frequency, and Continuity.

Includes

Includes test leads, (6) AA batteries, carrying case and Certificate of Traceability to N.I.S.T..

Product Weight

6.0000 lb

Dimensions L x W x H (in.)

15.0 x 11.3 x 4.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
