Triplett IRTC550 Pocket Thermal Imaging Camera

Item# 7066061
Triplett IRTC550 Pocket Thermal Imaging Camera

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett IRTC550 Pocket Thermal Imaging Camera

Click or Tap image to Zoom

$713.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Hot and cold temperature markers quickly indicate where potential issues are located
  • Infrared/Visible Light/Picture in Picture/Fusion display modes
  • 160 x 120 pixels (19,200) with ?40mk Thermal Sensitivity (NETD)
  • Auto fusion calculates the mix ratio between IR and visible image automatically
  • 3.5" (89mm) focus-free, color touchscreen display with 640 x 480 resolution

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

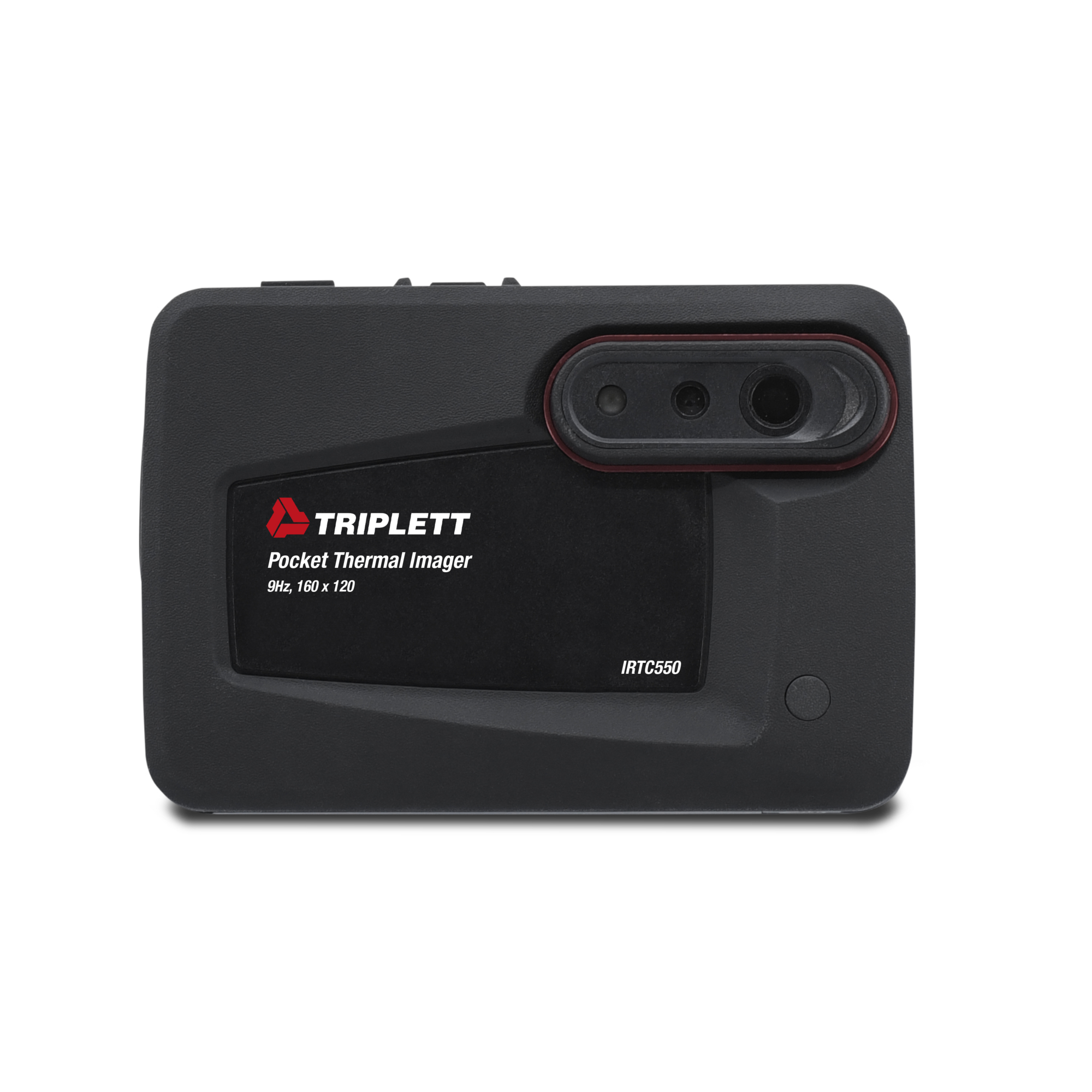

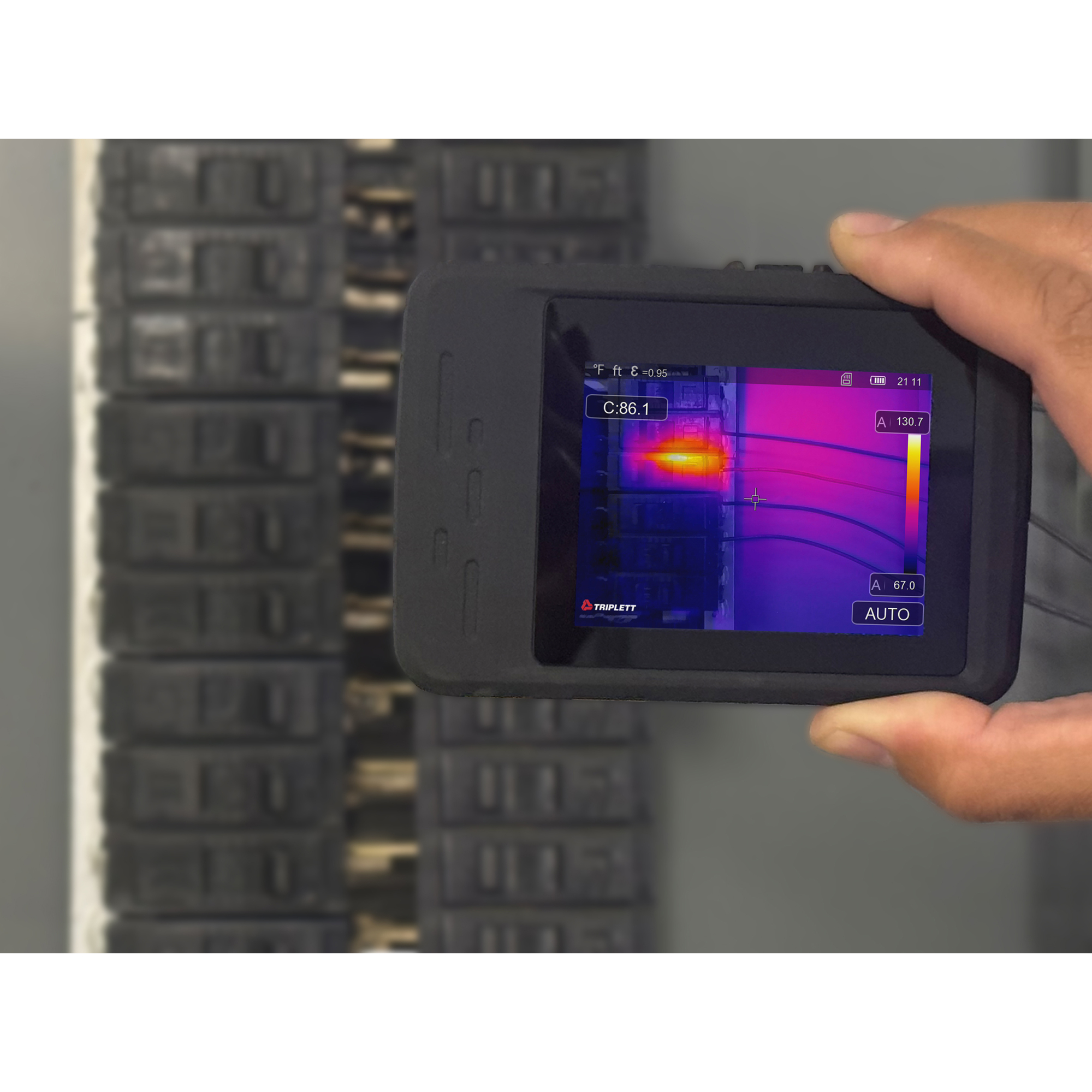

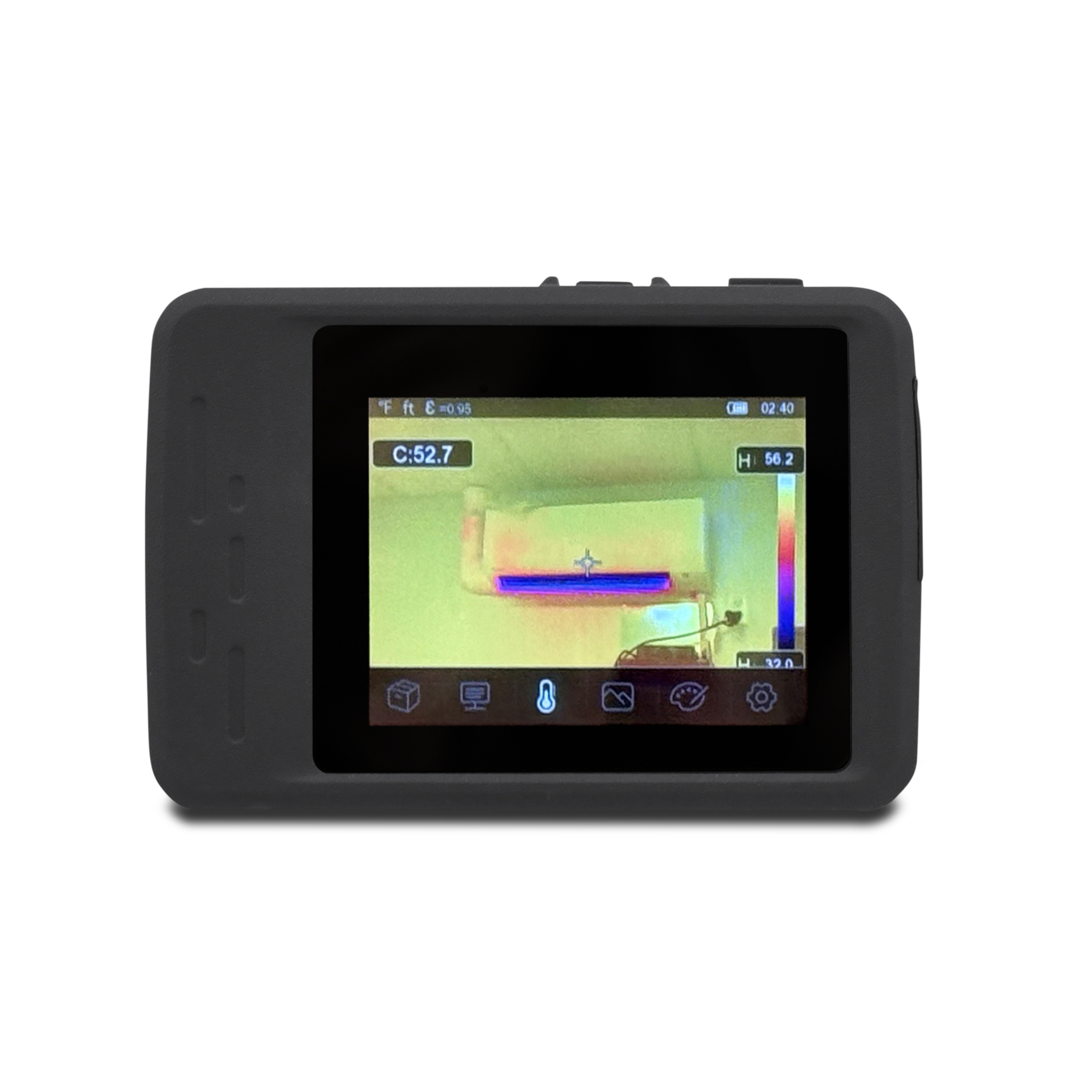

The Triplett Model IRTC550 Compact Thermal Imaging Camera can be used for preventative maintenance and troubleshooting of electrical and HVAC systems, mechanical breakdowns, water leaks and moisture buildup, heat loss from missing insulation and faulty windows/doors, automotive repair, and other places to find hidden leaks and hot spots. The thermal imager has a built-in visible light camera (2MP) that allows you to select Infrared/Visible Light/Picture in Picture/Fusion display modes. Infrared mode has a 160 x 120 pixel (19,200) thermal detector with ?40mk Thermal Sensitivity (NETD) that displays center spot, 3 manual spots, 3 areas, 2 line analyze, and auto hot/cold temperature markers on a 3.5in. (89mm) focus-free, color touchscreen display with 640 x 480 resolution. Additional features include Auto fusion calculates the mix ratio between IR and visible image automatically, easy-to-use menu in 6 languages (English, Italian, Spanish, French, German, Chinese), real time clock/calendar, and Auto power off with disable. Use the on-board picture gallery to view video (.mp4) and images (.jpg/.HRI) or transfer them to your PC via USB interface or WiFi (Android OS only). You can also live stream video to your PC. Includes rechargeable Lithium Ion battery, SD card, USB cable, and lanyard. 3-year warranty.

What's Included

    (1) Pocket Thermal Imaging Camera

Features + Benefits

  • Hot and cold temperature markers quickly indicate where potential issues are located
  • Infrared/Visible Light/Picture in Picture/Fusion display modes
  • 160 x 120 pixels (19,200) with ?40mk Thermal Sensitivity (NETD)
  • Auto fusion calculates the mix ratio between IR and visible image automatically
  • 3.5" (89mm) focus-free, color touchscreen display with 640 x 480 resolution
  • Center spot, 3 manual spots, 3 areas, 2 line analyze, and auto hot/cold temperature markers
  • 1 to 32X continuous digital zoom
  • On-screen picture gallery for viewing videos and pictures

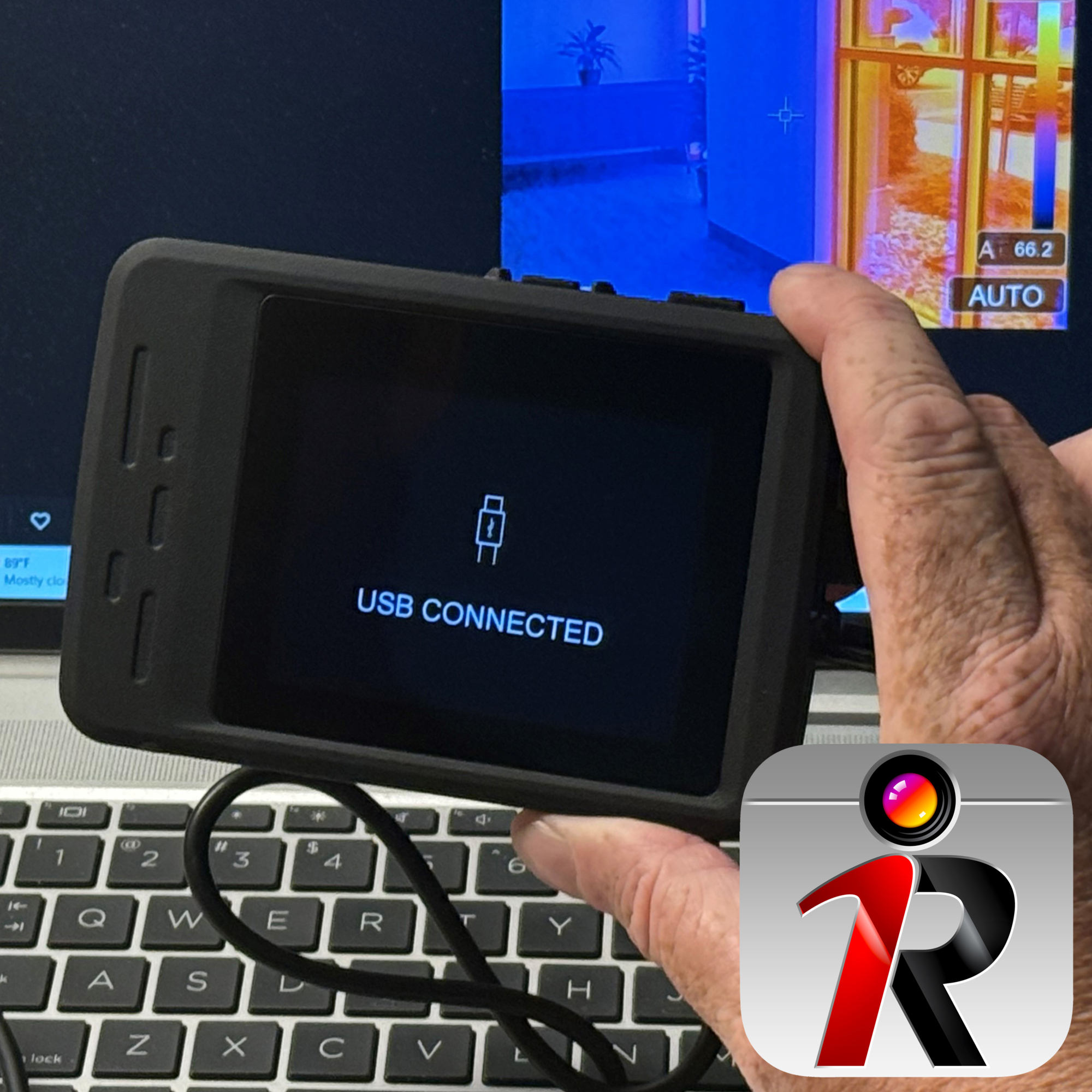

  • USB interface or WiFi (Android OS only) for transferring video (mp4)/images (jpg/HIR) or live stream viewing on your PC
  • Easy-to-use menu in 6 languages (English, Italian, Spanish, French, German, Chinese)

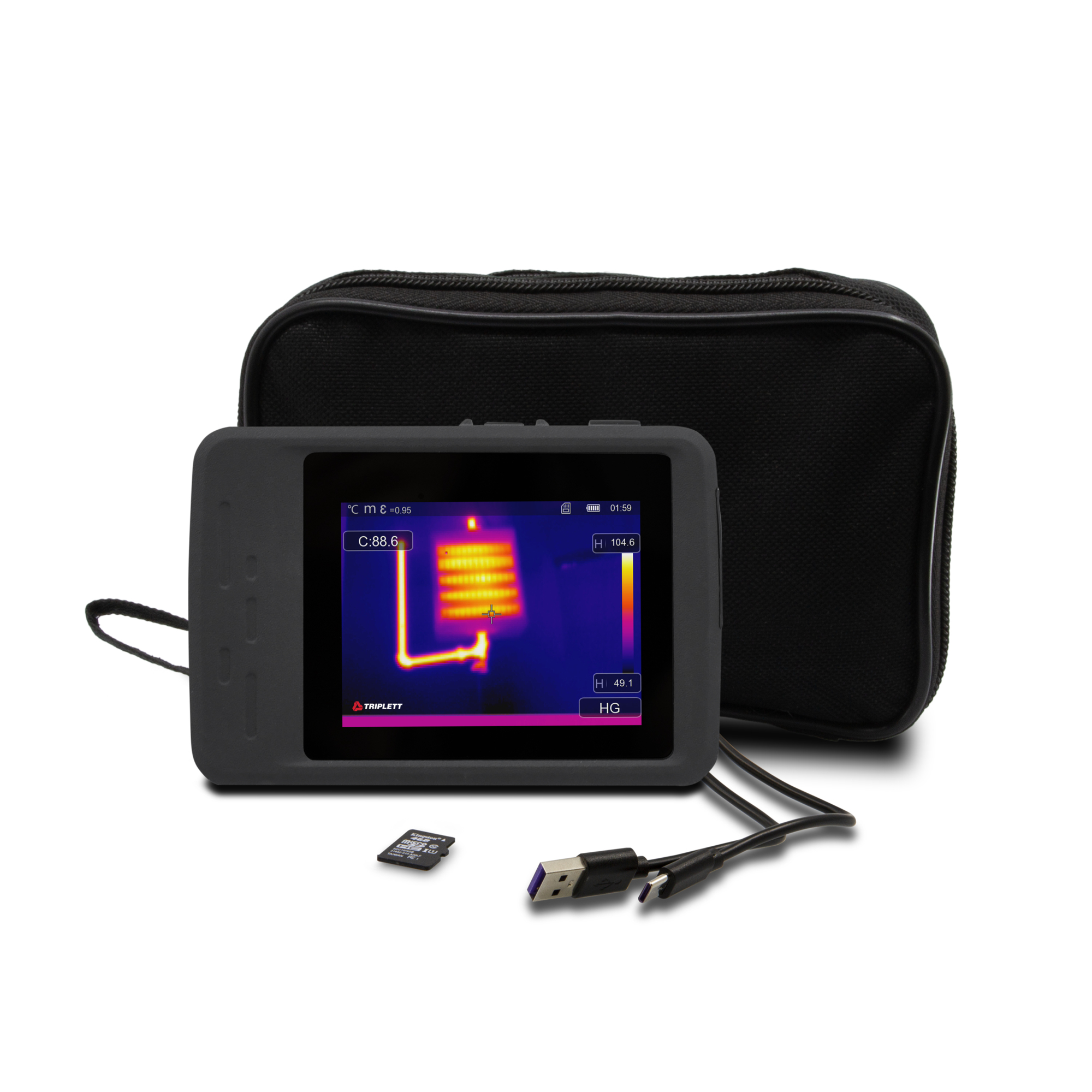

  • Includes rechargeable Lithium Ion battery, SD card, USB cable, lanyard and case

Key Specs

AttributeSpecification

item#

7066061

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.88 LB

Functions (qty.)

1

Display Type

Digital

Battery Size

Other

Low Battery Indicator

Yes

Battery Type

Lithium-ion
AttributeSpecification

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Calibration Certificate Included

No

Application

For preventative maintenance and troubleshooting of electrical and HVAC systems, mechanical breakdowns, water leaks and moisture buildup, heat loss from missing insulation and faulty windows/doors, automotive repair, and other places to find hidden leaks

Includes

Includes rechargeable Lithium Ion battery, SD card, USB cable, and lanyard

Product Weight

0.8800 lb

Dimensions L x W x H (in.)

5.1 x 2.93 x 8.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
