Product Summary

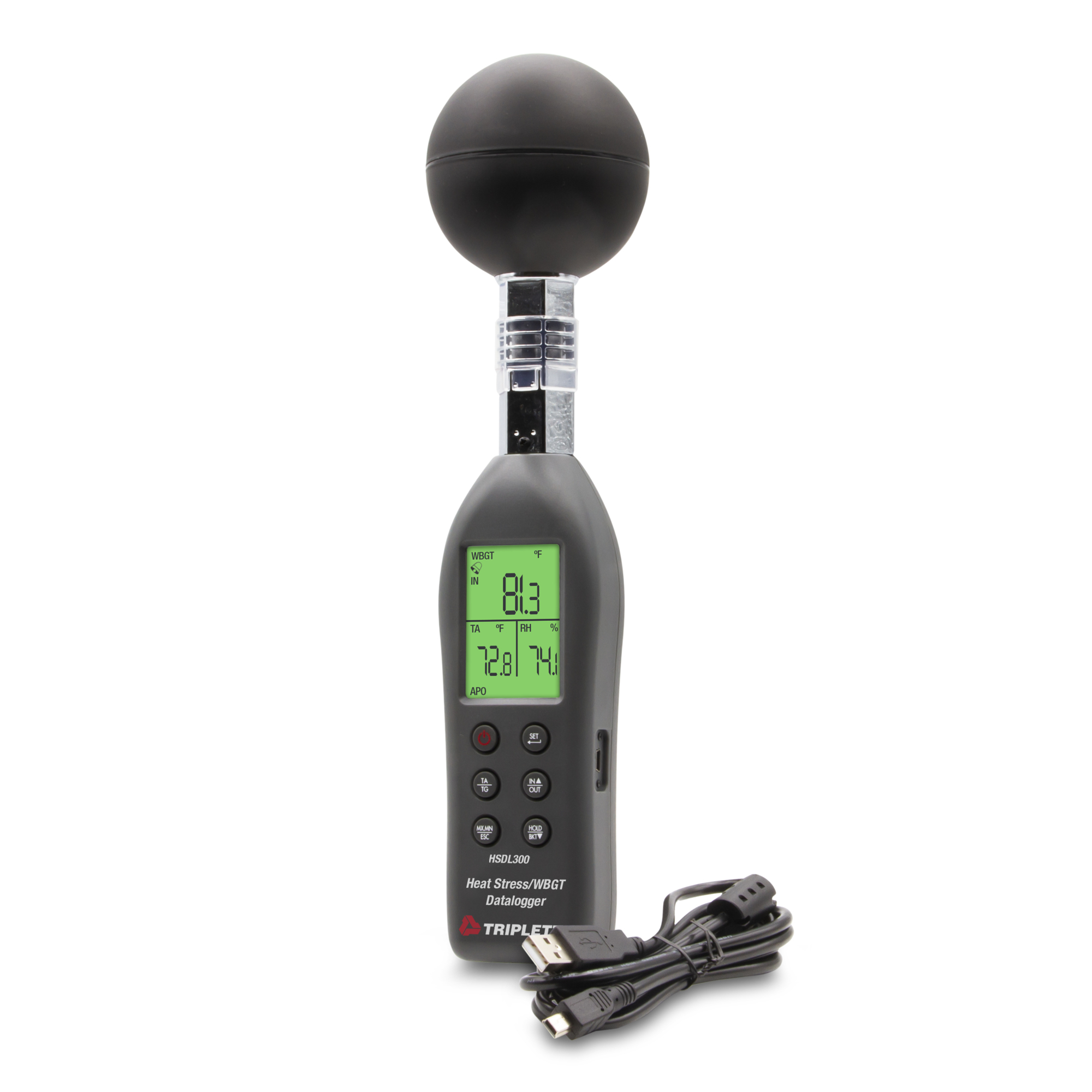

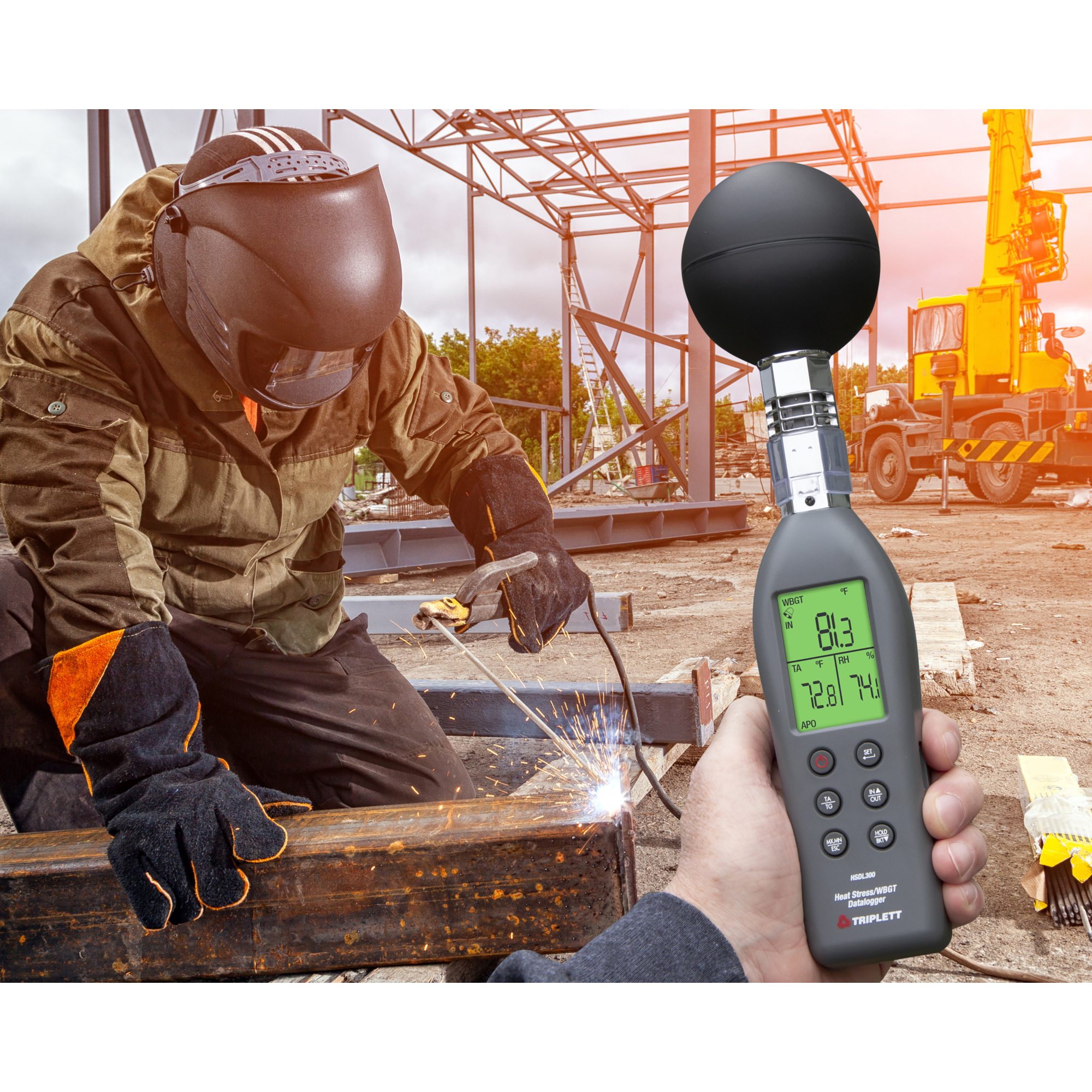

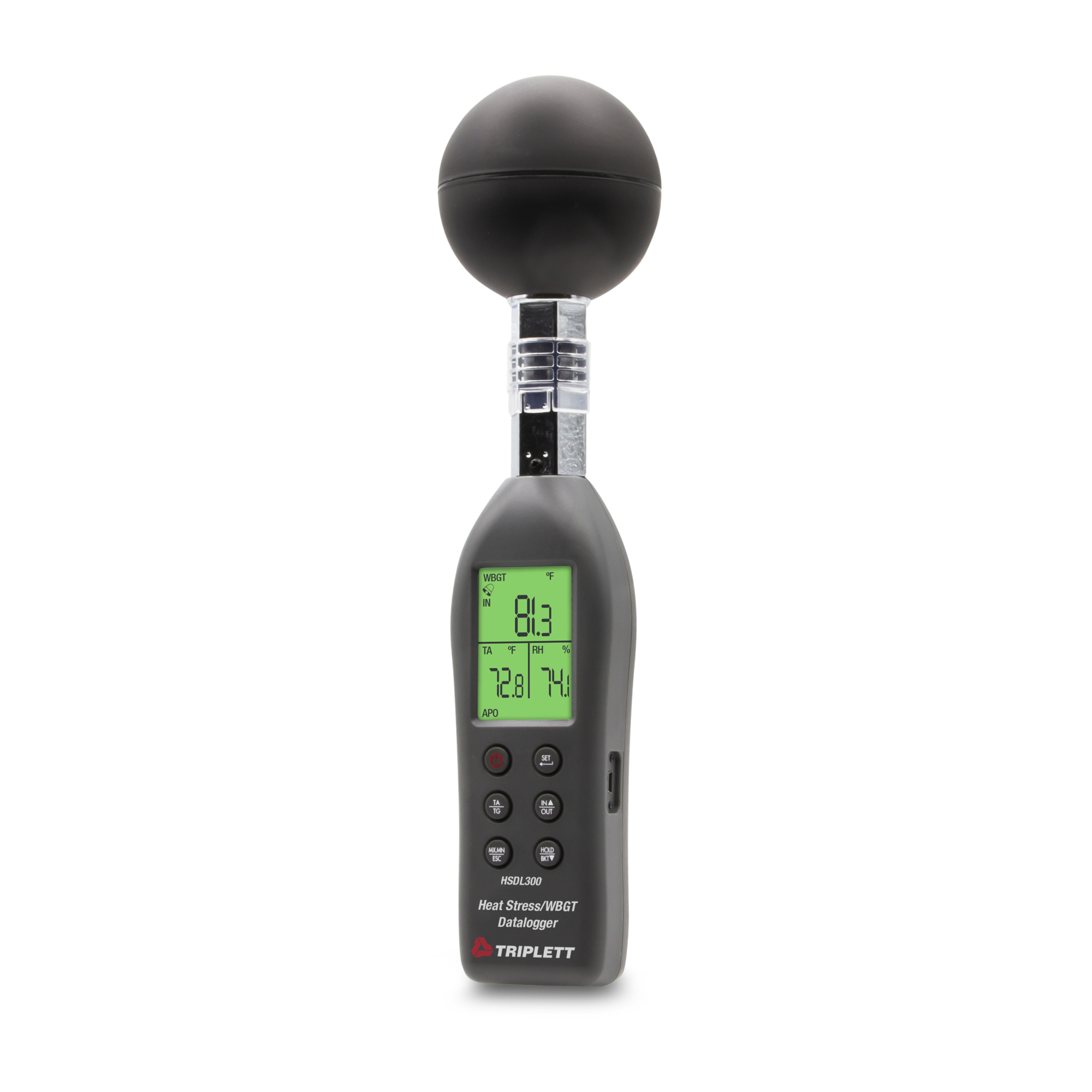

The Triplett Model HSDL300 Heat Stress WBGT (Wet Bulb Globe Temperature) Meter monitors indoor/outdoor heat stress to help limit the danger of heat-related injury. It simultaneously displays Air or Globe Temperature, Humidity, and Wet Bulb Globe Temperature (WBGT). Memory stores up to 12,000 readings each containing Air Temperature, Humidity, WBGT, and Globe Temperature with a user programmable sampling rate of 1, 5, 10, 30, 60, 90, 120 minutes. A USB interface is used for transferring stored readings to your PC in csv format. It features a programmable audible and visual WBGT alarm and a backlight that changes color as the WGBT value increases (Green/ Yellow/Red/Flashing Red). An In/Out function switch measures WBGT with or without the effects of direct sunlight. °F/°C switchable. Tripod mount can be used to free-up your hands when taking measurements over an extended amount of time. Includes (4) AAA batteries and a mini USB cable. 1-year warranty. For outdoor athletic training and events, construction, iron and steel foundries, brick firing plants, glass facilities, boiler rooms, mining sites, and other areas where heat stress levels should be monitored.

What's Included

    (1) Heat Stress Index/ WBGT Datalogger

Features + Benefits

  • Monitors indoor/outdoor heat stress to help limit the danger of heat-related injury
  • Simultaneously displays Air Temperature or Globe Temperature, Humidity, and Wet Bulb Globe Temperature (WBGT)
  • Memory stores up to 12,000 readings each containing Air Temperature, Humidity, WBGT, and Globe Temperature
  • User programmable sampling rate of 1, 5, 10, 30, 60, 90, 120 minutes
  • Programmable audible and visual WBGT alarm 68 to 122°F/20 to 50°C

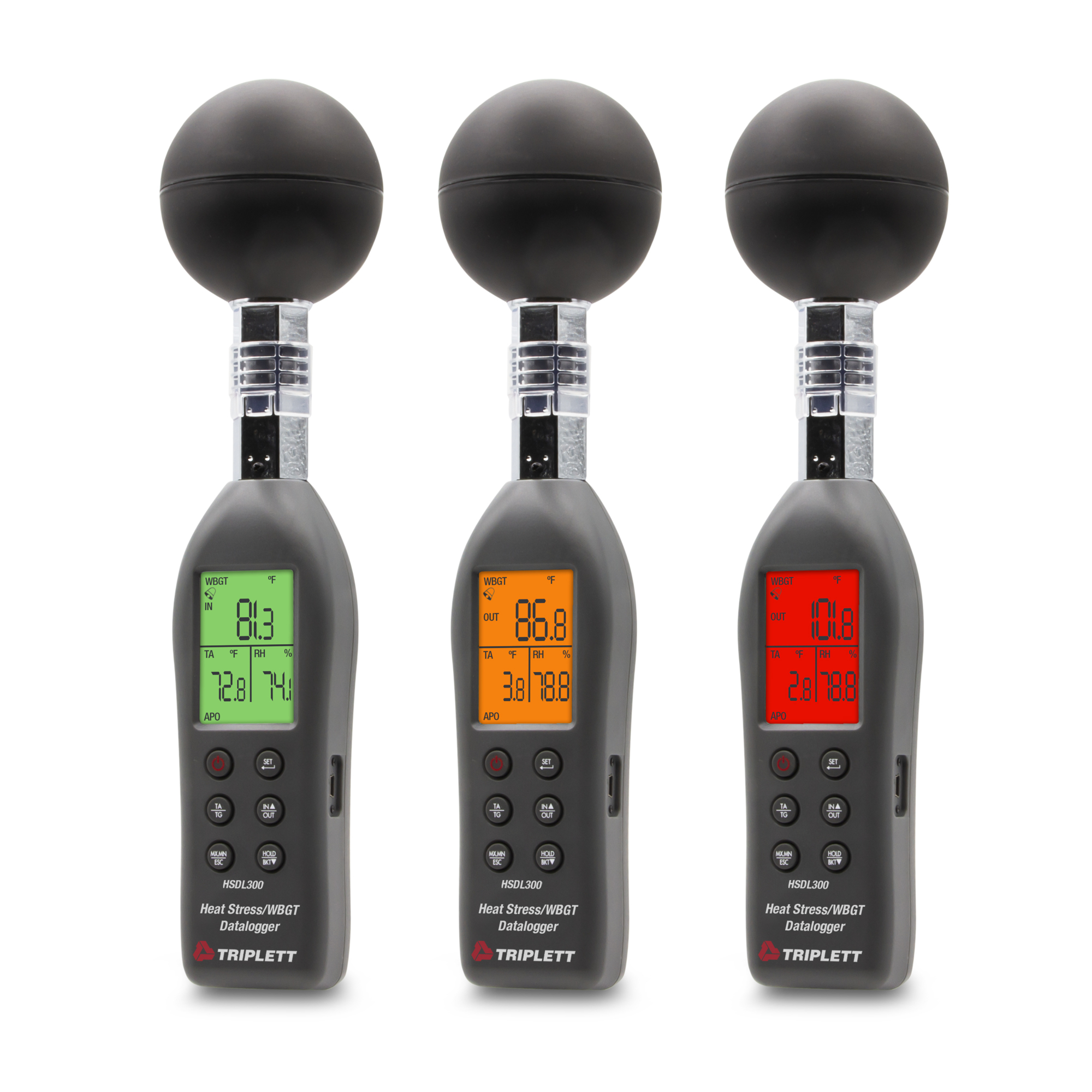

  • Backlight changes color with WGBT value: No backlight below 80°F (26.7°C); Green 80 to 85°F (26.7 to 29°C); Yellow 85 to 88°F (29.4 to 31°C); Red 88 to 90°F (31 to 32.2°C); Flashing Red above 90°F (32.2°C)
  • In/Out function switch for measuring WBGT with or without the effects of direct sunlight
  • °F/°C switchable
  • USB interface for transferring stored readings to your PC in csv format
  • Tripod mount can be used to free-up your hands when taking measurements over an extended amount of time
  • Includes (4) AAA batteries and mini USB Cable

Key Specs

AttributeSpecification

item#

7064971

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.4 LB

Functions (qty.)

4

Display Type

LCD

Battery Size

AAA

Low Battery Indicator

Yes

Battery Type

AAA
AttributeSpecification

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Calibration Certificate Included

No

Application

Air Temperature, Humidity, WBGT, and Globe Temperature

Includes

Includes (4) AAA batteries and mini USB Cable

Product Weight

0.4000 lb

Dimensions L x W x H (in.)

7.0 x 4.0 x 2.0 in

Warranty

Manufacturer's Warranty

1 year limited warranty
