Triplett, HotWire Fox Hound, Live Wire Circuit Tracing Kit, Model# 3388

Item# 5958699
Triplett, HotWire Fox Hound, Live Wire Circuit Tracing Kit, Model# 3388

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett, HotWire Fox Hound, Live Wire Circuit Tracing Kit, Model# 3388

Click or Tap image to Zoom

$239.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Trace Live 120/220VAC Power Lines (250VAC max)
  • Locate wires through Drywall, Plaster, Wood, Cement, etc.
  • Locate buried wires up to 6"
  • Trace wires up to 1000 feet in length

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett 3388 Fox Hound HotWire is a live circuit tracing kit for both 120VAC and 220VAC circuits. It includes the versatile Fox HotWire Tone Generator (Toner) and the high performance Hound HotWire Inductive Amplifier (Probe). The Fox HotWire is powered by a 9 volt battery for Low Voltage tracing or it can be powered by the High Voltage line it is toning. It can generate multiple tones (Pulse or Warble), provides a visual and audible continuity test, and integrates our own True Trace and TripLatch tests while providing overload protection up to 250 VAC. The Hound HotWire is a battery operated handheld lightweight Probe; containing both a thumbwheel Sensitivity control and Signal Strength indicator LED. It has a built-in LED headlights to illuminate dark areas and reduce fluorescent light noise, a bandpass filter to suppress unwanted frequencies, an earphone jack for noisy or quiet work areas, and an easy access battery cover. The HotWire can also trace other powered or unpowered common wires including telephone and cable TV wires, LAN cables, security system wires, and many others. The HotWire Fox also includes a very useful feature called TrueTrace. The HotWire‘s RF signal can be sensed through both building materials and most metal conduit. The HotWire can even trace shallow (up to 6in. deep) underground wires, like those commonly used for ‘Invisible Fences’, cable television, telephone, or low voltage landscape lighting. Complete with test leads (24in. and 60in.), flat blades, pointed probes, alligator clips, hard carrying case. Two 9V batteries (not included). 1 year warranty.

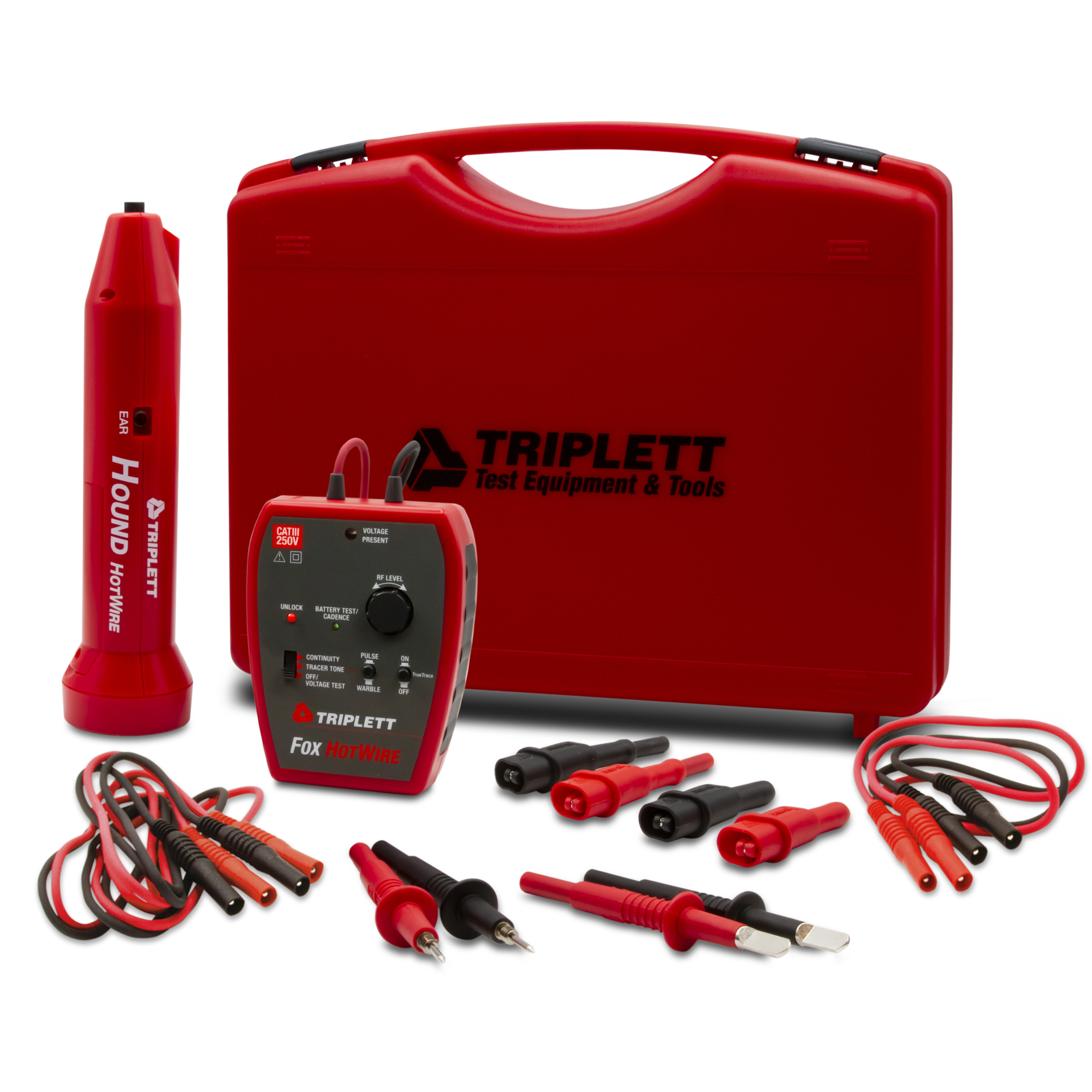

What's Included

    (1) Live Wire Circuit Tracing Kit (1) test leads (24in

Features + Benefits

  • Trace Live 120/220VAC Power Lines (250VAC max)
  • Locate wires through Drywall, Plaster, Wood, Cement, etc.
  • Locate buried wires up to 6"
  • Trace wires up to 1000 feet in length

Key Specs

AttributeSpecification

item#

5958699

Brand

Triplett

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

2.85 LB

Functions (qty.)

1

Battery Size

9V

Low Battery Indicator

No

Battery Type

Other

Battery Included

Yes
AttributeSpecification

Case Included

Yes

Common Usage

Trace wires

Power Source

Battery

Live Circuit Detection

Yes

Shaft Length

7.5 in

Shaft Diameter

2 in

Material

Plastic

Product Weight

lb

Dimensions L x W x H (in.)

4.5 x 3.5 x 1.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
