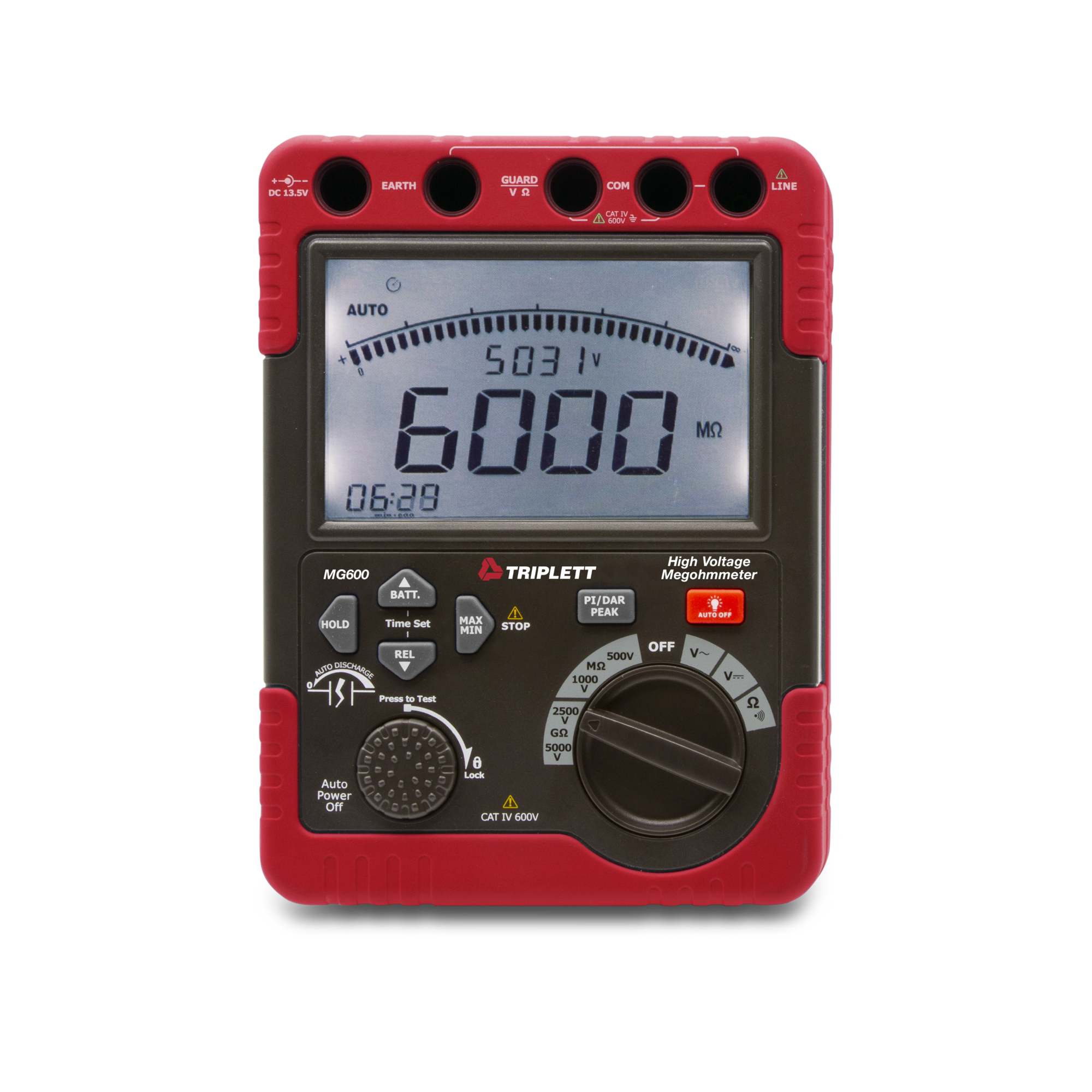

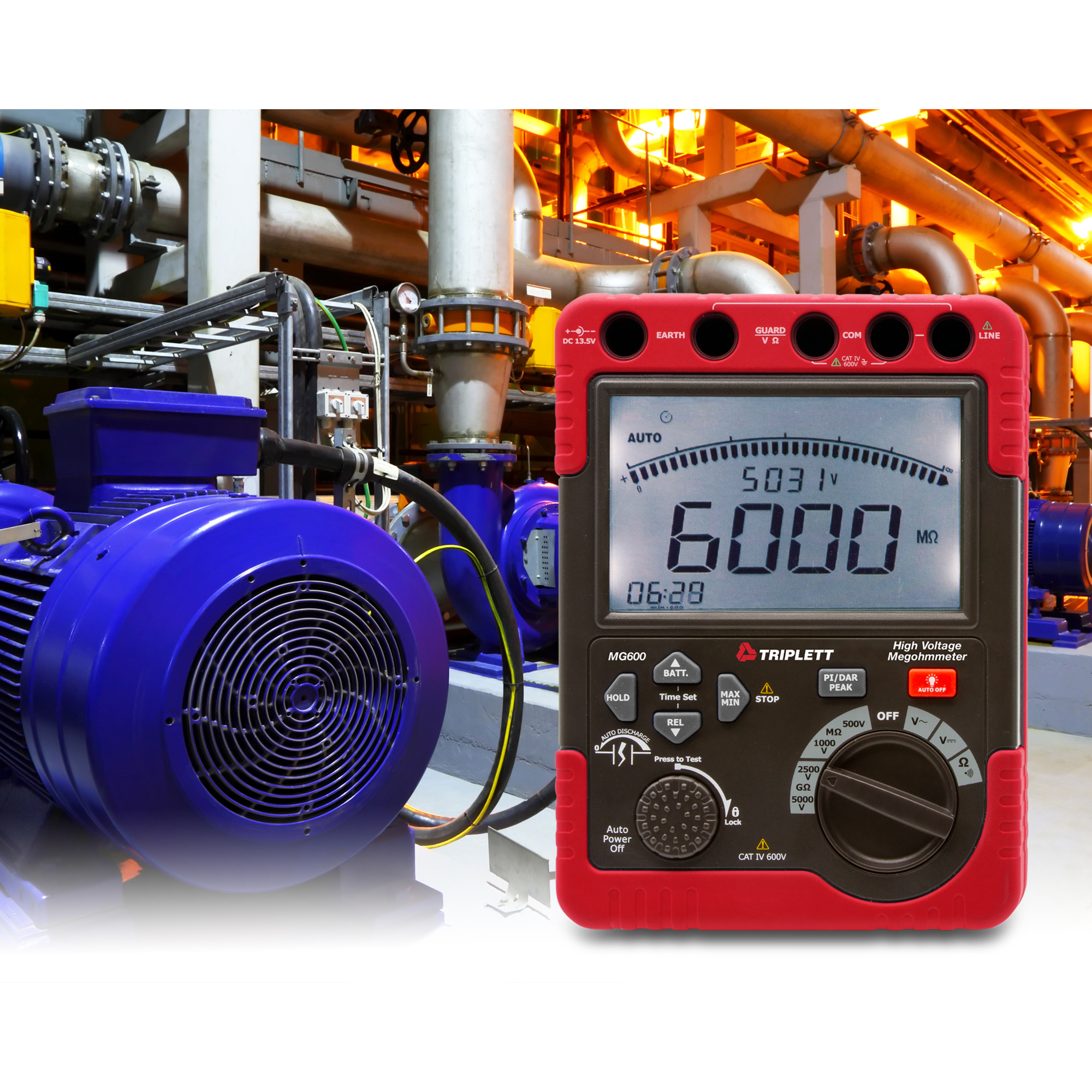

Triplett High Voltage Insulation Tester — 60GΩ, 500V/1000V/2500V/5000V, AC/DC Voltage, Model# MG600

Item# 5959018
Triplett High Voltage Insulation Tester — 60GΩ, 500V/1000V/2500V/5000V, AC/DC Voltage, Model# MG600

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett High Voltage Insulation Tester — 60GΩ, 500V/1000V/2500V/5000V, AC/DC Voltage, Model# MG600

Click or Tap image to Zoom

$819.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Insulation Resistance to 60G?
  • 500V, 1000V, 2500V, and 5000V Test Voltages
  • Polarization Index ((PI)
  • Dielectric Absorption Rate (DAR)
  • Backlit 6000 count display with bargraph

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett Model MG600 High Voltage Insulation Tester tests Insulation Resistance to 60G? using four test voltages (500V, 1000V, 2500V, and 5000V), and also measures AC/DC Voltage with Relative Mode, Peak Hold and Min/Max, plus Low Resistance and Continuity. Additional features include Polarization Index ((PI), Dielectric Absorption Rate (DAR), Backlit 6000 count display with bargraph, Timed Test function (1 to 15 minutes in 1 minute increments), a Lock Power function for hands-free operation, Data Hold to "freeze" the reading on the display, Auto power off, plus built-in battery check and live ciruit voltage Indicatior. CAT IV 600V safety category. Includes heavy duty test leads, (8) C batteries, 120V AC adapter, and hard carrying case. 1-year warranty.

What's Included

    (1) High Voltage Insulation Tester

Features + Benefits

  • Insulation Resistance to 60G?
  • 500V, 1000V, 2500V, and 5000V Test Voltages
  • Polarization Index ((PI)
  • Dielectric Absorption Rate (DAR)
  • Backlit 6000 count display with bargraph
  • Lock Power feature for hands-free operation
  • Timed Test function (1 to 15 minutes in 1 minute increments)
  • AC/DC Voltage measurement with Relative Mode, Peak Hold and Min/Max
  • Low Resistance and Continuity measurement
  • Live circuit voltage indicator

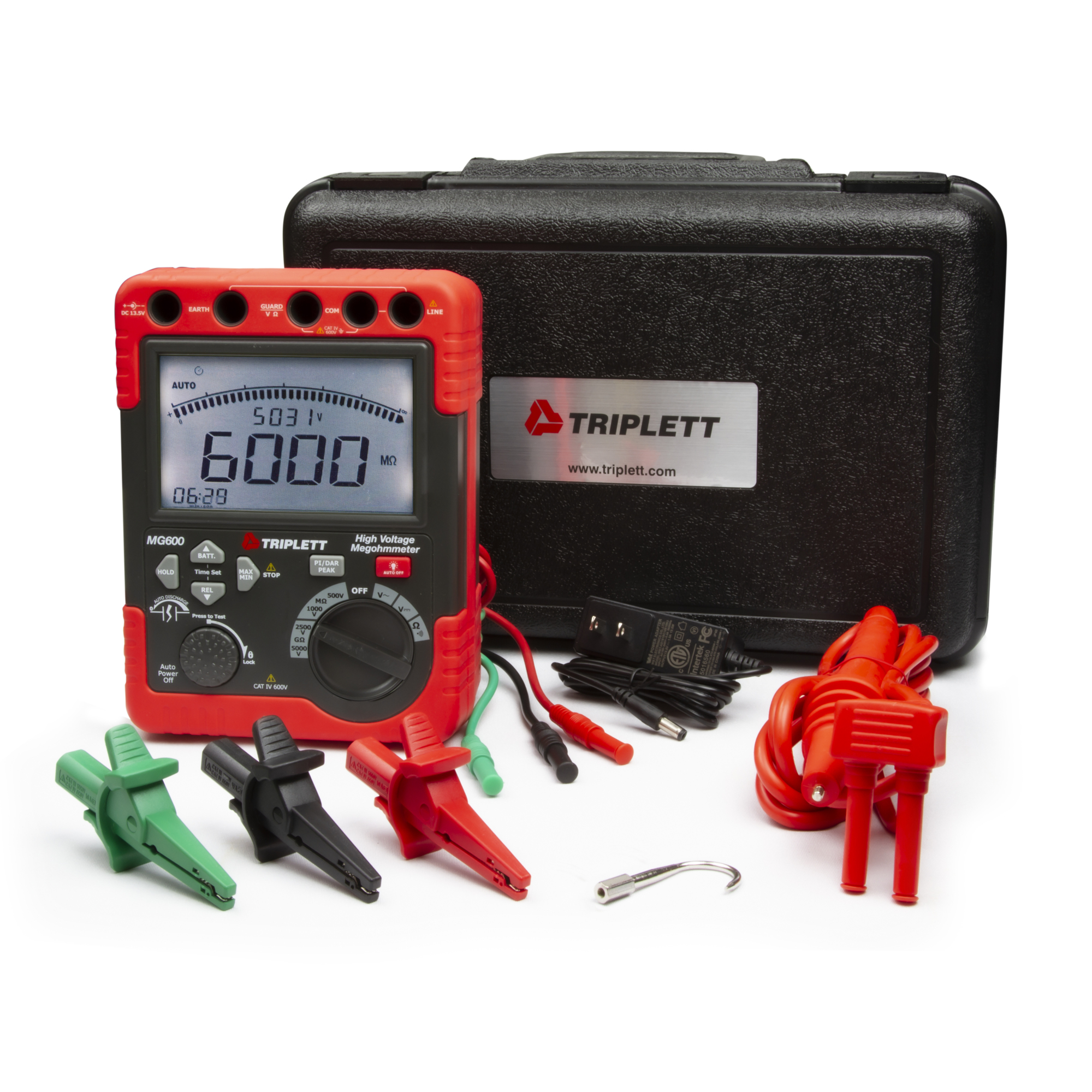

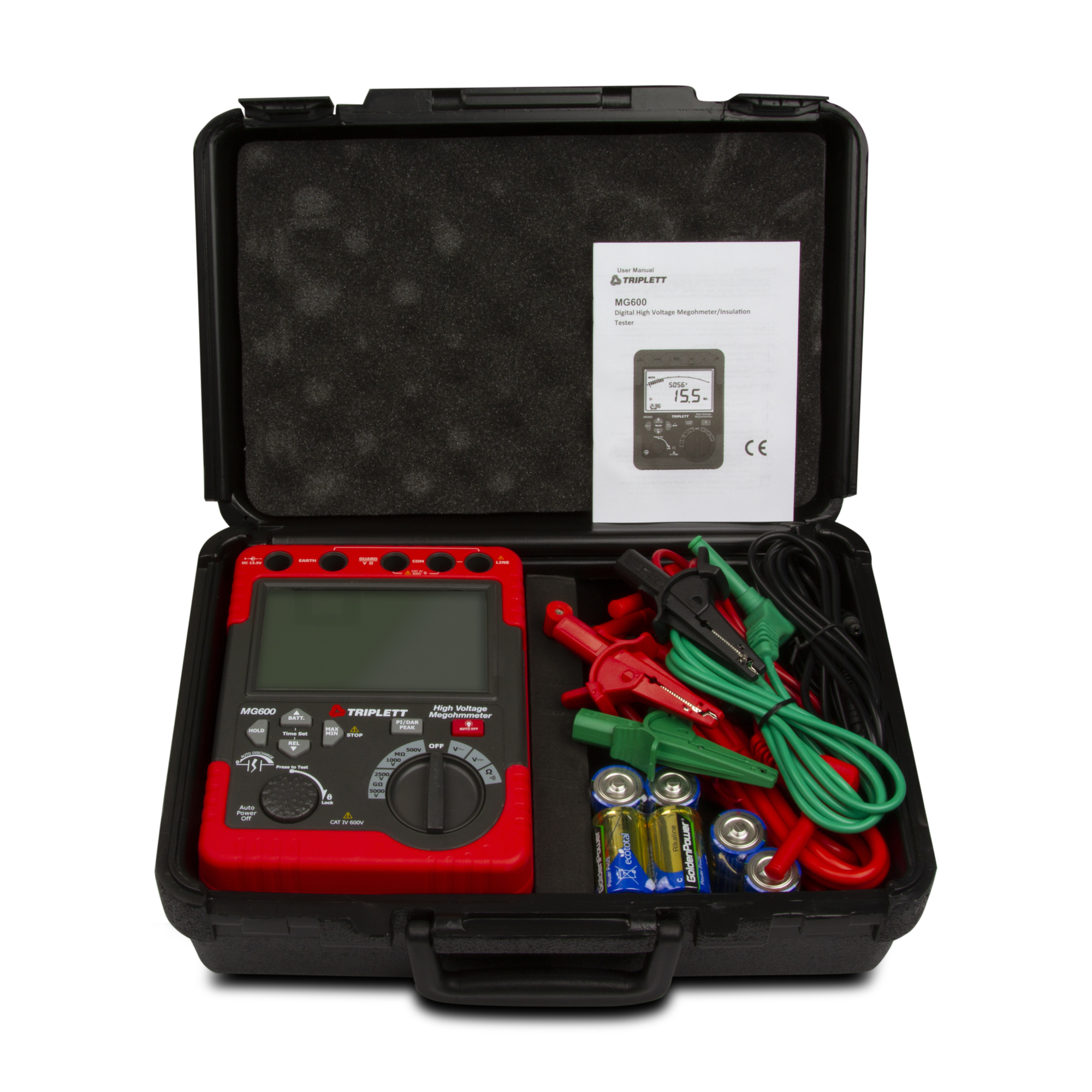

  • Includes heavy duty test leads, (8) C batteries, 120V AC adapter, and hard carrying case

Key Specs

AttributeSpecification

item#

5959018

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.0 LB

Functions (qty.)

5

Display Type

LCD

Circuit or Voltage Tester

Circuit Tester

Max. DC Volts

600

Max. AC Volts

600

Max. Resistance

60

Battery Size

C

Low Battery Indicator

Yes

Battery Type

Other

Battery Included

Yes

Accuracy

0.025

Measures

Measures Insulation Resistance
AttributeSpecification

Case Included

Yes

Senses

AC Voltage

Common Usage

Measures Insulation Resistance

Auto On/Off

Yes

Water Resistant

No

Power Source

Battery

Live Circuit Detection

Yes

Alert Priority

Visual

UL Listed

No

Calibration Certificate Included

No

Max. Ohms

6

Material

Plastic

Application

Tests Insulation Resistance to 60G? and also measures AC/DC Voltage, Low Resistance and Continuity

Includes

Includes heavy duty test leads, (8) C batteries, 120V AC adapter, and hard carrying case

Product Weight

6.0000 lb

Dimensions L x W x H (in.)

15.0 x 11.3 x 4.0 in
