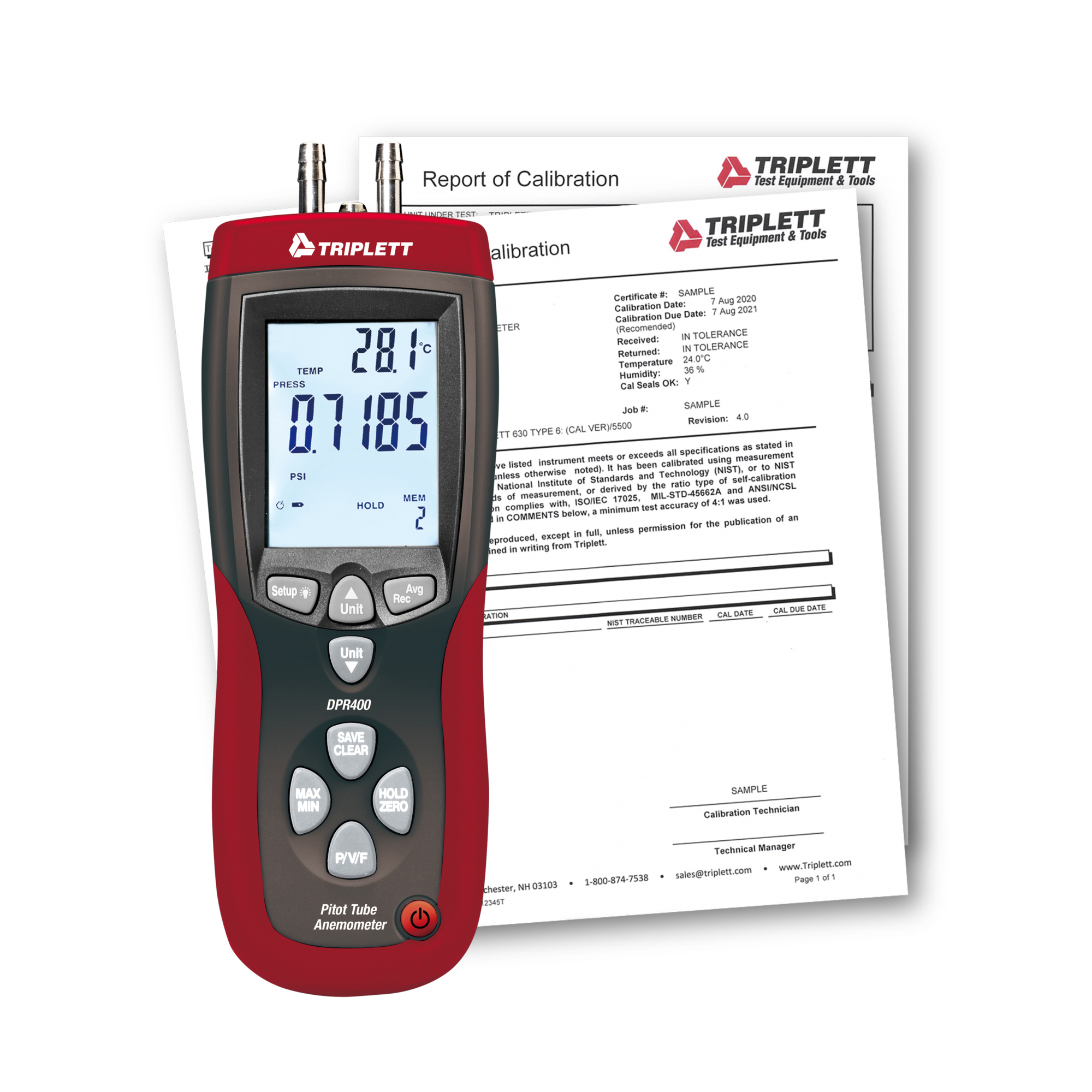

Triplett DPR400-NIST DPR400 Pressure, Airflow, Pitot Tube Meter w/ Certificate of Traceability to N.I.S.T.

Item# 7064998
Triplett DPR400-NIST DPR400 Pressure, Airflow, Pitot Tube Meter w/ Certificate of Traceability to N.I.S.T.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett DPR400-NIST DPR400 Pressure, Airflow, Pitot Tube Meter w/ Certificate of Traceability to N.I.S.T.

Click or Tap image to Zoom

$813.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Simultaneously display Pressure, Air Velocity, or Air Flow plus Temperature
  • Use one input to measure the gauge pressure of a single source; Use both inputs to measure the differential pressure between two points
  • Duct shape and parameter settings for airflow measurement are recalled at power up
  • Zero display adjust for all three modes
  • Store/Recall up to 99 readings in each mode

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett Model DPR400-NIST Airflow Meter/Pitot Tube Anemometer with Certificate of Traceability to N.I.S.T. can simultaneously display Pressure, Air Velocity, or Air Flow plus Temperature. Use one input to measure the gauge pressure of a single source. Use both inputs to measure the differential pressure between two points of a single source or between 2 sources revealing which input has the higher pressure and the difference between them. Measurements are viewed on the large backlit LCD display in 5 units of measure. Connect the included pitot tube to measure air velocity or air flow. Duct shape and parameter settings for airflow measurement are recalled at power up. There is a Zero display adjust for all three modes. Min/Max/AVG records highest, lowest and average readings with relative time stamp. Data Hold momentarily freezes the displayed reading for easy viewing. It features store/recall up to 99 readings in each mode. Stored readings can be downloaded via USB interface to your PC using the included software. Software also provides real-time Data Acquisition for viewing and storing readings directly on your PC. Low battery indicator and Auto power off with disable. Includes pitot tube, 2 connection hoses (33.5in. (850mm)) (inner dia. 0.2in. (5mm)/outer dia. 0.4in. (9mm)), software, 9V battery, hard carrying case and Certificate of Traceability to N.I.S.T. 2-year warranty.

What's Included

    (1) DPR400 Pressure Meter w/Cert of Traceability

Features + Benefits

  • Simultaneously display Pressure, Air Velocity, or Air Flow plus Temperature
  • Use one input to measure the gauge pressure of a single source; Use both inputs to measure the differential pressure between two points
  • Duct shape and parameter settings for airflow measurement are recalled at power up
  • Zero display adjust for all three modes
  • Store/Recall up to 99 readings in each mode
  • Stored readings can be downloaded via USB interface to your PC using the included software
  • Real time Data Acquisition for viewing and storing readings directly on your PC
  • Min/Max/AVG records highest, lowest and average readings with relative time stamp
  • Data Hold momentarily freezes the displayed reading for easy viewing
  • Measurements are viewed on the large backlit LCD display

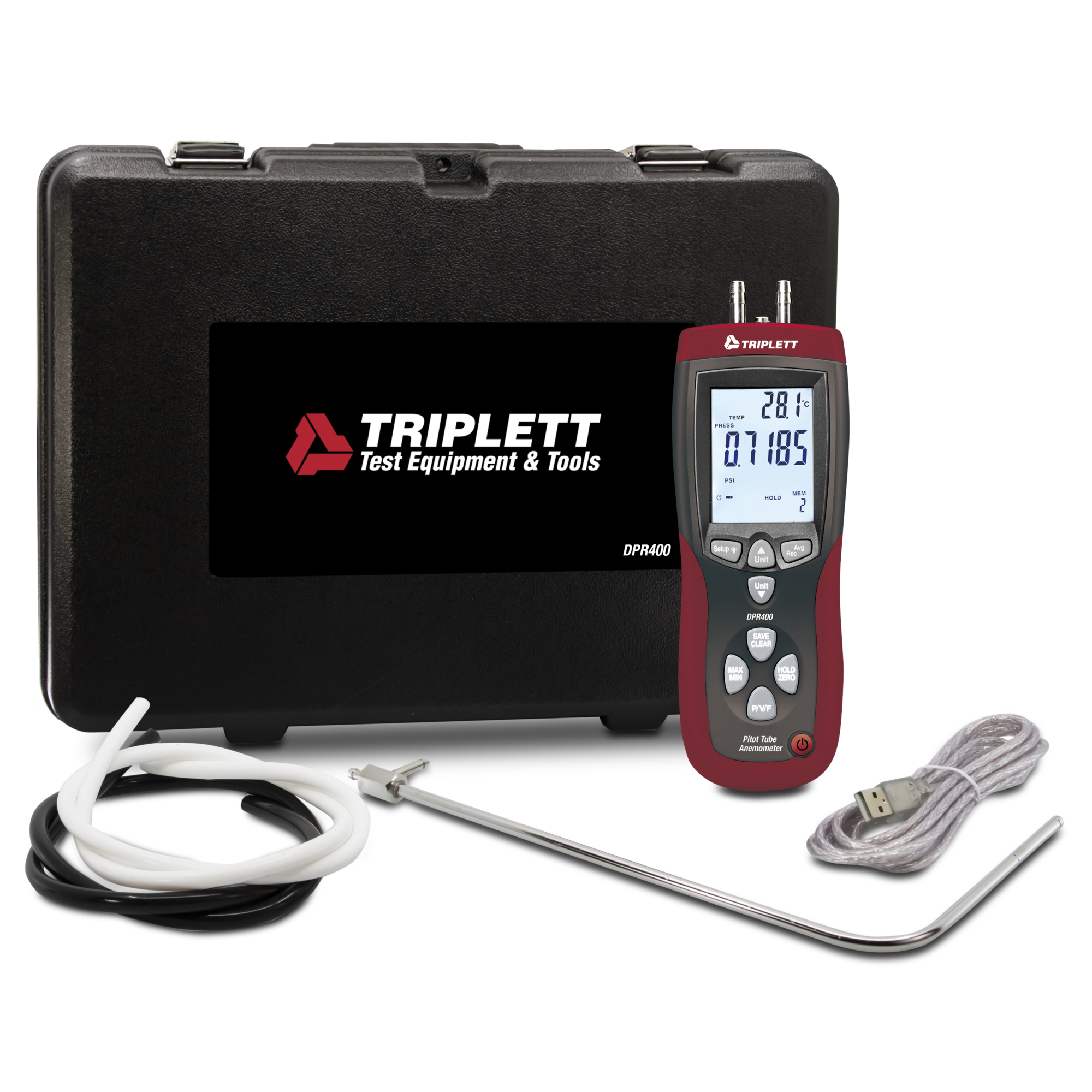

  • Includes pitot tube, 2 connection hoses (33.5" (850mm)) (inner dia. 0.2" (5mm)/outer dia. 0.4" (9mm)), software, 9V battery, hard carrying case and Certificate of Traceability to N.I.S.T..

Key Specs

AttributeSpecification

item#

7064998

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.7 LB

Functions (qty.)

4

Display Type

LCD

Battery Size

9V

Low Battery Indicator

Yes

Battery Type

Other
AttributeSpecification

Battery Included

Yes

Water Resistant

No

Power Source

Battery

UL Listed

No

Calibration Certificate Included

Yes

Application

Simultaneously displays Pressure, Air Velocity, or Air Flow, along with Temperature. It offers the flexibility to use one input to measure the gauge pressure of a single source or both inputs to measure the differential pressure between two points

Includes

Includes pitot tube, 2 connection hoses (33.5" (850mm)) (inner dia. 0.2" (5mm)/outer dia. 0.4" (9mm)), software, 9V battery, hard carrying case and Certificate of Traceability to N.I.S.T..

Product Weight

6.7000 lb

Dimensions L x W x H (in.)

20.0 x 14.5 x 5.0 in
