Triplett DPR305-NIST Differential Pressure Manometer,5ps1 with Certificate of Traceability to N.I.S.T.

Item# 7065659
Triplett DPR305-NIST Differential Pressure Manometer,5ps1 with Certificate of Traceability to N.I.S.T.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett DPR305-NIST Differential Pressure Manometer,5ps1 with Certificate of Traceability to N.I.S.T.

Click or Tap image to Zoom

$379.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Measure gauge and differential pressure
  • Convenient quick?disconnect fittings
  • 11 units of measure
  • Min/Max/AVG records highest, lowest and average readings with relative time stamp
  • Data Hold momentarily freezes the displayed reading for easy viewing

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

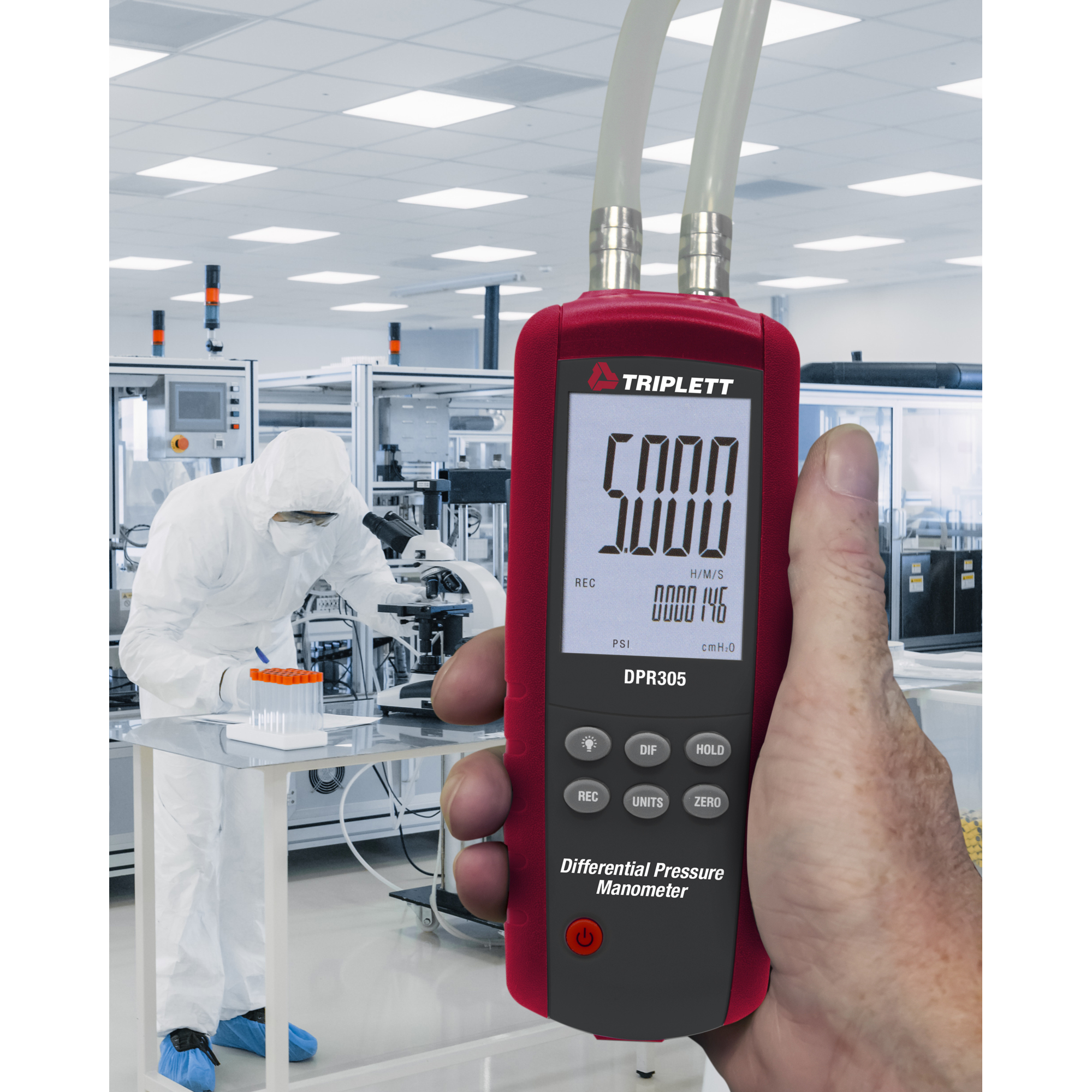

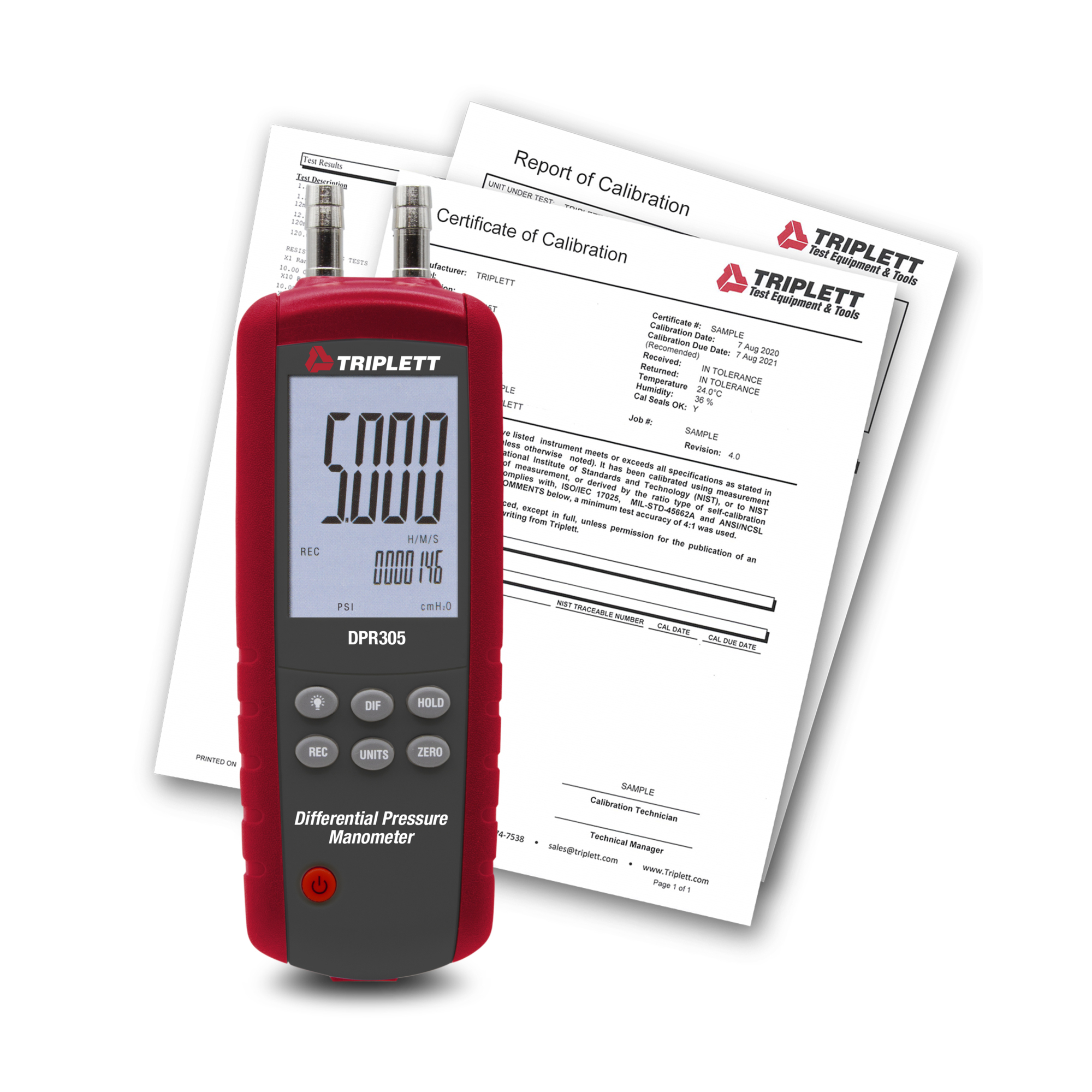

The Triplett Model DPR305-NIST Differential Pressure Manometer measure gauge and differential pressure to ±5psi. Use one input to measure the gauge pressure of a single source. Use both inputs to measure the differential pressure between two points of a single source or between 2 sources revealing which input has the higher pressure and the difference between them. Measurements are viewed on the large backlit LCD display in 11 units of measure. Min/Max/AVG records highest, lowest and average readings with relative time stamp. Data Hold momentarily freezes the displayed reading for easy viewing. It features convenient quick?disconnect fittings, zero adjust, offset function, and auto power off with disable. Includes (3) AAA batteries, USB cable (for power only), sample tubing, pouch case, and a Certificate of Traceability to N.I.S.T. 1-year warranty.

What's Included

    (1) Differential Pressure Manometer,5ps1 with NIST

Features + Benefits

  • Measure gauge and differential pressure
  • Convenient quick?disconnect fittings
  • 11 units of measure
  • Min/Max/AVG records highest, lowest and average readings with relative time stamp
  • Data Hold momentarily freezes the displayed reading for easy viewing
  • Large backlit LCD display
  • Zero adjust and Offset functions
  • Auto Power Off with disable
  • 1 year warranty
  • Includes (3) AAA batteries, USB cable (for power only), sample tubing, pouch case, and a Certificate of Traceability to N.I.S.T.

Key Specs

AttributeSpecification

item#

7065659

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.1 LB

Functions (qty.)

1

Display Type

LCD

Battery Size

AAA

Low Battery Indicator

Yes

Battery Type

AAA
AttributeSpecification

Battery Included

Yes

Water Resistant

No

Power Source

Battery

UL Listed

No

Calibration Certificate Included

Yes

Application

Use one input to measure the gauge pressure of a single source. Use both inputs to measure the differential pressure between two points of a single source or between 2 sources revealing which input has the higher pressure and the difference between them

Includes

Includes (3) AAA batteries, USB cable (for power only), sample tubing, pouch case, and a Certificate of Traceability to N.I.S.T.

Product Weight

1.1000 lb

Dimensions L x W x H (in.)

8.3 x 5.5 x 2.6 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
