Triplett CM675IR-NIST CM675IR with Certificate of Traceability to NIST (NO IR NIST)

Item# 7065000
Triplett CM675IR-NIST CM675IR with Certificate of Traceability to NIST (NO IR NIST)

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett CM675IR-NIST CM675IR with Certificate of Traceability to NIST (NO IR NIST)

Click or Tap image to Zoom

$302.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Non-Contact Temperature Measurement: Instantly measures the surface temperature of objects without making contact.
  • Target Identification: The built-in laser assists in quickly identifying the target area.
  • EBTN Display: The 6000 count color EBTN display provides clear readings at maximum angles.
  • Analog Bargraph: Features a 60-segment analog bargraph for trend visualization.
  • VFD Low Pass Filter: Helps in eliminating frequency and harmonic interference during the measurement of variable frequency drives.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

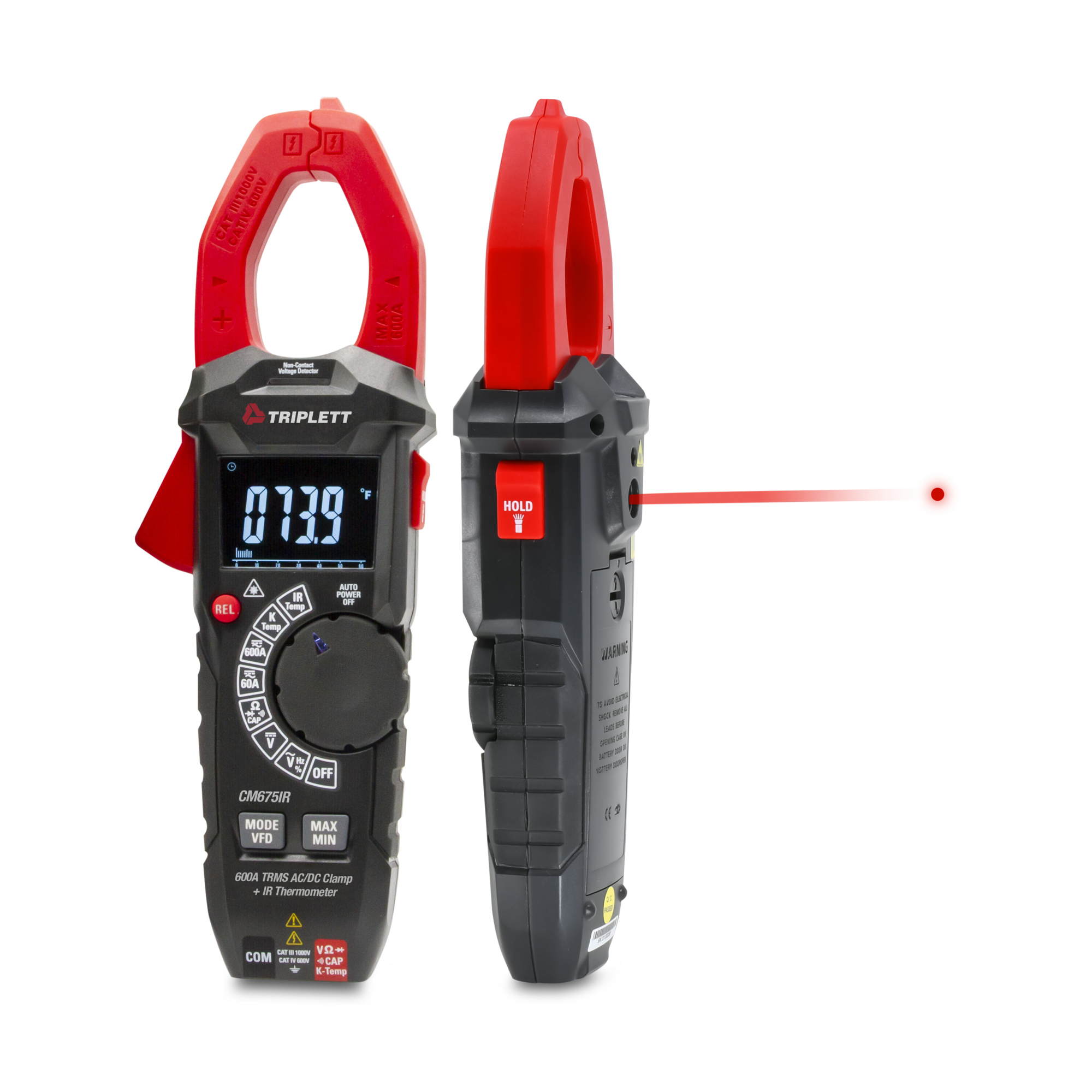

The Triplett Model CM675IR-NIST True RMS Clamp Meter with Infrared Thermometer is an innovative tool for safe and efficient electrical measurements. Able to measure AC and DC currents up to 600A non-intrusively by clamping around the conductor, it saves time and maintains circuit integrity. This model stands out with its 4:1in.frared Thermometer, which enables instant non-contact surface temperature measurements, with a built-in laser for quick target area identification. It provides a comprehensive range of readings including Resistance, Capacitance, Frequency, Type K Temperature, Diode Test, and Continuity, displayed on the 6000 count color EBTN display, and a 60-segment analog bargraph for trend analysis. Other features include a VFD low pass filter, NCV Detector with LED, Relative Mode, Min/Max capture, Data Hold, and Auto power off function. Adhering to the CAT IV-600V safety standard, this device comes with a Limited Certificate of Traceability to NIST (without IR function), Test Leads, a Type K Thermocouple Bead Probe, (3) AAA batteries, and a carrying case, along with a 1-year warranty.

What's Included

    (1) CM675IR w/Certificate of Traceability (NO IR NIST)

Features + Benefits

  • Non-Contact Temperature Measurement: Instantly measures the surface temperature of objects without making contact.
  • Target Identification: The built-in laser assists in quickly identifying the target area.
  • EBTN Display: The 6000 count color EBTN display provides clear readings at maximum angles.
  • Analog Bargraph: Features a 60-segment analog bargraph for trend visualization.
  • VFD Low Pass Filter: Helps in eliminating frequency and harmonic interference during the measurement of variable frequency drives.
  • Built-in Flashlight: Assists in illuminating dark areas for better visibility.
  • Versatile Functionality: Offers Min/Max captures, Data Hold, and Auto power-off functions.
  • Safety Standards: Certified with a CAT IV-600V safety category.

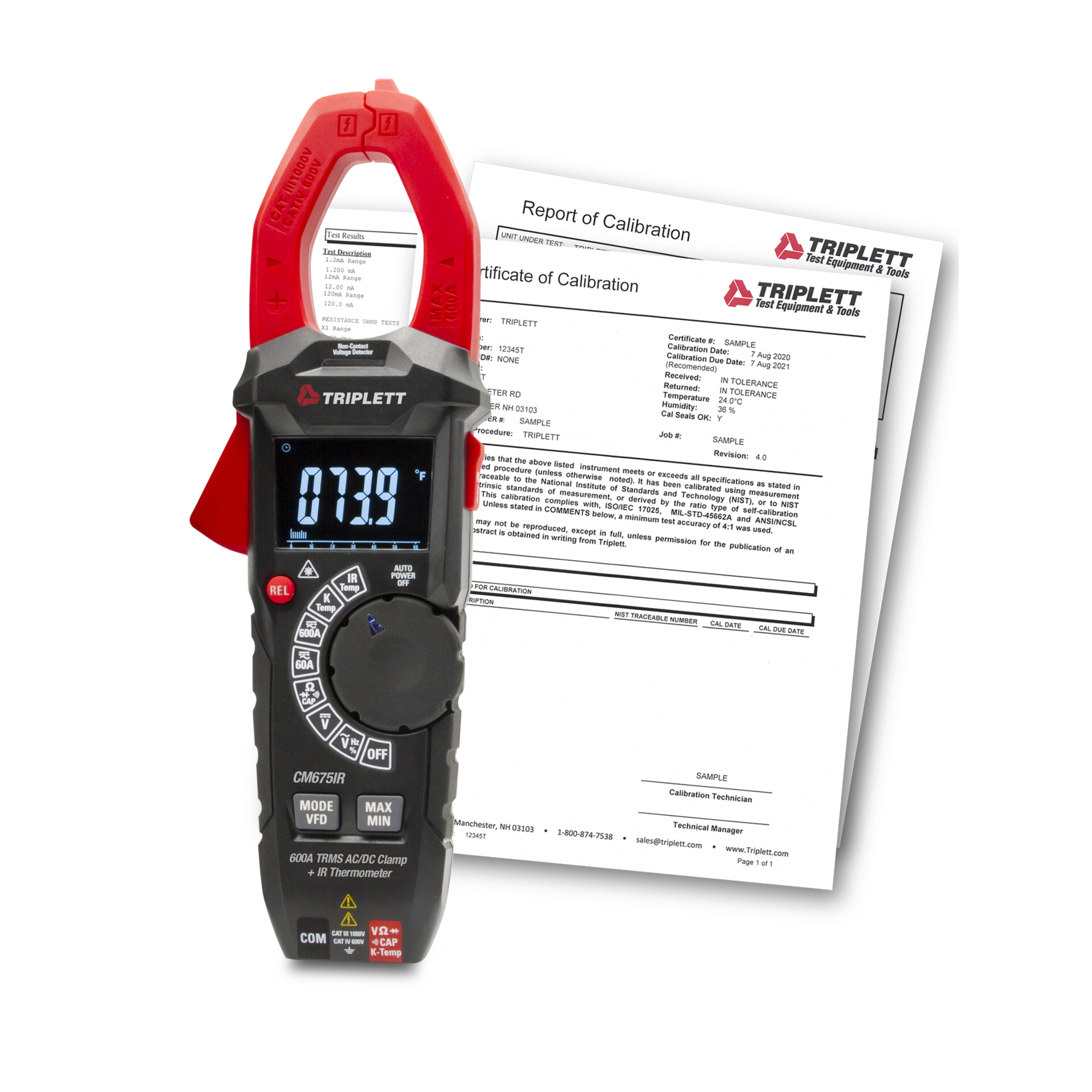

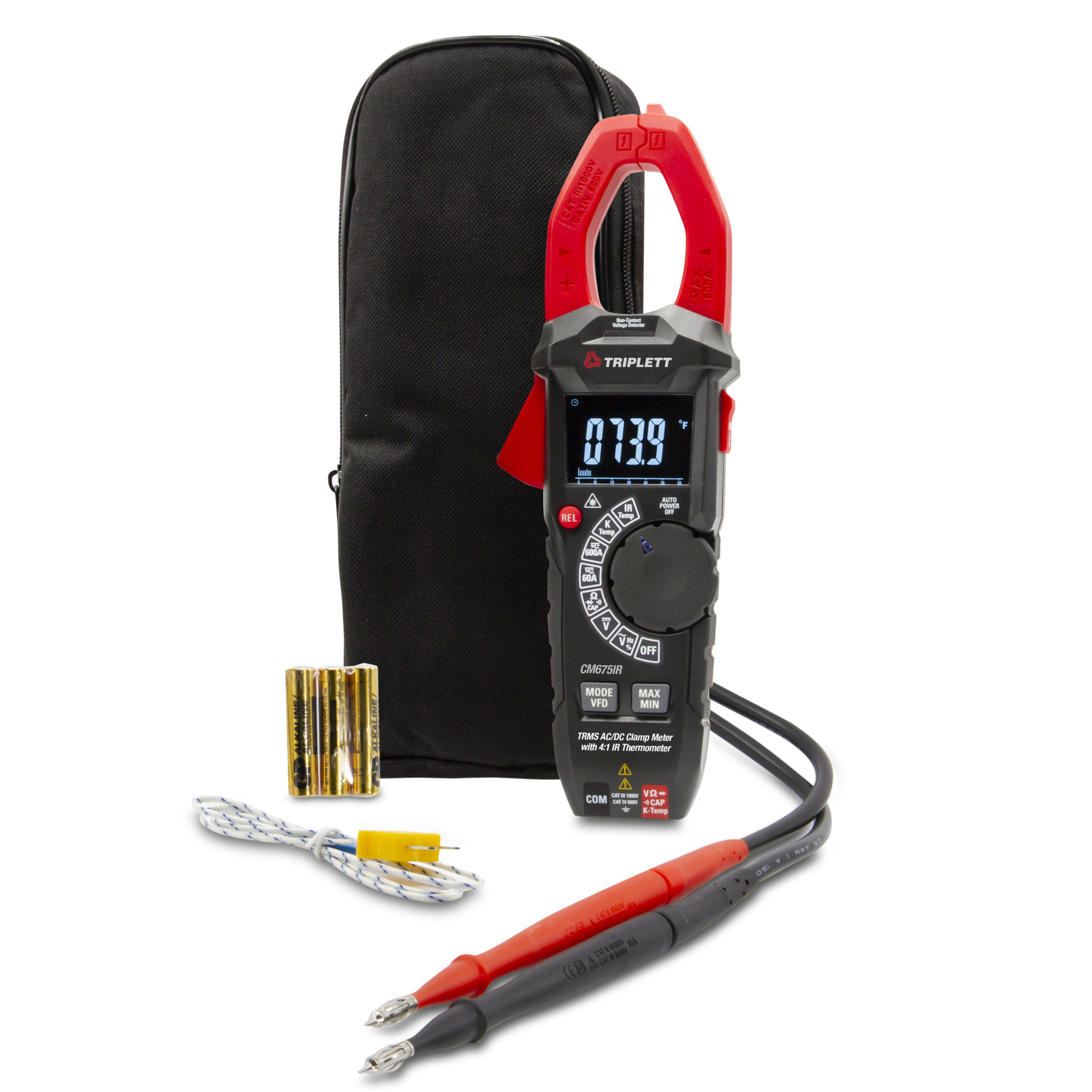

  • Includes a limited Certificate of Traceability to NIST (without IR function), Test Leads, Type K Thermocouple Bead Probe, (3) AAA batteries, and carrying case

Key Specs

AttributeSpecification

item#

7065000

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.25 LB

Functions (qty.)

12

Jaw Capacity

1.3 in

Display Type

Digital

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

1000

Max. AC Volts

1000

Max. AC Amps

600

Max. DC Amps

600

Max. Resistance

60

Battery Size

9V
AttributeSpecification

Low Battery Indicator

Yes

Battery Type

AAA

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Live Circuit Detection

Yes

UL Listed

No

Calibration Certificate Included

No

Max. Ohms

60

Application

Measure AC and DC current to up 600A without breaking the circuit by clamping around a single conductor

Includes

Includes a limited Certificate of Traceability to NIST (without IR function), Test Leads, Type K Thermocouple Bead Probe, (3) AAA batteries, and carrying case

Product Weight

1.2500 lb

Dimensions L x W x H (in.)

11.0 x 5.0 x 3.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
