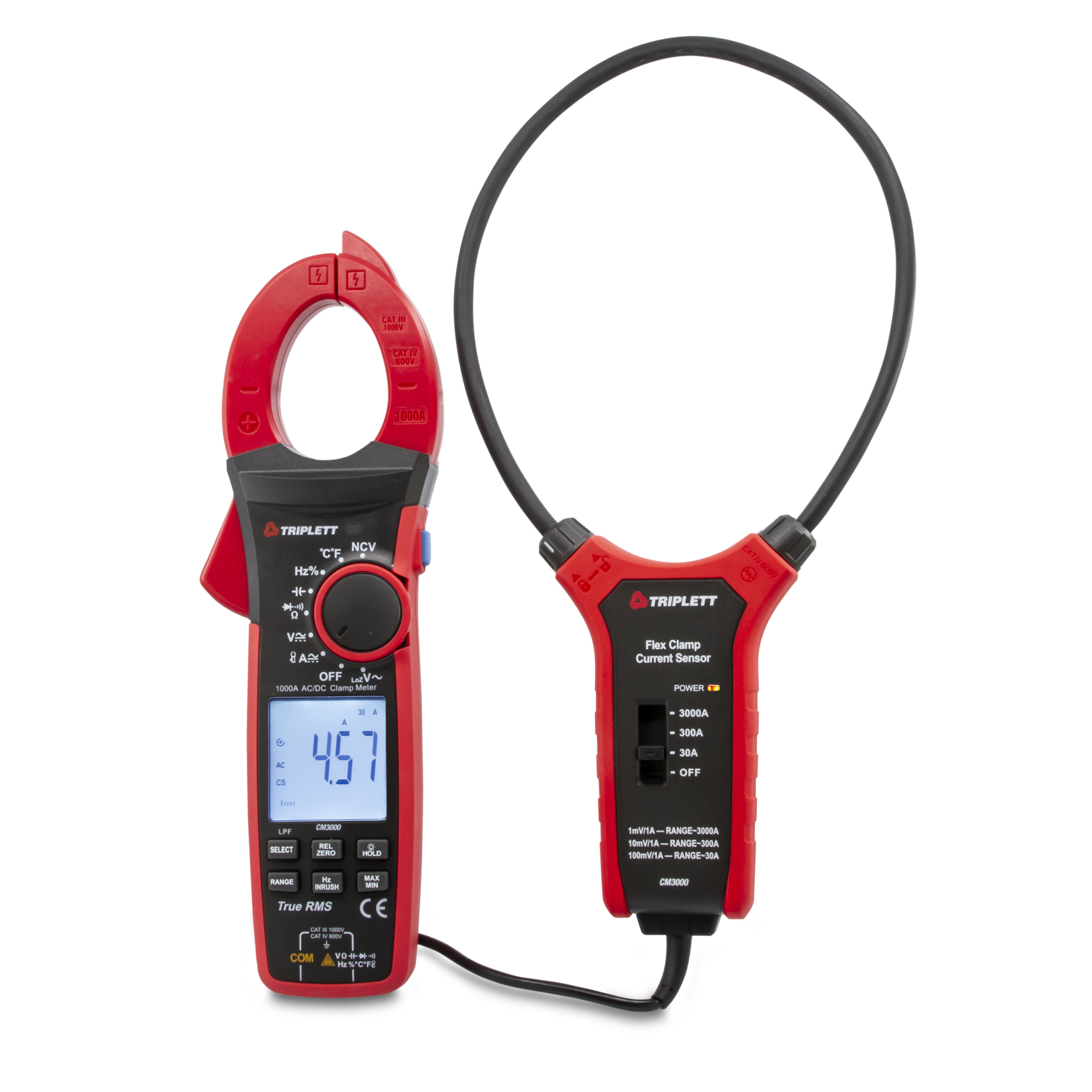

Triplett CM3000 1000A TRMS AC/DC Clamp with 3000A AC Flex Clamp

Item# 7064710
Triplett CM3000 1000A TRMS AC/DC Clamp with 3000A AC Flex Clamp

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett CM3000 1000A TRMS AC/DC Clamp with 3000A AC Flex Clamp

Click or Tap image to Zoom

$439.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

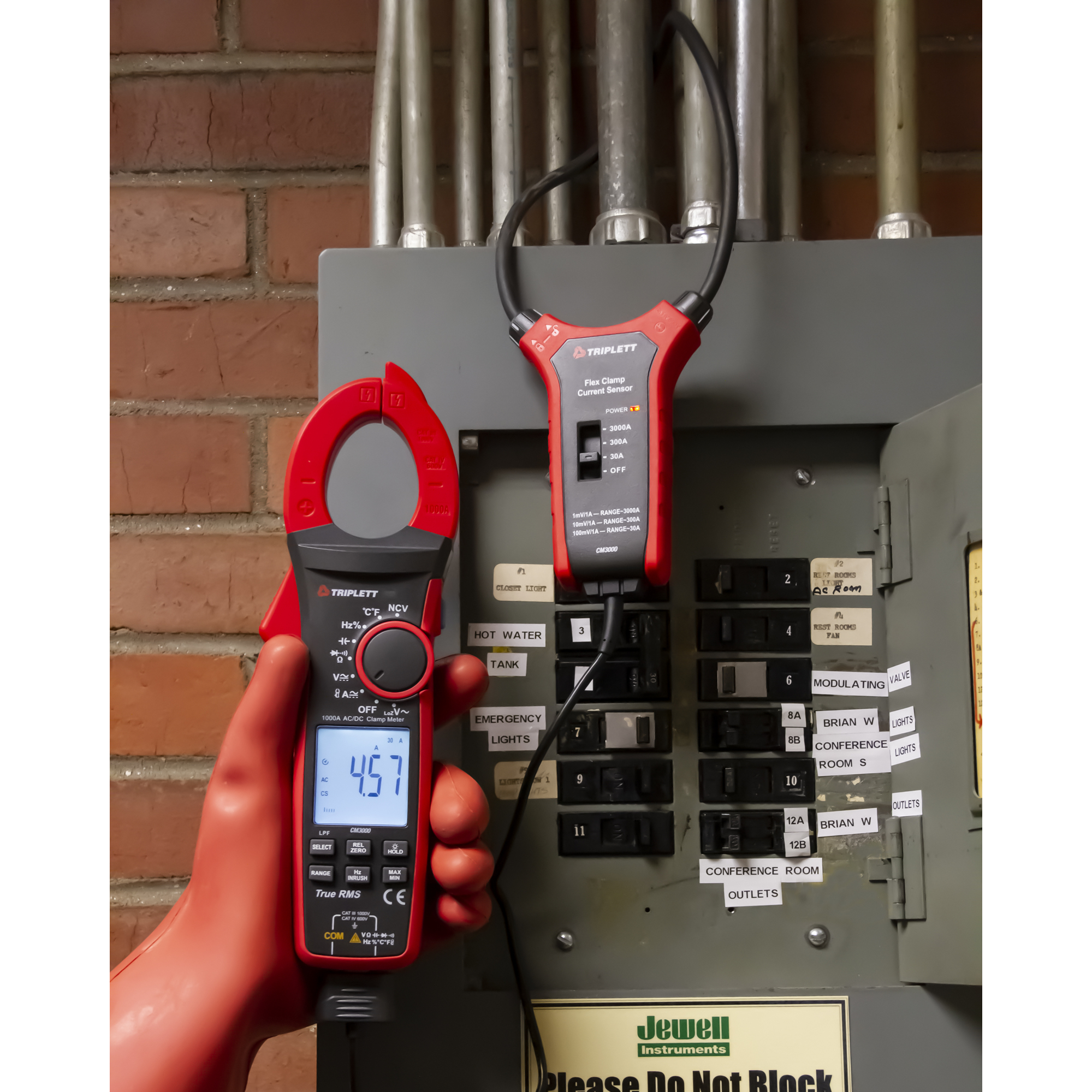

  • 3000A AC Flex Clamp for measuring high current (1.5 to 3000A) in tight spaces
  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • Captures the instantaneous surge (inrush) current when power equipment is turned on
  • 1.7" (42mm) clamp jaw
  • Built-in Non-Contact Voltage Detector with audible/visual alerts

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

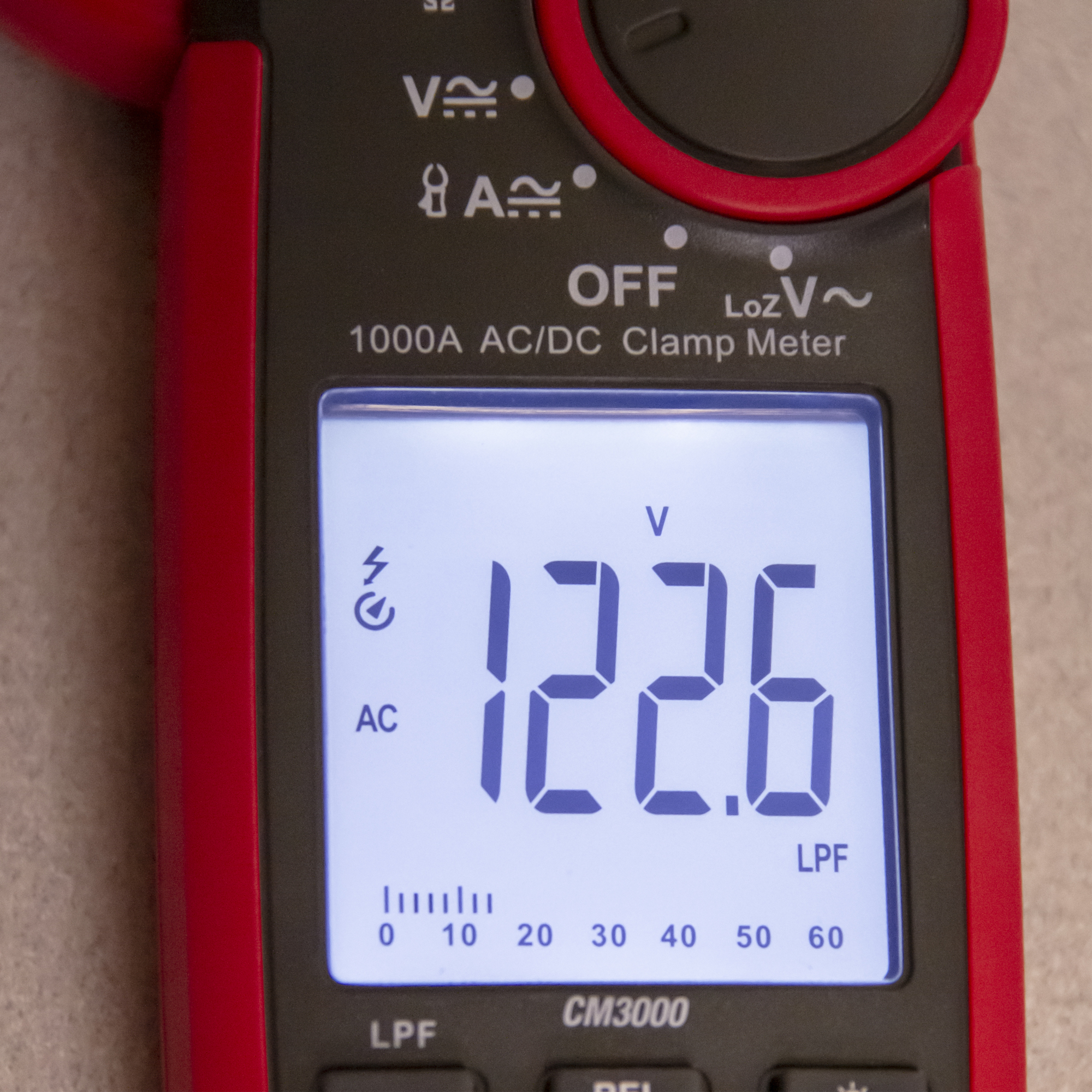

The Triplett Model CM3000 1000A True RMS AC/DC Clamp Meter can measure AC/DC current up to 1000A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. It also comes with a 3000A AC Flex Clamp for measuring high current (1.5 to 3000A) in tight spaces. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional measurements include Resistance, Capacitance, Frequency, Temperature, Diode Test, and Continuity. Measurements can read on the 6000 count backlit LCD with analog bargraph. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on. Features include: Lo Z (impedance) mode for identifying ghost voltages, Low Pass FIlter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives, Min/Max records highest and lowest readings, Data Hold freezes the display for easy viewing, NCV Detector with audible/visual alerts, Relative Mode for making comparisons to a stored reference value, Auto power off, and a built-in flashlight. CAT IV-600V safety category. Includes 3000A AC Flex Clamp with (3) AAA batteries, Test Leads, Type K Thermocouple Bead Probe, 3 AAA batteries, and carrying bag. 1-year warranty.

What's Included

    (1) 1000A TRMS AC/DC Clamp with 3000A AC Flex Clamp

Features + Benefits

  • 3000A AC Flex Clamp for measuring high current (1.5 to 3000A) in tight spaces
  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • Captures the instantaneous surge (inrush) current when power equipment is turned on
  • 1.7" (42mm) clamp jaw
  • Built-in Non-Contact Voltage Detector with audible/visual alerts
  • Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
  • LoZ (impedance) mode for identifying ghost voltages
  • Min/Max records highest and lowest readings; Data Hold freezes the display; Relative Mode for making comparisons to a stored reference value
  • Auto power off with disable; Low battery indicator; Built-in Flashlight
  • CAT IV 600V

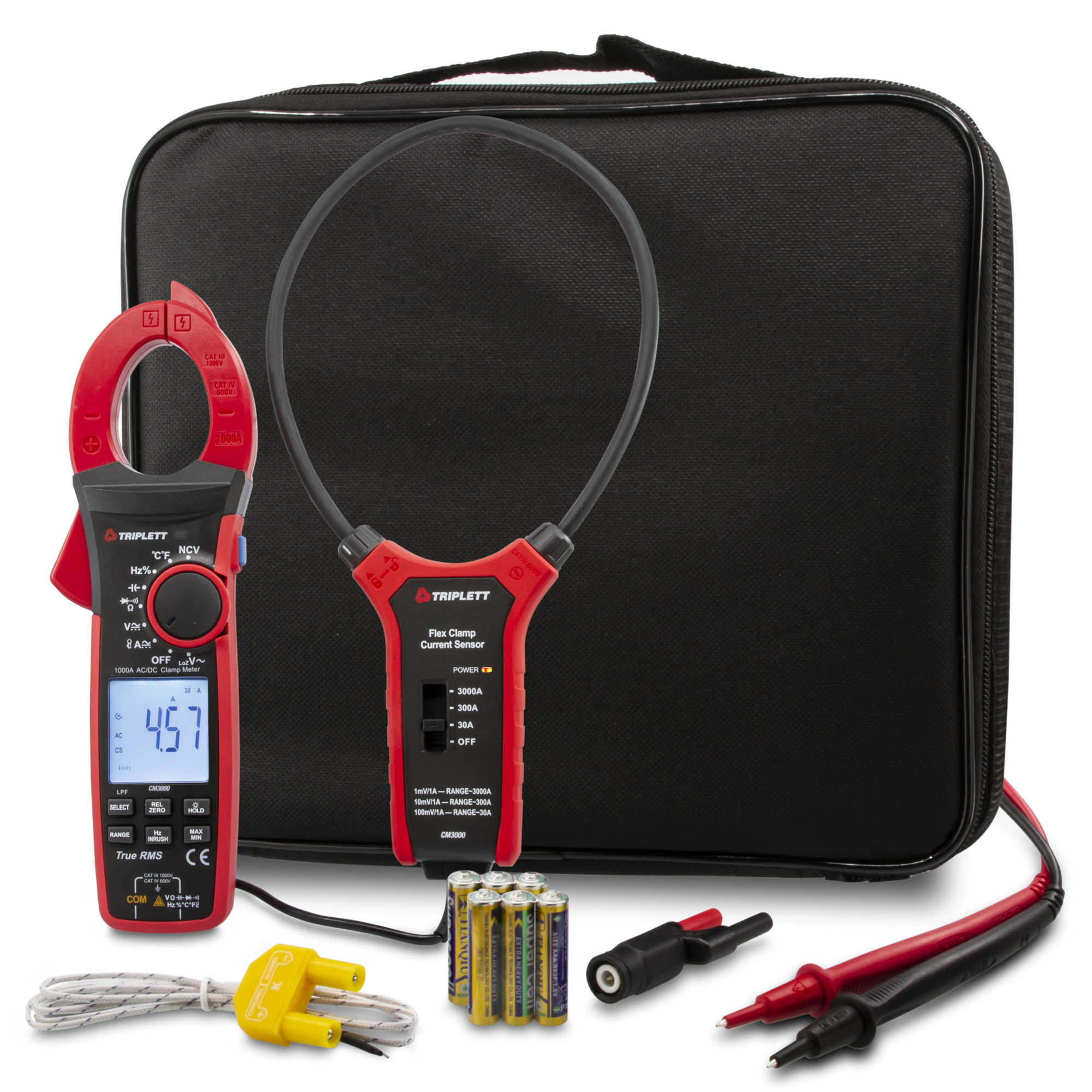

  • Includes 3000A AC Flex Clamp with (3) AAA batteries, Test Leads, Type K Thermocouple Bead Probe, 3 AAA batteries, and carrying bag

Key Specs

AttributeSpecification

item#

7064710

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.85 LB

Functions (qty.)

11

Jaw Capacity

18 in

Display Type

LCD

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

1000

Max. AC Volts

1000

Max. AC Amps

3,000

Max. DC Amps

1,000

Max. Resistance

60

Battery Size

Other
AttributeSpecification

Low Battery Indicator

Yes

Battery Type

AAA

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Live Circuit Detection

Yes

UL Listed

Yes

Calibration Certificate Included

No

Max. Ohms

60

Application

Measure AC current up to 3000A and DC current to up 1000A without breaking the circuit by clamping around a single conductor

Includes

Includes 3000A AC Flex Clamp with (3) AAA batteries, Test Leads, Type K Thermocouple Bead Probe, 3 AAA batteries, and carrying bag

Product Weight

2.8500 lb

Dimensions L x W x H (in.)

12.0 x 9.5 x 3.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
