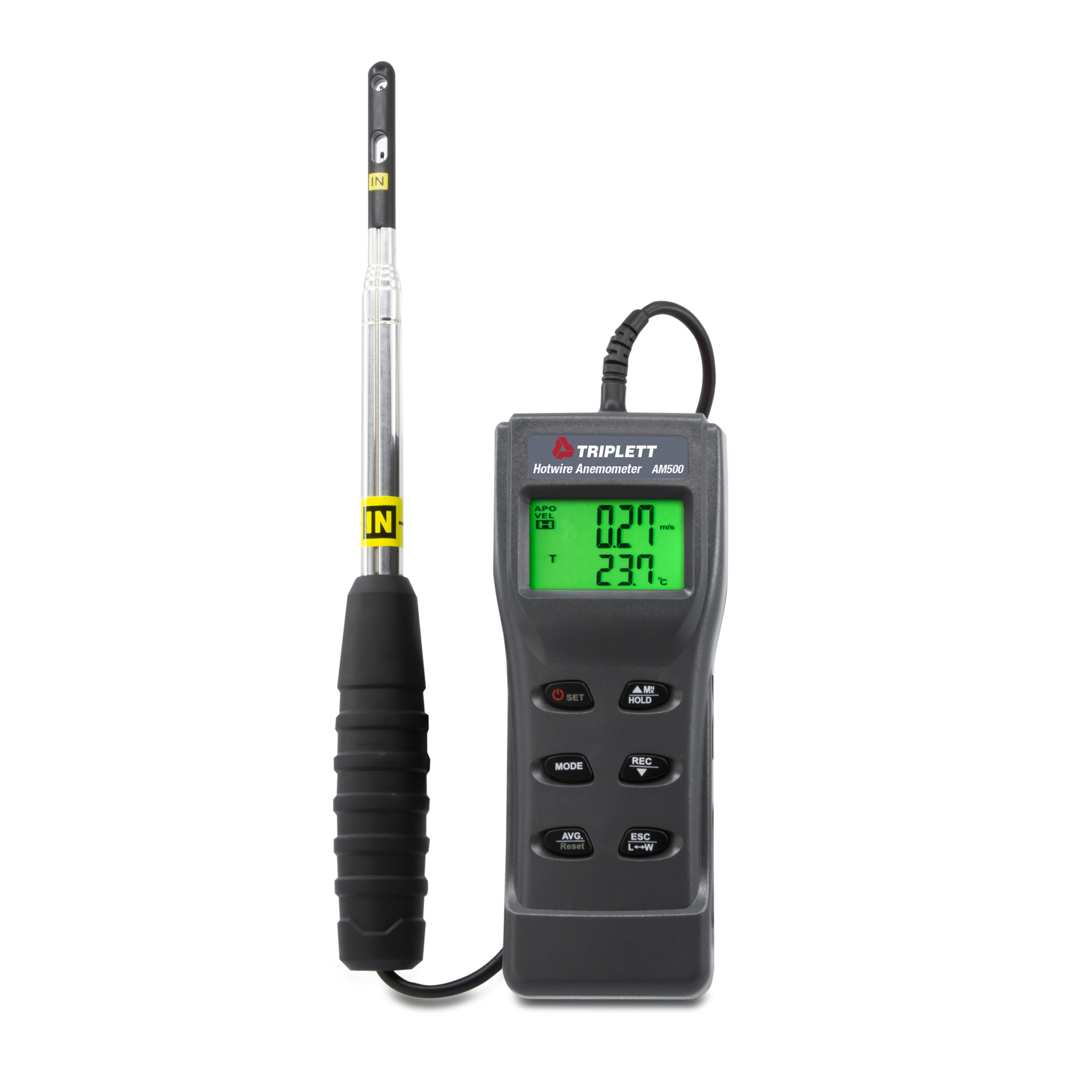

Triplett AM500 Hotwire Thermo-Anemometer

Item# 7065763
Triplett AM500 Hotwire Thermo-Anemometer

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett AM500 Hotwire Thermo-Anemometer

Click or Tap image to Zoom

$318.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Simultaneously measures and displays Air Flow (CFM/CMM) or Air Velocity plus Temperature
  • Telescoping probe extends up to 3ft (0.9m) long; Probe Head Diameter: 0.3" (8mm)
  • Depth and Direction Indications (O-Ring and Markers)
  • Strong Magnet for mounting and hands free operation
  • Displays measurement in 2 modes as an instantaneous value or up to 20 point average

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

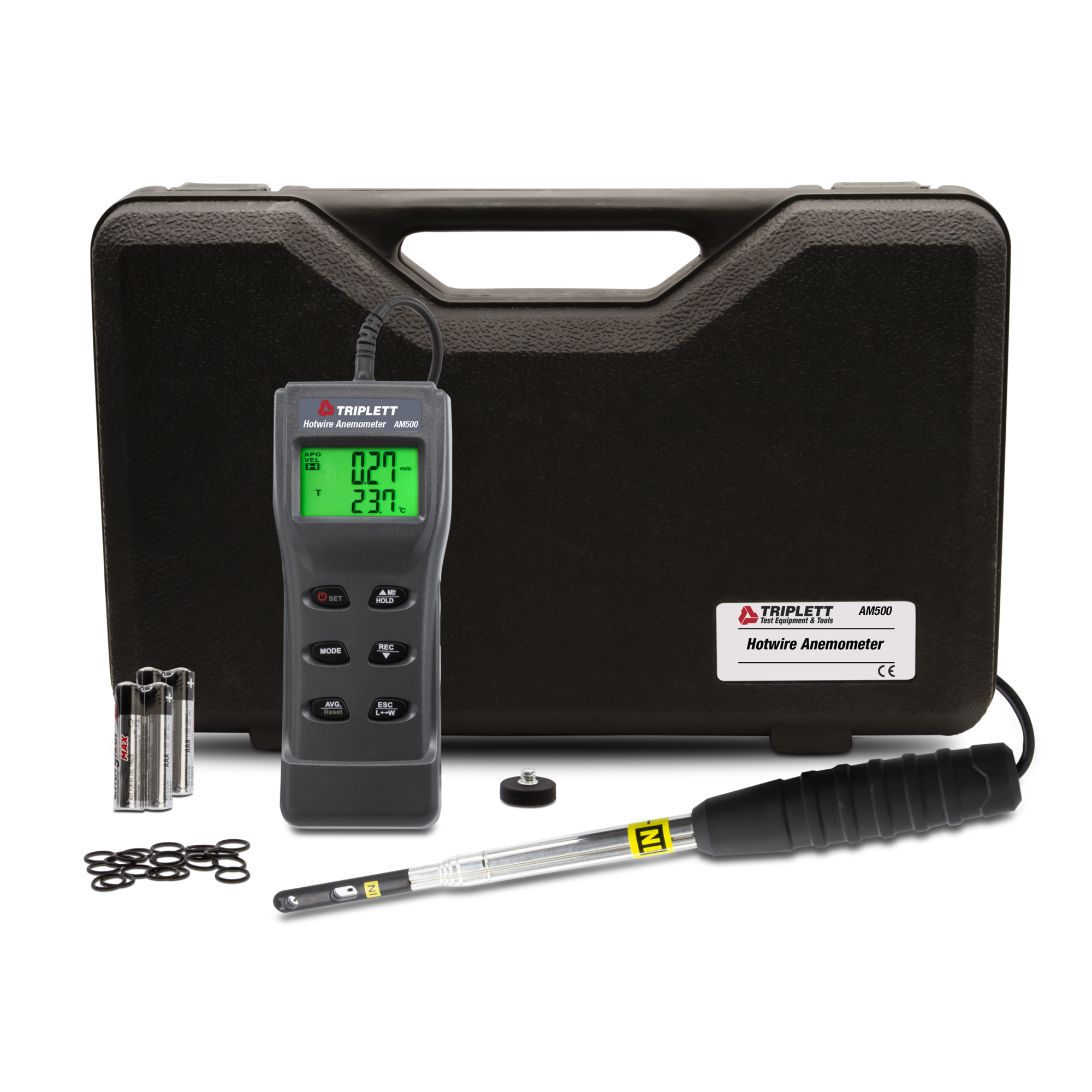

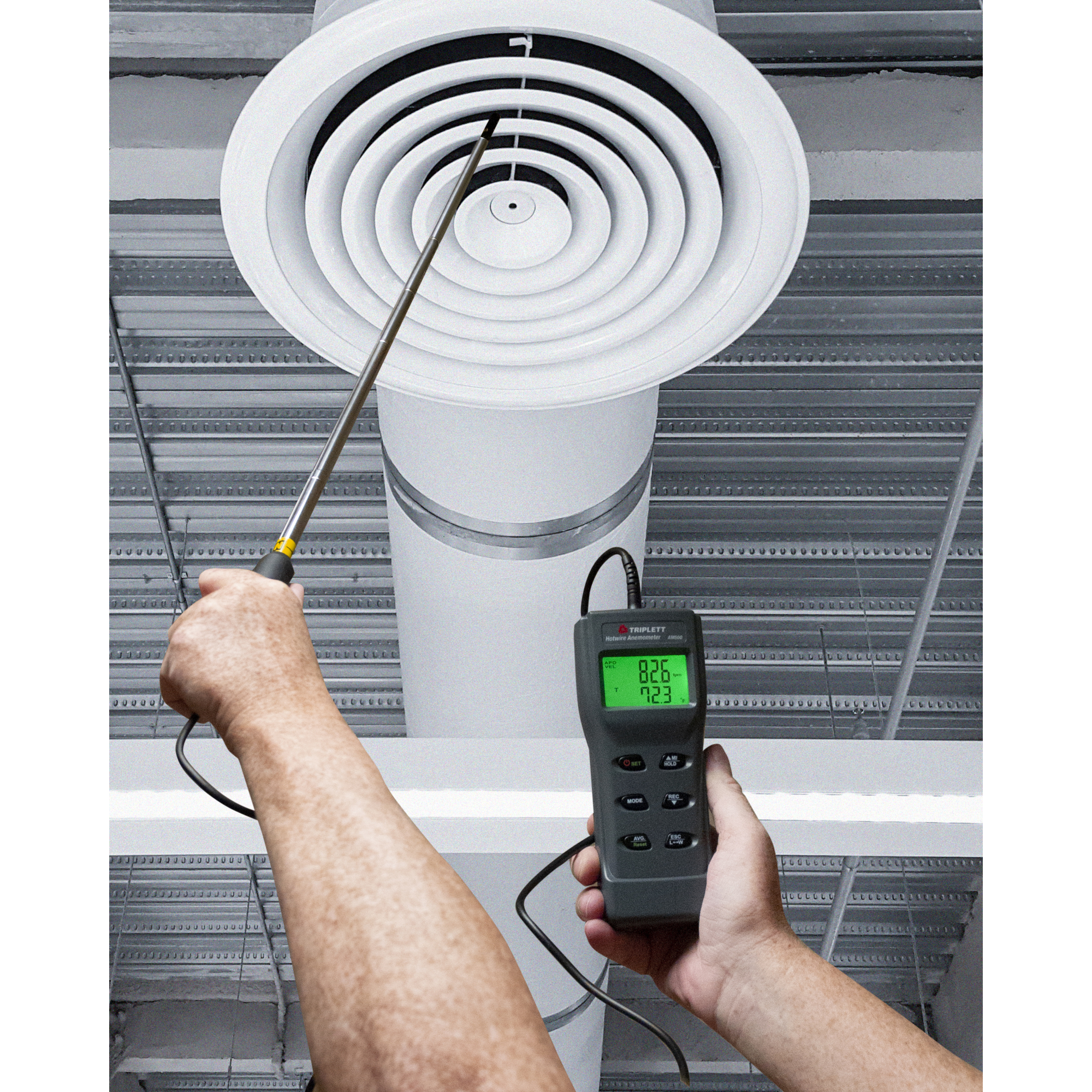

The Triplett AM500 Hotwire Anemometer uses a strong and precise airflow and temperature sensor to provide very accurate readings. The compact telecsoping probe head is ideal for ductwork. This micro-processor based design includes ATC (Automatic Temperature Compensation) and allows for accuracy on low flow (30ft./min) applications where traditional vane anemometers do not. It is a must have for any HVAC Engineer or Technician. Complete with telescoping probe with magnet,O-ring marker, hard carrying case and four 1.5V AAA batteries. 1-year warranty.

What's Included

    (1) Hotwire Thermo-Anemometer

Features + Benefits

  • Simultaneously measures and displays Air Flow (CFM/CMM) or Air Velocity plus Temperature
  • Telescoping probe extends up to 3ft (0.9m) long; Probe Head Diameter: 0.3" (8mm)
  • Depth and Direction Indications (O-Ring and Markers)
  • Strong Magnet for mounting and hands free operation
  • Displays measurement in 2 modes as an instantaneous value or up to 20 point average
  • Display Modes include Normal; Min/Max; Time Average/Point Average

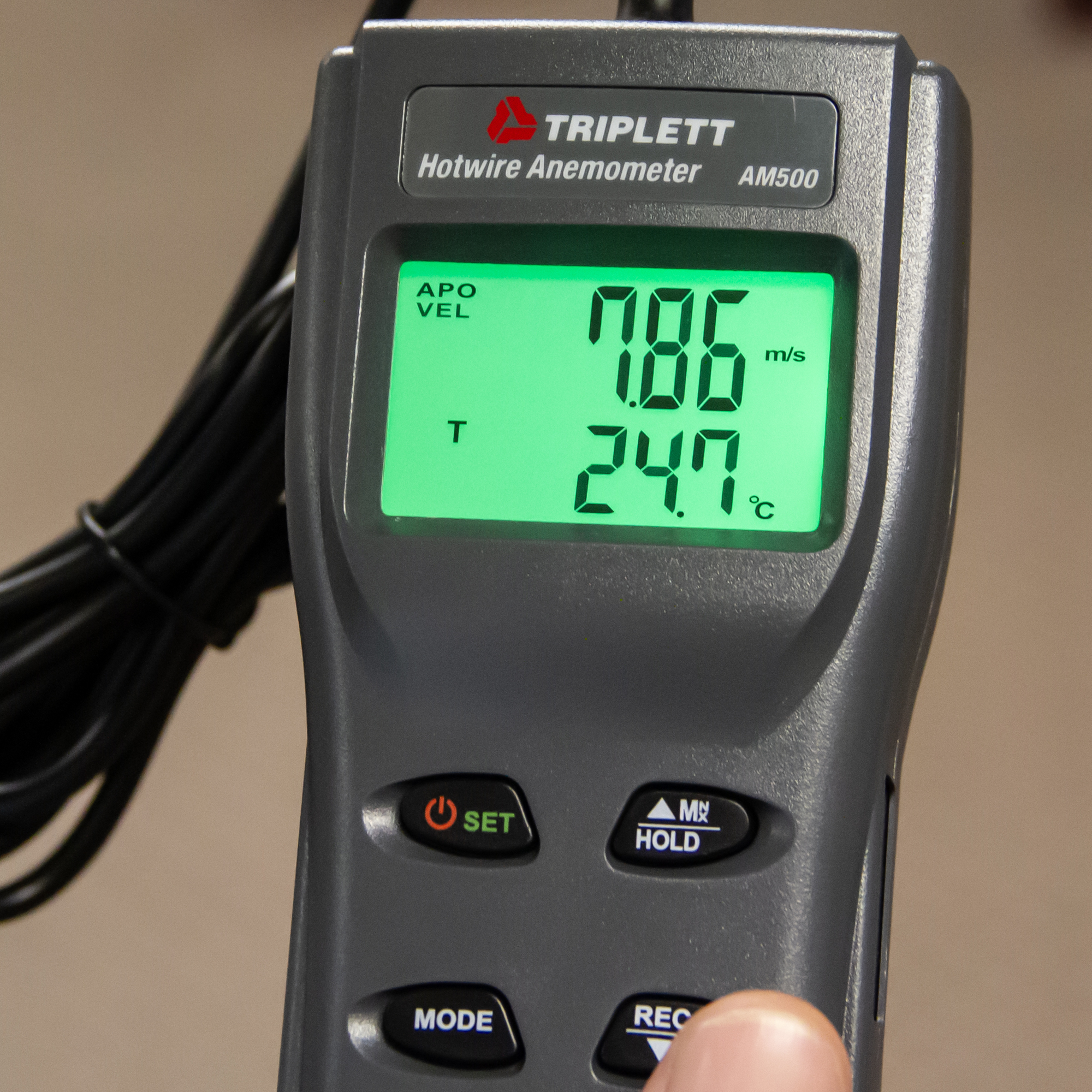

  • Large 1.7" LCD display with Backlight
  • Data Hold plus Auto Power Off with disable

Key Specs

AttributeSpecification

item#

7065763

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.35 LB

Functions (qty.)

1

Display Type

LCD

Battery Size

Other

Low Battery Indicator

Yes

Battery Type

Other

Battery Included

Yes
AttributeSpecification

Water Resistant

No

Power Source

Battery

Measures Up To

3,936 in

UL Listed

No

Calibration Certificate Included

No

Application

Measure Air Velocity, Beaufort Force, Air Temperature, Relative Humidity, Dew Point and Windchill

Includes

Includes 1 CR2032 battery and lanyard

Product Weight

0.3500 lb

Dimensions L x W x H (in.)

7.58 x 1.06 x 6.75 in
