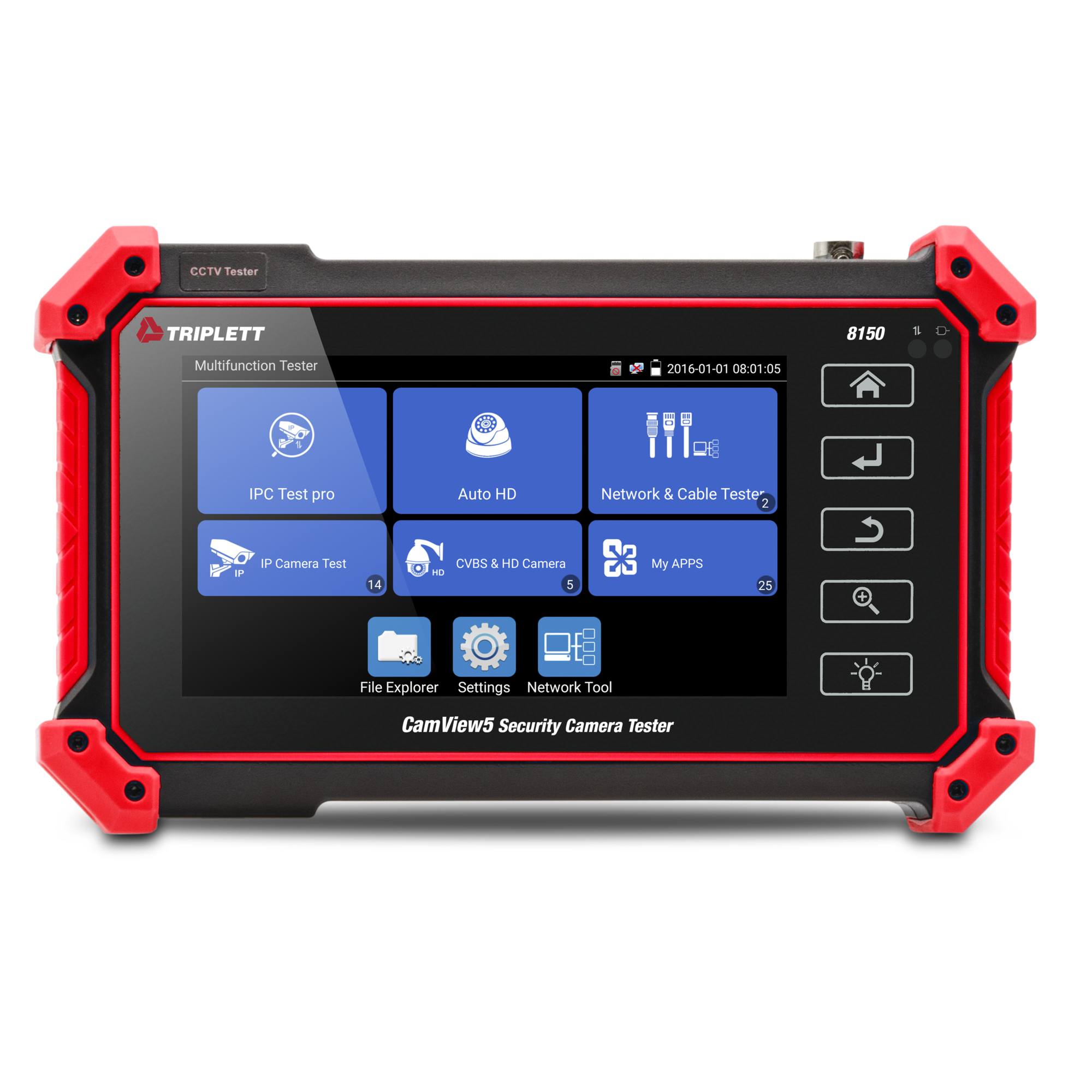

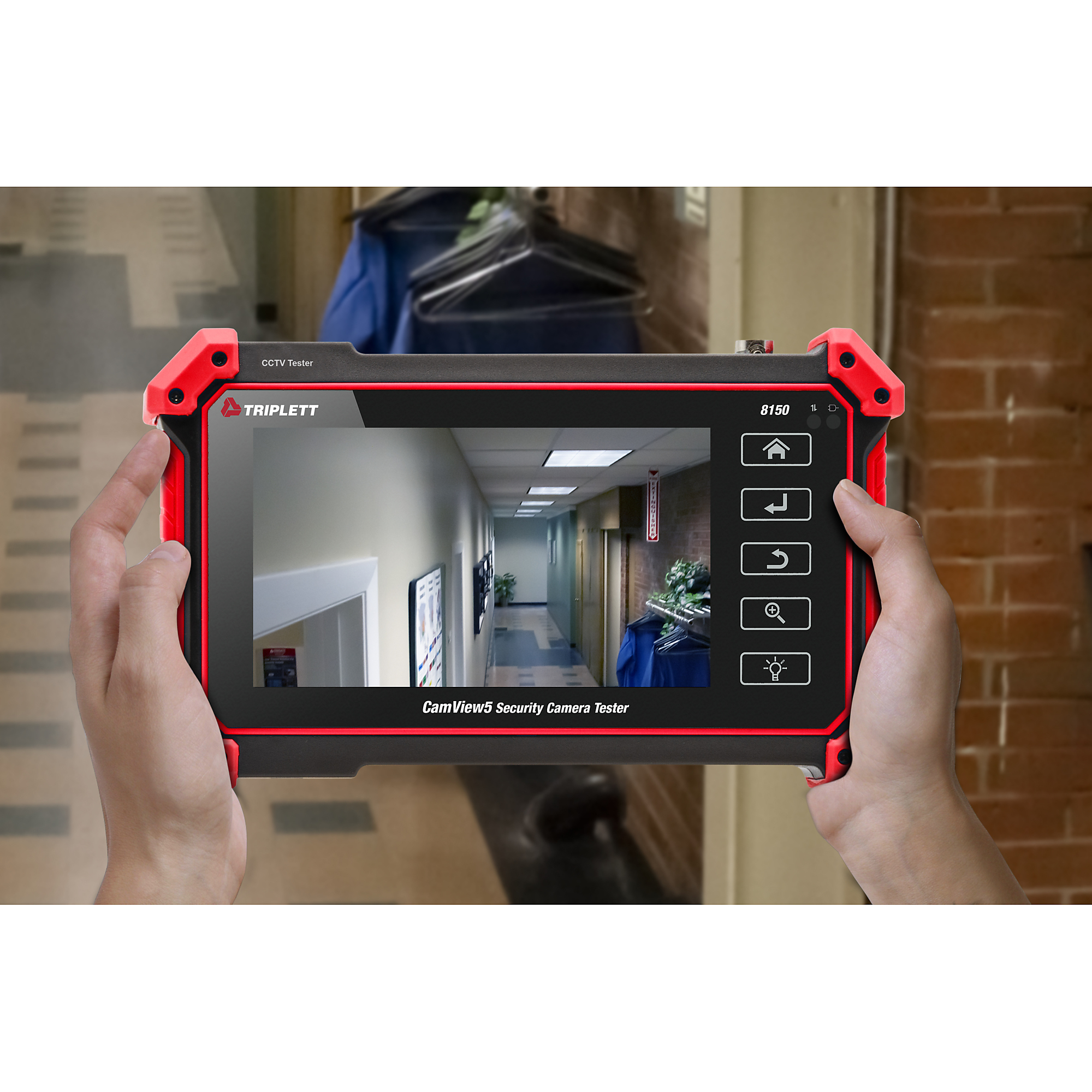

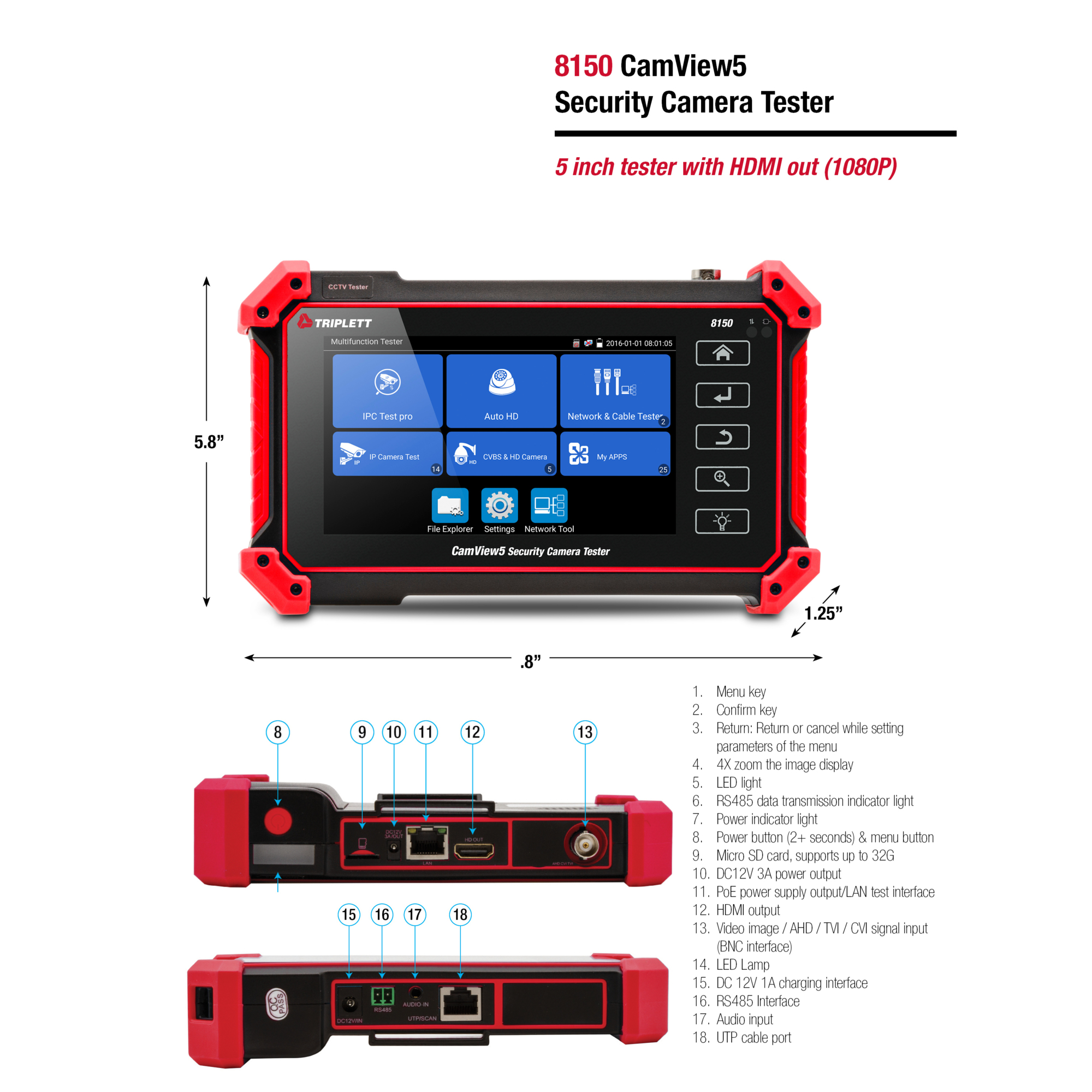

Triplett 8150 CamView5 CCTV Camera Tester, 5" Touchscreen, wifi, HDMI output

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedStore Pickup:
Not available - online only
- 8MP tester (1080p) with HDMI, BNC, and RJ45 ports
- Ookla speed test
- Works with IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as for testing 4K H.264 /H.265
- WiFi for connecting to WiFi cameras and to create a WiFi hotspot
- Has PoE (24W) and DC power output (12V/3A) and HDMI output
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) CamView5 CCTV Camera Tester, 5" , wifi, HDMI out
Features + Benefits
- 8MP tester (1080p) with HDMI, BNC, and RJ45 ports
- Ookla speed test
- Works with IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as for testing 4K H.264 /H.265
- WiFi for connecting to WiFi cameras and to create a WiFi hotspot
- Has PoE (24W) and DC power output (12V/3A) and HDMI output
- Auto-recognize HD coax camera type and resolution
- RJ45 TDR cable test and cable quality test
- UTP cable test detects opens, shorts and miswires
- 4 hour run time with 2-3 hour charge
- Compact and lightweight

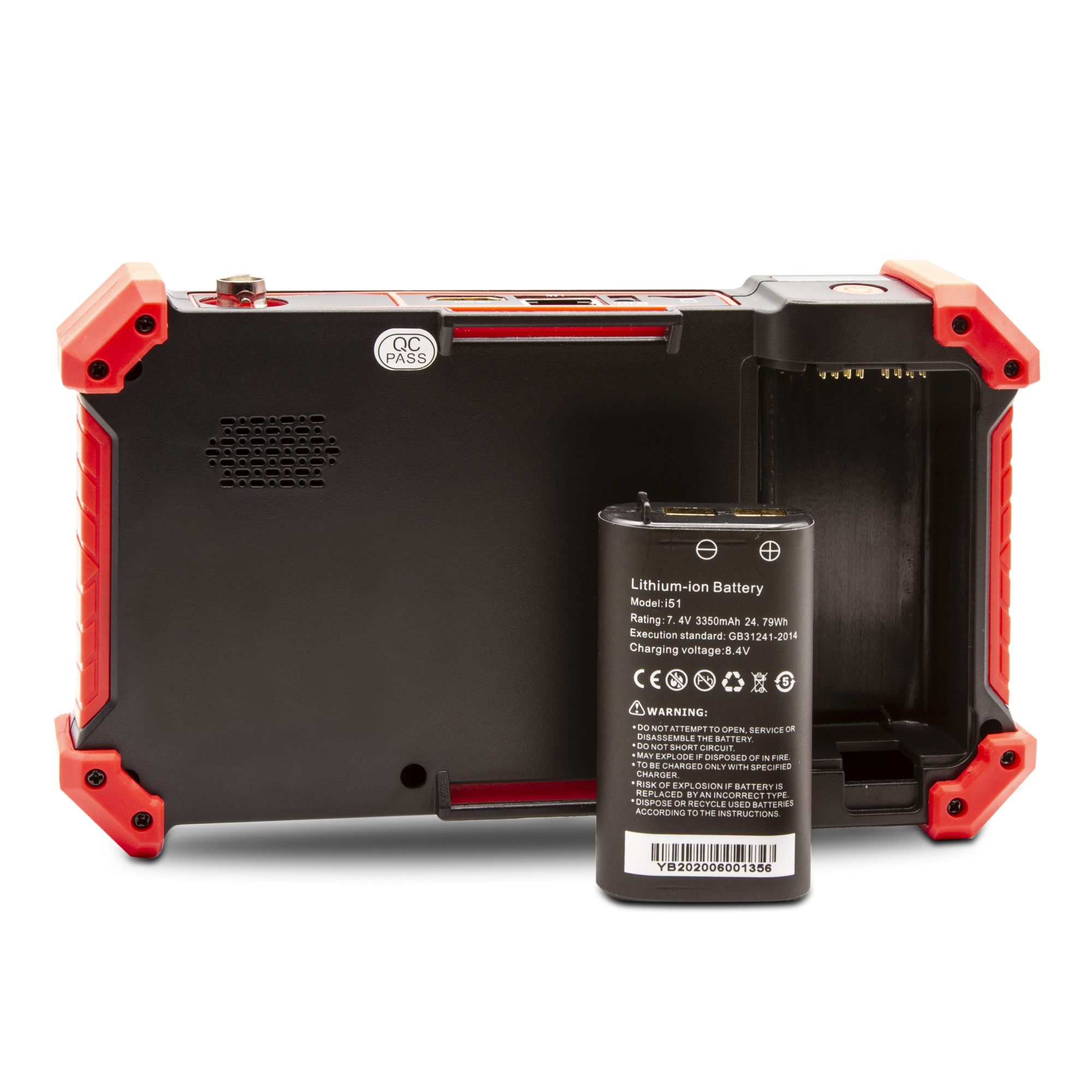

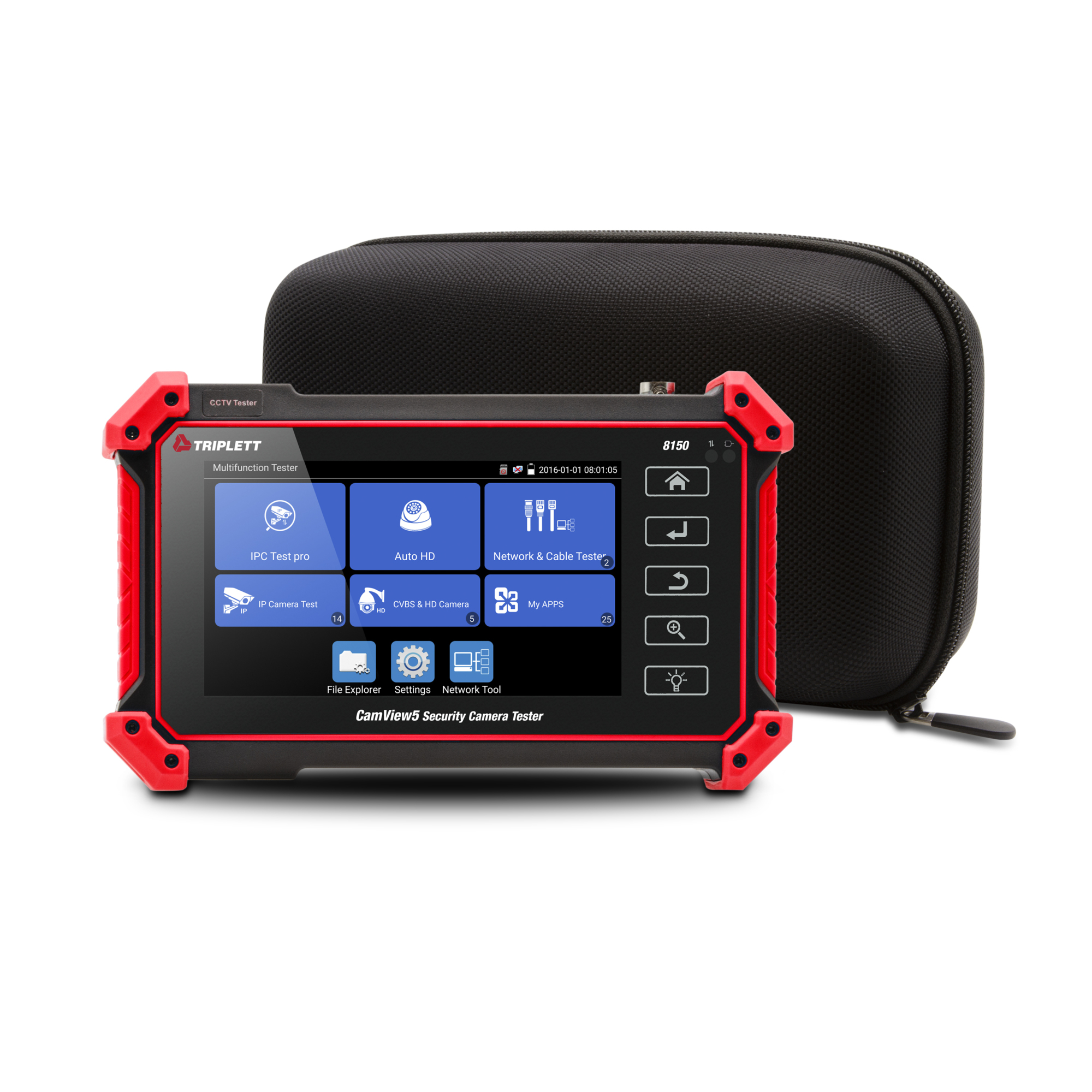

- Includes 7.4V Li-ion battery, AC adapter/charger, DC power cable, BNC cable, RS485 cable, audio cable, wrist strap, and carrying case
Key Specs
| Attribute | Specification |
|---|---|
item# | 7065106 |
Brand | Triplett |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 3.75 LB |
Functions (qty.) | 1 |
Display Type | Digital |
Battery Size | Other |
Low Battery Indicator | Yes |
Battery Type | Lithium Polymer |
| Attribute | Specification |
|---|---|
Battery Included | Yes |
Water Resistant | No |
Power Source | Battery |
Calibration Certificate Included | No |
Application | Works with IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as for testing 4K H.264 /H.265 |
Includes | Includes 7.4V Li-ion battery, AC adapter/charger, DC power cable, BNC cable, RS485 cable, audio cable, wrist strap, and carrying case |
Product Weight | 3.7500 lb |
Dimensions L x W x H (in.) | 10.75 x 4.5 x 6.5 in |
