Triplett High Definition Articulating Videoscope — 5in. Display, 6mm Camera, 800 x 480 Resolution, 2X Zoom, Model# BR750

Item# 5959106
Triplett High Definition Articulating Videoscope — 5in. Display, 6mm Camera, 800 x 480 Resolution, 2X Zoom, Model# BR750

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett High Definition Articulating Videoscope — 5in. Display, 6mm Camera, 800 x 480 Resolution, 2X Zoom, Model# BR750

Click or Tap image to Zoom

$3314.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Joystick controller and waterproof (IP67) 6mm camera
  • Articulating probe with joystick adjusts 135° in all directions
  • 4 adjustable LEDs can illuminate totally darkened areas for inspection
  • 5" Color TFT LCD monitor with 800 x 480 resolution
  • 2X Digital Zoom

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

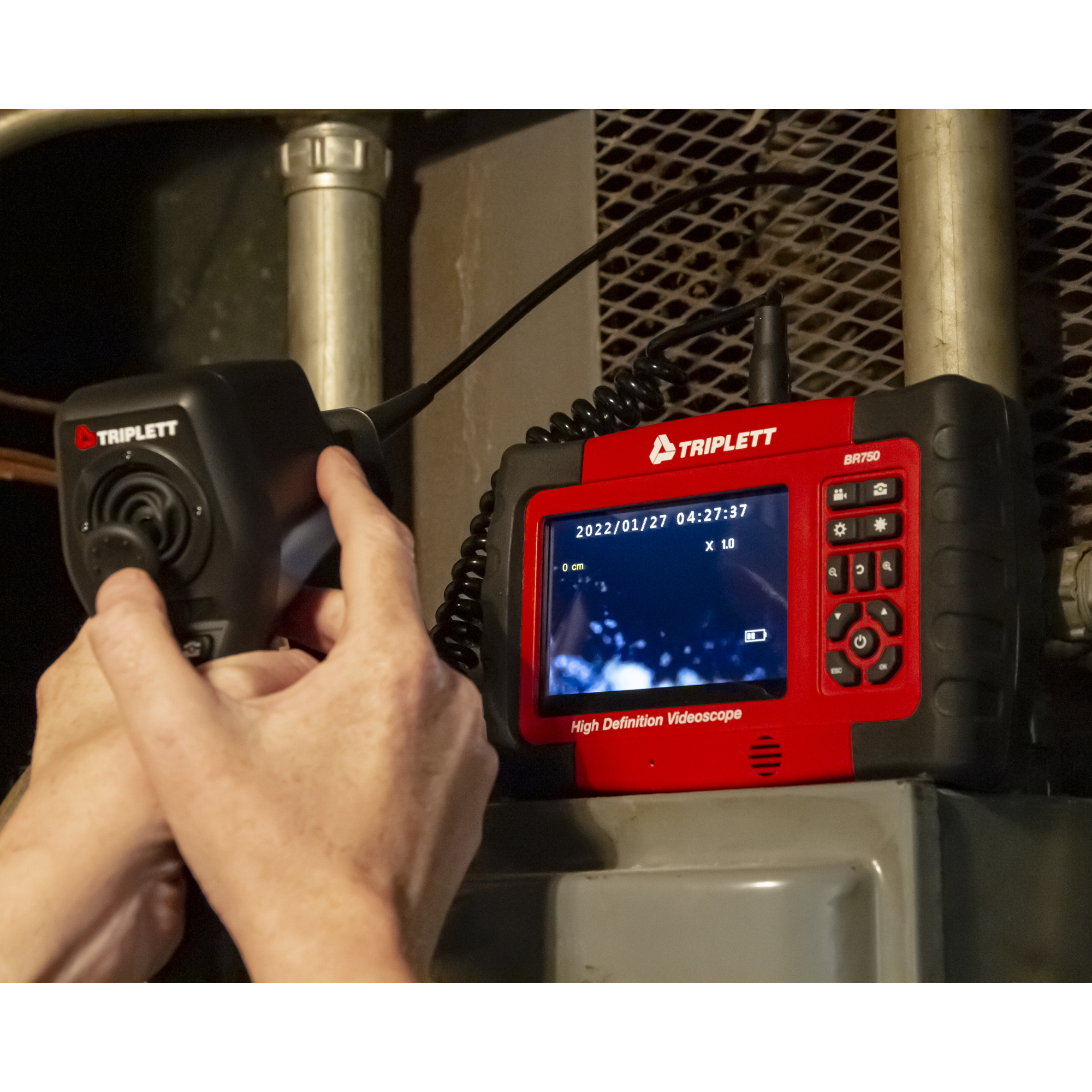

The Triplett BR750 High Definition Articulating Videoscope allows you to see behind walls and down drains which can save time and money on any repair or installation. It has an 6mm waterproof (IP67) camera with a joystick controlled articulating probe that adjusts 135° in all directions. 4 adjustable LEDs can illuminate totally darkened areas for inspection. It features a 5in. Color TFT LCD monitor with 800 x 480 resolution, 2X Zoom, Mirror image mode (vertical, horizontal, or both), a built-in clock/calendar, and the ability to record video (.ASF) and images (.JPG). View captured video/images on the display or transfer to your PC using the USB interface or removable SD card (32GB max). You can store up to 150k images on the included 8GB SD card. The SWR (Snapshot while recording) function can be used during video recording or playback. The Photo Compare function displays 2 images on the screen at the same time. An audio/ video output jack can be used for external viewing on a a larger display (NTSC or PAL). Includes Videoscope, handset with joystick controlled articulating probe, 3.7V rechargeable battery, cleaning kit, 100-240V AC adapter/charger with 4 connectors (US, UK, EU, AUS), SD card, USB and AV cables and heavy duty carrying case. 1 year warranty.

What's Included

    (1) 5", High Def Articulating Videoscope, 6mm camera

Features + Benefits

  • Joystick controller and waterproof (IP67) 6mm camera
  • Articulating probe with joystick adjusts 135° in all directions
  • 4 adjustable LEDs can illuminate totally darkened areas for inspection
  • 5" Color TFT LCD monitor with 800 x 480 resolution
  • 2X Digital Zoom
  • Mirror image mode (vertical, horizontal, or both)
  • Record video (.ASF) and images (.JPG)
  • SWR (Snapshot while recording) function during video recording or playback
  • View captured video/images on the display or transfer to your PC using the USB interface or removable SD card (32GB max)
  • Photo Compare function displays 2 images on the screen at the same time

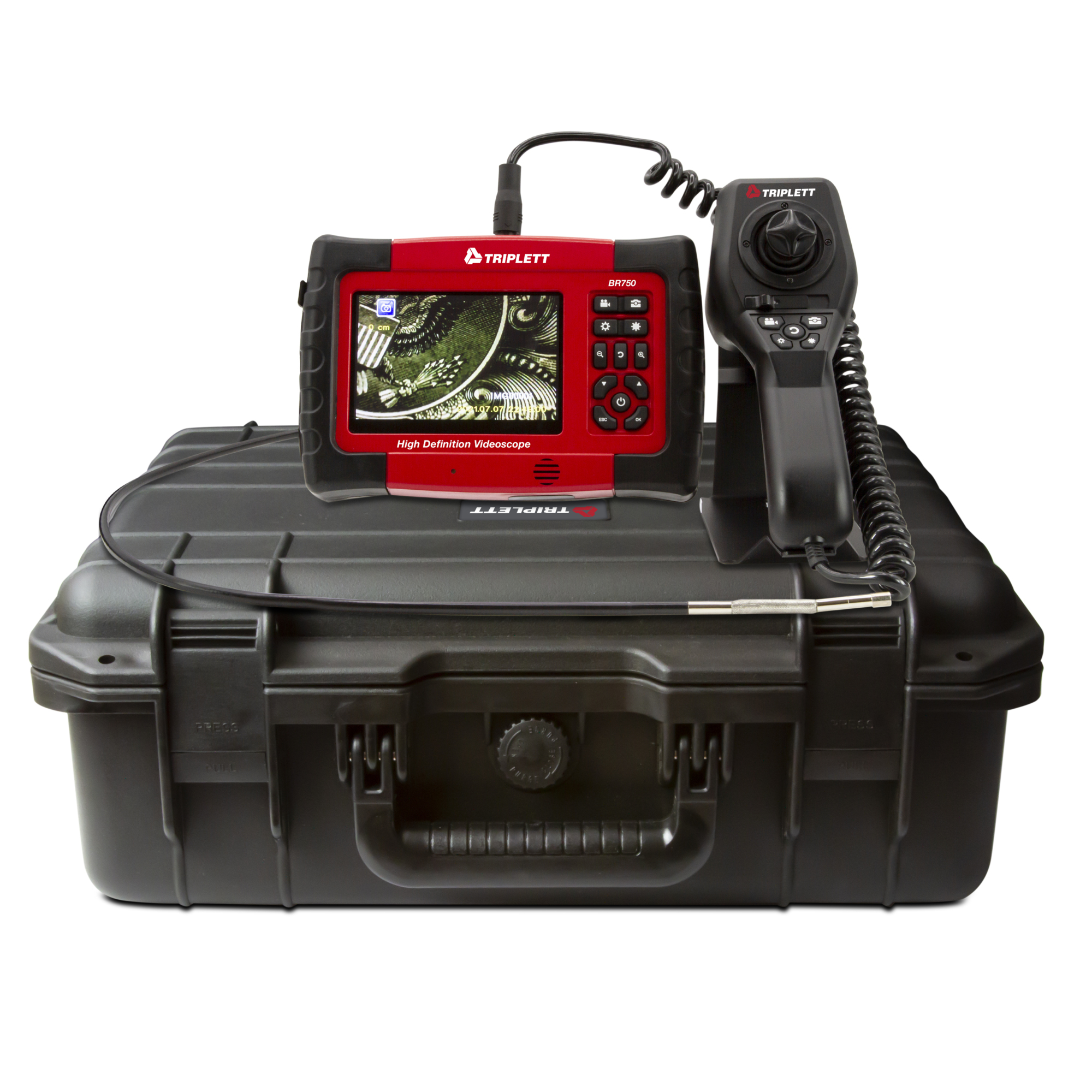

  • Includes Videoscope, handset with joystick controlled articulating probe, 3.7V rechargeable battery, cleaning kit, 100-240V AC adapter/charger with 4 connectors (US, UK, EU, AUS), SD card, USB and AV cables and heavy duty carrying case

Key Specs

AttributeSpecification

item#

5959106

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.0 LB

Functions (qty.)

1

Display Type

LCD

Battery Size

Other

Low Battery Indicator

Yes

Battery Type

Lithium Polymer

Battery Included

Yes

Water Resistant

Yes

Power Source

Battery
AttributeSpecification

UL Listed

No

Calibration Certificate Included

No

Shaft Length

1 in

Shaft Diameter

6 in

Camera Size

6 in

Light Type

LED

Observation Depth

3 ft

Application

Inspect cable connections on the back of installed equipment; Plumbing and Electrical installations behind walls and hard-to-reach areas; HVAC and Heating duct work or in and around the heat exchanger,“A Coil” and evaporator; Automotive

Includes

Includes Videoscope, handset with joystick controlled articulating probe, 3.7V rechargeable battery, cleaning kit, 100-240V AC adapter/charger with 4 connectors (US, UK, EU, AUS), SD card, USB and AV cables and heavy duty carrying case

Product Weight

11.0000 lb

Dimensions L x W x H (in.)

17.5 x 6.9 x 15.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
