The CM450 is a 400 A clamp meter with no µA range and is not suitable for microamp measurements.

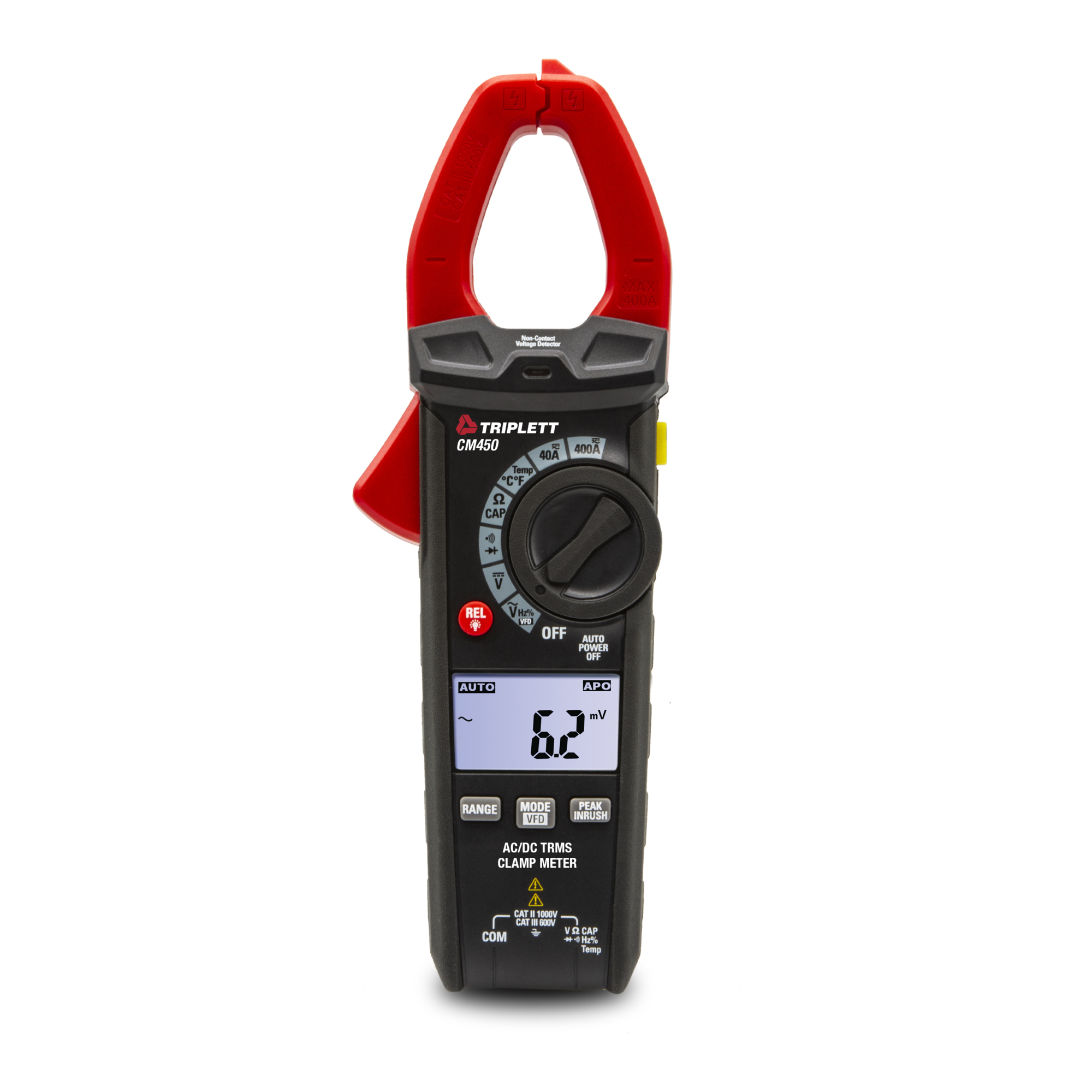

Triplett True RMS Clamp Meter — 400A AC/DC, 4000 Count LCD, Model# CM450
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$92.99
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- Captures the instantaneous surge (inrush) current when power equipment is turned on
- 1.2" (30mm) clamp jaw opening
- Built-in Non-Contact Voltage Detector with LED
- Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
See full description
See All Clamp Meters
See All Triplett Clamp Meters
Currently Viewing This Product
Specifications
Specifications
Triplett True RMS Clamp Meter — 400A AC/DC, 4000 Count LCD, Model# CM450
Triplett True RMS Mini Clamp Meter — 400A AC/DC, Inrush Current, Model# CM24
Triplett True RMS AC/DC Clamp-On Meter — 1000A, Backlit LCD, Temperature Measurement, Model# 9325
Klein Tools, Premium Meter Electrical Test Kit, Model# CL220VP
Functions (qty.)
Same
11
3
1
-
Jaw Capacity
Same
1.2 in
1 in
1.5 in
1.6 in
Display Type
Same
LCD
LCD
LCD
LCD
Circuit or Voltage Tester
Same
Voltage Tester
Voltage Tester
Voltage Tester
-
Max. DC Volts
Same
1000
600
600
600
Max. AC Volts
Same
1000
600
600
600
Max. AC Amps
Same
400
400
1,000
-
Max. DC Amps
Same
400
400
1,000
-
Max. Resistance
Same
40
-
60
-
Battery Size
Same
Other
AAA
9V
AAA
Low Battery Indicator
Same
Yes
Yes
Yes
-
Battery Type
Same
AAA
AAA
Other
-
Battery Included
Same
Yes
Yes
Yes
Yes
Capacitance Range
Same
100mF
-
4000µF
-
Frequency
Same
100kHz
-
10kHz
-
Accuracy
Same
0.025
0.025
0.028
-
Measures
Same
Measures AC/DC Voltage and Current
Measures AC and DC Current
AC/Voltage/Current, Resistance, Temperature, Capacitance, Frequency, Continuity
-
Max. Temperature
Same
1,832 °F
-
1,400 °F
-
Case Included
Same
Yes
No
Yes
Yes
Senses
Same
AC Voltage
AC Voltage
AC Voltage
-
Common Usage
Same
Measures AC/DC Voltage and Current
Measure current
Measure current
-
Auto On/Off
Same
Yes
Yes
Yes
Yes
Water Resistant
Same
No
No
No
-
Power Source
Same
Battery
Battery
Battery
Battery
Live Circuit Detection
Same
Yes
Yes
Yes
-
Alert Priority
Same
Visual
Visual
-
-
UL Listed
Same
Yes
No
No
No
Calibration Certificate Included
Same
No
No
No
No
Max. Ohms
Same
40
-
20
-
Material
Same
Plastic
Plastic
Plastic
ABS
Application
Same
Measure AC and DC current to up 400A without breaking the circuit by clamping around a single conductor
Measure AC and DC current to up 400A without breaking the circuit by clamping around a single conductor
Suited for a variety of industrial and residential applications such as security, electrical, HVAC installations and more
Testing and Measuring AC/DC Voltage, Resistance, Continuity, Temperature, Non-contact Voltage Detection, and Determining Wiring Conditions in Outlets
Includes
Same
Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case
Includes 2 AAA batteries
Includes Test leads, Type K Temperature probe, 9V battery, and case.
CL220 Digital Clamp Meter with Test Leads, NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight, ET40 Electronic AC/DC Voltage Tester, RT210 GFCI Receptacle Tester, Carrying Case, Instructions, All Required Batteries
Product Weight
Same
1.3000 lb
2.1000 lb
0.5000 lb
0.6100 lb
Dimensions L x W x H (in.)
Same
4.75 x 2.4 x 11.0 in
14.17 x 2.76 x 9.06 in
10.0 x 2.0 x 6.0 in
8.4 x 3.5 x 1.5 in
Charger Included
Same
-
-
-
No
Polarity Indicator
Same
-
-
-
Yes
