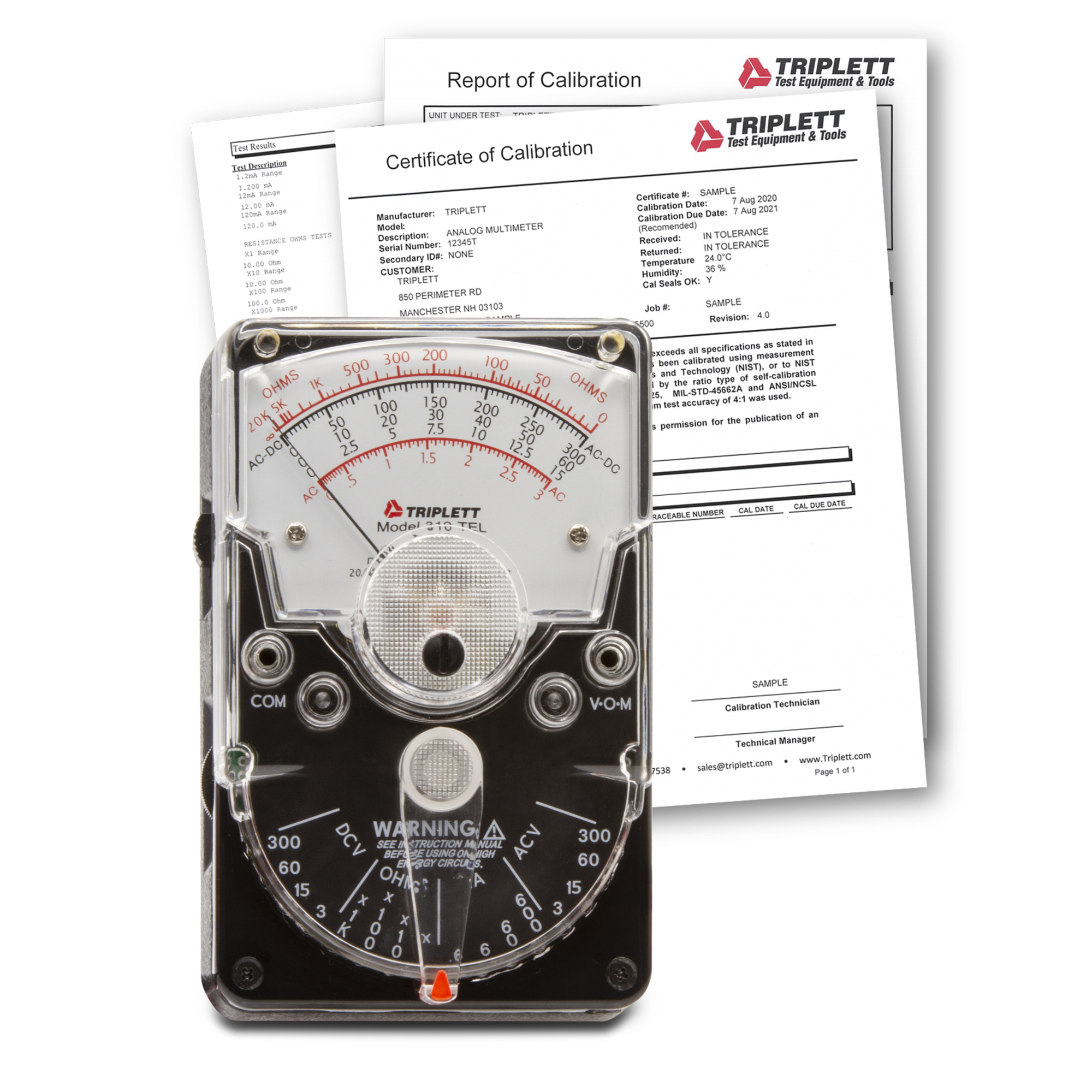

Triplett 3067-NIST 3067 Analog Multimeter with Certificate of Traceability to N.I.S.T.

Item# 7065034
Triplett 3067-NIST 3067 Analog Multimeter with Certificate of Traceability to N.I.S.T.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett 3067-NIST 3067 Analog Multimeter with Certificate of Traceability to N.I.S.T.

Click or Tap image to Zoom

$279.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 16 Ranges and Functions
  • AC/DC Voltage Measurement to 300V with polarity reversing switch
  • Drop resistant high impact case
  • Fused Resistance ranges

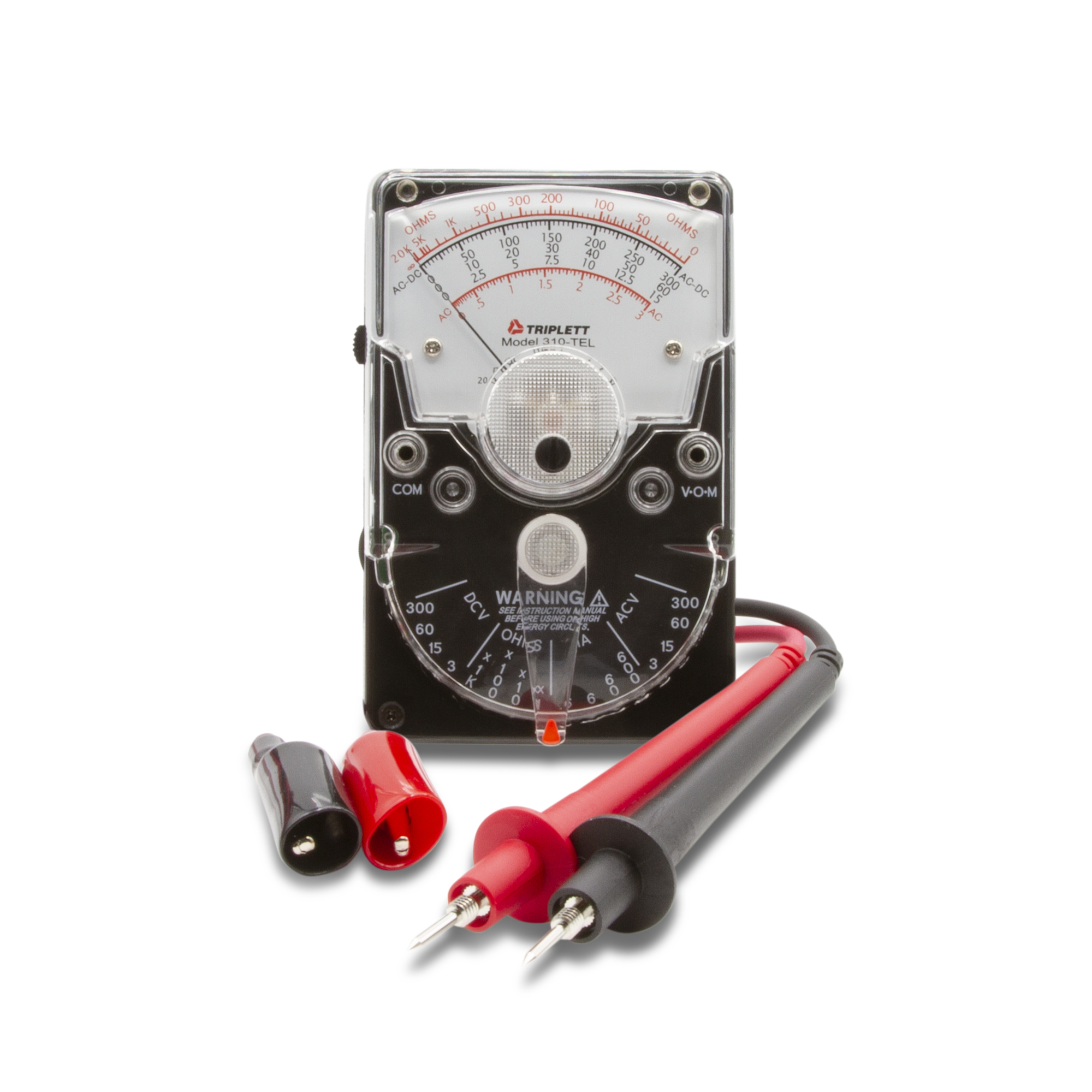

  • Includes Test leads, alligator clips and (1) 12V A23 and (1) 1.5V size N batteries and a Certificate of Traceability to N.I.S.T.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett 3067-NIST (Model 310-TEL) is a hand-sized analog multimeter with all of the versatility and performance of larger, more expensive bench-size models. It offers a diode overload protection against damage to the meter movements caused by accidental overloads. A fuse is used to protect the RX1 range. The fuse and batteries can be easily replaced by removing the back cover. Small enough to be carried in your tool box, glove compartment, brief case, or shirt pocket, the Model 310 features 20,000 ohms per volts DC sensitivity and 5,000 ohms per volt AC. Versatility and readability have not been sacrificed in order to provide a portable VOM. This model has 16 different ranges that can be easily read on only 3 clearly defined scale areas and a polarity reversing switch. A single selector switch allows you to switch easily from range to range and function to function. Includes a Certificate of Traceability to N.I.S.T. test leads, alligator clips and batteries. 3-year warranty.

What's Included

    (1) 3067 Analog Multimeter with NIST

Features + Benefits

  • 16 Ranges and Functions
  • AC/DC Voltage Measurement to 300V with polarity reversing switch
  • Drop resistant high impact case
  • Fused Resistance ranges
  • Includes Test leads, alligator clips and (1) 12V A23 and (1) 1.5V size N batteries and a Certificate of Traceability to N.I.S.T.

Key Specs

AttributeSpecification

item#

7065034

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.7 LB

Functions (qty.)

4

Display Type

Analog

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

300

Max. AC Volts

300

Max. DC Amps

600

Max. Resistance

20

Battery Size

Other
AttributeSpecification

Low Battery Indicator

Yes

Battery Type

Other

Battery Included

Yes

Water Resistant

No

Power Source

Battery

UL Listed

No

Calibration Certificate Included

No

Max. Ohms

20

Application

Hand-sized analog multimeter with all of the versatility and performance of larger, more expensive bench-size models

Includes

Includes Test leads, alligator clips and (1) 12V A23 and (1) 1.5V size N batteries and a Certificate of Traceability to N.I.S.T.

Product Weight

0.7000 lb

Dimensions L x W x H (in.)

4.5 x 1.75 x 5.75 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
