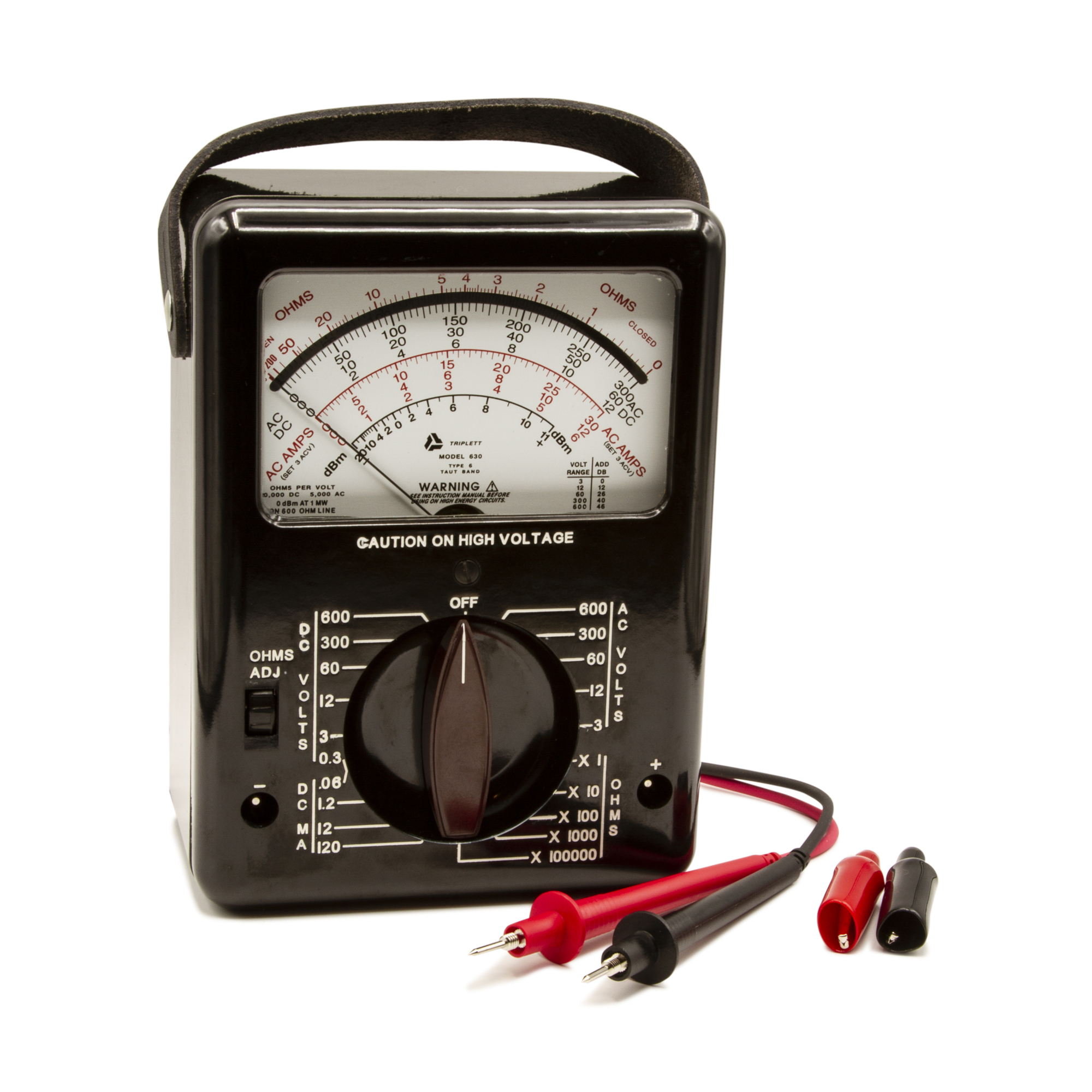

Triplett 3030 Classic VOM - 25 ranges, Model 630

Item# 7064605
Triplett 3030 Classic VOM - 25 ranges, Model 630

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett 3030 Classic VOM - 25 ranges, Model 630

Click or Tap image to Zoom

$549.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 28 ranges including AC/DC Voltage to 600V, DC Current to 0.12A and a Decibel function for audio work
  • Glass meter window for added chemical resistance and a mirrored scale to reduce parallax error
  • All ranges are fuse protected
  • 3 year warranty
  • Includes Test leads with alligator clips and batteries (1.5V and 30V)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett 3030 (Model 630) is a rugged, analog multimeter. It has been designed to make fast, accurate measurements on all types of electrical and electronic equipment. The indicating portion of the meter is actuated by a taut band suspension movement having a sensitivity of 50 microampere full scale. This movement omits conventional pivots, bearings and hairsprings and provides increased repeatability by removing friction between both pivots and bearings. No moving parts are in contact and the elimination of the hairspring prevents both snagging and tangling. The tension spring acts as a built-in shock absorber. In addition, temperature variations will not cause sticky operation of the pointer. Includes test leads with alligator clips and batteries (1.5V and 30V).

What's Included

    (1) Classic VOM - 25 ranges, Model 630

Features + Benefits

  • 28 ranges including AC/DC Voltage to 600V, DC Current to 0.12A and a Decibel function for audio work
  • Glass meter window for added chemical resistance and a mirrored scale to reduce parallax error
  • All ranges are fuse protected
  • 3 year warranty
  • Includes Test leads with alligator clips and batteries (1.5V and 30V)

Key Specs

AttributeSpecification

item#

7064605

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.7 LB

Functions (qty.)

5

Display Type

Analog

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

600

Max. AC Volts

600

Max. DC Amps

120

Max. Resistance

100

Battery Size

Other
AttributeSpecification

Low Battery Indicator

Yes

Battery Type

Other

Battery Included

Yes

Water Resistant

No

Power Source

Battery

UL Listed

No

Calibration Certificate Included

No

Max. Ohms

100

Application

Designed to make fast, accurate measurements on all types of electrical and electronic equipment

Includes

Includes Test leads with alligator clips and batteries (1.5V and 30V)

Product Weight

0.7000 lb

Dimensions L x W x H (in.)

6.0 x 2.0 x 9.3 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
