Triplett 3022 Compact VOM w/ polarity reversing switch, Model 310-C

Item# 7064437
Triplett 3022 Compact VOM w/ polarity reversing switch, Model 310-C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett 3022 Compact VOM w/ polarity reversing switch, Model 310-C

Click or Tap image to Zoom

$189.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 18 Ranges and Functions
  • AC/DC Voltage Measurement to 600V with polarity reversing switch
  • Drop resistant high impact case
  • Fused Resistance ranges
  • Includes Test leads, alligator clips and (1) 12V A23 and (1) 1.5V size N batteries

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

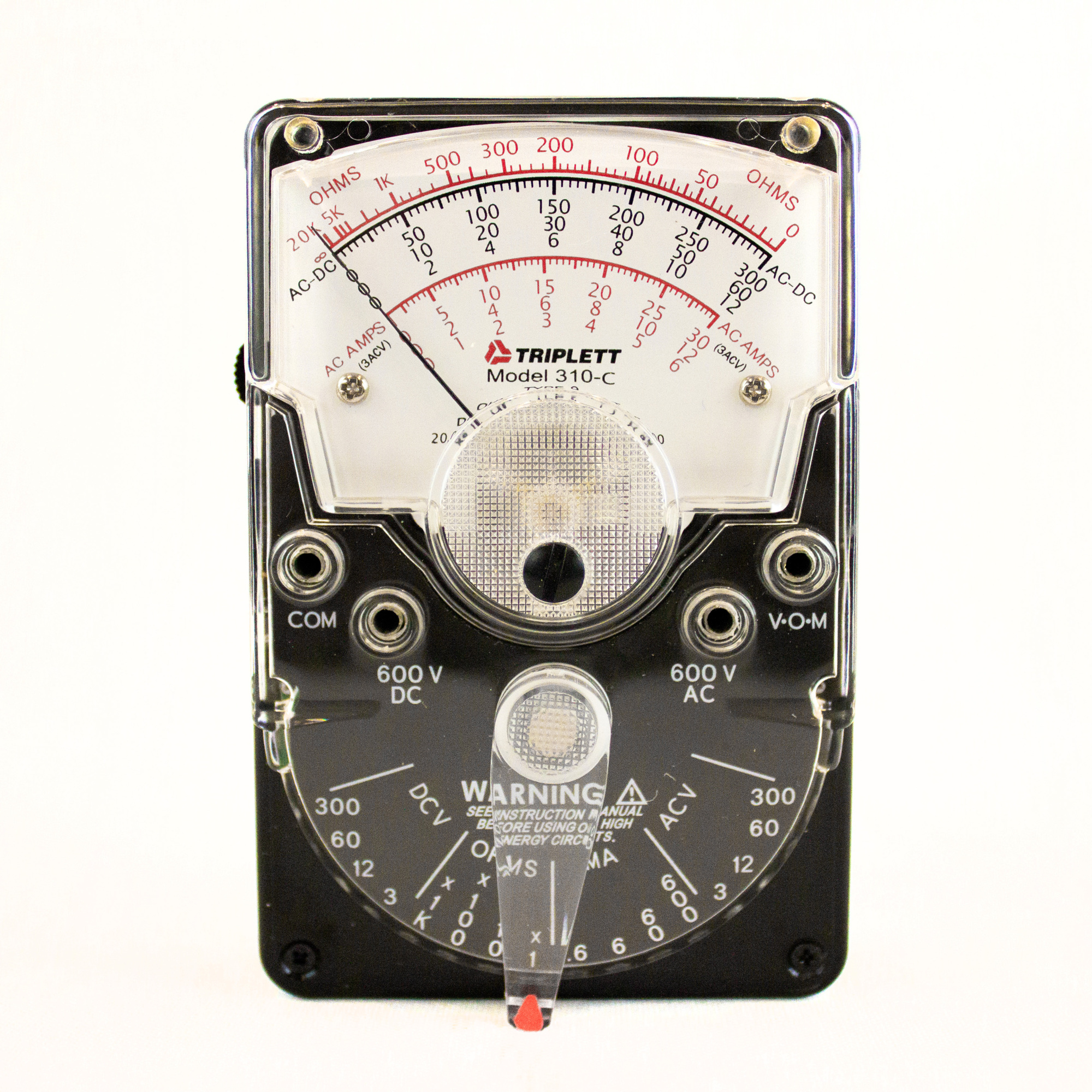

The Triplett 3022 (Model 310-C) is a hand-sized analog multimeter with all of the versatility and performance of larger, more expensive bench-size models. It offers a diode overload protection against damage to the meter movements caused by accidental overloads. A fuse is used to protect the RX1 range. The fuse and batteries can be easily replaced by removing the back cover. Small enough to be carried in your tool box, glove compartment, brief case, or shirt pocket, the Model 310 features 20,000 ohms per volts DC sensitivity and 15,000 ohms per volt AC. Versatility and readability have not been sacrificed in order to provide a portable VOM. This model has 18 different ranges that can be easily read on only 3 clearly defined scale areas and a polarity reversing switch. A single selector switch allows you to switch easily from range to range and function to function. Include test leads, alligator clips and batteries. 1-year warranty.

What's Included

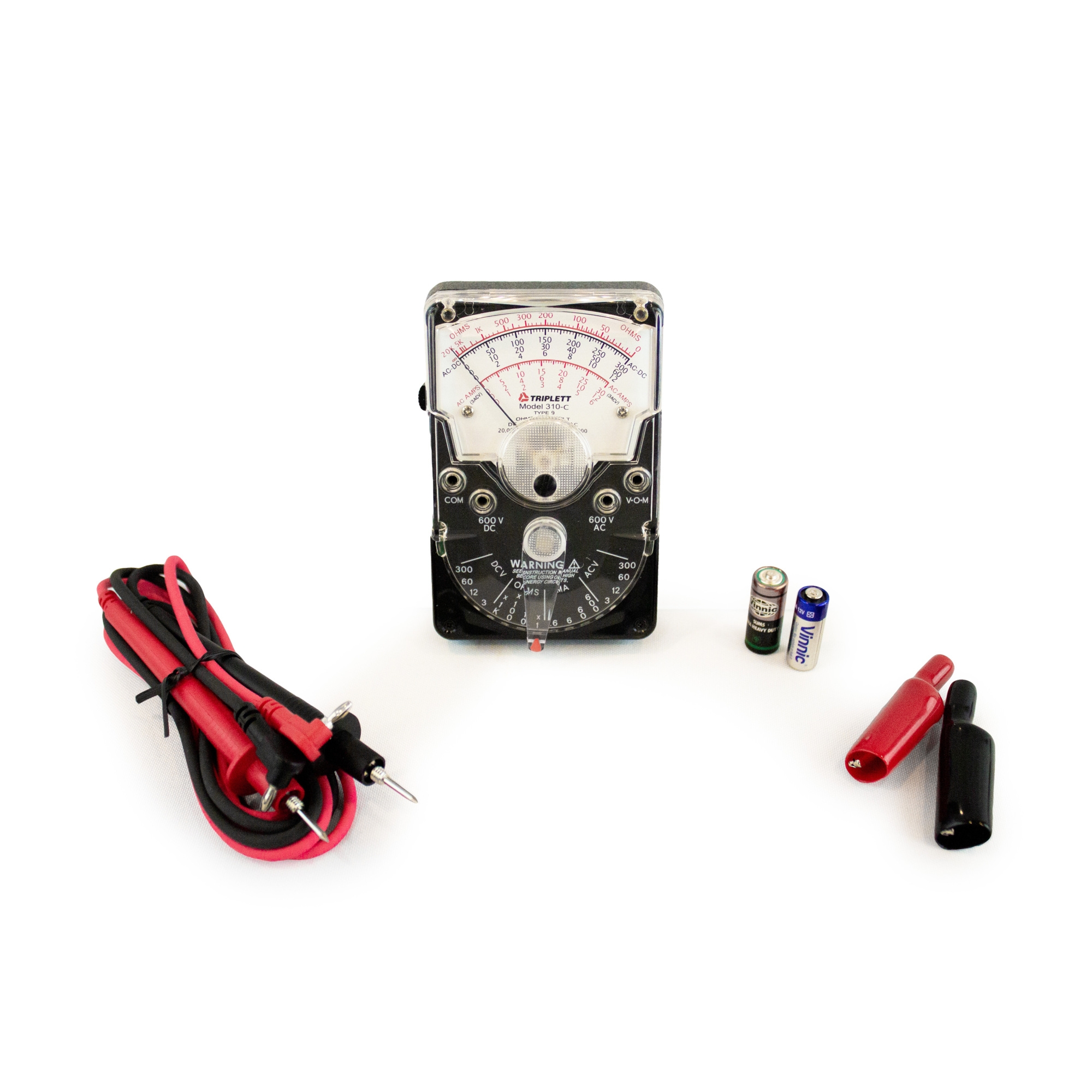

    (1) VOM w/ polarity reversing switch, Model 310-C

Features + Benefits

  • 18 Ranges and Functions
  • AC/DC Voltage Measurement to 600V with polarity reversing switch
  • Drop resistant high impact case
  • Fused Resistance ranges
  • Includes Test leads, alligator clips and (1) 12V A23 and (1) 1.5V size N batteries

Key Specs

AttributeSpecification

item#

7064437

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.7 LB

Functions (qty.)

4

Display Type

Analog

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

600

Max. AC Volts

600

Max. DC Amps

600

Max. Resistance

20

Battery Size

Other
AttributeSpecification

Low Battery Indicator

Yes

Battery Type

Other

Battery Included

Yes

Water Resistant

No

Power Source

Battery

UL Listed

No

Calibration Certificate Included

No

Max. Ohms

20

Application

Hand-sized analog multimeter with all of the versatility and performance of larger, more expensive bench-size models

Includes

Includes Test leads, alligator clips and (1) 12V A23 and (1) 1.5V size N batteries

Product Weight

0.7000 lb

Dimensions L x W x H (in.)

4.5 x 1.75 x 5.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
