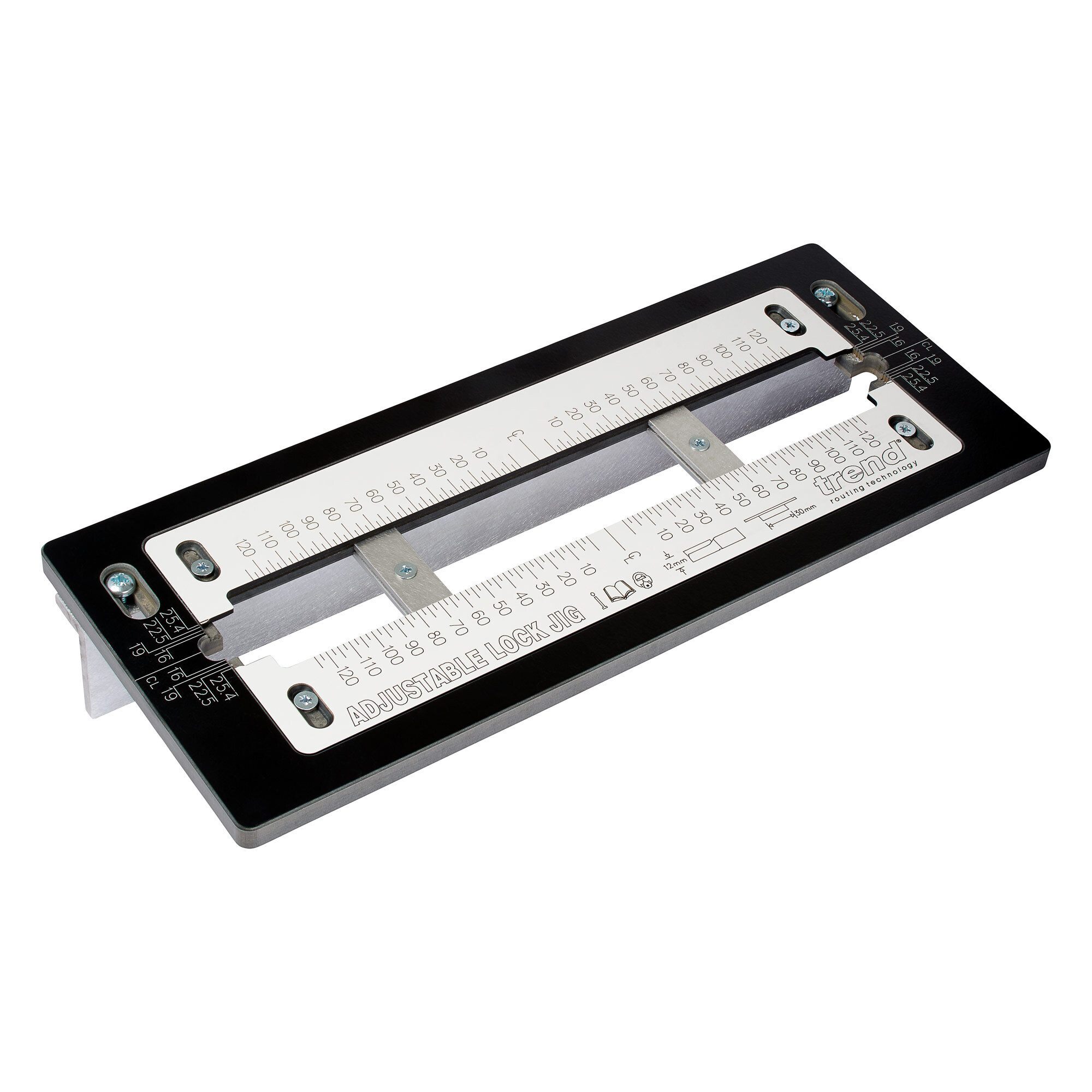

Trend Adjustable Trade Lock Jig for Mortice Lock and Latch Faceplates, 1-3/16" to 9-27/32", LOCK/JIG/B

Item# 7240138
New
Trend Adjustable Trade Lock Jig for Mortice Lock and Latch Faceplates, 1-3/16" to 9-27/32", LOCK/JIG/B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trend Adjustable Trade Lock Jig for Mortice Lock and Latch Faceplates, 1-3/16" to 9-27/32", LOCK/JIG/B

Click or Tap image to Zoom

$199.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • ADJUSTABLE LOCK JIG: Sliding plates and stops for mortice and faceplates from 1-3/16 inches up to 9-27/32 inches long, ideal for use with obscure sized locks as well as all standard locks and latches.

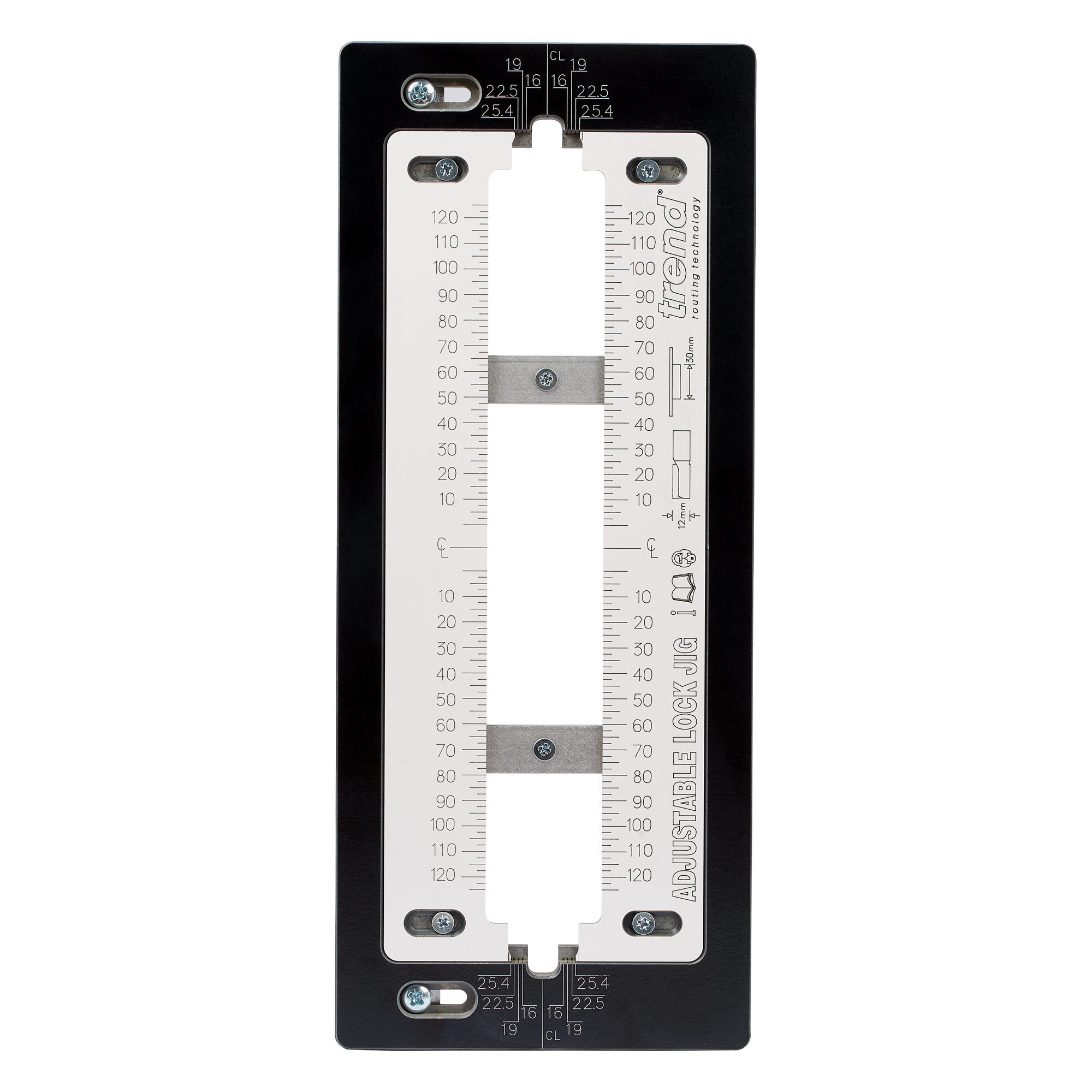

  • QUICK AND EASY SET UP: Engraved on underside to allow fast, accurate set up for common door widths of 1-3/8 inches, 1-9/16 inches, 1-3/4 inches and 2-1/8 inches.
  • ADAPTABLE SLIDING PLATE AND STOP ADJUSTMENTS: Useful with different guide bush diameters and straight cutters for general mortice work in construction projects.
  • COMPATIBILITY: For use in a 1/2-inch capacity router with 3-5/32 inches plunge capacity fitted with a 1-3/16 inch guide bush and 1/2 inch cutter. Suitable Trend cutters: 3/75X1/2TC, TR37X1/2TC, C172X1/2TC.
  • RECOMMENDED USE: Adjustment range makes it the ideal jig for precision fitting the mortice positions for multi-point lock strips into wooden doors; For lock faceplates of lengths up to 9-27/32 inches.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

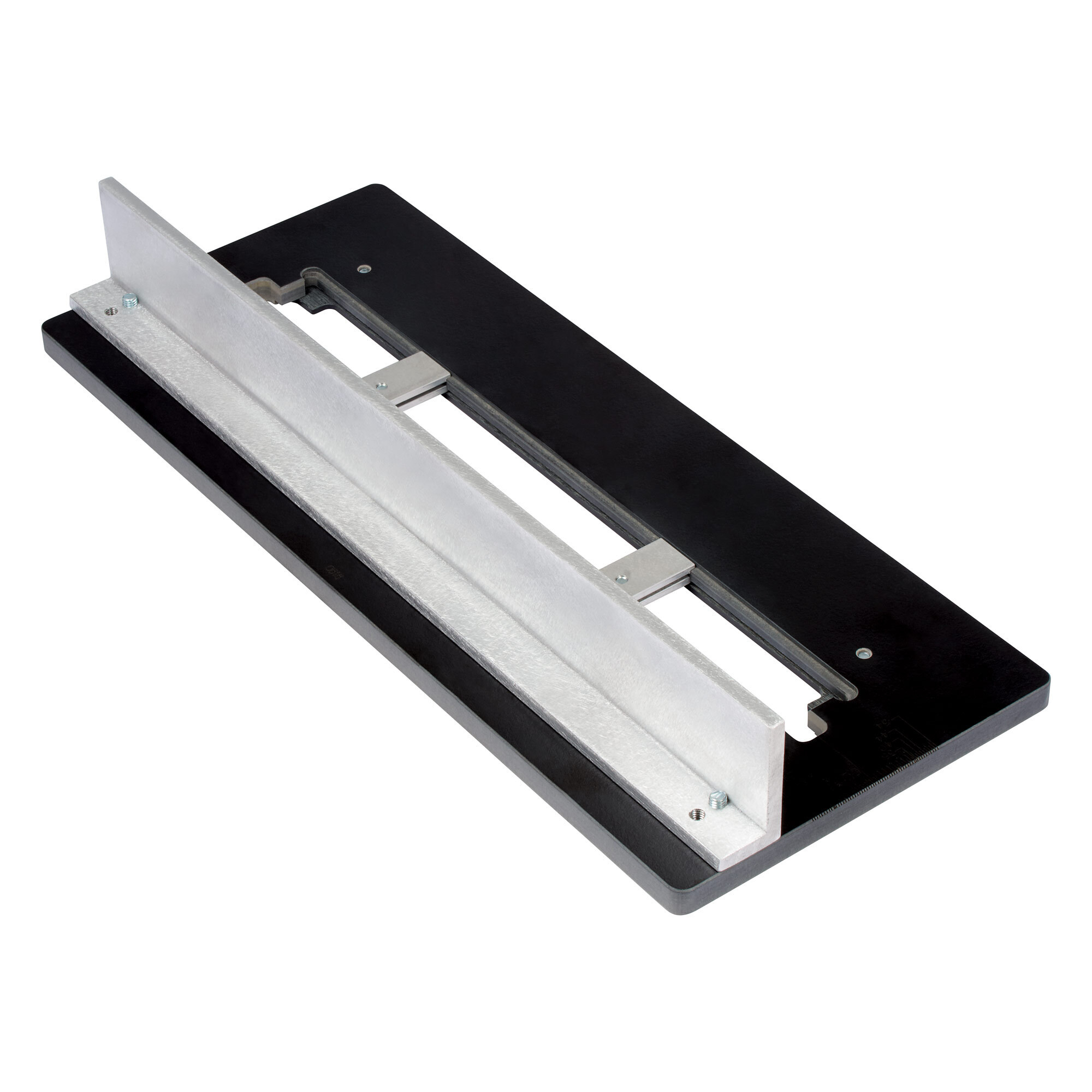

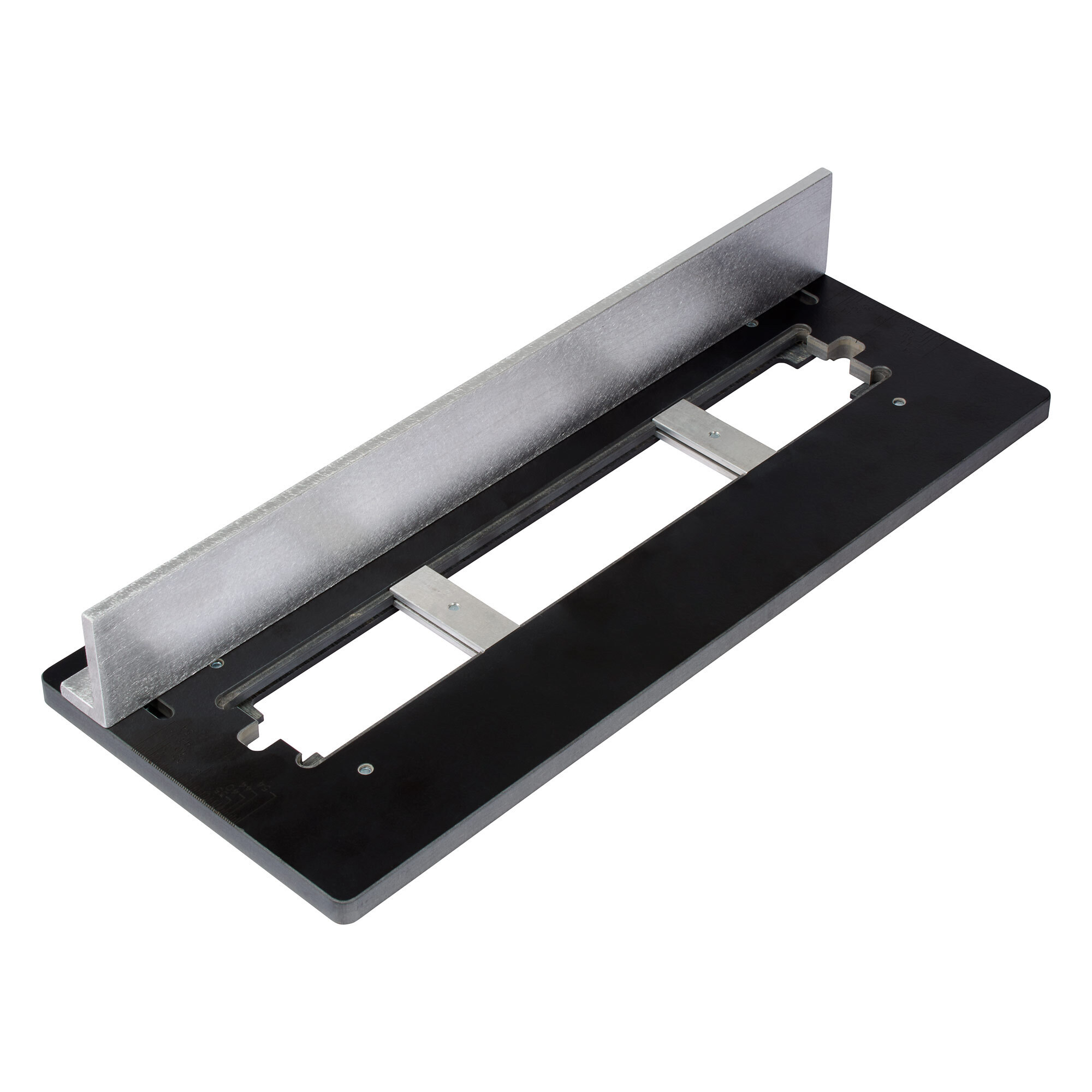

The Trend Adjustable Trade Lock Jig is designed for precision routing of mortice locks and latch faceplates, accommodating lengths from 1-3/16in. to 9-27/32in. This versatile jig features sliding plates and stops that allow for quick adjustments, making it ideal for both standard and obscure lock sizes. With engraved markings on the underside, setup is fast and accurate for common door widths of 1-3/8in., 1-9/16in., 1-3/4in., and 2-1/8in. The jig is compatible with a 1/2in. capacity router and includes a 1-3/16in. guide bush and a 1/2in. cutter, ensuring it meets the needs of various construction projects. Its adaptable design allows for use with different guide bush diameters and straight cutters, making it a valuable tool for any tradesperson. The adjustable sliding inserts enable routing for popular door lock sizes, while the plastic laminate body and aluminum clamping bar provide durability and stability. The jig includes setting blocks for specific lock widths, aiding in door centering, and comes with a 15/32in. diameter TCT router bit. With a clamping range of 1-3/16in. to 3-9/64in., it is suitable for a variety of door thicknesses. Achieve fast, clean, and accurate results even on hardwood doors, making this jig an essential addition to your toolkit. The Trend Adjustable Trade Lock Jig is backed by a 12-month warranty, ensuring reliability and peace of mind for your projects.

What's Included

    (1) Adjustable Lock Jig Imperial

Features + Benefits

  • ADJUSTABLE LOCK JIG: Sliding plates and stops for mortice and faceplates from 1-3/16 inches up to 9-27/32 inches long, ideal for use with obscure sized locks as well as all standard locks and latches.
  • QUICK AND EASY SET UP: Engraved on underside to allow fast, accurate set up for common door widths of 1-3/8 inches, 1-9/16 inches, 1-3/4 inches and 2-1/8 inches.
  • ADAPTABLE SLIDING PLATE AND STOP ADJUSTMENTS: Useful with different guide bush diameters and straight cutters for general mortice work in construction projects.
  • COMPATIBILITY: For use in a 1/2-inch capacity router with 3-5/32 inches plunge capacity fitted with a 1-3/16 inch guide bush and 1/2 inch cutter. Suitable Trend cutters: 3/75X1/2TC, TR37X1/2TC, C172X1/2TC.
  • RECOMMENDED USE: Adjustment range makes it the ideal jig for precision fitting the mortice positions for multi-point lock strips into wooden doors; For lock faceplates of lengths up to 9-27/32 inches.

Key Specs

AttributeSpecification

item#

7240138

Brand

Trend Tool Technology

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

3.54 LB
AttributeSpecification

Product Type

Jig

Product Weight

3.5400 lb

Dimensions L x W x H (in.)

17.5 x 2.2 x 6.9 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
