Trend 9ft AnyDoor Butt Hinge Template Kit, Fully-Adjustable, Modular Design, Unlimited Hinge Positions, H/JIG/D9

Item# 7240120
Top Seller
Trend 9ft AnyDoor Butt Hinge Template Kit, Fully-Adjustable, Modular Design, Unlimited Hinge Positions, H/JIG/D9

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trend 9ft AnyDoor Butt Hinge Template Kit, Fully-Adjustable, Modular Design, Unlimited Hinge Positions, H/JIG/D9

Click or Tap image to Zoom

$519.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

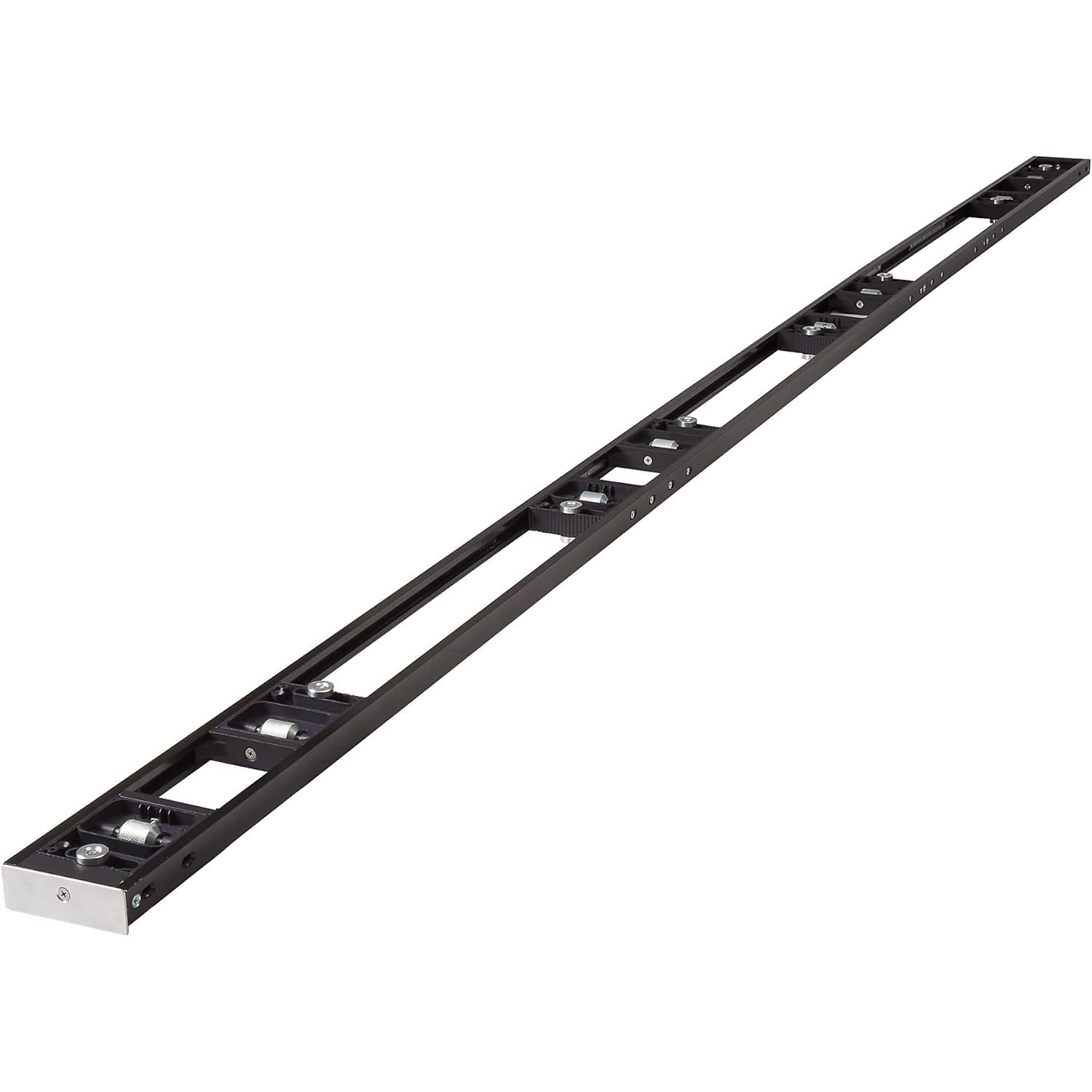

  • FULLY-ADJUSTABLE JIG: This router jig accommodates all hinge sizes, hinge positions and door heights, making it perfect for both new and replacement installations. Its modular rail construction allows it to be adjusted from 2'6" to 9' out of the box, including all standard door sizes (6’6”, 6’8”, 7’0”, 8’0”, 9’0”)
  • UNLIMITED HINGE POSITIONS: The twin-rail system provides unlimited hinge positions within the rail, allowing you to quickly and accurately recess square and radius (?" & ¼") hinges in timber doors & frames
  • RADIUS HINGE COMPATIBILITY: The jig's radius hinge compatibility allows for fast and accurate installation of square, ¼" radius or ?" radius hinge profiles. ?” (3.0mm) Steel End Plate allows the jig to fit both door and frame with minimal adjustment. 1” (25mm) Rail Depth allows jig to be used against fixed door stops

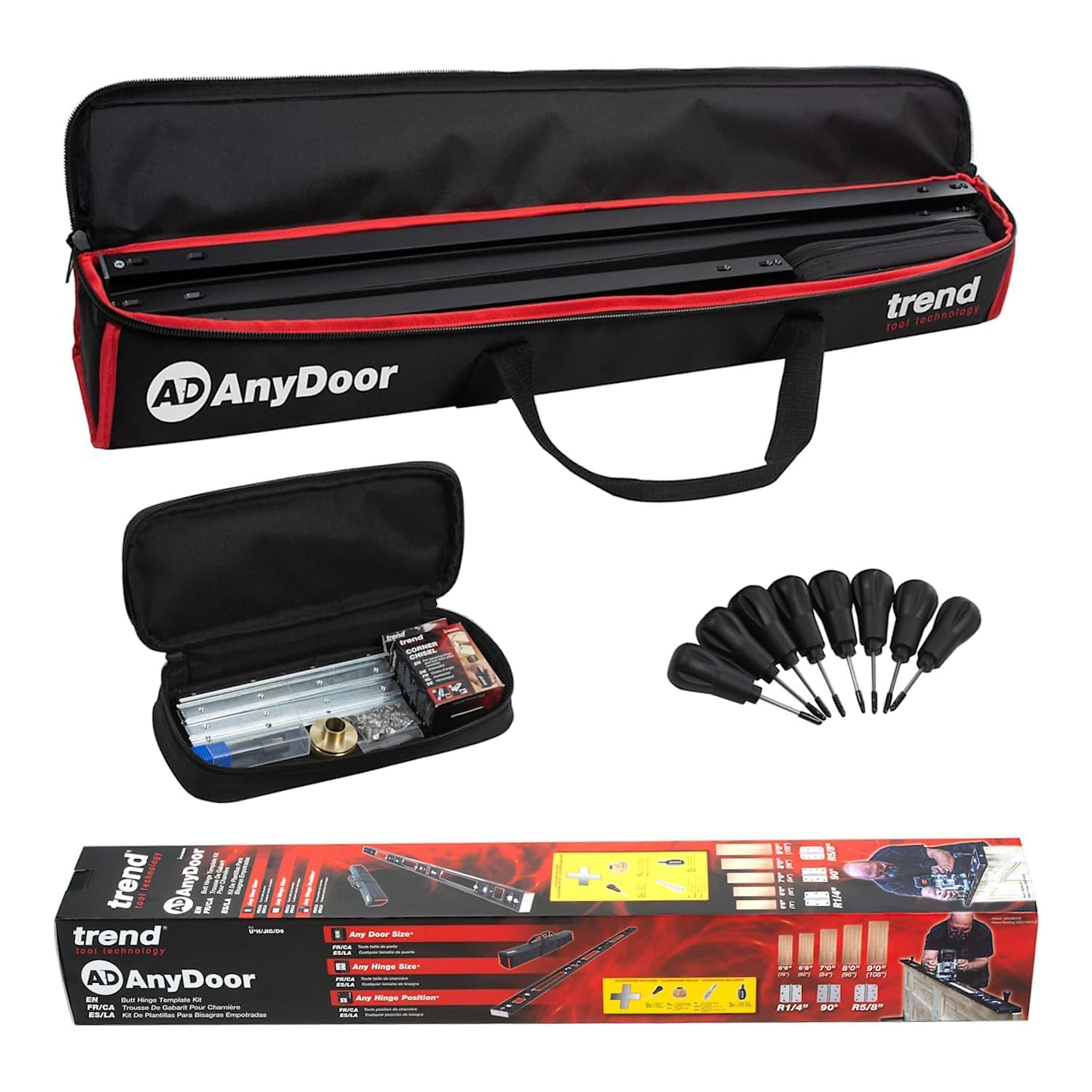

  • ATTACHMENT OPTIONS: The jig can be secured with either bradawls for speed (included) or no.6 woodscrews for maximum stability. It’s tough carry bag stores pre-built jig sections to minimize assembly time
  • ADJUSTABLE EDGE GUIDES: The adjustable edge guides accommodate 1" to 2½" hinges with either four present positions or custom widths (for non-standard hinges). The adjustable quick-release aperture blocks feature Trend's tool-free, patented thumb-turn locking mechanism for fast, accurate hinge positioning

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Trend 9ft. AnyDoor Butt Hinge Template Kit is a fully-adjustable router jig designed for precision and versatility in recessing square and radius hinges in timber doors and frames. This innovative jig accommodates all hinge sizes, positions, and door heights, making it ideal for both new installations and replacements. With its modular rail construction, the jig can be easily adjusted from 2ft.6in. to 9ft., covering all standard door sizes including 6’6”, 6’8”, 7’0”, 8’0”, and 9’0”. The twin-rail system offers unlimited hinge positions, allowing for quick and accurate installations of both square and radius hinges (5/8in. 1/4in.). The jig's compatibility with radius hinges ensures fast and precise fitting, while the 1/8” (3.0mm) steel end plate allows for minimal adjustments when fitting to both doors and frames. Users can secure the jig using bradawls for speed or no.6 woodscrews for enhanced stability, and it comes with a tough carry bag that stores pre-built jig sections to reduce assembly time. The adjustable edge guides accommodate hinges from 1in. to 21/2in. with preset positions or custom widths for non-standard hinges. Featuring adjustable quick-release aperture blocks with a patented thumb-turn locking mechanism, this jig ensures fast and accurate hinge positioning. Constructed from lightweight anodized aluminum, it provides optimum strength, durability, and a smooth router running surface. The kit includes a 1/2” (12.7mm) router bit, a 16.7mm template guide, a 90° corner chisel, and eight bradawls, making it a comprehensive solution for any woodworking enthusiast. With a 12-month warranty and a list price of £460.77, the Trend 9ft. AnyDoor Butt Hinge Template Kit is an essential tool for achieving professional results in hinge installation.

What's Included

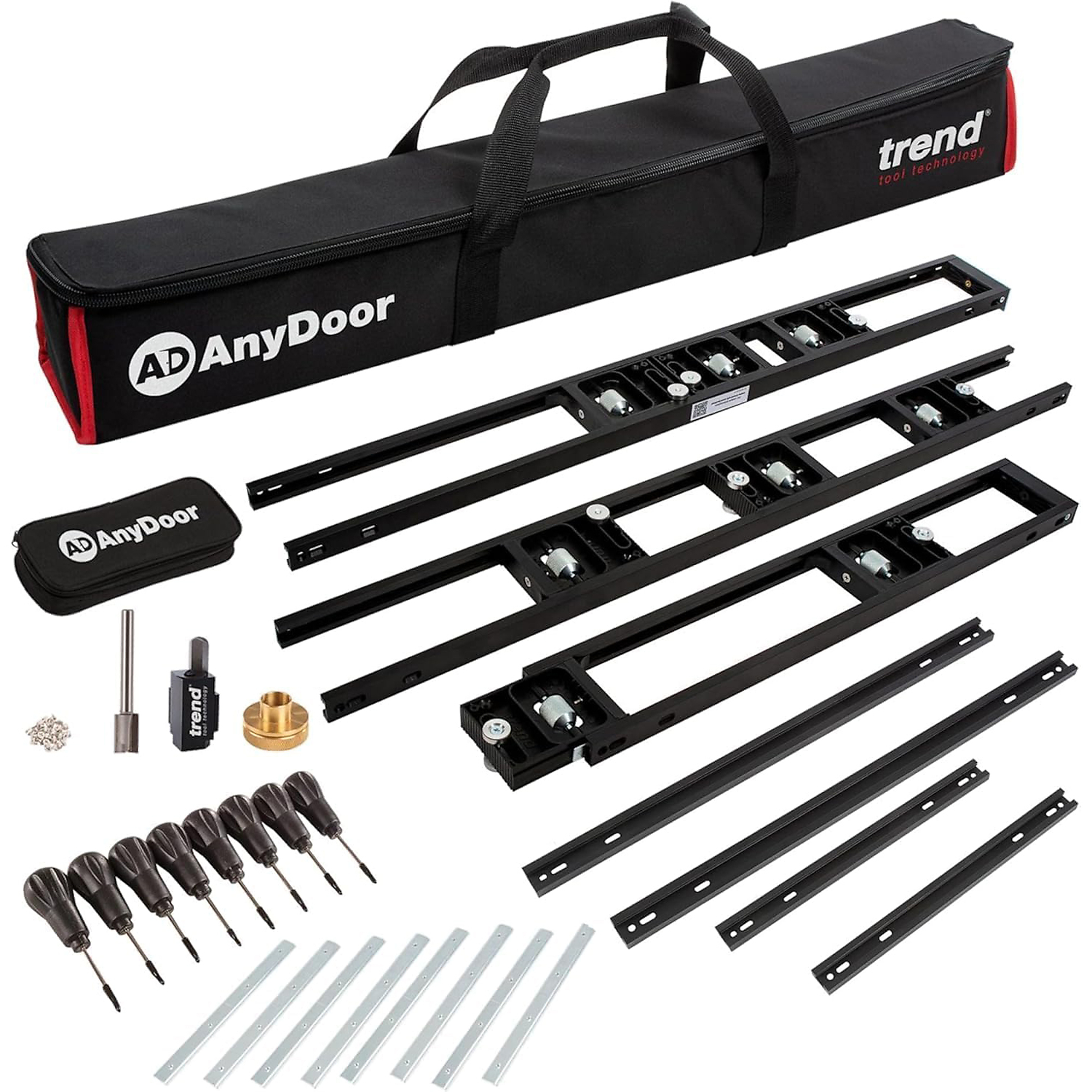

    (1) AnyDoor Hinge Jig Kit 9ft

Features + Benefits

  • FULLY-ADJUSTABLE JIG: This router jig accommodates all hinge sizes, hinge positions and door heights, making it perfect for both new and replacement installations. Its modular rail construction allows it to be adjusted from 2'6" to 9' out of the box, including all standard door sizes (6’6”, 6’8”, 7’0”, 8’0”, 9’0”)
  • UNLIMITED HINGE POSITIONS: The twin-rail system provides unlimited hinge positions within the rail, allowing you to quickly and accurately recess square and radius (?" & ¼") hinges in timber doors & frames
  • RADIUS HINGE COMPATIBILITY: The jig's radius hinge compatibility allows for fast and accurate installation of square, ¼" radius or ?" radius hinge profiles. ?” (3.0mm) Steel End Plate allows the jig to fit both door and frame with minimal adjustment. 1” (25mm) Rail Depth allows jig to be used against fixed door stops
  • ATTACHMENT OPTIONS: The jig can be secured with either bradawls for speed (included) or no.6 woodscrews for maximum stability. It’s tough carry bag stores pre-built jig sections to minimize assembly time
  • ADJUSTABLE EDGE GUIDES: The adjustable edge guides accommodate 1" to 2½" hinges with either four present positions or custom widths (for non-standard hinges). The adjustable quick-release aperture blocks feature Trend's tool-free, patented thumb-turn locking mechanism for fast, accurate hinge positioning

Key Specs

AttributeSpecification

item#

7240120

Brand

Trend Tool Technology

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

9.58 LB
AttributeSpecification

Product Type

Jig

Product Weight

9.5800 lb

Dimensions L x W x H (in.)

13.5 x 93.5 x 14.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
