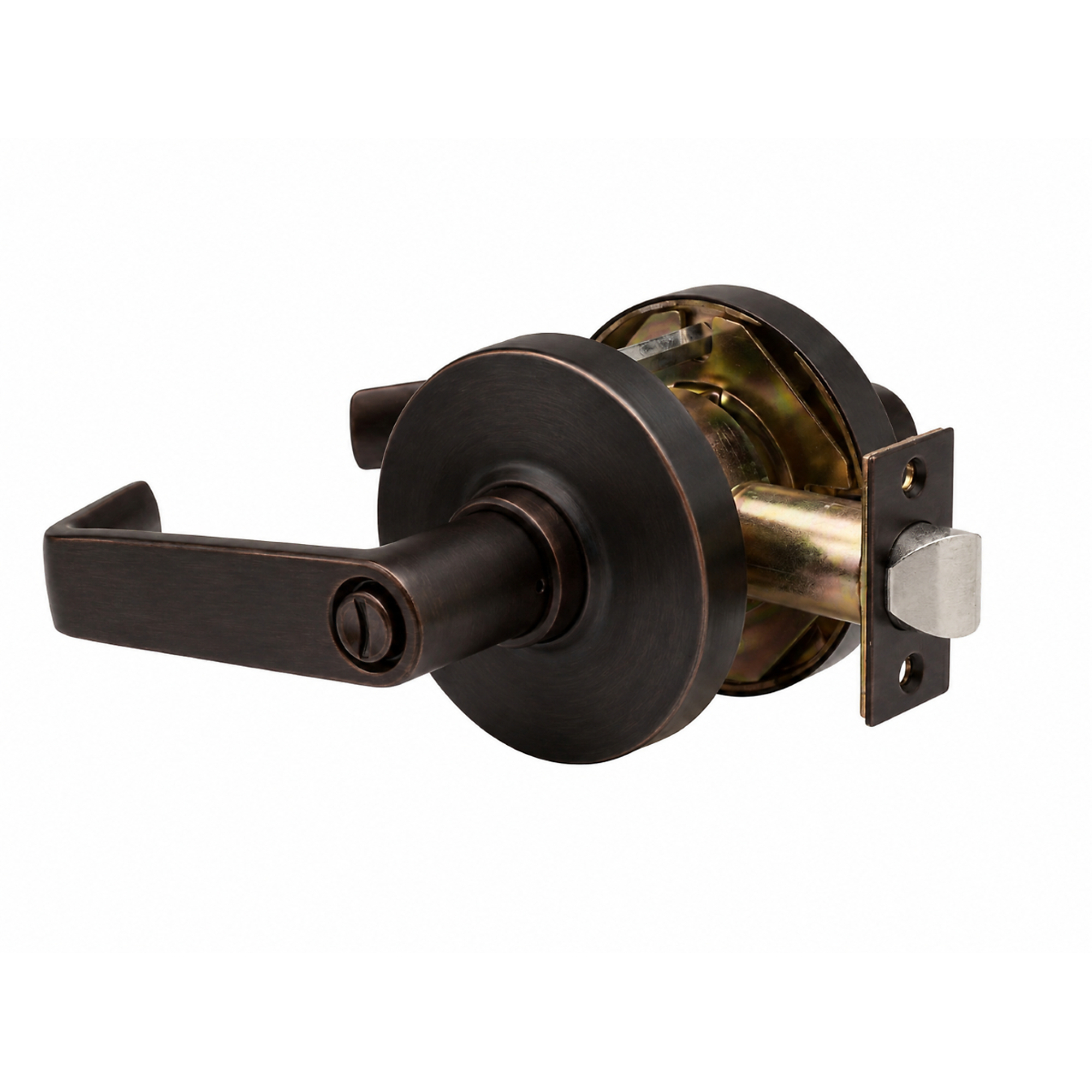

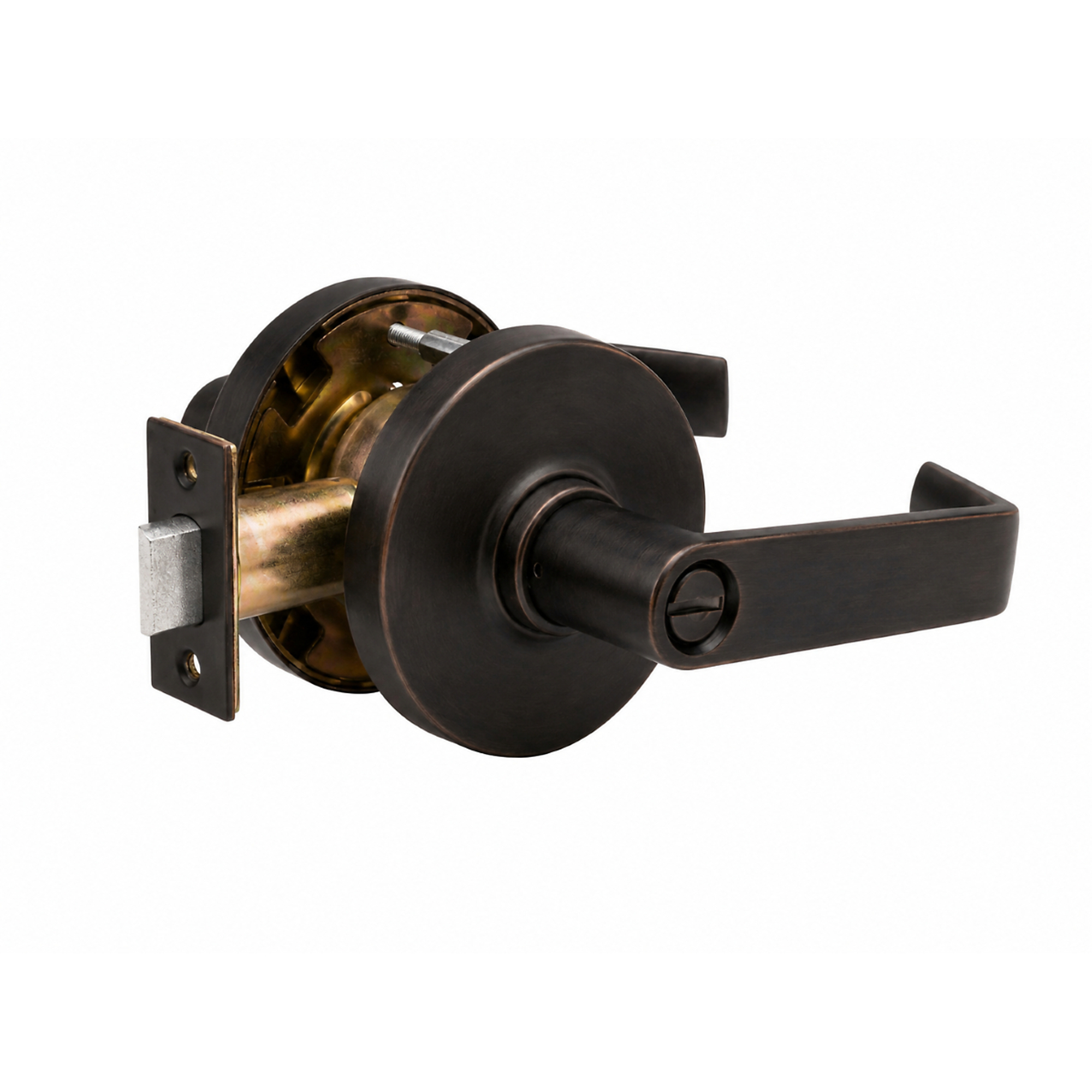

Trans-Atlantic, LHV Series Heavy-Duty Commercial Cylindrical Lever, Grade 1 Privacy in Oil-rubbed Bronze, #DL-LHV40-US10B

Item# 7274055
Trans-Atlantic, LHV Series Heavy-Duty Commercial Cylindrical Lever, Grade 1 Privacy in Oil-rubbed Bronze, #DL-LHV40-US10B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trans-Atlantic, LHV Series Heavy-Duty Commercial Cylindrical Lever, Grade 1 Privacy in Oil-rubbed Bronze, #DL-LHV40-US10B

Click or Tap image to Zoom

$111.26

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed for heavy-duty commercial applications
  • Durable zinc body, brass lever, and stainless-steel retractor
  • Meets the performance standards of Grade 1, ADA and ANSI A156.2
  • Privacy function allows locking from the inside for personal privacy, ideal for bathrooms or bedrooms
  • Body crafted from zinc alloy, featuring a brass lever and stainless-steel casting retractor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

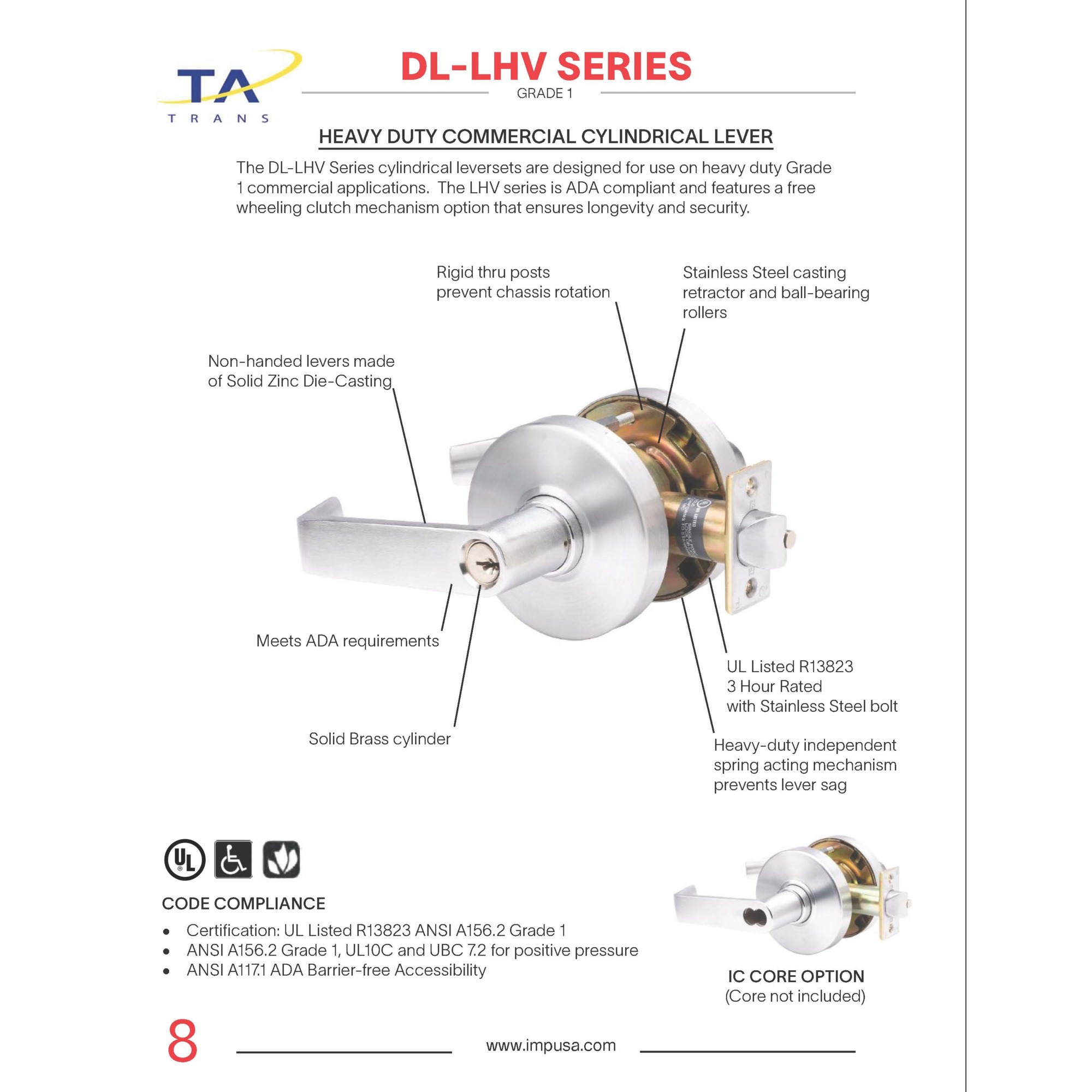

The Trans-Atlantic LHV series are heavy-duty commercial cylindrical levers designed for demanding applications. They offer multiple functions to adapt to a variety of door requirements. Featuring an optional free-wheeling clutch mechanism, they ensure long-lasting performance and enhanced security.

What's Included

    (1) Handle

Features + Benefits

  • Designed for heavy-duty commercial applications
  • Durable zinc body, brass lever, and stainless-steel retractor
  • Meets the performance standards of Grade 1, ADA and ANSI A156.2
  • Privacy function allows locking from the inside for personal privacy, ideal for bathrooms or bedrooms
  • Body crafted from zinc alloy, featuring a brass lever and stainless-steel casting retractor

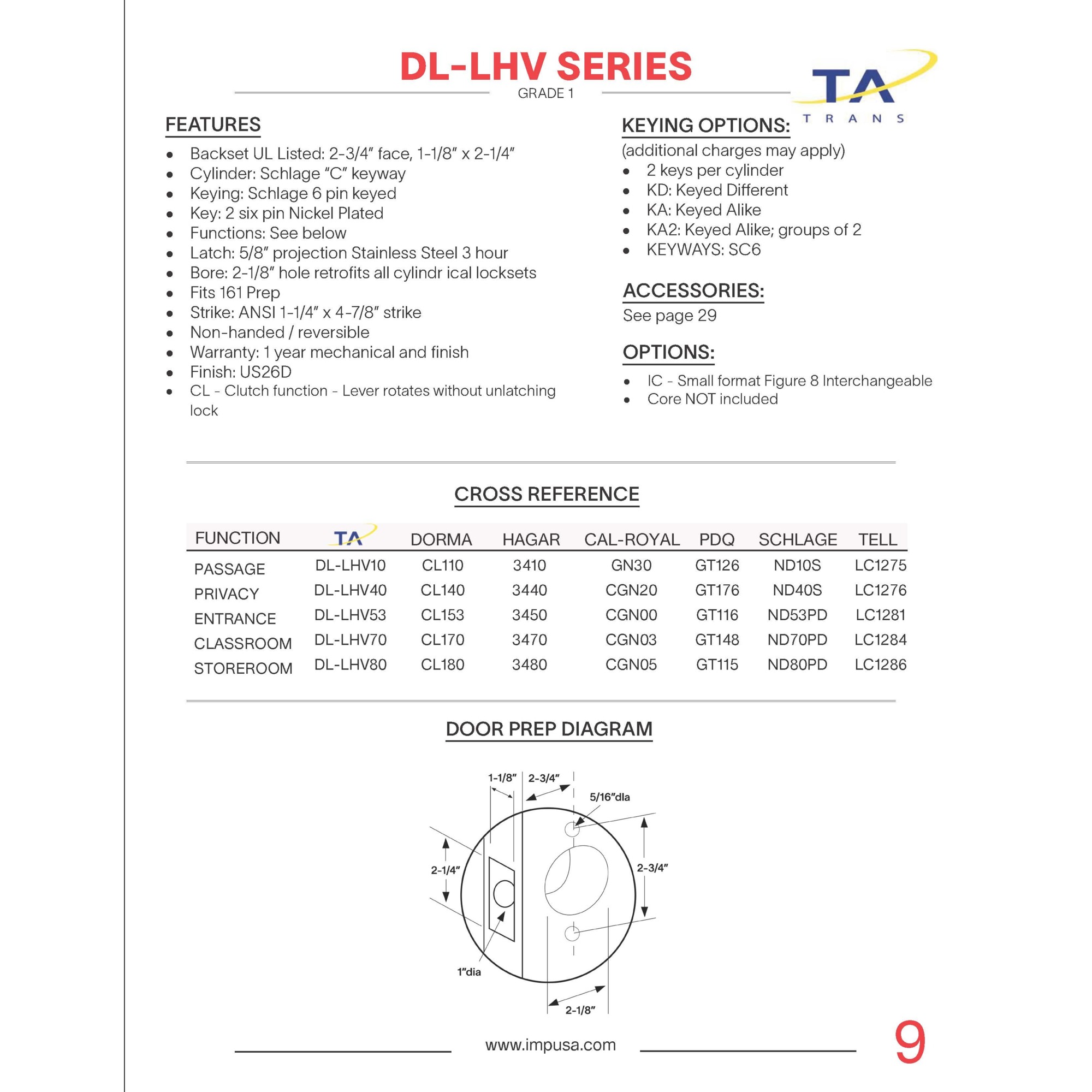

  • Latch: 5/8 in. projection
  • Bore: 2-1/8 in. hole retrofits all cylindrical locksets
  • Cylinder: Schlage “C” keyway
  • Keying: Schlage 6-pin; Keys: 2, nickel-plated, 6-pin
  • Strike: ANSI 1-1/4 in. x 4-7/8 in.
  • 1-year mechanical and finish warranty
  • Oil-rubbed Bronze finish
  • Comes non-handed / reversible
  • Certifications: UL listed R13823, UL10C and UBC 7.2 for positive pressure

Key Specs

AttributeSpecification

item#

7274055

Brand

Trans Atlantic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.6 LB

Product Type

Leverset
AttributeSpecification

Material

Zinc

Color

Brown

Security/ANSI Grade

1

Product Weight

3.6000 lb

Dimensions L x W x H (in.)

20.0 x 20.0 x 9.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
