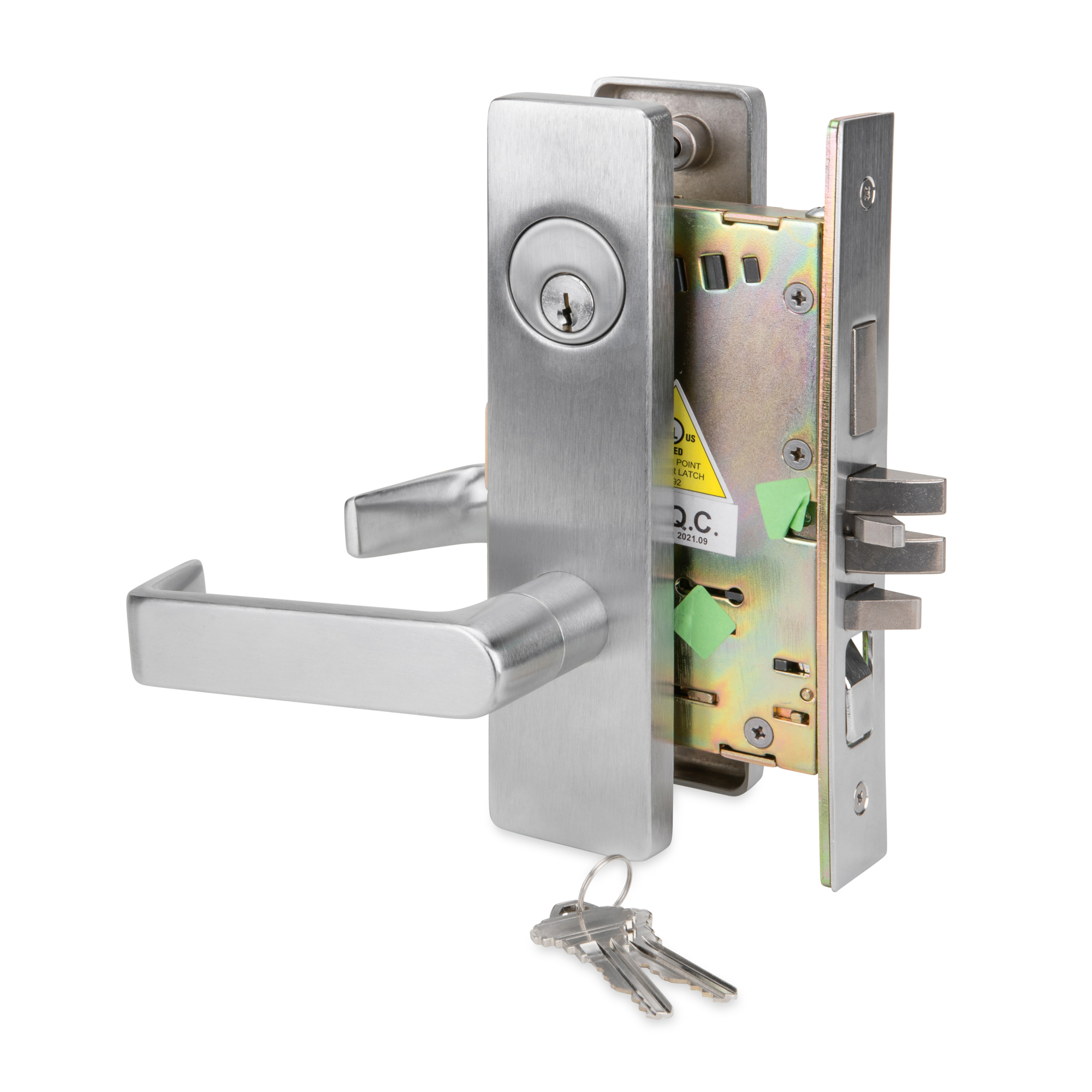

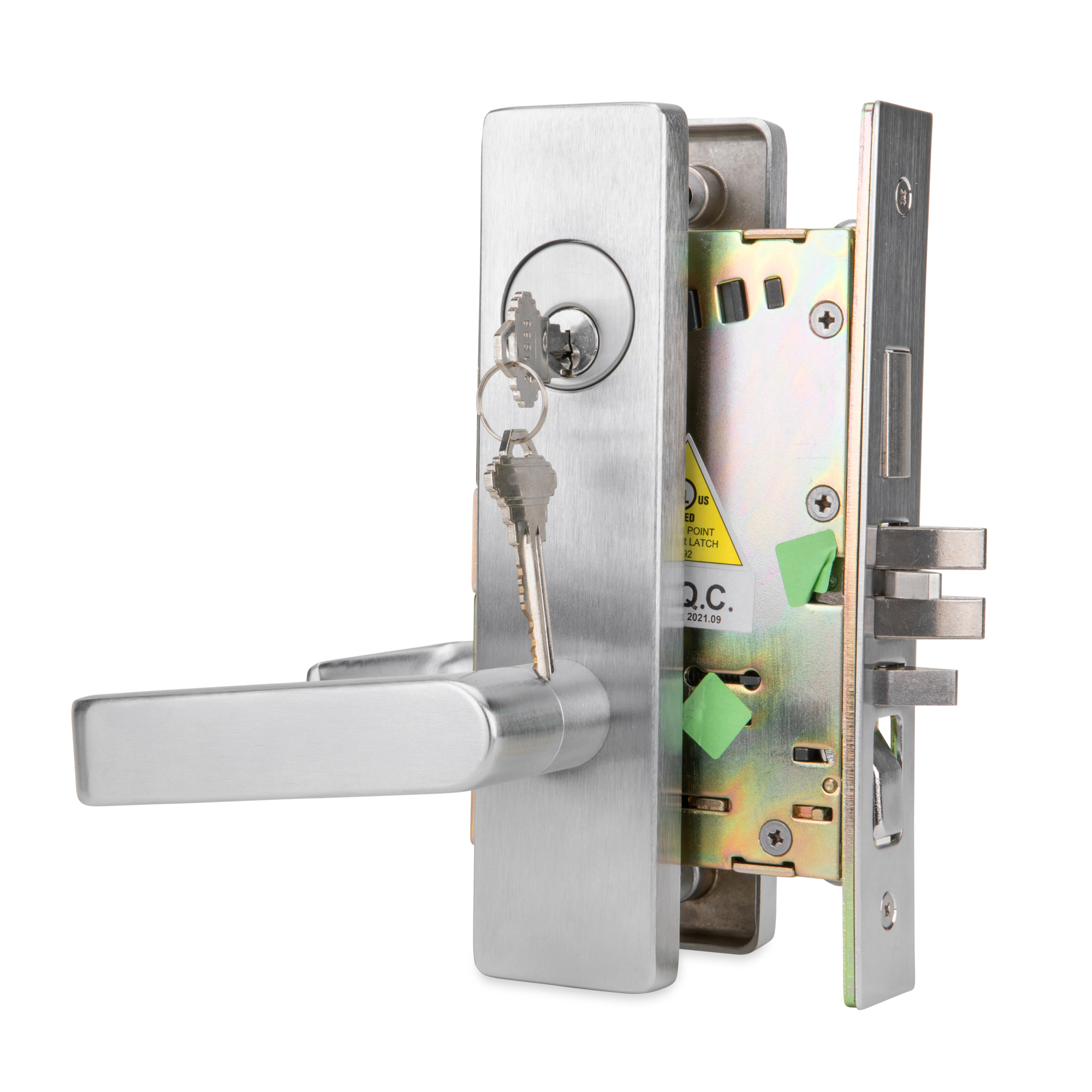

Trans Atlantic DXML Series Grade 1 Storeroom Mortise Lock Door Handle — Left-Handed, Brushed Chrome, ADA Compliant, Model# DL-DXML80SELH-US26D

Item# 5693424
"Trans-Atlantic, DXML Series Brushed Chrome Grade 1 Storeroom Mortise Lock Door Handle with Escutcheon Left-Handed Lever, #DL-DXML80SELH-US26D"
Trans Atlantic DXML Series Grade 1 Storeroom Mortise Lock Door Handle — Left-Handed, Brushed Chrome, ADA Compliant, Model# DL-DXML80SELH-US26D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trans Atlantic DXML Series Grade 1 Storeroom Mortise Lock Door Handle — Left-Handed, Brushed Chrome, ADA Compliant, Model# DL-DXML80SELH-US26D

Click or Tap image to Zoom

$302.35

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Lever automatically locks from the outside when closed
  • ANSI A156.2 Grade 1 Certified
  • Features a left-handed escutcheon door handle
  • Includes 1-1/4 x 8 in. faceplate and 2-1/2 in. rosette
  • Fit for doors 1-3/4 in. thick

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DXML mortise lockset is designed for heavy-duty commercial and industrial applications. This series meets ADA handicap compliance and meets a 3-hour fire rating. Featuring a specified left-handed or right-handed latch bolt, these mortise locks provide amazing security for any mortise prepped door. This hardware includes an ADA lever along with an ADA approved strike. This lockset comes in a chrome finish to fit in with any industrial or commercial aesthetic.

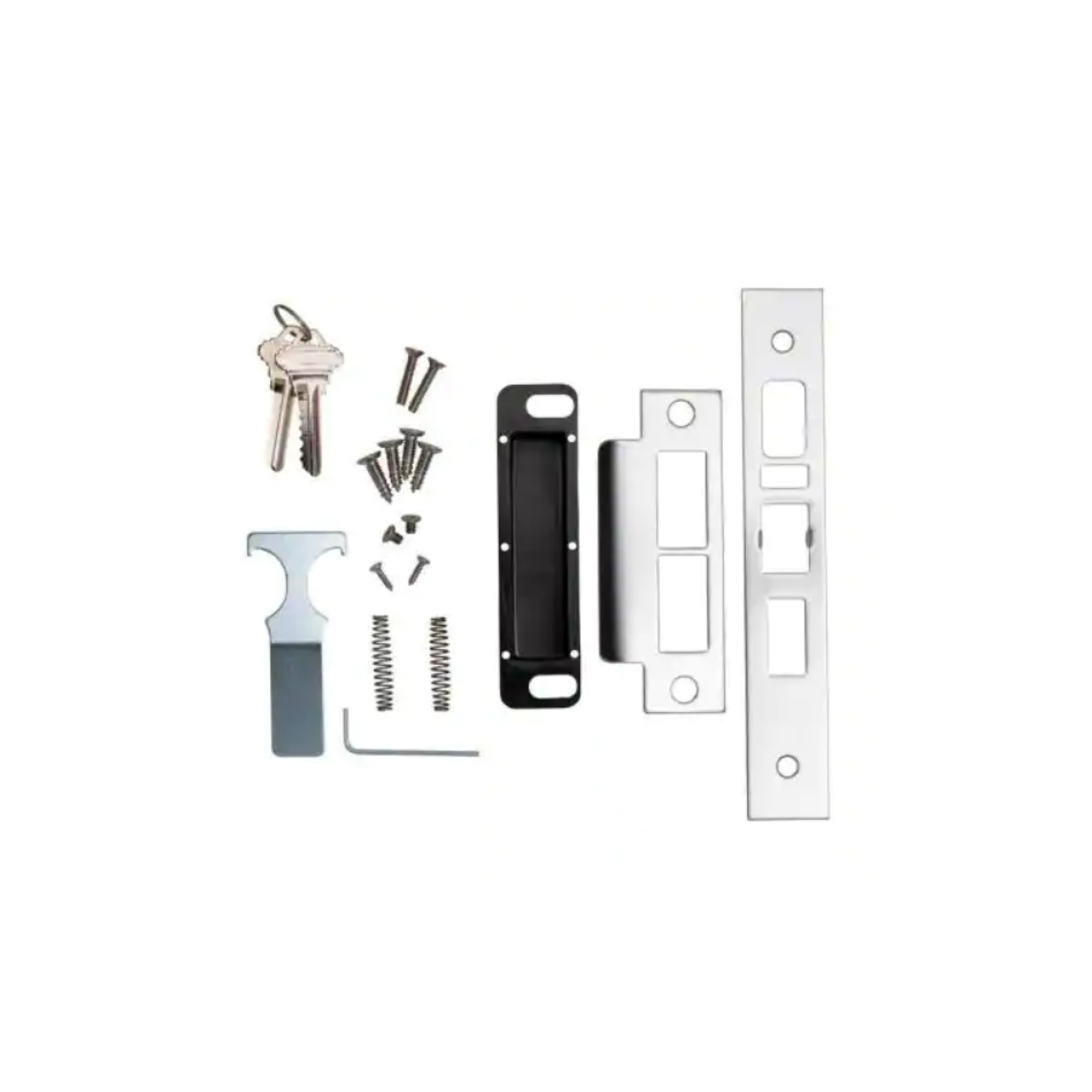

What's Included

    (1) Locksets

Features + Benefits

  • Lever automatically locks from the outside when closed
  • ANSI A156.2 Grade 1 Certified
  • Features a left-handed escutcheon door handle
  • Includes 1-1/4 x 8 in. faceplate and 2-1/2 in. rosette
  • Fit for doors 1-3/4 in. thick
  • Backset measurement is 2-3/4 in.
  • Throw bolt: 1 in.
  • SC6 Schlage "C" 6 pin keyway
  • Armored front plate conceals lock mounting screws
  • Lever handles are heavy-duty forged brass
  • ADA compliant
  • UL R15846 3 hour fire rated latch
  • 1 in. Mortise Cylinder
  • Brushed Chrome Finish
  • 1 year mechanical and finish warranty

Key Specs

AttributeSpecification

item#

5693424

Brand

Trans Atlantic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.35 LB

Product Type

Leverset

Material

Zinc
AttributeSpecification

Color

Silver

Security/ANSI Grade

1

Product Weight

0.3500 lb

Dimensions L x W x H (in.)

2.0 x 2.0 x 3.0 in

Product Weight

0.3500 lb

Dimensions L x W x H (in.)

2.0 x 2.0 x 3.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
