Tram, 3-Section Antenna with 50-Ohm UHF SO-239 Connector, Model# 1481

Item# 6037517
Tram, 3-Section Antenna with 50-Ohm UHF SO-239 Connector, Model# 1481

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tram, 3-Section Antenna with 50-Ohm UHF SO-239 Connector, Model# 1481

Click or Tap image to Zoom

$199.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 200 watts power rating
  • 17 ft. tall
  • Heavy-duty, 3-section fiberglass construction; max wind speed of 90 MPH
  • Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
  • 144 MHz to 148 MHz; 4 MHz bandwidth; 8.3 dBd gain

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

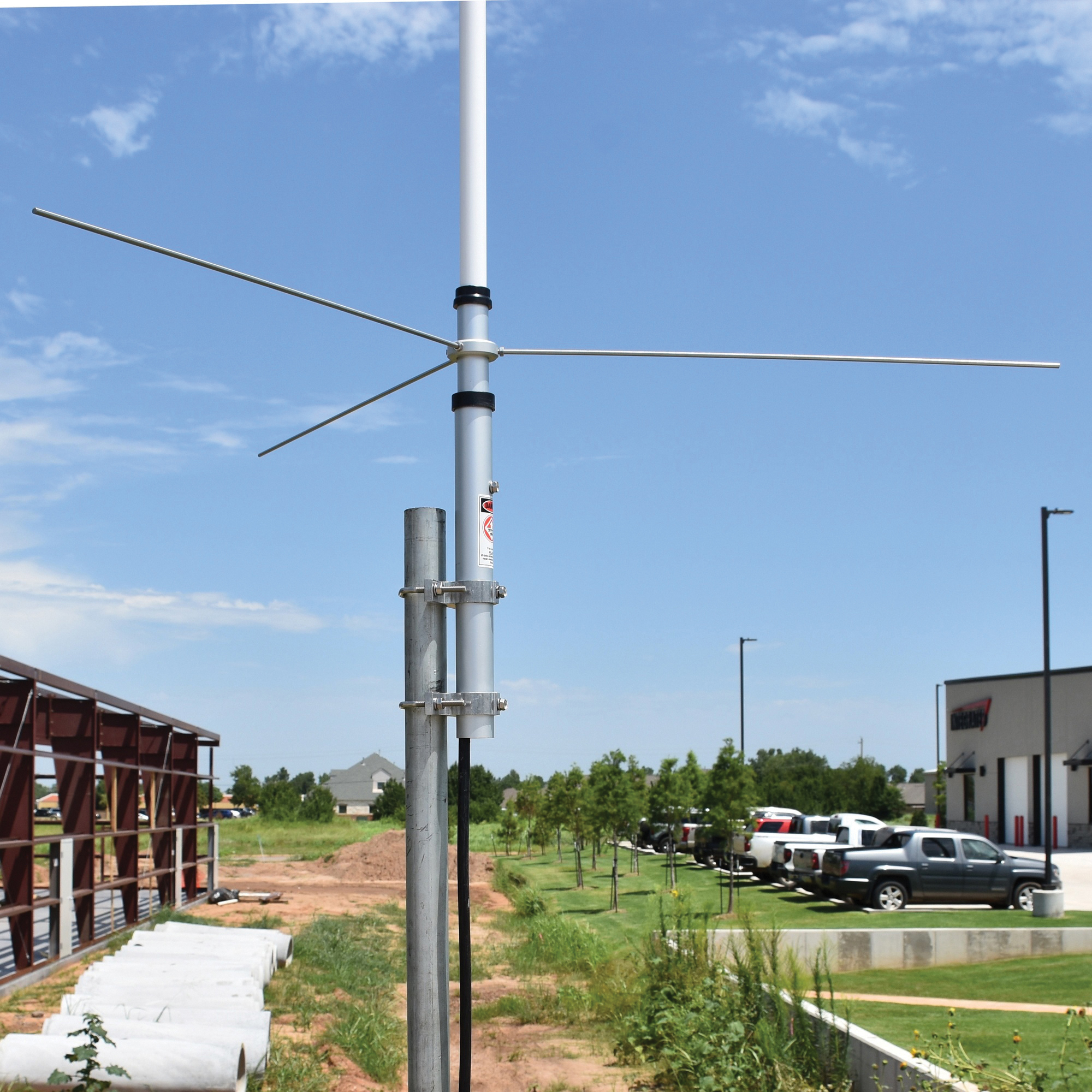

Choose Tram for your next antenna installation project with this White 200-Watt Dual-Band 3-Section Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector. This 17ft. antenna has 2 frequency ranges: 144 MHz to 148 MHz and 430 MHz to 450 MHz and can withstand winds up to 90 MPH. Stay connected with Tram.

What's Included

    (1) Antenna (1) Mounting bracket (3) Stainless Steel radials

Features + Benefits

  • 200 watts power rating
  • 17 ft. tall
  • Heavy-duty, 3-section fiberglass construction; max wind speed of 90 MPH
  • Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
  • 144 MHz to 148 MHz; 4 MHz bandwidth; 8.3 dBd gain
  • 430 MHz to 450 MHz; 20 MHz bandwidth; 11.7 dBd gain
  • 5/8 wave 3 elements c-load, 5/8 wave 8 elements c-load; 20-1/2 in. radial length
  • Radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
  • DC ground construction allow static dissipation for low noise ratio and maximum lightning protection
  • Vertical polarization with 50 ohms impedance
  • UHF (SO-239) connector

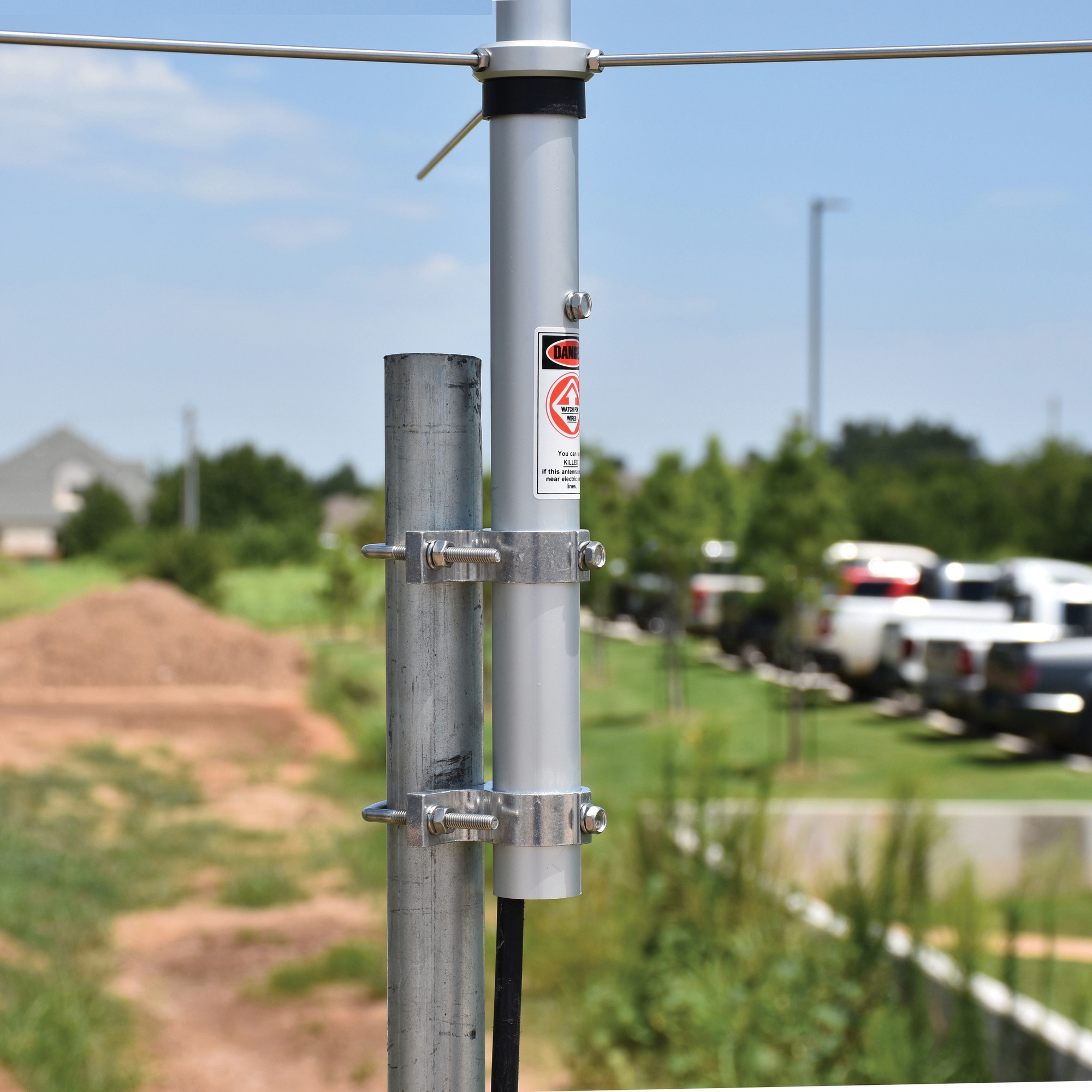

  • Mast diameter accepted: 1-3/16 in. to 2-7/16 in.

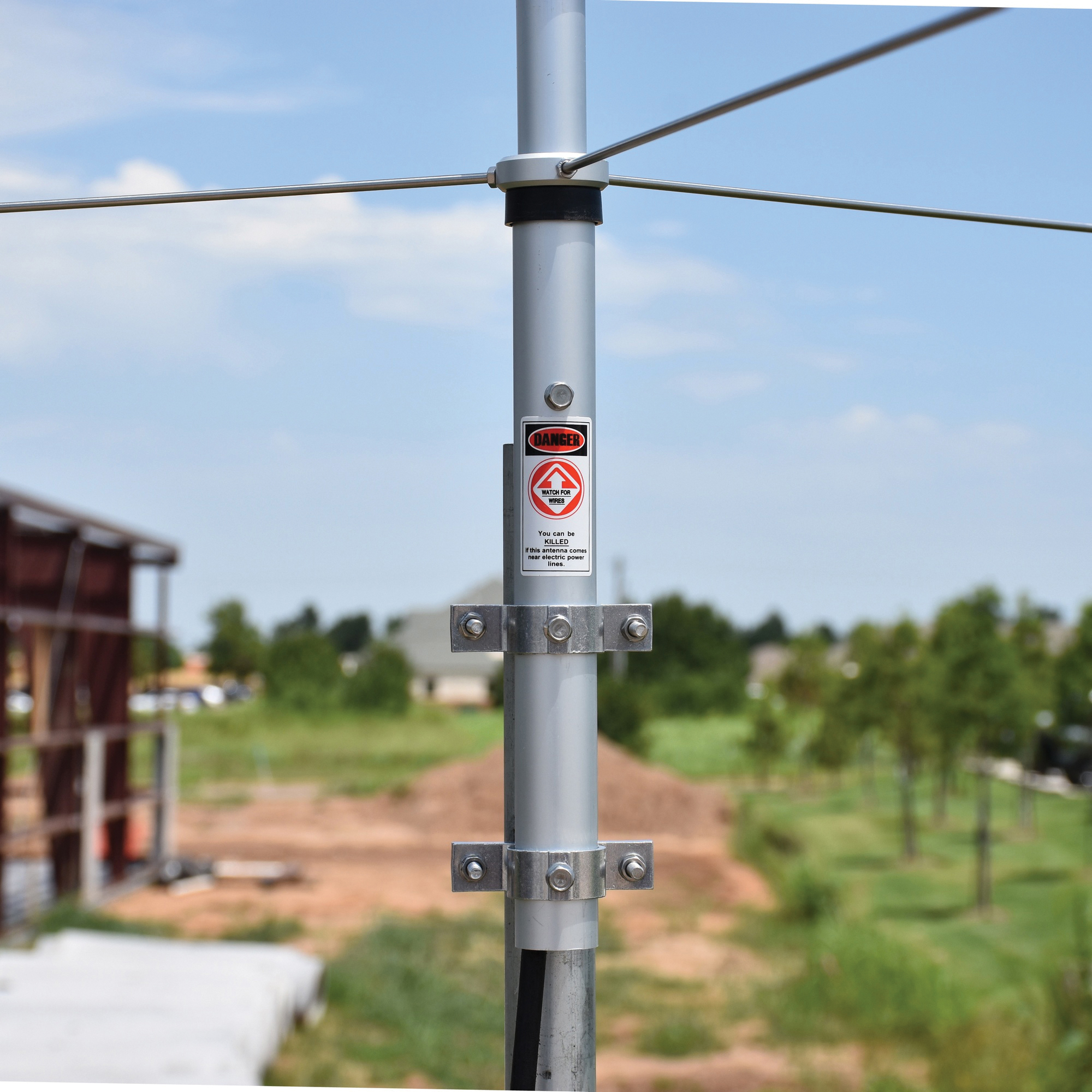

  • Includes mounting bracket with 3 stainless steel radials
  • White

Key Specs

AttributeSpecification

item#

6037517

Brand

Tram

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.5 LB

Mounting Type

Other
AttributeSpecification

Product Type

Magnetic Antenna

Mounting Hardware Included

Yes

Product Weight

4.4000 lb

Dimensions L x W x H (in.)

2.0 x 2.0 x 188.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
