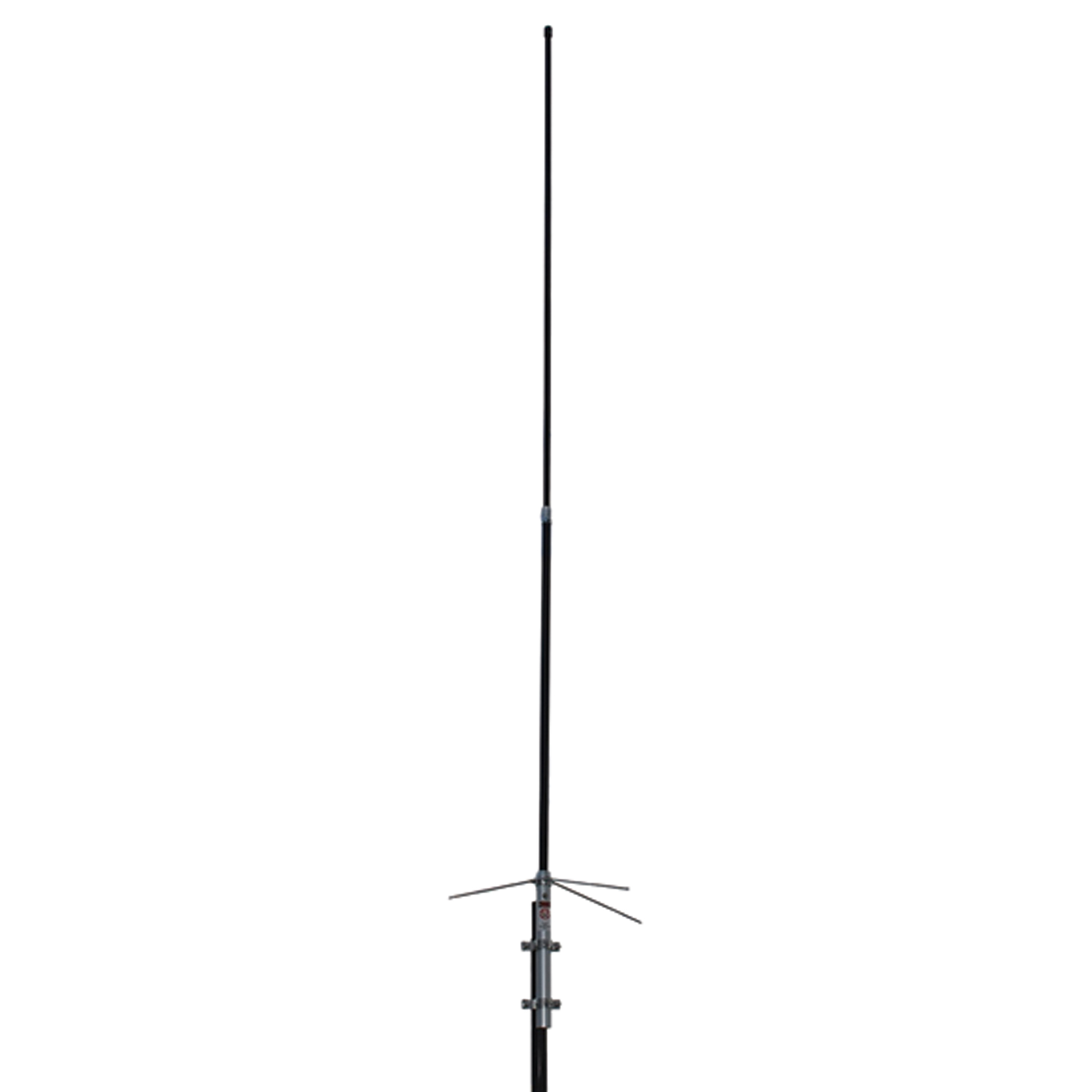

Tram, 2-Section Antenna with 50-Ohm UHF SO-239 Connector, Model# 1480-B

Item# 6036881
Tram, 2-Section Antenna with 50-Ohm UHF SO-239 Connector, Model# 1480-B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tram, 2-Section Antenna with 50-Ohm UHF SO-239 Connector, Model# 1480-B

Click or Tap image to Zoom

$124.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 200 watts power rating
  • 8 ft. 4 in. tall
  • Heavy-duty, 2-section fiberglass construction; max wind speed of 110 MPH
  • Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
  • 144 MHz to 148 MHz; 4 MHz bandwidth; 6 dBd gain

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Reduce your precipitation static and lower your background noise with the Black Tram 200-Watt Dual-Band 2-Section Black Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector. This 8ft. 4in. tall, 2-section antenna features a heavy-duty fiberglass base station, an insulated conductor, a 144 MHz to 148 MHz/430 MHz to 450 MHz frequency range, 6 dBd gain VHF/8 dBd gain UHF, and a power capacity of 200 watts. The radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather. It accepts mast diameters from 1-3/16in. to 2-7/16in.

What's Included

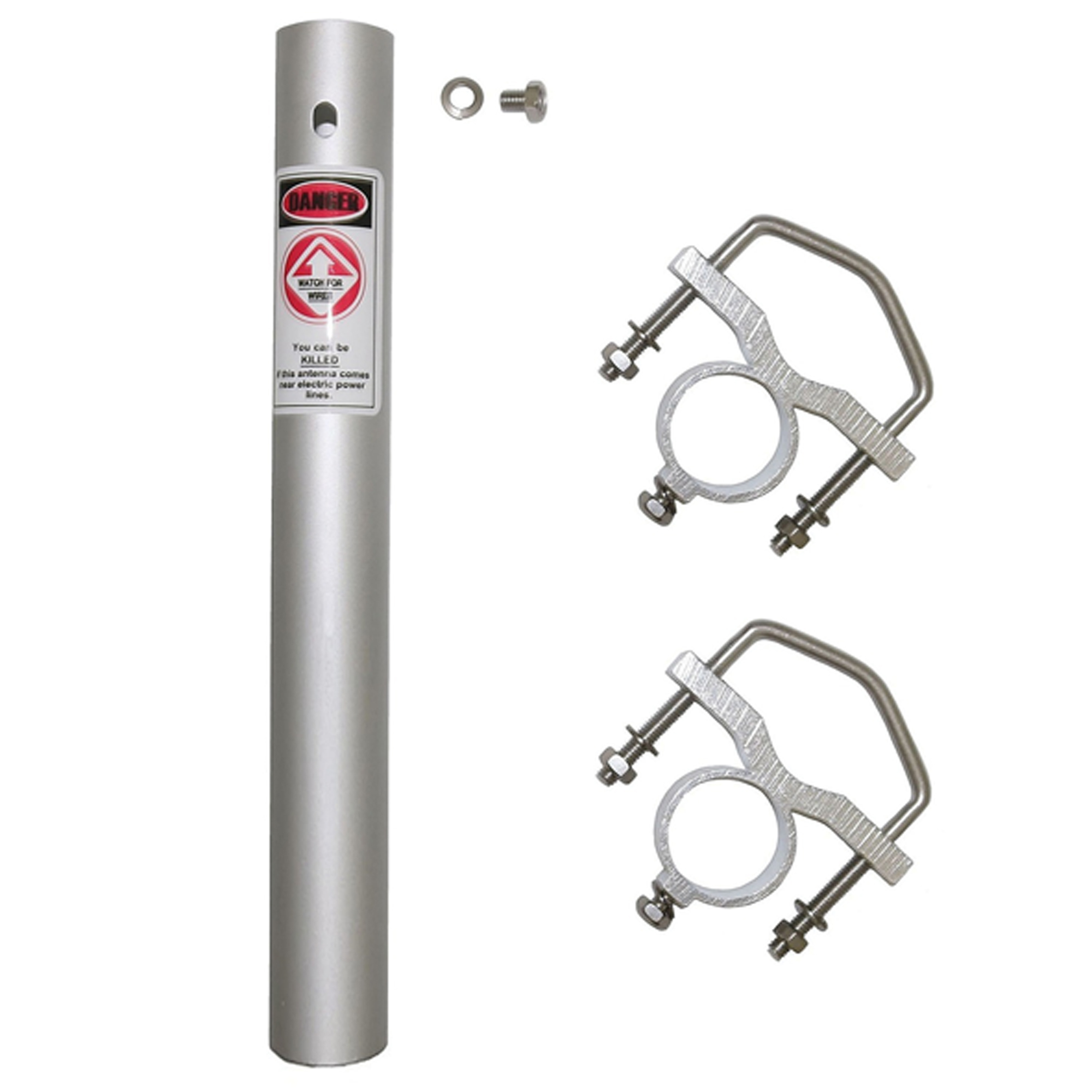

    (1) Antenna (1) Mounting bracket with stainless steel hardware (3) 20.5" radials

Features + Benefits

  • 200 watts power rating
  • 8 ft. 4 in. tall
  • Heavy-duty, 2-section fiberglass construction; max wind speed of 110 MPH
  • Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
  • 144 MHz to 148 MHz; 4 MHz bandwidth; 6 dBd gain
  • 430 MHz to 450 MHz; 20 MHz bandwidth; 8 dBd gain
  • 5/8 wave 2 elements and 5/8 wave 4 elements; 20-1/2 in radial length
  • Radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
  • DC ground construction allow static dissipation for low noise ratio and maximum lightning protection
  • Vertical polarization with 50 ohms impedance

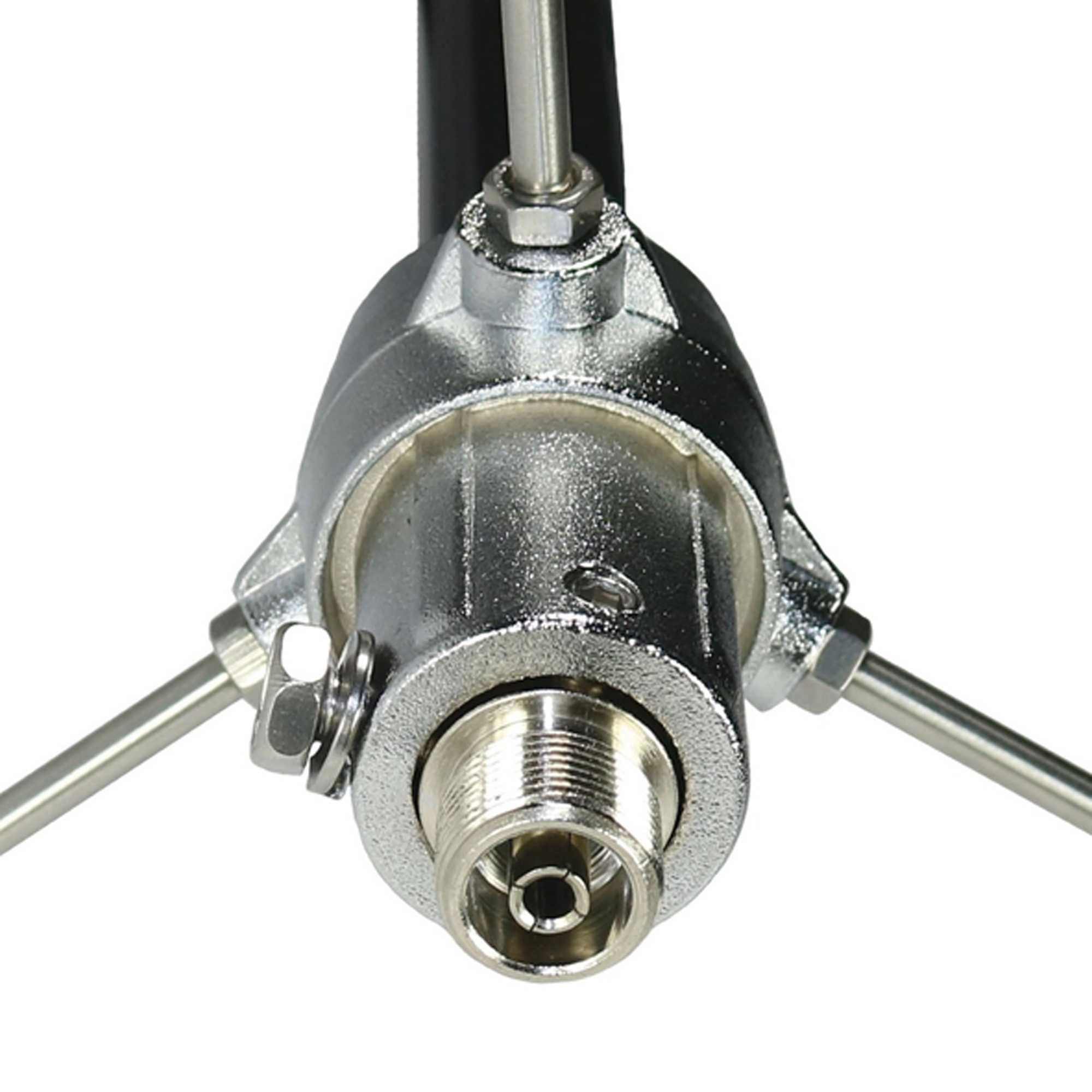

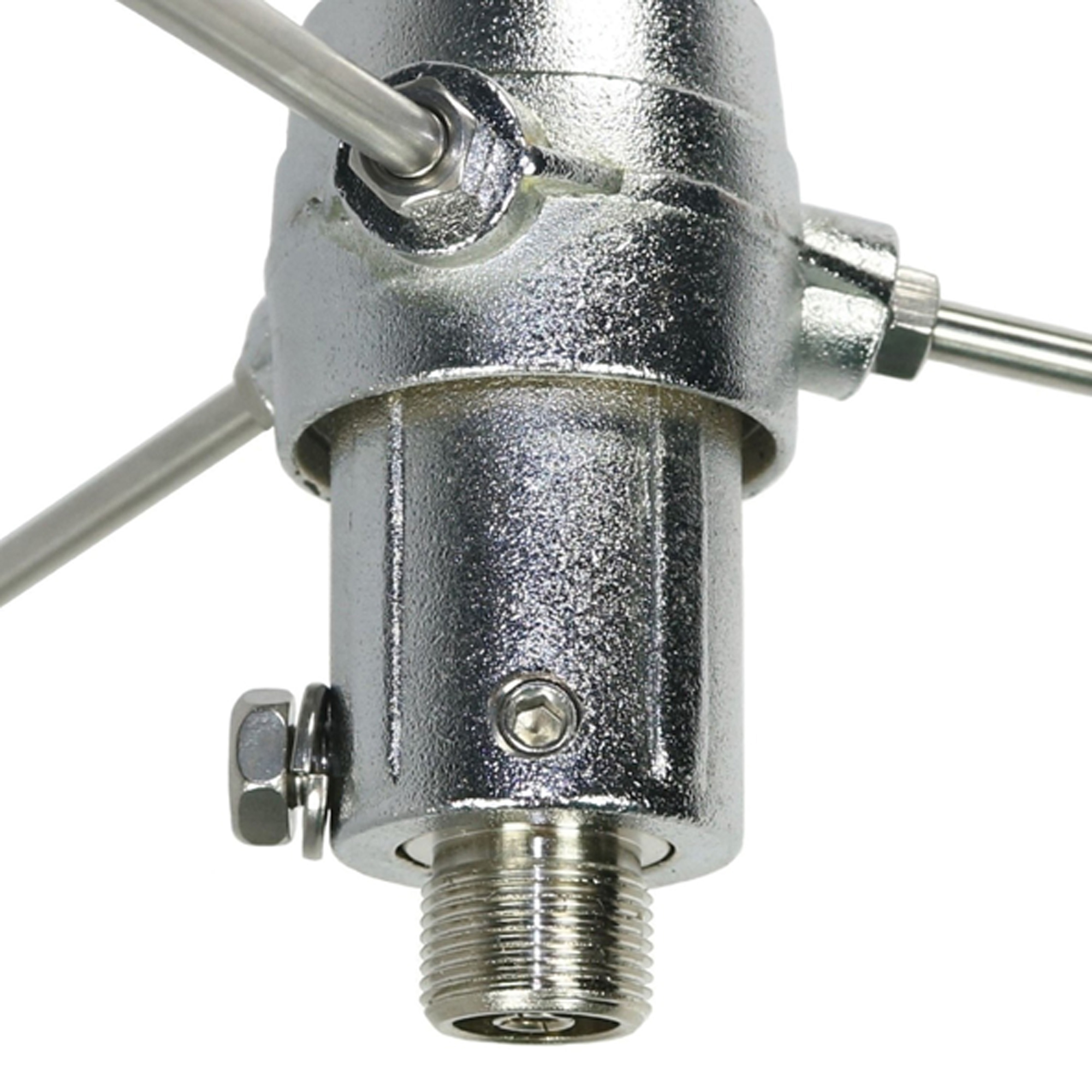

  • UHF (SO-239) connector
  • Mast diameter accepted: 1-3/16 in. to 2-7/16 in.
  • Includes bracket and three 20-1/2 in. radials
  • Black

Key Specs

AttributeSpecification

item#

6036881

Brand

Tram

Manufacturer's Warranty

3 month limited warranty

Ship Weight

3.2 LB

Mounting Type

Surface
AttributeSpecification

Product Type

Magnetic Antenna

Mounting Hardware Included

Yes

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

2.0 x 2.0 x 90.0 in
