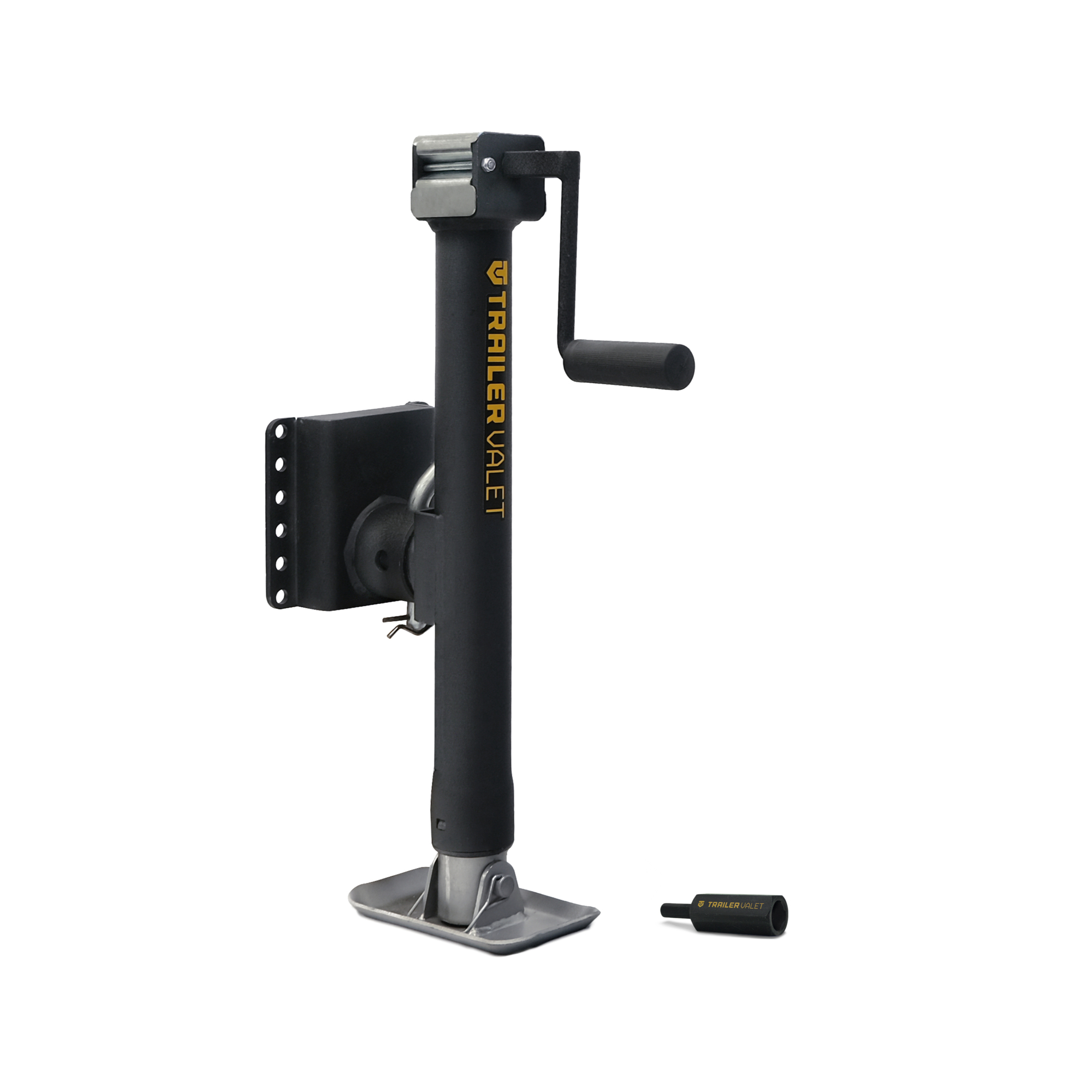

Trailer Valet Side-Mount Drill Jack - 5,000 Lb. Static Capacity, 1,600 Lb. Lift Capacity, 14in. Travel, Zinc-Plated and Wrinkle Black Finish, Model# TVJX5

Item# 5792465
"Trailer Valet Side-Mount Drill Jack - 5,000 Lb. Static Capacity, 1,600 Lb. Lift Capacity, 14in. Travel, Zinc-Plated and Wrinkle Black Finish, Model# TVJX5"
Trailer Valet Side-Mount Drill Jack - 5,000 Lb. Static Capacity, 1,600 Lb. Lift Capacity, 14in. Travel, Zinc-Plated and Wrinkle Black Finish, Model# TVJX5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trailer Valet Side-Mount Drill Jack - 5,000 Lb. Static Capacity, 1,600 Lb. Lift Capacity, 14in. Travel, Zinc-Plated and Wrinkle Black Finish, Model# TVJX5

Click or Tap image to Zoom

$169.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Includes Trailer Valet Drill Attachment (TVDA), footplate, and hand crank
  • Zinc-rich coating, nickel plating, and finished with our signature wrinkle black powder coating
  • Patented Trailer Valet Gear System (12:16 Ratio)
  • Patented gear material composition delivers maximum efficiency while reducing heat retention
  • Weather resistant shield protection and a protective sleeve to ensure a smooth glide every time

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

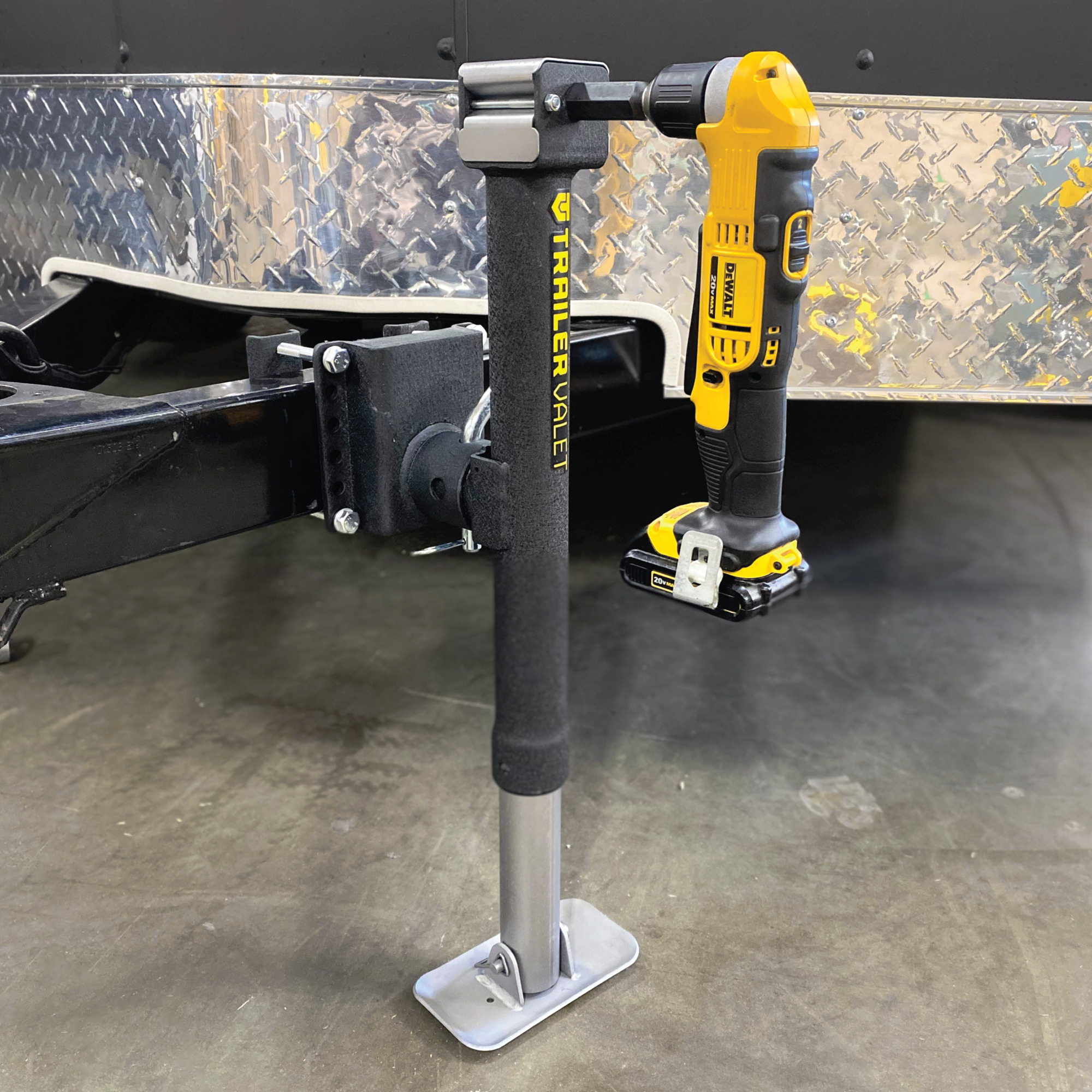

The Trailer Valet JX 5K Side is a manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment. It has a lift capacity of 5000 lbs and its patented gear material composition delivers maximum efficiency while reducing heat retention. We’ve built in a sleeve fitting to offer the ultimate protection while ensuring a smooth glide every time. The JX 5K Side comes with a pipe mount bracket, weather resistant shield protection, and is topped with our signature wrinkle black powder coating so that you can go further, longer. It’s time to MOVE FORWARD and replace the standard jack on your trailer! Power it up and save time, effort, and hassle and get to what you love most. Comes standard with foot plate and Trailer Valet Drill Attachment. JX Wheel attachment sold separately.

What's Included

    (1) Includes Jack, Drill attachment, footplate, and hand crank

Downloads

Product Manual

Features + Benefits

  • Includes Trailer Valet Drill Attachment (TVDA), footplate, and hand crank
  • Zinc-rich coating, nickel plating, and finished with our signature wrinkle black powder coating
  • Patented Trailer Valet Gear System (12:16 Ratio)
  • Patented gear material composition delivers maximum efficiency while reducing heat retention
  • Weather resistant shield protection and a protective sleeve to ensure a smooth glide every time
  • 5,000 lb weight capacity
  • Weather resistant shield protection and a protective sleeve to ensure a smooth glide every time
  • Compatible with JX Wheel option (TVJXMW), sold separately
  • Retracted height: 23in, Extended height: 37in, Total travel: 14in
  • 5000lb static capcity, 1600lb lift capcity, 800lbs lift capcity w/ drill
  • Outer tube diameter: 57mm, Inner tube diameter: 51mm
  • Clearance (from bottom of bracket to top of jack): Approximately 14in, center of mount point to top of jack is 11.5in
  • Total Trailer Lift: 11.5in to 25.5in
  • Max Frame Size Fit: 4.75 in high, 3.75 in deep
  • Use your own bolt for deeper frames - Uses M10 1.5
  • Installation: Requires 8 in of clearance
  • For frames from 4.75 inches to 5.75 inches use the mounting bracket option TVJLMB Sold Separately

Key Specs

AttributeSpecification

item#

5792465

Brand

Trailer Valet

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.0 LB

Lift Capacity

1,600 lb

Jack Type

Marine and Swivel

Mount Type

Bolt-On

Tube Type

Round

Tube Size

2 in

Length Extended

37 in
AttributeSpecification

Length Retracted

23 in

Clearance: Bracket to Jack Top

14 in

Support Capacity

5,000 lb

Ground Support

Foot Plate

Mount Height

8.6 in

Drop Leg Travel

0 in

Length of Travel

14 in

Product Weight

24.0000 lb

Dimensions L x W x H (in.)

9.0 x 6.0 x 23.0 in

Reviews

Questions & Answers

32 Reviews This action will navigate to reviews.

Questions

  1. When you pull the swivel pin can you pull the jack assembly out of the mount or is it fixed to the mount

    1 answer

    1. Removing the pin will only allow you to take the foot plate on and off the jack.
