Trailer Stake Pocket, Straight, Model# 45004G

Item# 125504

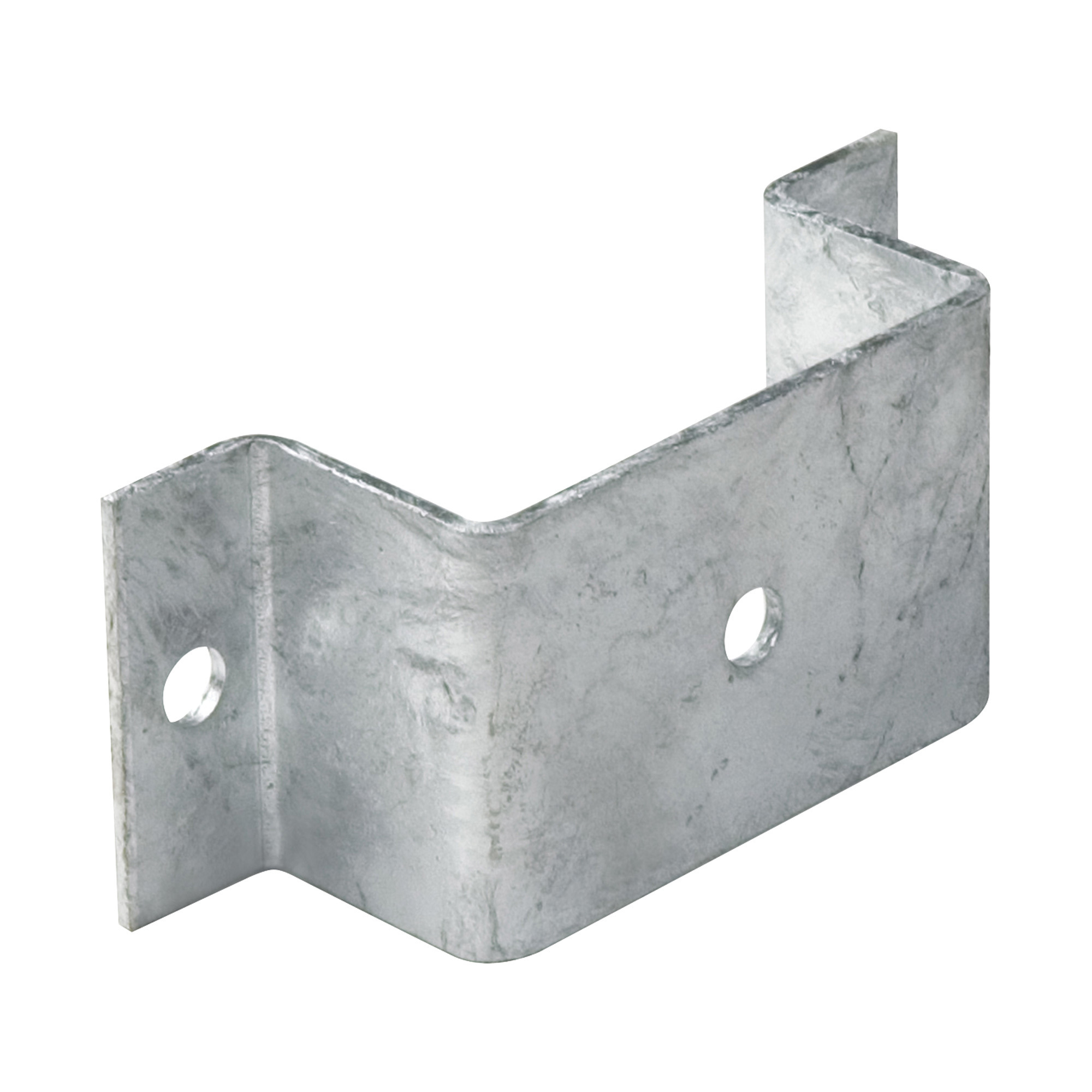

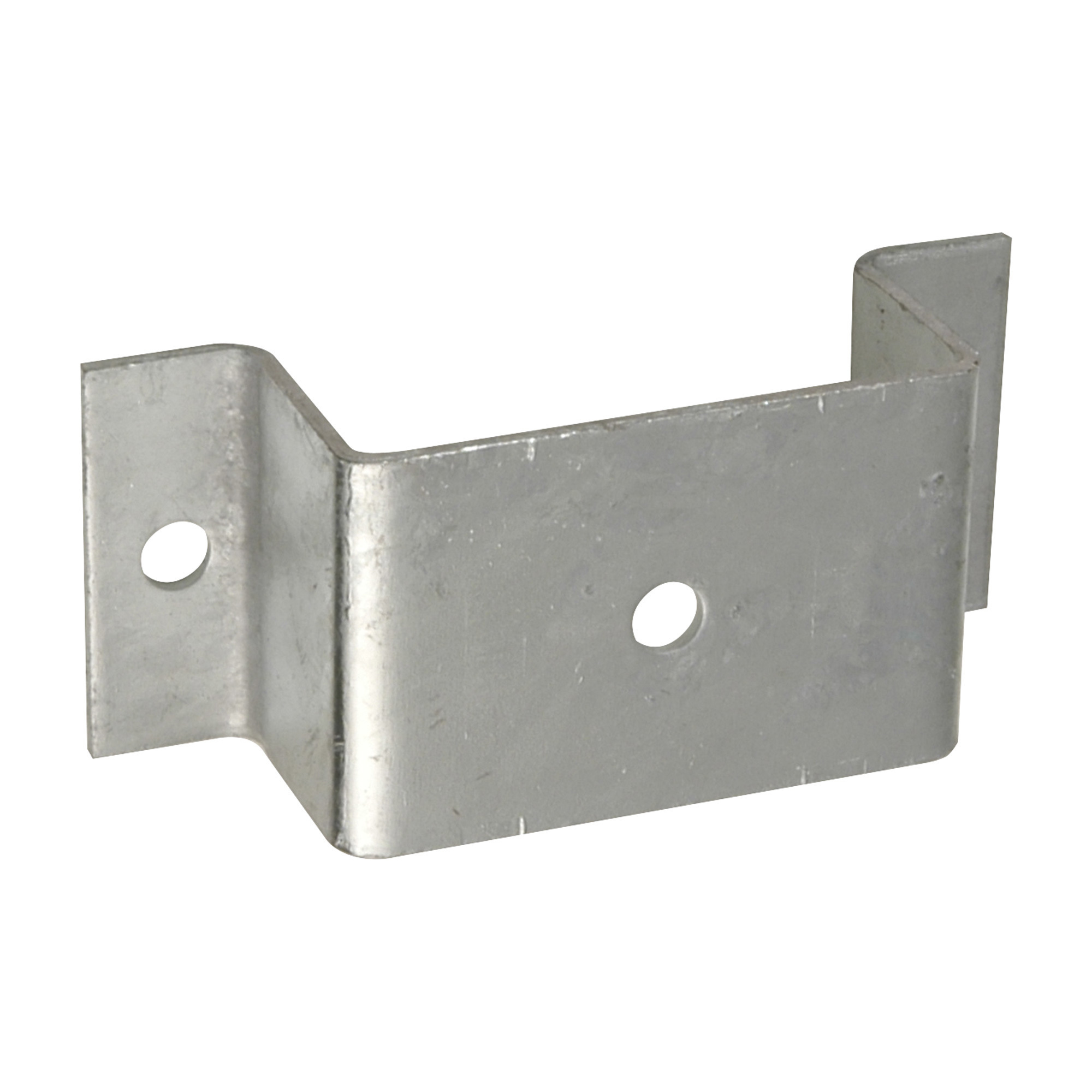

Trailer Stake Pocket, Straight, Model# 45004G

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trailer Stake Pocket, Straight, Model# 45004G

Click or Tap image to Zoom

  • Hot dip galvanized

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Bolts or welds onto trailer. 11-gauge steel stake pocket holds a 2in. x 4in. upright. Prepunched to attach with 1/2in. or 7/16in. bolts. Hot dipped galvanized. Note: this item has single 3/8in. hole on each side. U.S.A.

Features + Benefits

  • Hot dip galvanized

Key Specs

AttributeSpecification

item#

125504

Brand

C.E. Smith Company

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.72 LB
AttributeSpecification

Product Type

Pockets

Finish Type

Galvanized

Product Weight

lb

Dimensions L x W x H (in.)

5.87 x 2.5 x in

Reviews

Questions & Answers

43 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. does this pocket have a bottom plate to keep the 2x4 from falling through? i can not tell from the picture.

    1. No bottom plate, lag screw center hole or bolt through only.

      Helpful?

    2. NO

      Helpful?

    3. No. The opening allows for the 2x4 to move easily through the bracket without resistance.

      Helpful?

    4. It does not

      Helpful?

    5. No bottom plate!

      Helpful?

    6. No, it does not. 2x4's will slip right through.

      Helpful?

    7. No.

      Helpful?

    8. No, it is open just like the top.

      Helpful?

    9. The Trailer Stake Pocket DOES NOT have a bottom plate. The 2 x 4 would either rest or be fastened to the deck of your trailer, or can be secured using the hole on the face of the stake pocket itself.

      Helpful?

  2. the mounting holes look round, but some comments refer to square mounting holes for carriage bolts, please confirm.

    Please also confirm the inside dimensions, want to know if a 2x4 fits without trimming.

    1. Somewhat larger than Standard 2'X4", suggest shim or lag screw or bolt.

      Helpful?

    2. They will absolutely fit. In fact you will find them to be a little too loose. You'll need to secure the 2x4 in the pocket.

      Helpful?

    3. No trimming at all.

      Helpful?

    4. Round holes and a 2x4 fits easily, there is no trimming needed.

      Helpful?

    5. The holes are round and take a 3/8" bolt. It will fit a 2x4 board with no trimming.

      Helpful?

  3. What is the inside dimension of the stake pocket?

    How many inches is the inside dimension of this stake pocket? I would like to know before I would order any. Thank you.

    1. These fit a 2 X 4 with 1/8"+ extra all around.

      Helpful?

    2. It will accommodate a milled 2X4

      Helpful?

    3. They are designed to accept a standard 2x4, which they do perfectly.

      Helpful?

    4. This Trailer Stake Pocket is designed to hold a 2x4 which is 1 1/2" X 3 1/2".

      Helpful?

  4. I have a 5x8 trailer and will need to use stakes on three sides. The back has a bug gate that swings up. How many should I use?

    1. I suggest 2 on each stake, evenly spaced.

      Helpful?

    2. I would use four brackets. That's what I used but I split my side boards so I could take them off individually.

      Helpful?

    3. The number of stakes needed varies depending on the application. The use of more stakes will provide more strength and stability. Four stakes on the sides and three along the front is usually sufficient for a 5'x8' trailer.

      Helpful?

  5. Do these brackets accept 1/2, 7/16, or 3/8 bolts since all three are listed.

    1 answer

    1. The two side mounting holes would require a 3/8" bolt.

      Helpful?

  6. Can these galvanized steel pockets be attached to an aluminum trailer? Will the metals react against each other? Will I have to drill holes?

    1 answer

    1. Galvanized metal and aluminum would not react to each other in moderate to mild humid conditions. This has pre-drilled holes.

      Helpful?

  7. Stake Pocket Hole spacing?

    I believe this is what I'm looking for but I would just like to confirm what the hole spacing is on the tabs that attach to the trailer (center to center)

    1 answer

    1. The stake pocket holes are spaced 4 and 13/16 inches apart.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
