Trailer Spring — 4 Leaves, 4500-Lb. Capacity/Pr., Model# SW4

Item# 125213
"Trailer Spring — 4 Leaves, 4500-Lb. Capacity/Pr., Model# SW4"
Top Seller1 Included
Trailer Spring — 4 Leaves, 4500-Lb. Capacity/Pr., Model# SW4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trailer Spring — 4 Leaves, 4500-Lb. Capacity/Pr., Model# SW4

Click or Tap image to Zoom

$54.99

  • Shipping:

    Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 4 leaves
  • 25 1/4in. eye center
  • 1 3/4in. wide springs with 9/16in. double eyelets
  • Sold individually

See full description

Complete Your Solution

  • Trailer Spring — 4 Leaves, 4500-Lb. Capacity/Pr., Model# SW4

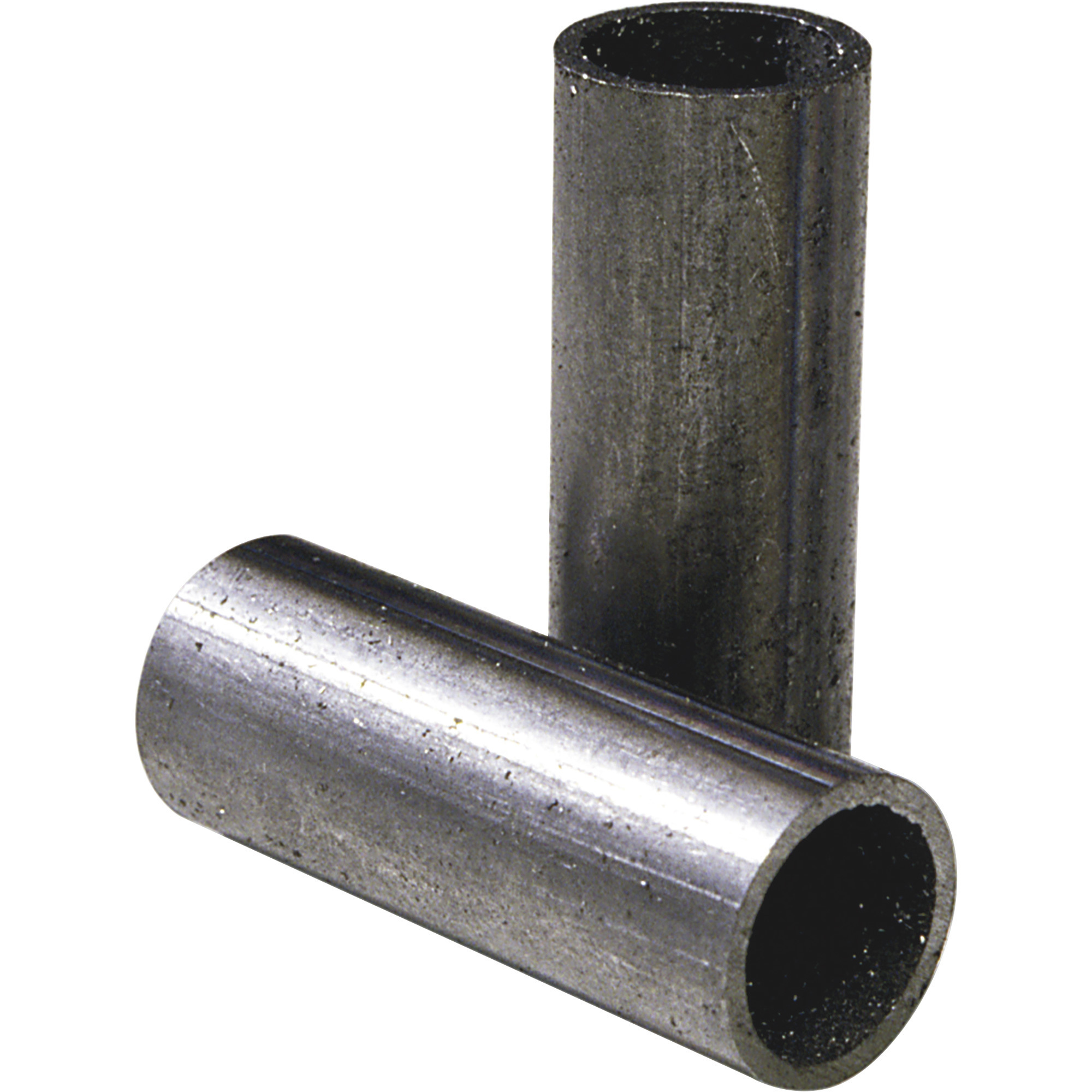

  • Ultra-Tow 2-Pc. Spring Bushings, Length: 3/4in. x 2in. O.D.; Width: 1-3/4in. O.D.
  • Ironton Bolt-On Sidewind Marine Swivel Jack, 1000-Lb. Capacity, Black
  • SmartStraps RatchetX Aluminum Tie-Downs, 14ft.L, 3,000-Lb. Breaking Strength, 4-Pack, Orange, Model# 349
Price for all four:

$163.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Sold individually.

What's Included

  • (1) Trailer spring

Features + Benefits

  • 4 leaves
  • 25 1/4in. eye center
  • 1 3/4in. wide springs with 9/16in. double eyelets
  • Sold individually

Key Specs

AttributeSpecification

item#

125213

Brand

Rockwell American

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

13.2 LB

Leaves (qty.)

4
AttributeSpecification

Capacity Per Pair

4,500 lb

Included (qty.)

1

Spring Type

Double-Eye

Spring Width

1.75 in

Eyelet Diameter

0.56 in

Reviews

Questions & Answers

23 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. How do I identify the front of the spring? The spring has only one leaf strap around one side.

    1. The spring ends are identical. There is no front or back. It mounts the same either way.

      Helpful?

    2. The Trailer Spring is universal in that there is no front or back and it can be mounted either way.

      Helpful?

  2. Please provide the lift measure measurement from the top of spring to bolt center line. Thanks

    1 answer

    1. Per the manufacturer, this spring will have an arch height of 3", measured from the center of the bolt eye to the top of the top leaf.

      Helpful?

  3. Can this spring be mounted on top of the axle?

    1 answer

    1. The springs can be mounted either above (overslung) or below (underslung) the axle.

      Helpful?

  4. Can you use for pick up truck

    1 answer

    1. This model would be for use with trailers only.

      Helpful?

  5. Where are these made?

    1 answer

    1. This item is manufactured in the United States.

      Helpful?

  6. What is the length of the 4,500 lb spring from eye to eye

    1 answer

    1. The eye to eye center hole distance is 25.25".

      Helpful?

  7. Does NT sell the 9/16 bolts for these?

    1 answer

    1. We do not currently carry the bolts for these trailer springs. You may want to check with your local hardware store.

      Helpful?

  8. What is the height of the unsprung (and sprung) leaf spring?

    I need to know for a trailer design clearances.

    1 answer

    1. The height of the spring at rest is 3". Under a 2,500 lb. load the spring height changes to approximately 1.625".

      Helpful?

  9. The spring eye spec is 9/16" what is the inside dia of the bushing, the shackel kit has 1/2" bolts

    1 answer

    1. On this particular trailer spring, the spring eye specification is 11/16". The inside diameter of the bushing is 9/16".

      Helpful?

  10. Are Bolts and bushings included

    1 answer

    1. The spring does not include bolts or bushings.

      Helpful?
