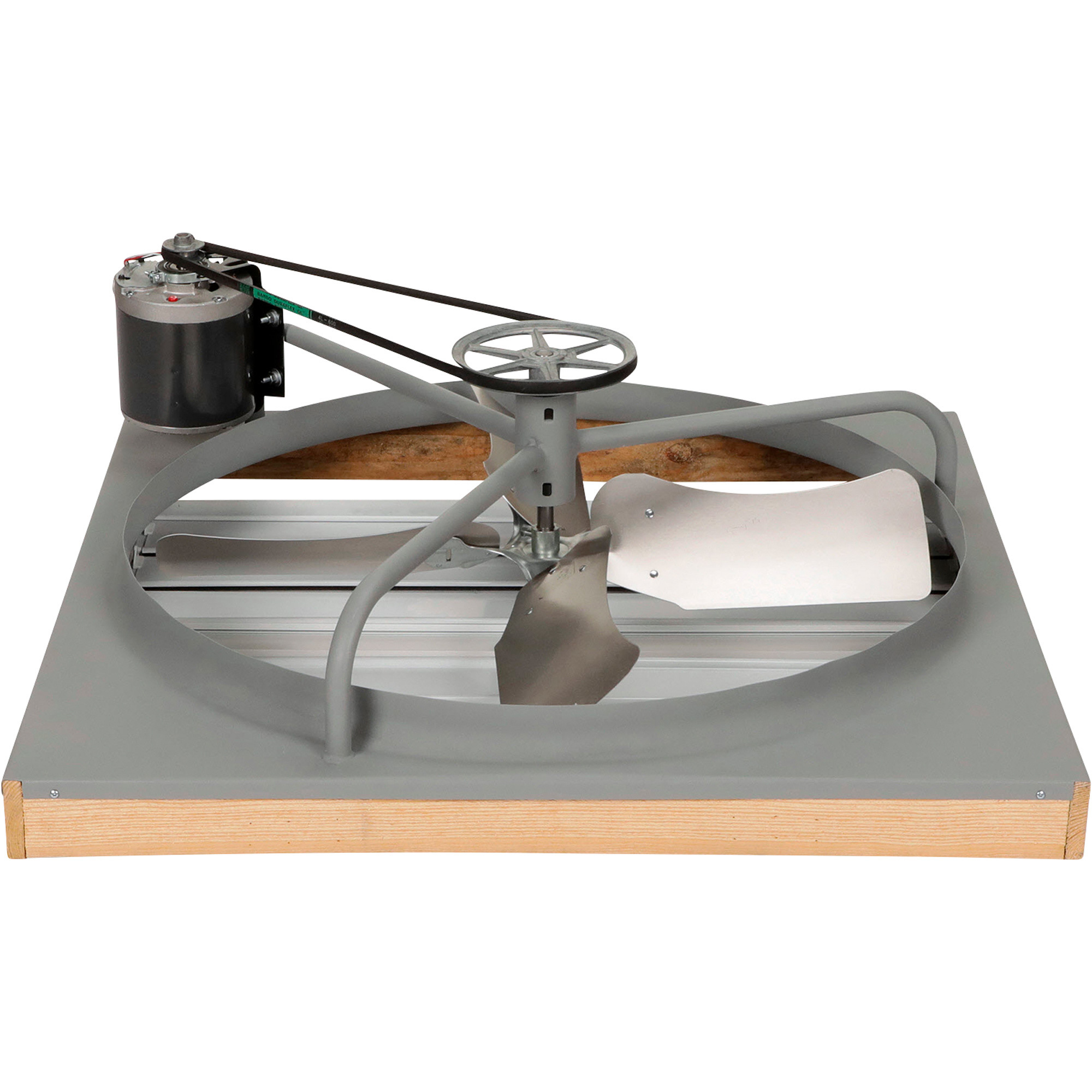

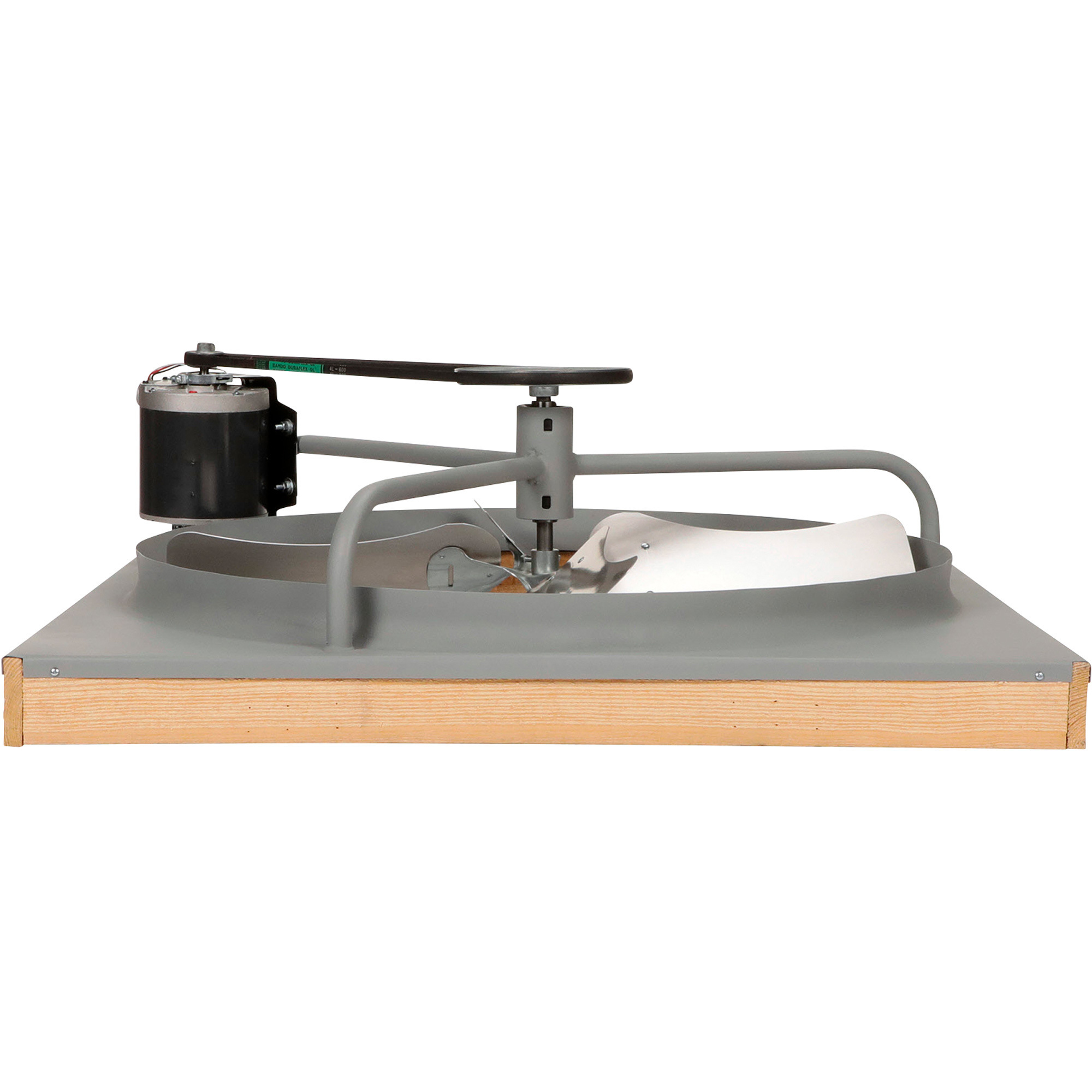

TPI Whole House Attic Fan - 36in., 9675 CFM, 1/3 HP, 2-Speed, Model# BD36-2-WHS

Item# 255334
Top Seller
TPI Whole House Attic Fan - 36in., 9675 CFM, 1/3 HP, 2-Speed, Model# BD36-2-WHS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Whole House Attic Fan - 36in., 9675 CFM, 1/3 HP, 2-Speed, Model# BD36-2-WHS

Click or Tap image to Zoom

$1080.96

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Two-speed 1/3 HP motor
  • Fan speed: 395/265 RPM

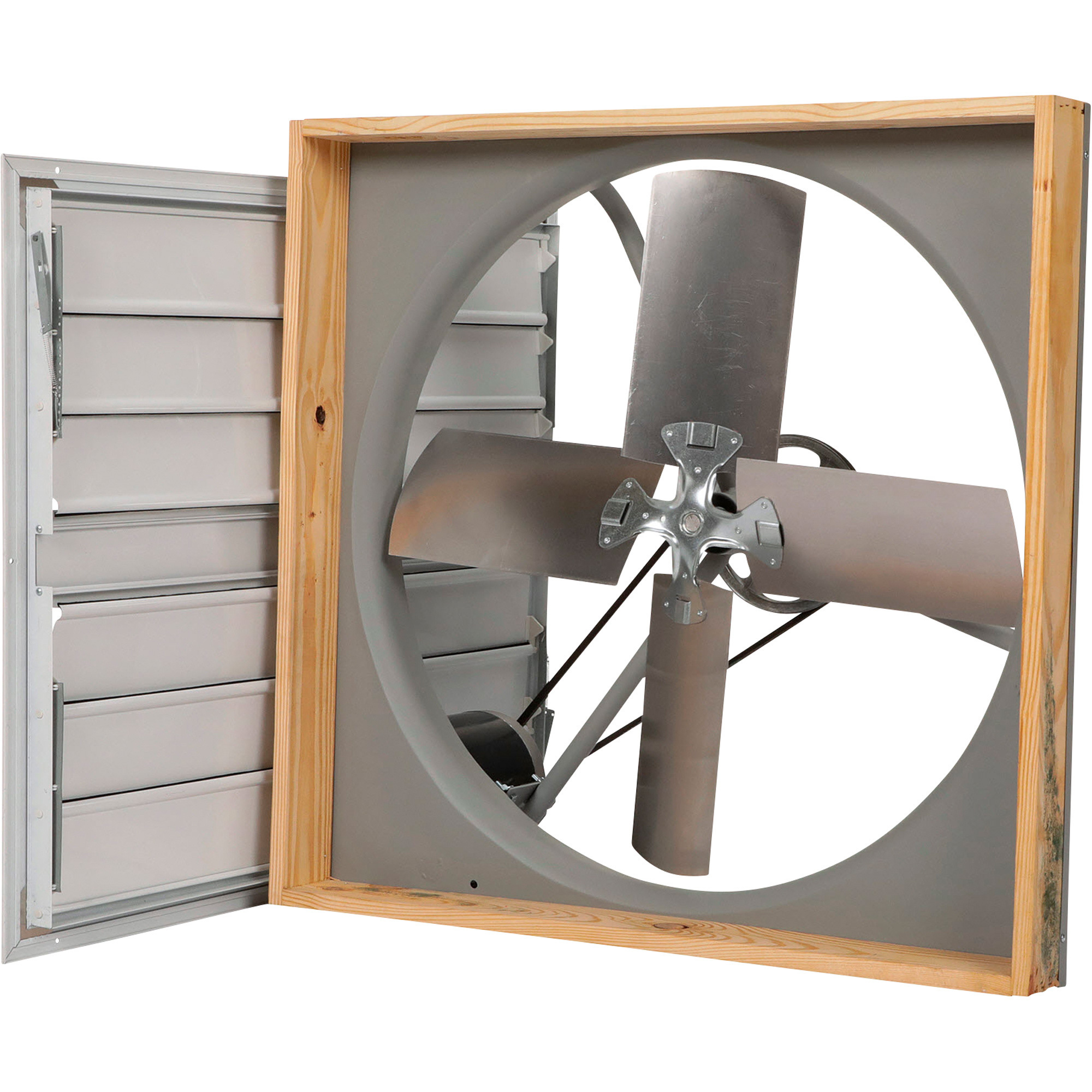

  • Shutters automatically open when in use and close when turned off
  • Can be installed without cutting joists
  • Fan mounting dimensions: 40in.L x 41 1/2in.W x 14 1/2in.D

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TPI Whole House Attic Fan is a powerful and efficient solution designed to significantly reduce your summer cooling costs. With a 36-inch diameter, this fan delivers an impressive 9675 cubic feet per minute (CFM) airflow, powered by a robust 1/3 horsepower motor. Featuring a 2-speed setting, it allows you to adjust the airflow according to your needs, ensuring optimal ventilation and comfort. By opening your windows and activating this fan, hot air is effectively pulled from your living spaces and exhausted out through the attic, creating a cooler indoor environment. This fan not only enhances air circulation but also helps in maintaining a more energy-efficient home by reducing the reliance on air conditioning. Built with durability and performance in mind, the TPI Whole House Attic Fan is an essential addition for any household looking to improve air quality and lower cooling expenses during the hot summer months.

What's Included

    (1) 2-speed motor (1) Box frame (1) Blade set (1) Shutter housing

Features + Benefits

  • Two-speed 1/3 HP motor
  • Fan speed: 395/265 RPM
  • Shutters automatically open when in use and close when turned off
  • Can be installed without cutting joists
  • Fan mounting dimensions: 40in.L x 41 1/2in.W x 14 1/2in.D

Key Specs

AttributeSpecification

item#

255334

Brand

TPI

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

98.0 LB

Air Delivery

9,675 cfm
AttributeSpecification

Outdoor Rated

No

Volts

120

Speeds (qty.)

2

Dimensions L x W x H (in.)

40 x 41.5 x 14.5 in

Reviews

Questions & Answers

Questions

1–10 of 13 Questions
Sort by:

  1. Can I look at the Installation Instructions on line?

    1 answer

    1. We do not offer the installation instructions on our web. These instructions would be sent with the fan.

      Helpful?

  2. How can I purchase a belt? Mine is about to fail.

    1 answer

    1. The part number for the replacement belt on this attic fan is 40361006. This would be available directly through the manufacturer.

      Helpful?

  3. Do y’all make this fan direct driven instead of belt driven

    1 answer

    1. The fan is not available in a direct drive option.

      Helpful?

  4. what is decibel rating?

    1 answer

    1. This is rated at 16 decibels from 15 feet away.

      Helpful?

  5. does fan come with installation instructions

    1 answer

    1. This Fan will come with installation instructions.

      Helpful?

  6. Can the fan be mounted vertically? I have a similar older fan mounted vertically in front of a 4x4 shuttered gable vent and it worked perfectly before it quit.

    1 answer

    1. This whole house fan can be mounted vertically or horizontally. You will need to rough in the frame the same way you would if it were mounted horizontally.

      Helpful?

  7. Can the fan motor be wired to reverse?

    1 answer

    1. The motor is unable to be wired in reverse.

      Helpful?

  8. Does this have an auto tensioner for the belt?

    1 answer

    1. The fan does not have an auto tensioner. It would need to be manually adjusted periodically.

      Helpful?

  9. where is the fan made?

    1 answer

    1. The TPI Whole-House Attic Fan is made in the United States.

      Helpful?

  10. If the shaft size is 3/4" would you be able to sell me just the blades (36")? Thanks. Linden

    My question relates to the TPI Whole-House Attic Fan-36", Model # BD362WHS

    1 answer

    1. For pricing and availability on replacement blades please contact the manufacturer direct.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
