TPI, Radiant Ceiling Panel 750W 277V 4x2 Model# CP707 Fuel Type Electric, Heat Output 2560 Btu, Heat Type Radiant, Model# CP707

Item# 5262907
TPI, Radiant Ceiling Panel 750W 277V 4x2 Model# CP707 Fuel Type Electric, Heat Output 2560 Btu, Heat Type Radiant, Model# CP707

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI, Radiant Ceiling Panel 750W 277V 4x2 Model# CP707 Fuel Type Electric, Heat Output 2560 Btu, Heat Type Radiant, Model# CP707

Click or Tap image to Zoom

$535.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • CP-Series Ceiling Panel Heater is engineered for suspension or drop ceiling installations.
  • Designed to provide radiant - convection heat distribution for indoor spaces.
  • Panel is one inch thick and powder-coated white with high-temperature textured finish. Unit provides safe, highly efficient heating system and operates silently with no motor or moving parts.
  • Electric resistance element is fixed between dielectric material and insulation. 2” of insulation is compressed to the one-inch back panel housing to minimize upward heat loss and radiant efficiency.
  • Heater is made in U.S.A. and are ETL Listed for both Canada and U.S.A.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Radiant ceiling panels provide directional heat energy like the solar radiation which warms us, heats objects, not the air. With no moving parts, the heating panel creates gentle warmth and toasty comfortable indoor heating systems. Radiant ceiling panel is 1” thick and provides a low surface temperature and broad heat distribution. Clean, gentle comfortable heat that is ideal for offsetting perimeter heat loss or neutralizing downdrafts over glass. These versatile and flexible panels may be used virtually anywhere in homes, schools, hospitals, motels and a broad variety of other commercial or industrial installations. Radiant ceiling panel contains a full heat section with a white textured powder coated finish. A 20-gauge steel housing frame supports the panel and allows for easy and hassle-free installation into existing suspended / drop ceiling structures. Electric resistance element is fixed between dielectric material and insulation. Two inches of insulation is compressed to one inch by back panel to minimize upward heat loss and radiant efficiency. Units include a three foot long pre-wired flexible cable for easy installation and hard wiring connections. ETL Listed for U.S.A. and Canada. Units are proudly made in U.S.A.

What's Included

    (1) each

Features + Benefits

  • CP-Series Ceiling Panel Heater is engineered for suspension or drop ceiling installations.
  • Designed to provide radiant - convection heat distribution for indoor spaces.
  • Panel is one inch thick and powder-coated white with high-temperature textured finish. Unit provides safe, highly efficient heating system and operates silently with no motor or moving parts.
  • Electric resistance element is fixed between dielectric material and insulation. 2” of insulation is compressed to the one-inch back panel housing to minimize upward heat loss and radiant efficiency.
  • Heater is made in U.S.A. and are ETL Listed for both Canada and U.S.A.
  • Rugged 20-gauge steel housing frame supports the panel and allows for easy and hassle-free installation into existing drop ceiling structures.

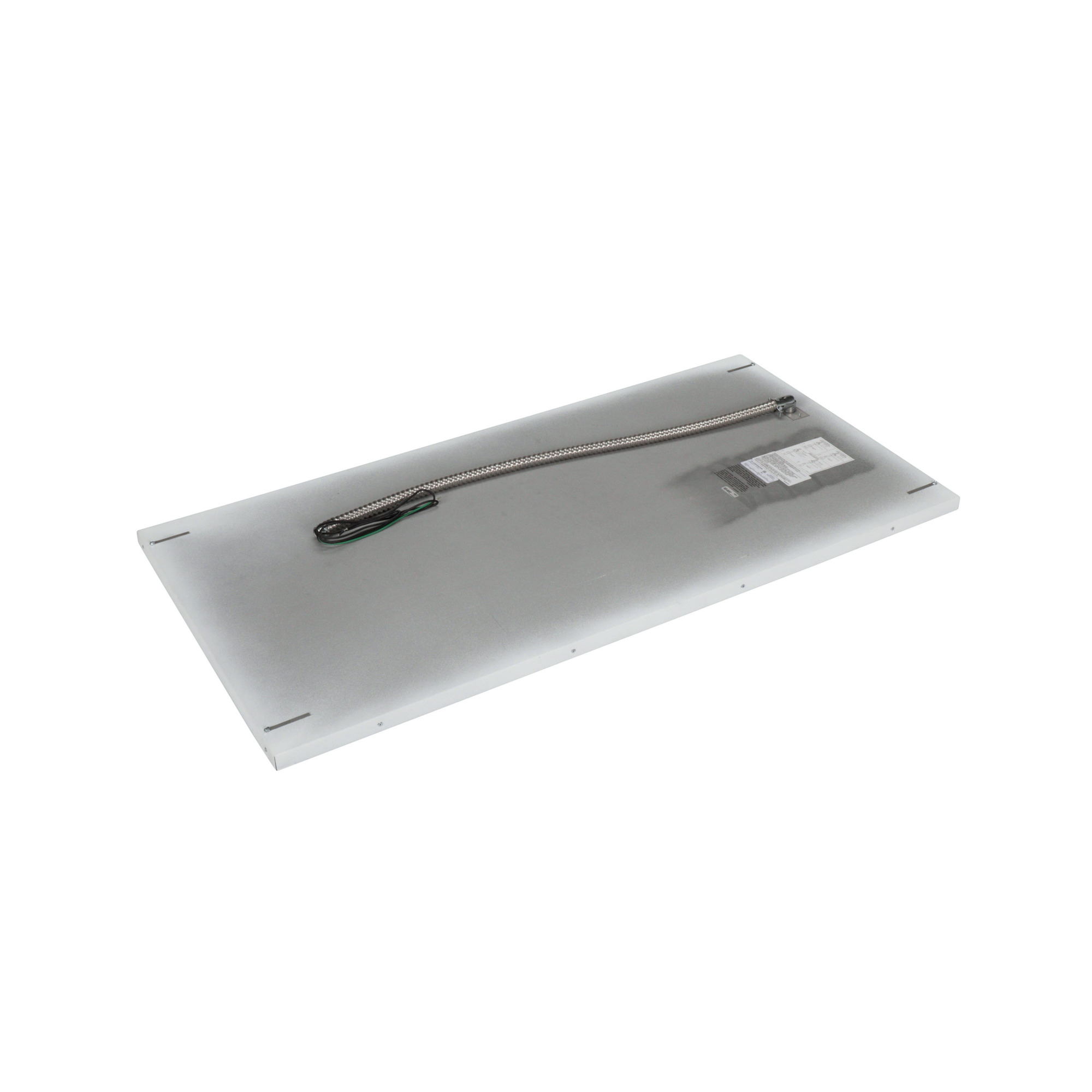

  • All Electric units are hardwired using the supplied 36” pre-wired flex conduit assembly for quick wire connections.

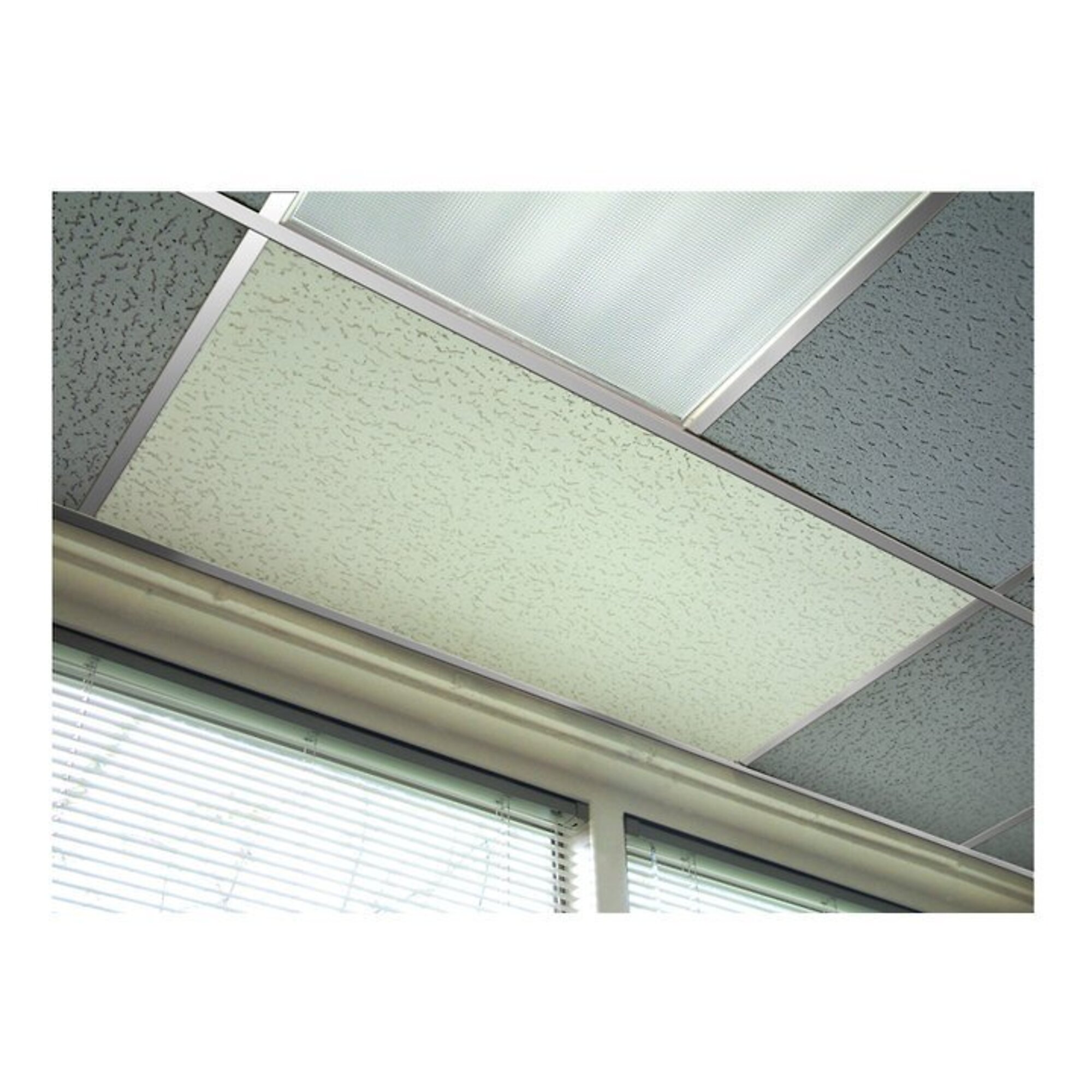

  • Shipped fully-assembled and ready for drop-in installation into a 4’ x 2’ suspension ceiling.
  • Operating voltage is 277-Volt; generating 2.7-Amps and 2,560 BTU’s.

Key Specs

AttributeSpecification

item#

5262907

Brand

TPI

Manufacturer's Warranty

Sixty Months Parts/No Labor

Ship Weight

20.0 LB

Fuel Type

Electric

Heat Output

2,560 Btu

Heat Type

Radiant

Heating Capability

85 ft²

Needs Direct Venting

No

Blower Included

No

Blower CFM

0 cfm

Thermostat Included

No
AttributeSpecification

Remote Included

No

Phase

Single-phase

Power Cord Length

0 ft

Volts

277/480

Amps

2.7

Watts

750

Oxygen Depletion Sensor

No

Fuel Consumption

0 GPH

Hardwired

Yes

Product Weight

20.0000 lb

Dimensions L x W x H (in.)

47.75 x 47.75 x 1.0 in
