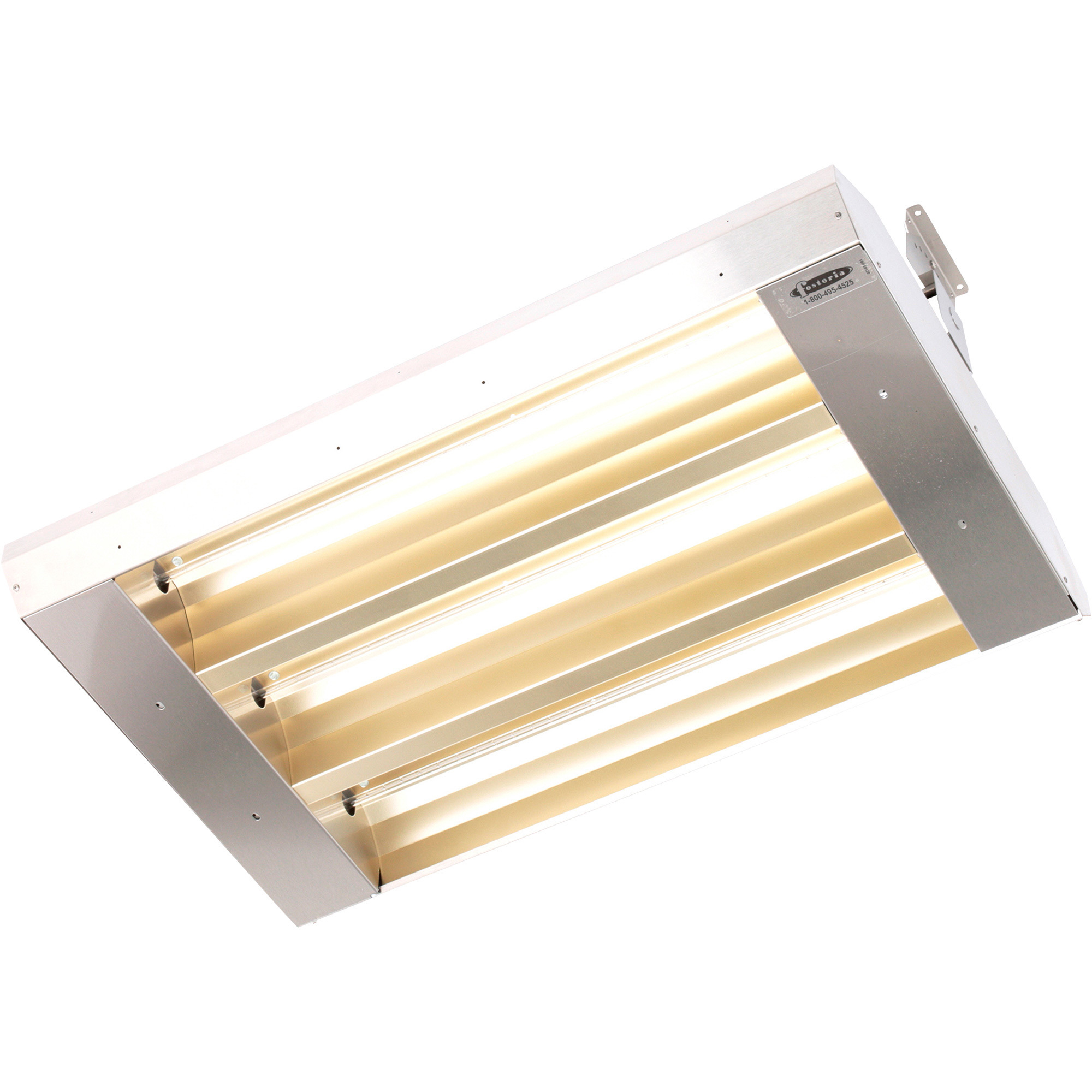

Fostoria Quartz Infrared Heater, 25,298 BTU, Model# 343-60-THSS-208V

Item# 255404
Fostoria Quartz Infrared Heater, 25,298 BTU, Model# 343-60-THSS-208V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fostoria Quartz Infrared Heater, 25,298 BTU, Model# 343-60-THSS-208V

Click or Tap image to Zoom

$1723.52

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 7.5kW; 25,298 BTU; 208V; single phase
  • 3 clear quartz lamps
  • 20-ga. galvanized steel
  • Stainless steel non-corrosive housing hardware and brackets
  • No ferrous metals used in the unit for durability in harsh atmospheres and outdoor environments

See full description

Complete Your Solution

  • Fostoria Quartz Infrared Heater, 25,298 BTU, Model# 343-60-THSS-208V
  • TPI Wall Mount Brackets for Heater - Stainless Steel, 45° Horizontal Tilt, Compatible with TH and THSS Series, Model# VMB-41-SS
Price for all two:

$1969.92

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Fostoria Indoor/Outdoor Quartz Infrared Heater by TPI offers powerful heat for snow and ice control, outdoor spot heating and all indoor heating applications. ETL listed for suspended, totally exposed (outdoor) and high-bay (indoor) comfort heating, exterior snow and ice control and recessed applications. 96% radiant delivered efficiency with high moisture and thermal shock resistance. Broadcasts a 60° pattern with an instantaneous heat-up and cool-down performance. Built-in surface mounting brackets for fixture adjustment up to 45° horizontal tilt.

What's Included

    (1) Heater

Features + Benefits

  • 7.5kW; 25,298 BTU; 208V; single phase
  • 3 clear quartz lamps
  • 20-ga. galvanized steel
  • Stainless steel non-corrosive housing hardware and brackets
  • No ferrous metals used in the unit for durability in harsh atmospheres and outdoor environments

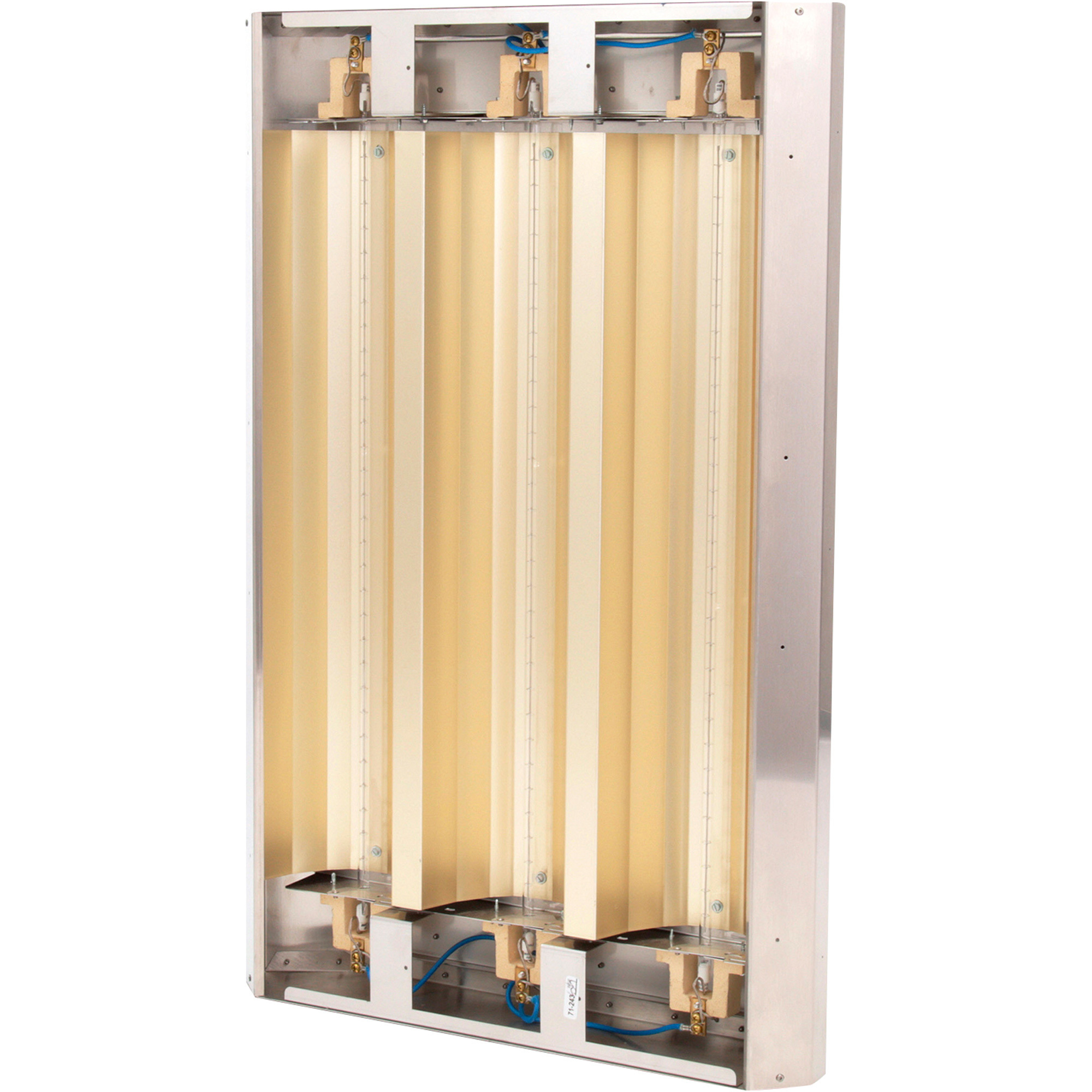

  • 0.40 gold anodized aluminum reflectors and endcaps for superior reflectivity
  • Coiled tungsten filament located within a sealed halogen filled quartz envelope
  • 6in.H temperature pigtail lead wires
  • Requires hardwired connection, 3in. mounting clearance from ceiling and 24in. mounting clearance from vertical surface
  • Requires 96in. mounting clearance from face of heater to combustible surface
  • 12ft.–18ft. recommended indoor mounting height
  • ETL C/US listed
  • 34in. mounting center

Key Specs

AttributeSpecification

item#

255404

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

33.0 LB

Heat Type

Infrared

Heat Output

25,298 Btu/hour
AttributeSpecification

Hardwired

Yes

Indoor-Outdoor Use

Indoor and Outdoor

Volts

208

Watts

7,500

Blower Included

No

Dimensions L x W x H (in.)

33 x 21.5 x 10.87 in

Reviews

Questions & Answers

Questions

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty
