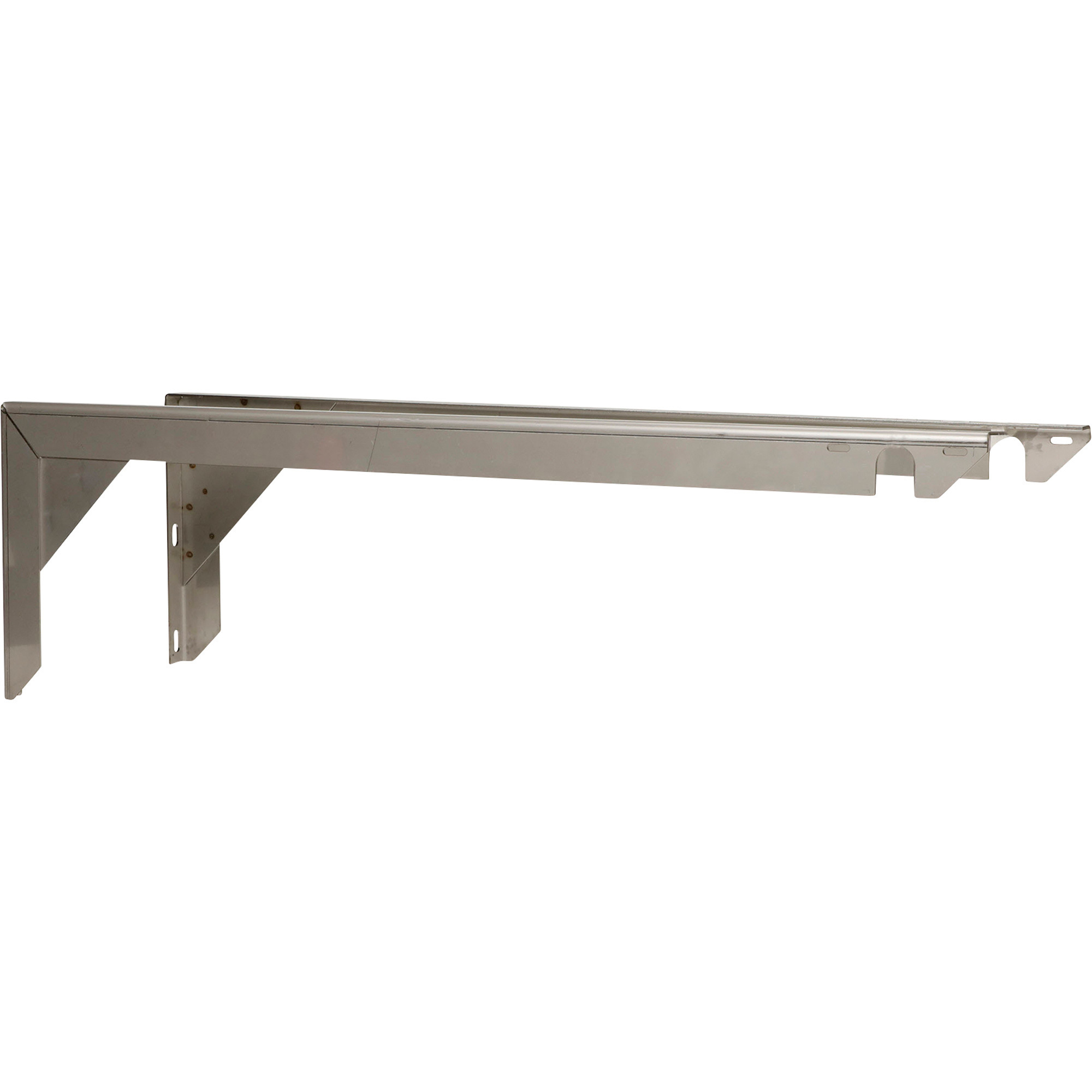

  • TPI Wall Mount Brackets for Heater - Stainless Steel, 45° Horizontal Tilt, Compatible with TH and THSS Series, Model# VMB-41-SS
Price for all two:

$1599.36

Frequently Bought Together

Product Summary

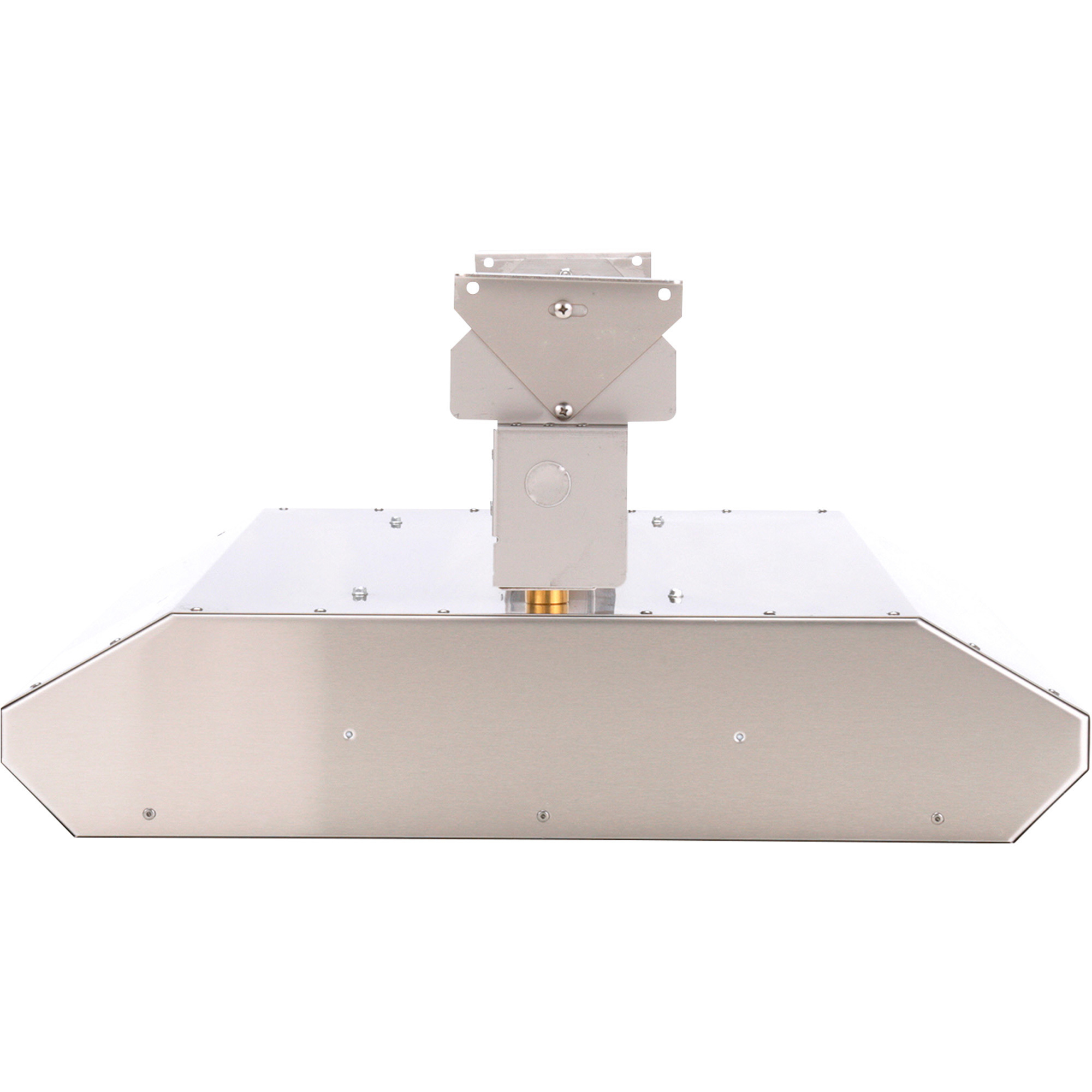

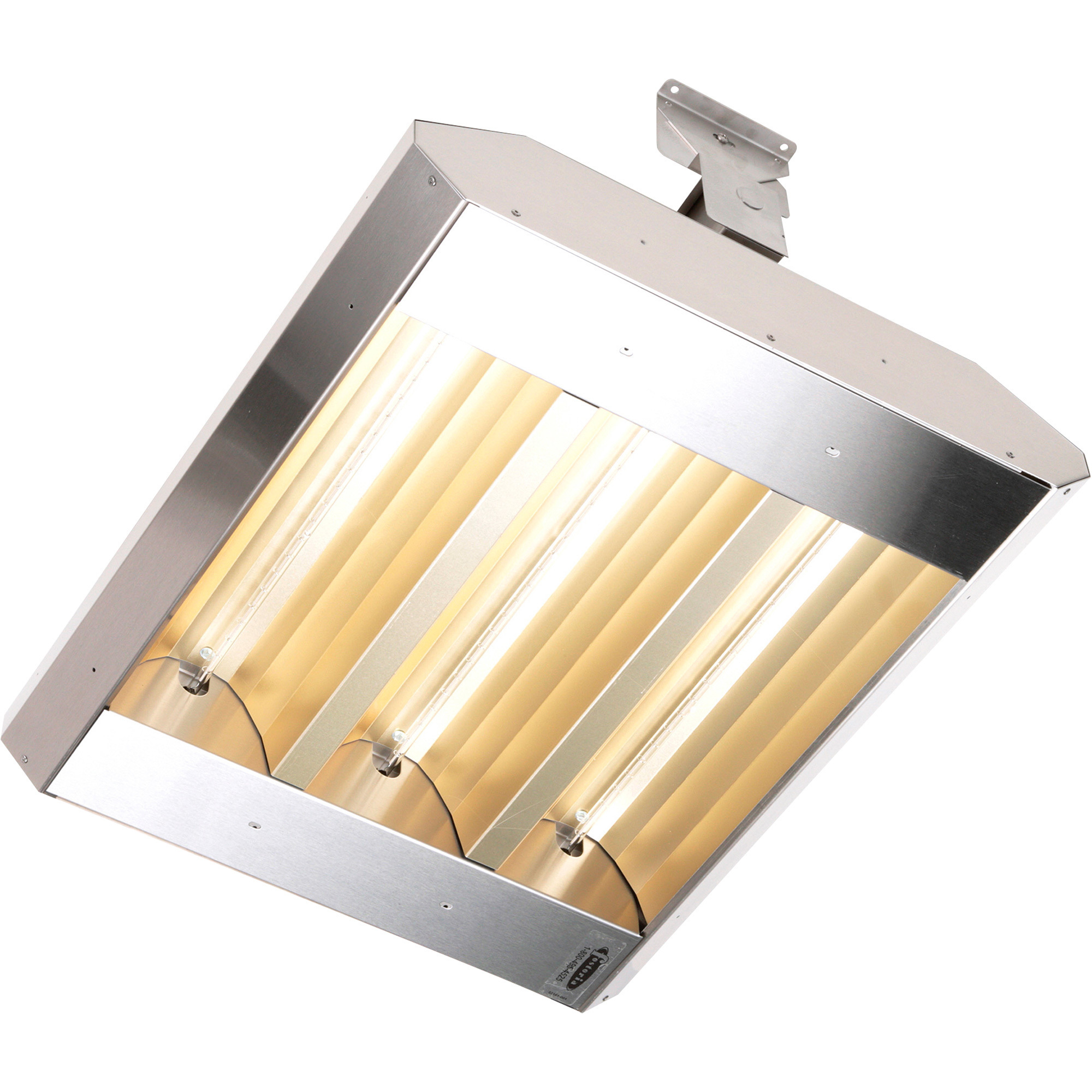

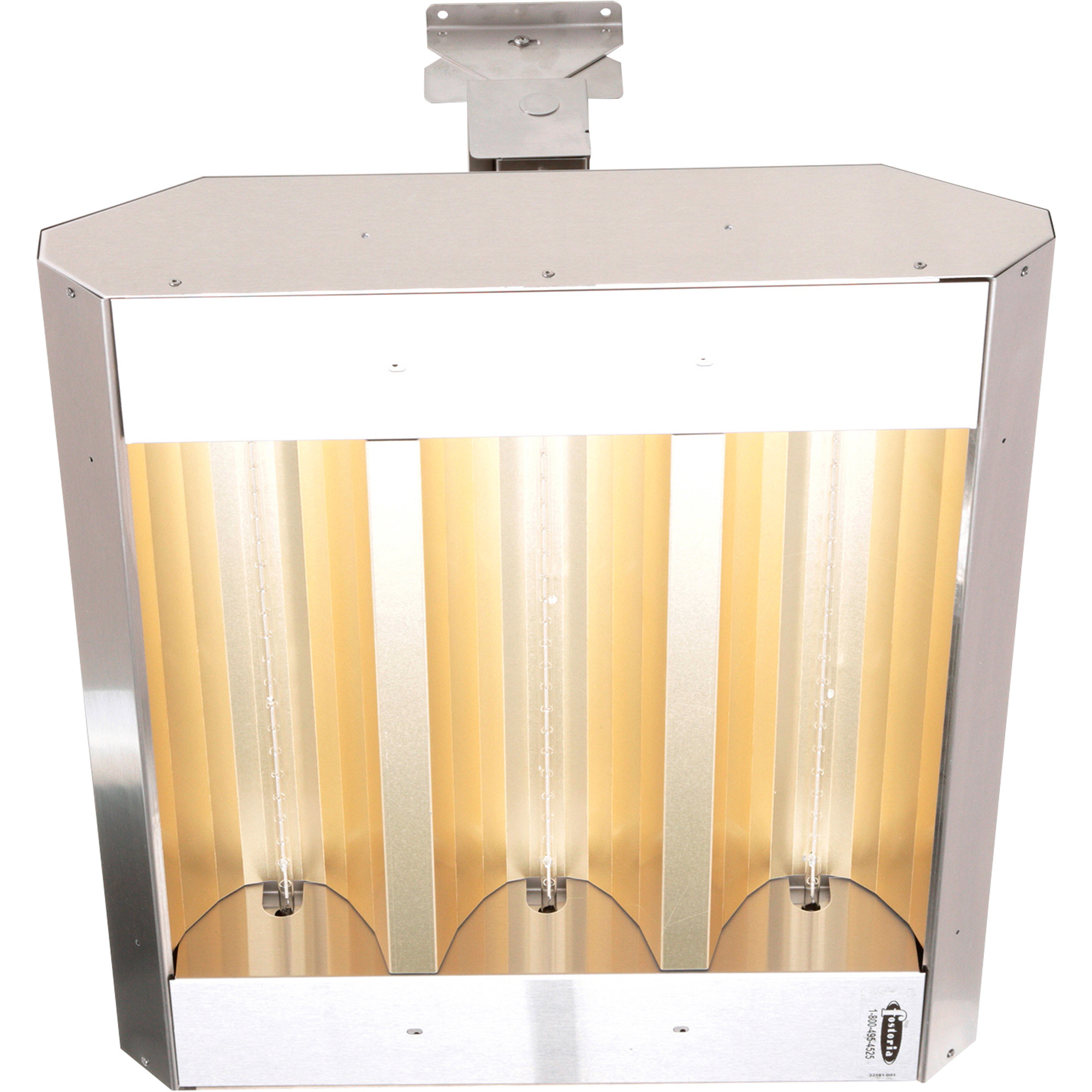

This Fostoria Indoor/Outdoor Quartz Electric Infrared Heater by TPI offers powerful heat for snow and ice control, outdoor spot heating and all indoor heating applications. ETL listed for suspended, totally exposed outdoor heating and high-bay indoor comfort heating, exterior snow and ice control, as well as recessed applications. 96% radiant delivered efficiency with high moisture and thermal shock resistance. Broadcasts a 60° pattern with instantaneous heat-up and cool-down performance. Built-in surface mounting with 45° horizontal tilt.

What's Included

    (1) Heater

Features + Benefits

  • 4.8kW; 16,382 BTU; 240V; 3 or single phase

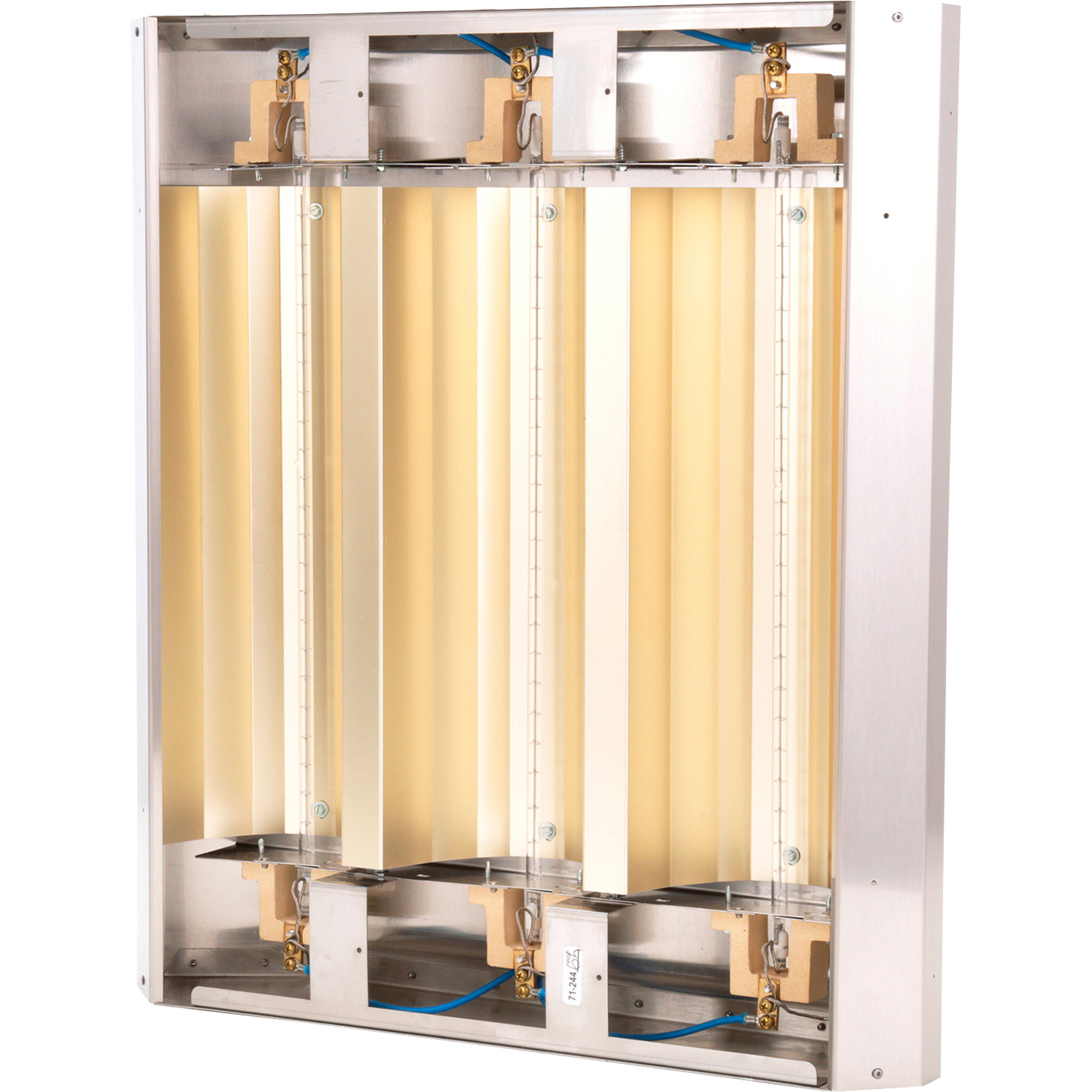

  • 3 clear quartz lamps
  • 20-gauge galvanized steel
  • Stainless steel non-corrosive housing hardware and brackets
  • Made without ferrous metals
  • Durable in harsh atmospheres and outdoor environments
  • Gold anodized aluminum reflectors and endcaps for superior reflectivity
  • Coiled tungsten filament located within a sealed halogen-filled quartz envelope
  • 6in.H temperature pigtail lead wires
  • Requires hardwired connection, 3in. mounting clearance from ceiling and 24in. from vertical surface, 96in. mounting clearance from face of heater to combustible surface
  • 12ft.–18ft. recommended indoor mounting height
  • 23-1/2in. mounting center
  • ETL C/US listed

Key Specs

AttributeSpecification

item#

255395

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.0 LB

Heat Type

Infrared

Heat Output

16,382 Btu/hour

Hardwired

Yes
AttributeSpecification

Indoor-Outdoor Use

Indoor and Outdoor

Volts

240

Watts

4,800

Remote Included

No

Blower Included

No

Dimensions L x W x H (in.)

24 x 21.5 x 10 in

Warranty

Manufacturer's Warranty

1 year limited warranty
