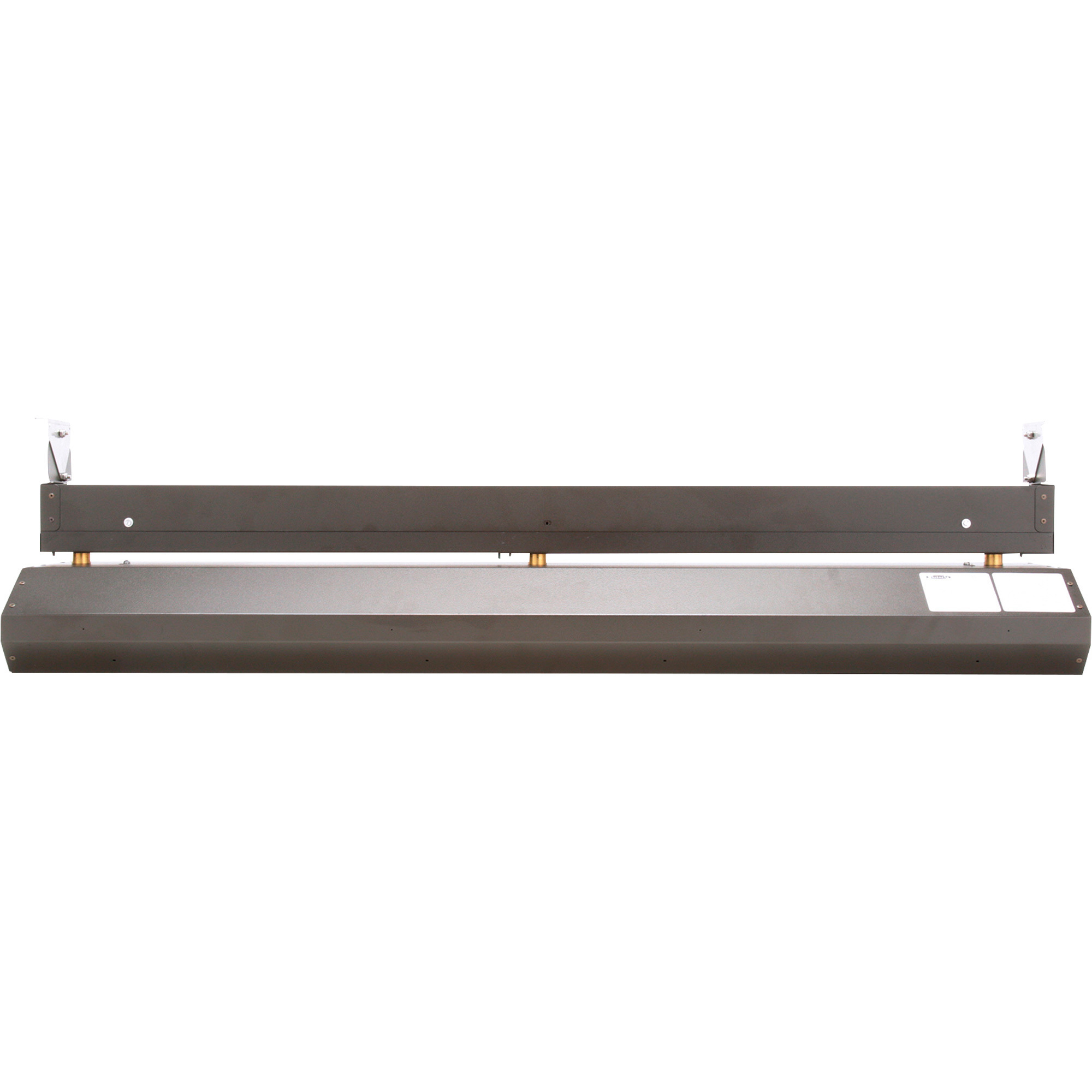

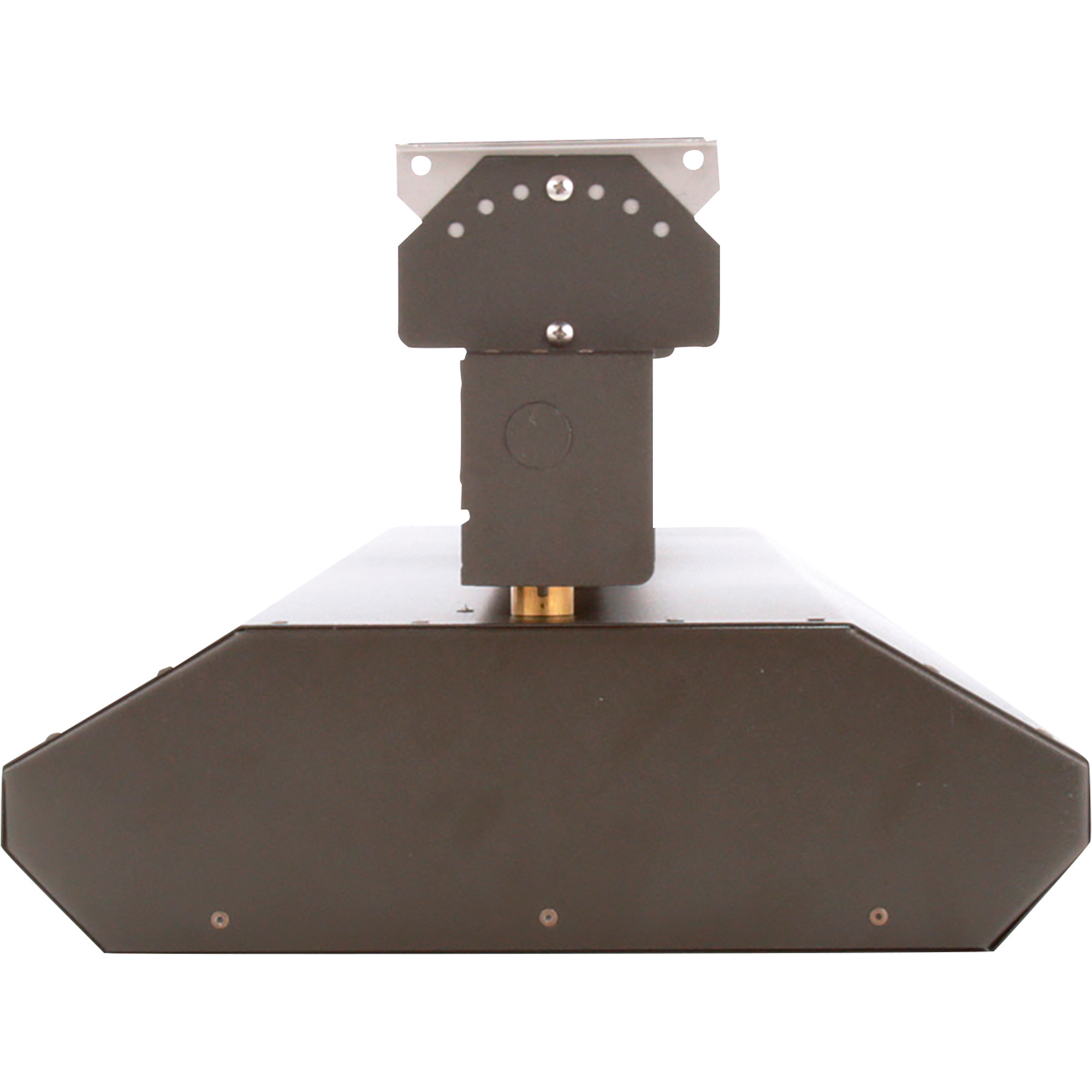

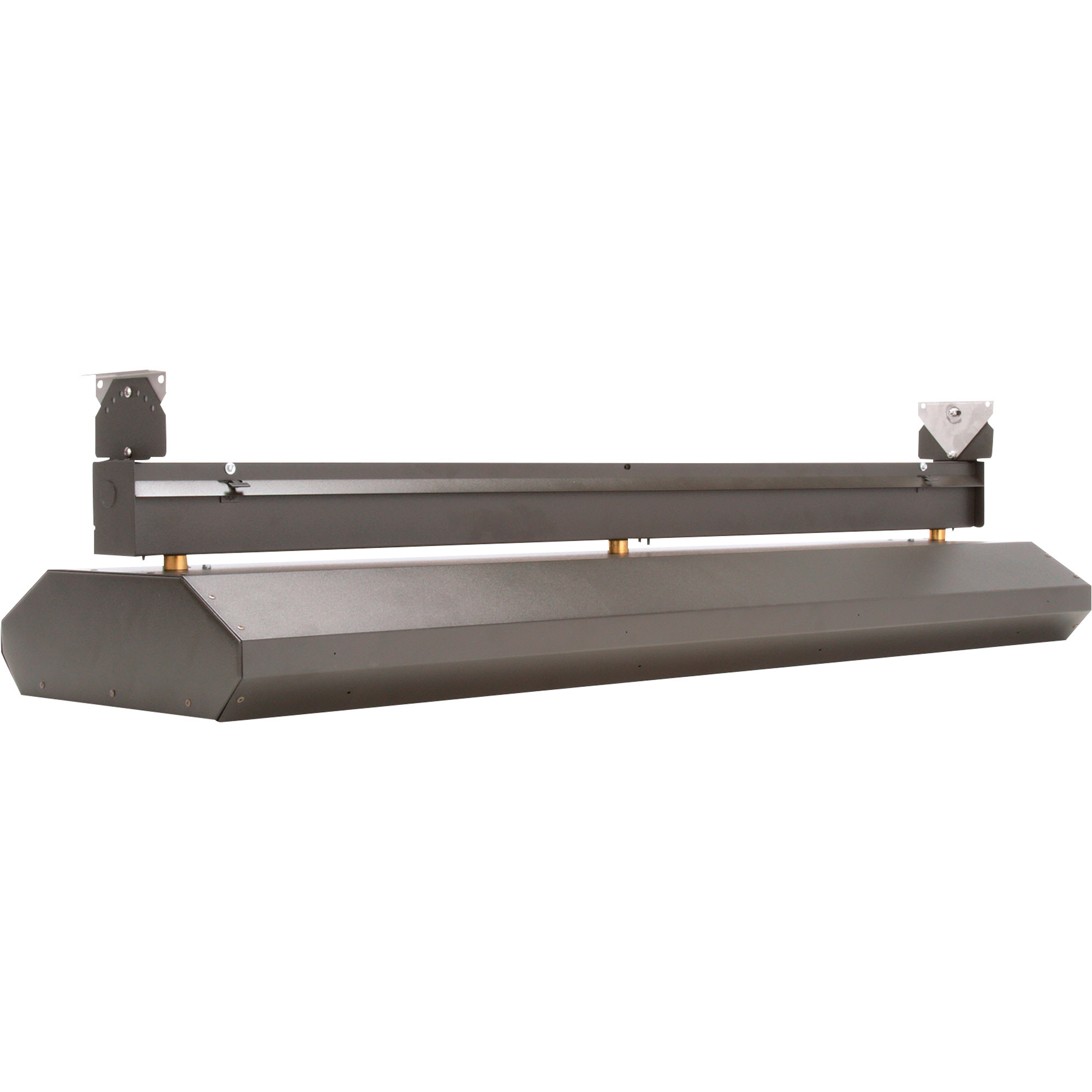

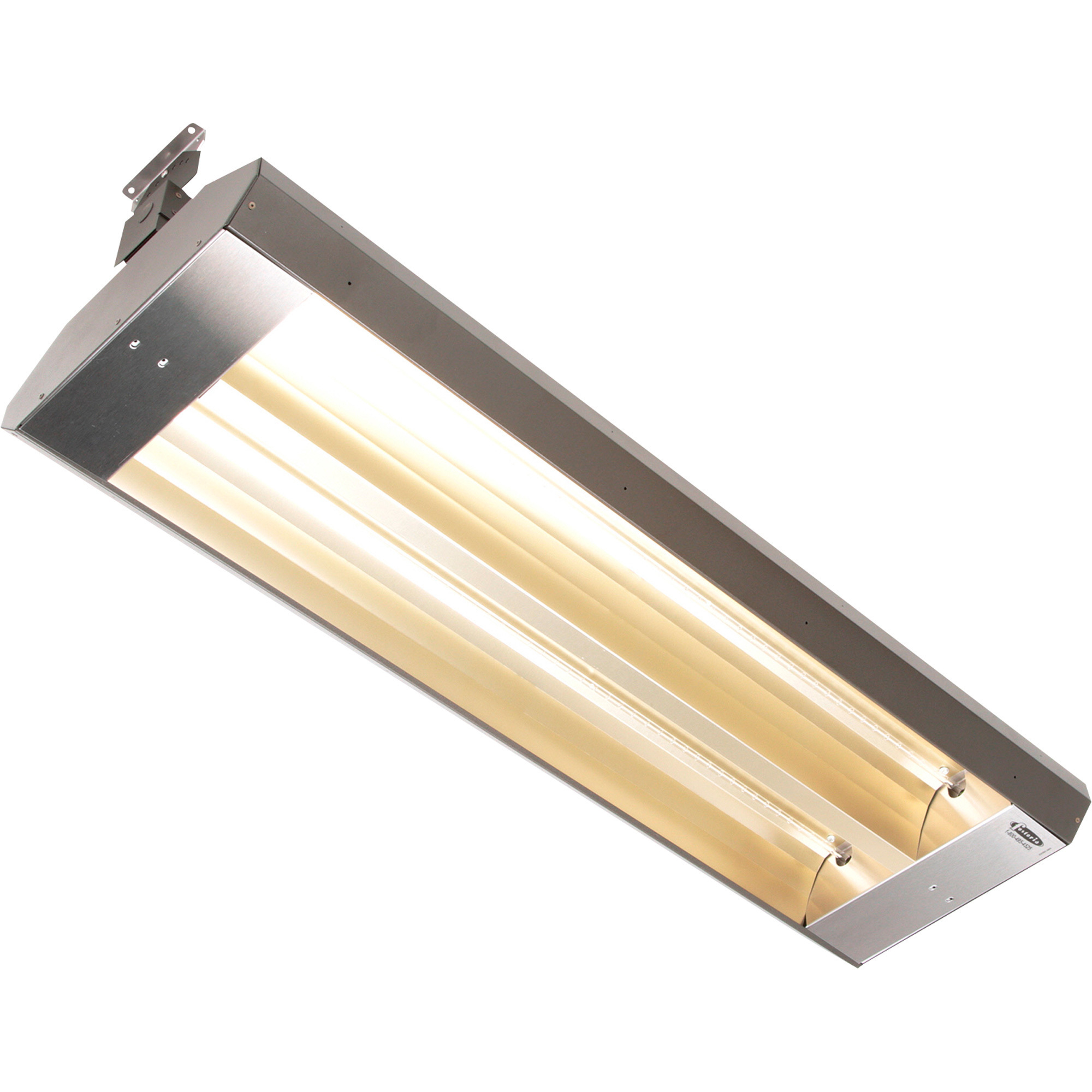

Fostoria Quartz Infrared Heater, 24,915 BTU, Model# 462-60-TH-480V

Item# 255408
Fostoria Quartz Infrared Heater, 24,915 BTU, Model# 462-60-TH-480V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fostoria Quartz Infrared Heater, 24,915 BTU, Model# 462-60-TH-480V

Click or Tap image to Zoom

$1205.12

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 7.3kW; 24,915 BTU; 480V; single phase
  • 2 clear quartz lamps
  • 20-ga. galvanized steel
  • Baked-on brown enamel painted finish
  • 0.40 gold anodized aluminum reflectors and endcaps for superior reflectivity

See full description

Complete Your Solution

  • Fostoria Quartz Infrared Heater, 24,915 BTU, Model# 462-60-TH-480V
  • TPI Wall Mount Brackets for Heater - Stainless Steel, 45° Horizontal Tilt, Compatible with TH and THSS Series, Model# VMB-41-SS
Price for all two:

$1451.52

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Fostoria TH Series Mul-T-Mount Indoor/Outdoor Quartz Infrared Heater by TPI offers powerful heat for snow and ice control, outdoor spot heating and all indoor heating applications. ETL listed for suspended, totally exposed (outdoor) and high-bay (indoor) comfort heating, exterior snow and ice control and recessed applications. 96% radiant delivered efficiency with high moisture and thermal shock resistance. Broadcasts a 60° pattern with an instantaneous heat-up and cool-down performance. Built-in surface mounting brackets for fixture adjustment up to 45° horizontal tilt.

What's Included

    (1) Heater

Features + Benefits

  • 7.3kW; 24,915 BTU; 480V; single phase
  • 2 clear quartz lamps
  • 20-ga. galvanized steel
  • Baked-on brown enamel painted finish
  • 0.40 gold anodized aluminum reflectors and endcaps for superior reflectivity
  • Coiled tungsten filament located within a sealed halogen-filled quartz envelope
  • 6in.H temperature pigtail lead wires
  • Requires hardwired connection
  • Requires 3in. mounting clearance from ceiling and 24in. mounting clearance from vertical surface
  • Requires 72in. mounting clearance from face of heater to any combustible surface
  • 12ft.–18ft. recommended indoor mounting height
  • ETL C/US listed
  • 45-1/2 mounting center

Key Specs

AttributeSpecification

item#

255408

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

38.4 LB

Heat Type

Radiant

Heat Output

24,915 Btu/hour
AttributeSpecification

Hardwired

Yes

Indoor-Outdoor Use

Indoor and Outdoor

Volts

480

Watts

7,300

Blower Included

No

Dimensions L x W x H (in.)

46 x 15 x 10.87 in

Reviews

Questions & Answers

Questions

  1. What are the mounting options

    This will be in an outdoor smoking area. I would like to mount these on an arm and attach them to wood columns.

    1 answer

    1. This unit is designed to be mounted over head by using the built-in surface mounting brackets attached to the top wiring channel. The unit can be tilted between 0 and 45 degrees at 15 degree intervals. The recommended mounting height for this unit is 8' to 12'.
