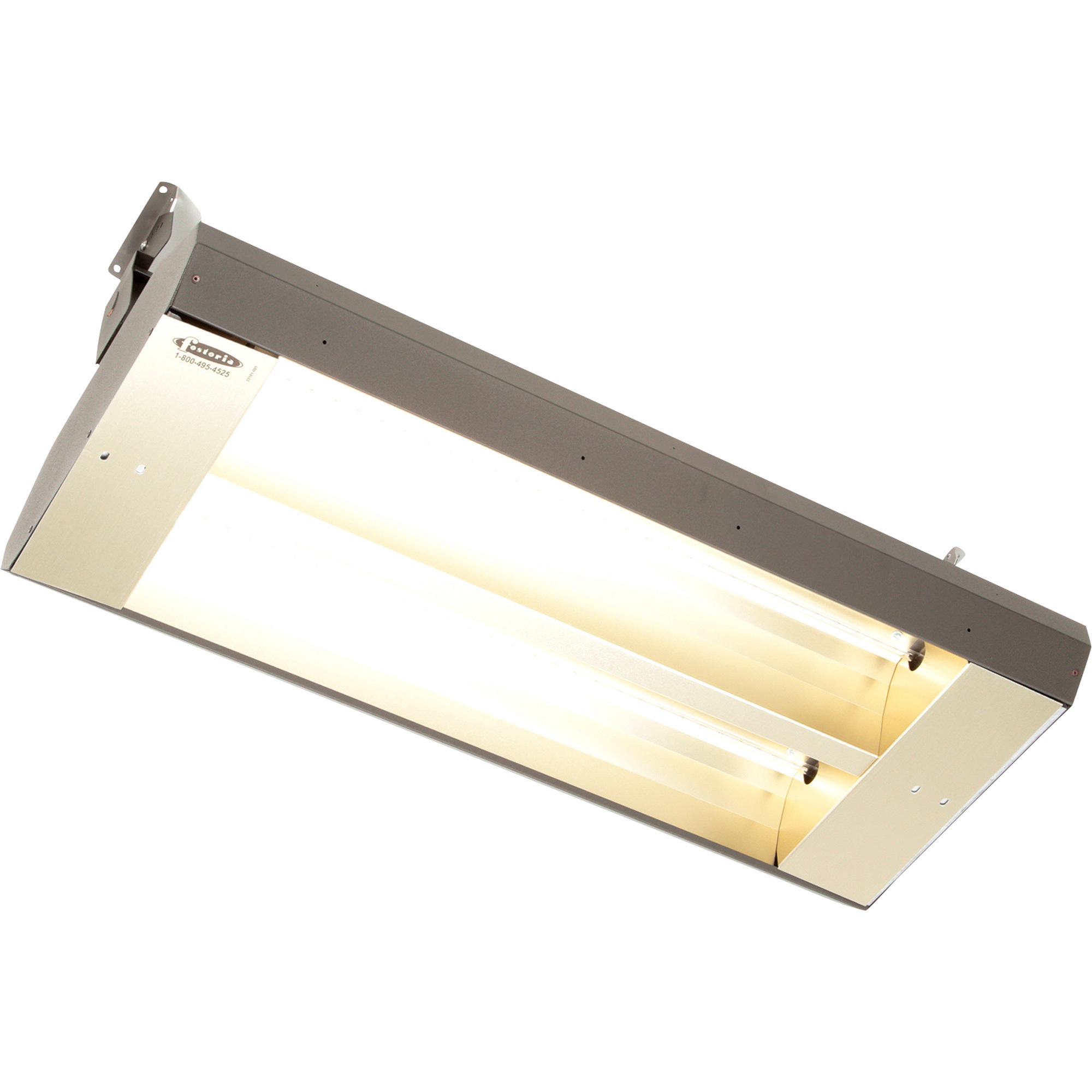

Fostoria Quartz Infrared Heater, 17,065 BTU, Model# 342-60-TH-240V

Item# 255399
Fostoria Quartz Infrared Heater, 17,065 BTU, Model# 342-60-TH-240V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fostoria Quartz Infrared Heater, 17,065 BTU, Model# 342-60-TH-240V

Click or Tap image to Zoom

$1006.72

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 17,065 BTU; 240V; single phase
  • 2 clear quartz lamps
  • 20-ga. galvanized steel with baked-on brown enamel painted finish
  • 0.40 gold anodized aluminum reflectors and endcaps for superior reflectivity
  • Coiled tungsten filament located within a sealed halogen-filled quartz envelope

See full description

Complete Your Solution

  • Fostoria Quartz Infrared Heater, 17,065 BTU, Model# 342-60-TH-240V
  • TPI Wall Mount Brackets for Heater - Stainless Steel, 45° Horizontal Tilt, Compatible with TH and THSS Series, Model# VMB-41-SS
Price for all two:

$1265.92

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Fostoria Indoor/Outdoor Quartz Infrared Heater by TPI offers powerful heat for snow and ice control, outdoor spot heating and all indoor heating applications. ETL listed for suspended, totally exposed (outdoor) and high-bay (indoor) comfort heating, exterior snow and ice control and recessed applications. 96% radiant delivered efficiency with high moisture and thermal shock resistance. Broadcasts a 60° pattern with instantaneous heat-up and cool-down performance. In-built surface mounting brackets allows for fixture adjustment up to 45° horizontal tilt.

What's Included

    (1) Heater

Features + Benefits

  • 17,065 BTU; 240V; single phase
  • 2 clear quartz lamps
  • 20-ga. galvanized steel with baked-on brown enamel painted finish
  • 0.40 gold anodized aluminum reflectors and endcaps for superior reflectivity
  • Coiled tungsten filament located within a sealed halogen-filled quartz envelope
  • 6in.H temperature pigtail lead wires
  • Requires hardwired connection
  • Requires 3in. mounting clearance from ceiling and 24in. from vertical surface
  • Requires 72in. mounting clearance from face of heater to combustible surface
  • 12ft.–18ft. recommended indoor mounting height
  • ETL C/US listed
  • 32-1/2in. mounting center

Key Specs

AttributeSpecification

item#

255399

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

29.0 LB

Heat Type

Infrared

Heat Output

17,065 Btu/hour

Hardwired

Yes
AttributeSpecification

Indoor-Outdoor Use

Indoor and Outdoor

Volts

240

Watts

5,000

Remote Included

No

Blower Included

No

Dimensions L x W x H (in.)

33 x 15 x 10.87 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Does this quartz heater require a thermostat?

    If this item requires a thermostat and does not come with one in the box, can you recommend a thermostat that is compatible?

    1 answer

    1. This TPI TH series quartz infrared heater does not require a thermostat for operation. Two-stage operation allows one or both lamps in the heater(s) to be energized, depending on the signal from
      an appropriate two-stage control device (e.g. two-stage thermostat). This will allow the heater(s) to operate at 50% on, 100% on, or 100% off; instead of limiting the operation to 100% on or 100% off. We do not offer the 2 stage thermostat in our inventory but this can be purchased locally.

      Helpful?

  2. Is this unit single phase voltage?

    This unit Model# 342-90-TH-240V, Quartz Infrared Heater - 17,065 BTU, 240 Volts. Is it single phase voltage?

    1 answer

    1. This heater uses single phase.

      Helpful?
