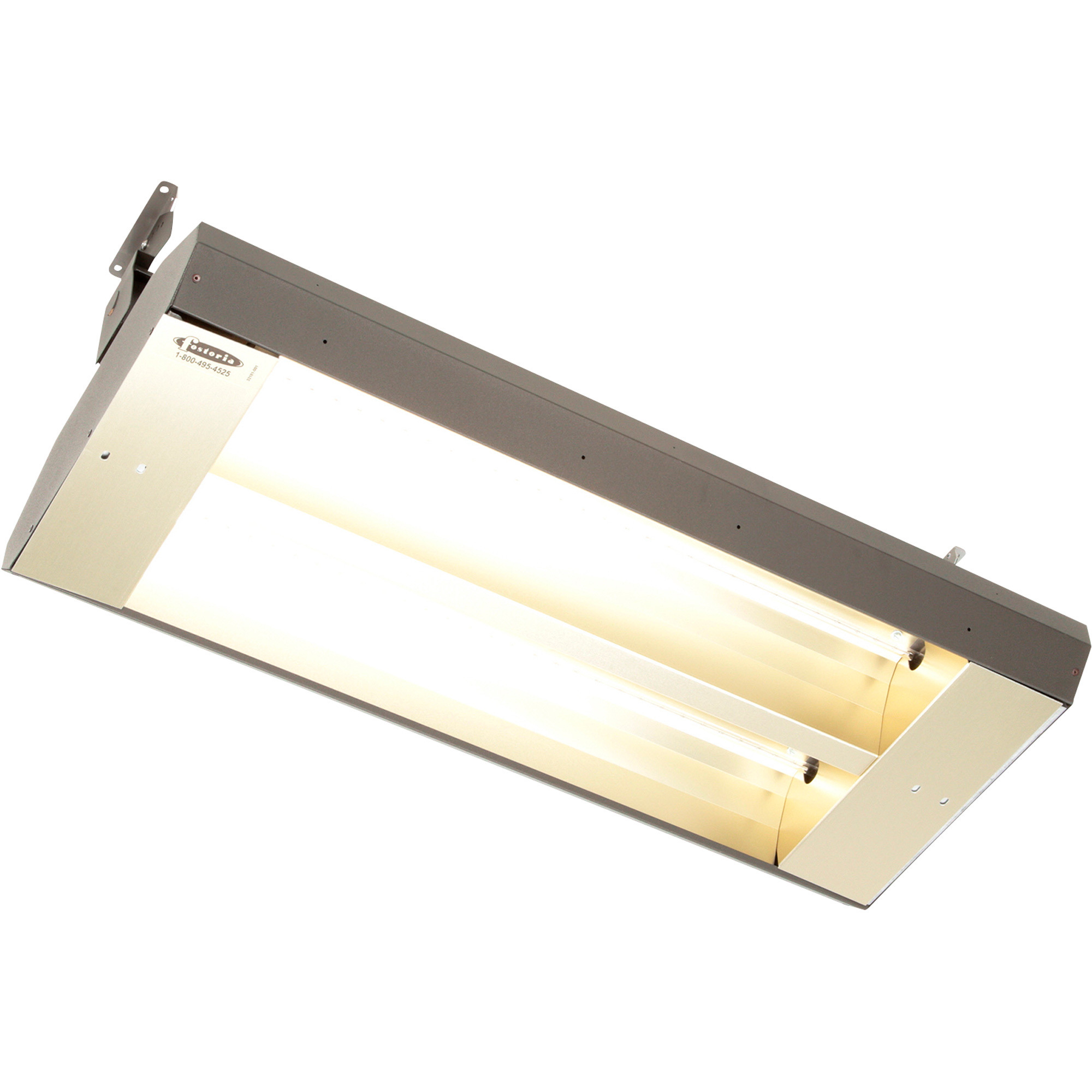

Fostoria Infrared Quartz Heater, 17,065 BTU, Model# 342-60-TH-208V

Item# 255398
Fostoria Infrared Quartz Heater, 17,065 BTU, Model# 342-60-TH-208V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fostoria Infrared Quartz Heater, 17,065 BTU, Model# 342-60-TH-208V

Click or Tap image to Zoom

$958.72

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 5kW; 17,065 BTU; 208V; single phase
  • 2 clear quartz lamps
  • 20-ga. galvanized steel
  • Stainless steel non-corrosive housing hardware and brackets
  • Made without ferrous metals

See full description

Complete Your Solution

  • Fostoria Infrared Quartz Heater, 17,065 BTU, Model# 342-60-TH-208V
  • TPI Wall Mount Brackets for Heater - Stainless Steel, 45° Horizontal Tilt, Compatible with TH and THSS Series, Model# VMB-41-SS
Price for all two:

$1205.12

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Fostoria TH Series Mul-T-Mount Indoor/Outdoor Quartz Infrared Heater by TPI offers powerful heat for snow and ice control, outdoor spot heating and all indoor heating applications. ETL listed for suspended, totally exposed outdoor heating and high-bay indoor comfort heating, exterior snow and ice control, as well as recessed applications. 96% radiant delivered efficiency with high moisture and thermal shock resistance. Broadcasts a 60° pattern with instantaneous heat-up and cool-down performance. Built-in surface mounting with 45° horizontal tilt.

What's Included

    (1) Heater

Features + Benefits

  • 5kW; 17,065 BTU; 208V; single phase
  • 2 clear quartz lamps
  • 20-ga. galvanized steel
  • Stainless steel non-corrosive housing hardware and brackets
  • Made without ferrous metals
  • Baked-on brown enamel painted finish
  • 0.40 gold anodized aluminum reflectors and endcaps for superior reflectivity
  • Coiled tungsten filament located within a sealed halogen-filled quartz envelope
  • 6in.H temperature pigtail lead wires
  • Requires hardwired connection
  • Requires 3in. mounting clearance from ceiling and 24in. from vertical surface
  • 72in. mounting clearance from face of heater to combustible surface
  • 12ft.–18ft. recommended indoor mounting height
  • ETL C/US listed
  • 32-1/2in. mounting center

Key Specs

AttributeSpecification

item#

255398

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.0 LB

Heat Type

Infrared

Heat Output

17,065 Btu/hour

Hardwired

Yes
AttributeSpecification

Indoor-Outdoor Use

Indoor and Outdoor

Volts

208

Watts

5,000

Remote Included

No

Blower Included

No

Dimensions L x W x H (in.)

33 x 15 x 10.87 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Is this Heater better mounted on the wall or ceiling for effectivity?

    1 answer

    1. The heater is recommended for ceiling mount.

      Helpful?

  2. If hung on the ceiling, what is the minimum ceiling height for fire safety?

    Is it safe to hang in in the screened porch with 8' ceilings?
    This is for this heater: http://www.northerntool.com/shop/tools/product_200446412_200446412

    1 answer

    1. The heater cannot be more than 24 inches from the floor, closer than 3 inches to the ceiling and combustibles must be at least 72 inches from the face of the heater.

      Helpful?

  3. Are mounting brackets included? If not are they available

    What type of thermostat is used to control this unit?

    1 answer

    1. There are mounting brackets included. The thermostat on this unit is a manual type. You would make the adjustment on the unit itself.

      Helpful?
