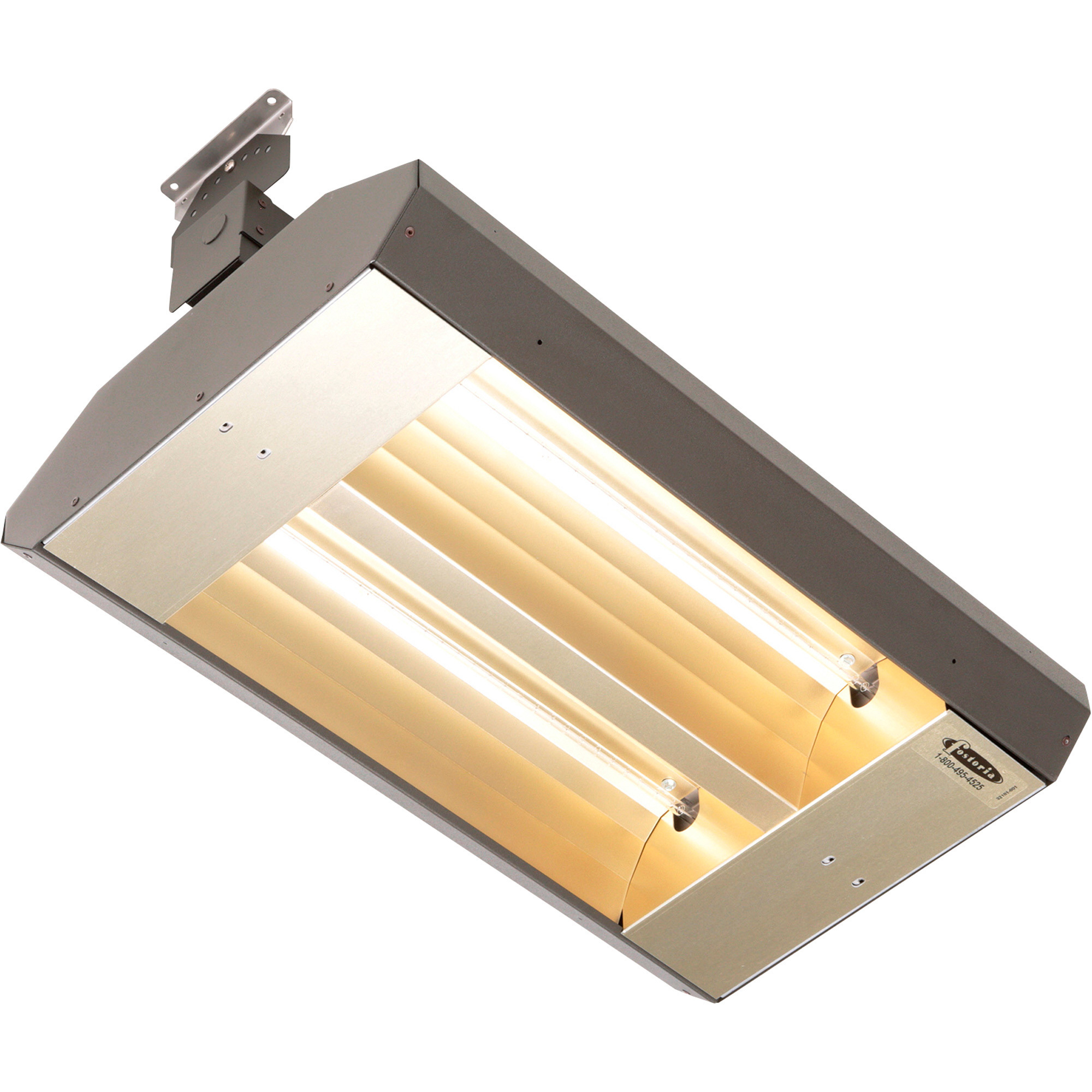

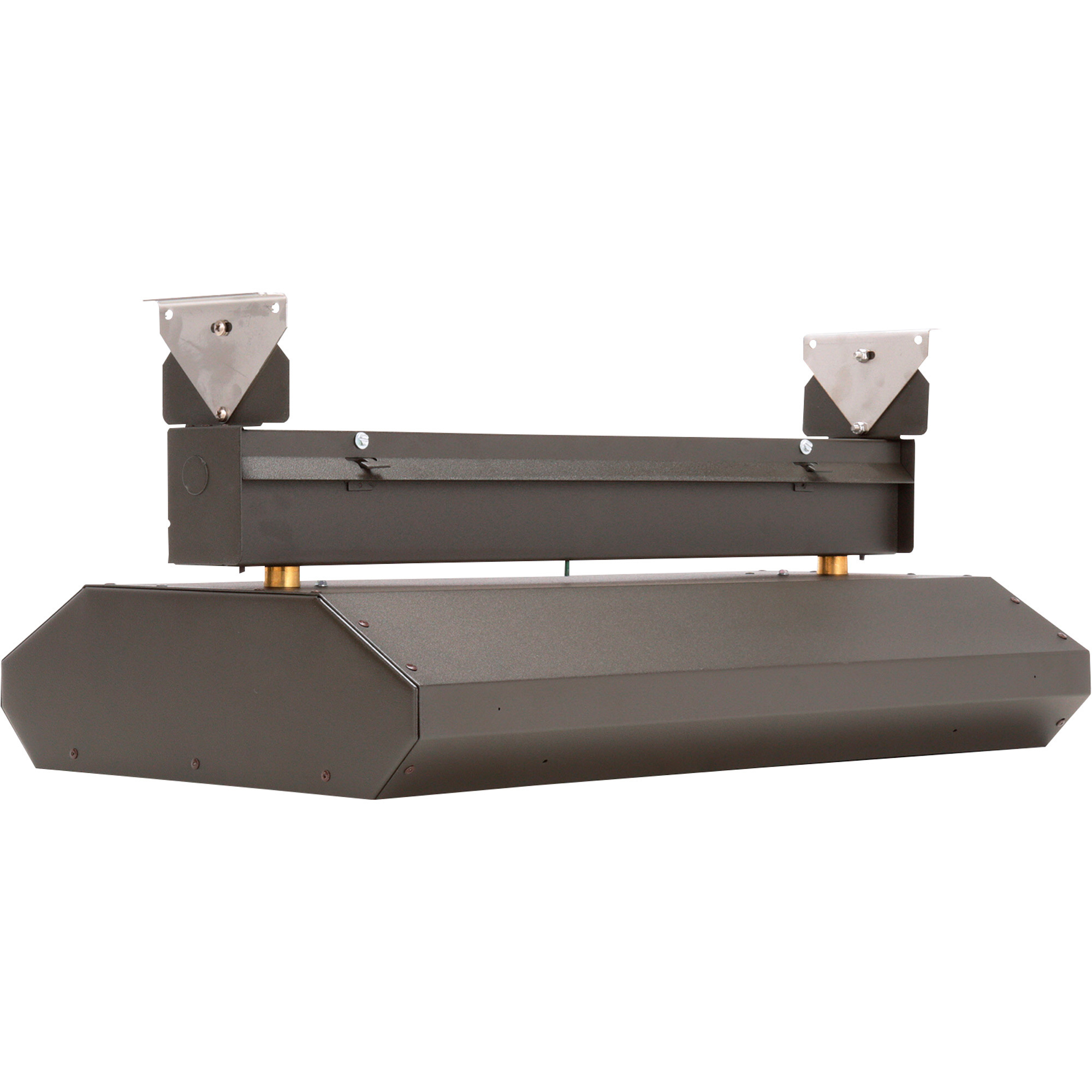

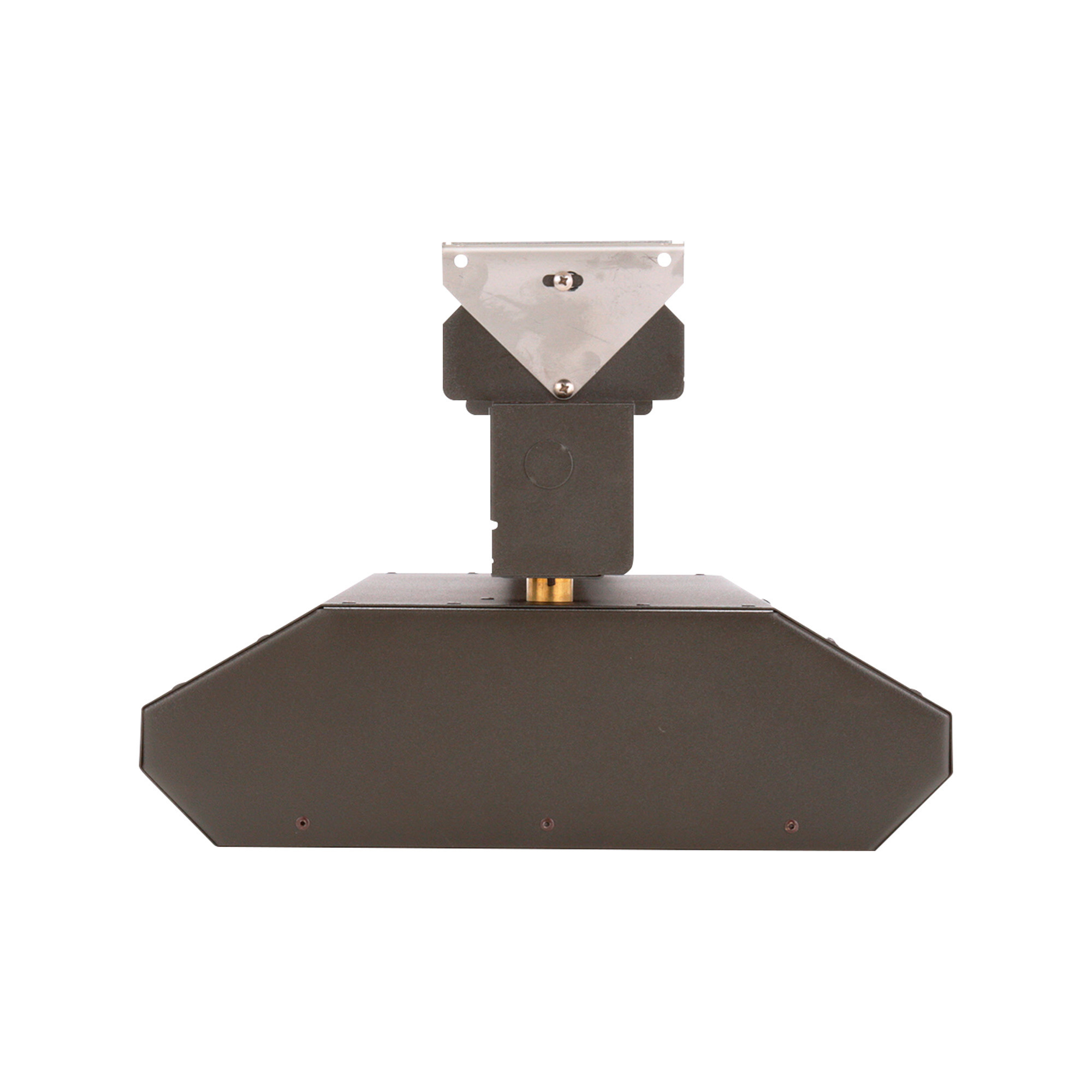

Fostoria Quartz Infrared Heater, 10,922 BTU, Model# 222-60-TH-480V

Item# 255406
Fostoria Quartz Infrared Heater, 10,922 BTU, Model# 222-60-TH-480V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fostoria Quartz Infrared Heater, 10,922 BTU, Model# 222-60-TH-480V

Click or Tap image to Zoom

$727.68

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3.2kW; 10,922 BTU; 480V; single phase
  • 2 clear quartz lamps
  • 20-ga. galvanized steel
  • Baked-on brown enamel painted finish
  • 0.40 gold anodized aluminum reflectors and endcaps for superior reflectivity

See full description

Complete Your Solution

  • Fostoria Quartz Infrared Heater, 10,922 BTU, Model# 222-60-TH-480V
  • TPI Wall Mount Brackets for Heater - Stainless Steel, 45° Horizontal Tilt, Compatible with TH and THSS Series, Model# VMB-41-SS
Price for all two:

$986.88

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Fostoria TH Series Mul-T-Mount Indoor/Outdoor Quartz Infrared Heater by TPI offers powerful heat for snow and ice control, outdoor spot heating and all indoor heating applications. ETL listed for suspended, totally exposed (outdoor) and high-bay (indoor) comfort heating, exterior snow and ice control and recessed applications. 96% radiant delivered efficiency with high moisture and thermal shock resistance. Broadcasts a 60° pattern with an instantaneous heat-up and cooldown performance. Built-in surface mounting brackets allows for fixture adjustment up to 45° horizontal tilt.

What's Included

    (1) Heater

Features + Benefits

  • 3.2kW; 10,922 BTU; 480V; single phase
  • 2 clear quartz lamps
  • 20-ga. galvanized steel
  • Baked-on brown enamel painted finish
  • 0.40 gold anodized aluminum reflectors and endcaps for superior reflectivity
  • Coiled tungsten filament located within a sealed halogen-filled quartz envelope
  • 6in.H temperature pigtail lead wires
  • Requires hardwired connection
  • Requires 3in. mounting clearance from ceiling and 24in. mounting clearance from vertical surface
  • Requires 72in. mounting clearance from the face of heater to any combustible surface
  • 12ft.–18ft. recommended indoor mounting height
  • ETL C/US listed
  • 23-1/2in. mounting center

Key Specs

AttributeSpecification

item#

255406

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

20.0 LB

Heat Type

Infrared

Heat Output

10,922 Btu/hour

Hardwired

Yes
AttributeSpecification

Indoor-Outdoor Use

Indoor and Outdoor

Volts

480

Watts

3,200

Remote Included

No

Blower Included

No

Dimensions L x W x H (in.)

24 x 15 x 10.87 in
