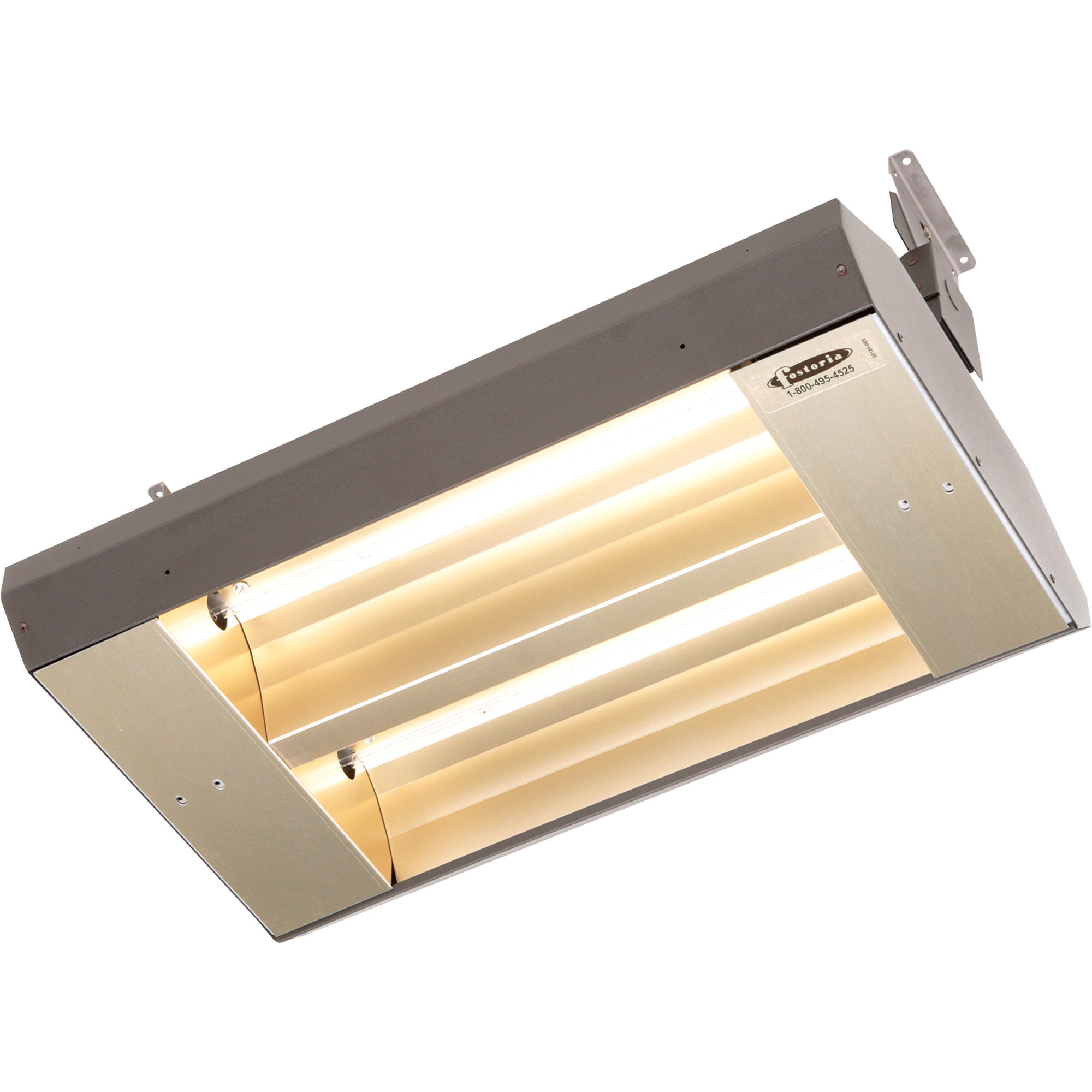

Fostoria Quartz Infrared Heater, 240V, 10,822 BTU, Model# 222-60-TH-240V

Item# 255396
"Fostoria Quartz Infrared Heater, 240V, 10,822 BTU, Model# 222-60-TH-240V"
Fostoria Quartz Infrared Heater, 240V, 10,822 BTU, Model# 222-60-TH-240V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fostoria Quartz Infrared Heater, 240V, 10,822 BTU, Model# 222-60-TH-240V

Click or Tap image to Zoom

$727.68

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3.2kW, 10,922 BTU, 240V, 3 or single phase
  • 3 clear quartz lamps
  • 20-gauge galvanized steel
  • Stainless steel non-corrosive housing hardware and brackets
  • Made without ferrous metals

See full description

Complete Your Solution

  • Fostoria Quartz Infrared Heater, 240V, 10,822 BTU, Model# 222-60-TH-240V
  • TPI Wall Mount Brackets for Heater - Stainless Steel, 45° Horizontal Tilt, Compatible with TH and THSS Series, Model# VMB-41-SS
Price for all two:

$974.08

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Fostoria Indoor/Outdoor Quartz Electric Infrared Heater by TPI offers powerful heat for snow and ice control, outdoor spot heating and all indoor heating applications. ETL listed for suspended, totally exposed outdoor heating and high-bay indoor comfort heating, exterior snow and ice control, as well as recessed applications. 96% radiant delivered efficiency with high-moisture and thermal shock resistance. Broadcasts a 60° pattern with instantaneous heat-up and cool-down performance. Built-in surface mounting with 45° horizontal tilt.

What's Included

    (1) Heater

Features + Benefits

  • 3.2kW, 10,922 BTU, 240V, 3 or single phase
  • 3 clear quartz lamps
  • 20-gauge galvanized steel
  • Stainless steel non-corrosive housing hardware and brackets
  • Made without ferrous metals
  • Durable in harsh atmospheres and outdoor environments
  • Gold anodized aluminum reflectors and end caps for superior reflectivity
  • Coiled tungsten filament located within a sealed halogen filled quartz envelope
  • 6in.H temperature pigtail lead wires
  • Requires hardwired connection, 3in. mounting clearance from ceiling and 24in. from vertical surface, 72in. mounting clearance from face of heater to combustible surface
  • 12ft.–18ft. recommended indoor mounting height
  • 23–1/2in. mounting center
  • ETL C/US listed

Key Specs

AttributeSpecification

item#

255396

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

22.8 LB

Heat Type

Infrared

Heat Output

10,922 Btu/hour

Hardwired

Yes
AttributeSpecification

Indoor-Outdoor Use

Indoor and Outdoor

Volts

240

Watts

3,200

Remote Included

No

Blower Included

No

Dimensions L x W x H (in.)

24 x 15 x 10.87 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. What mounting hardware comes with unit?

    1 answer

    1. This Quartz Heater has a ceiling mounting bracket that can be adjusted from 0 to a 45 degree angle.

      Helpful?

  2. What size breaker is required for this unit?

    1 answer

    1. This unit requires a minimum 20 amp breaker.

      Helpful?

  3. Single or three phase?

    Most of the products of this type list the voltage but don't list the phase, single or three phase. Am I missing something. In my industry we often show power listed as 240/60/1 for 240V, 60Hz, single phase. Simple as that.

    1 answer

    1. The TPI Indoor/Outdoor Quartz Infrared Heater is single phase.

      Helpful?
