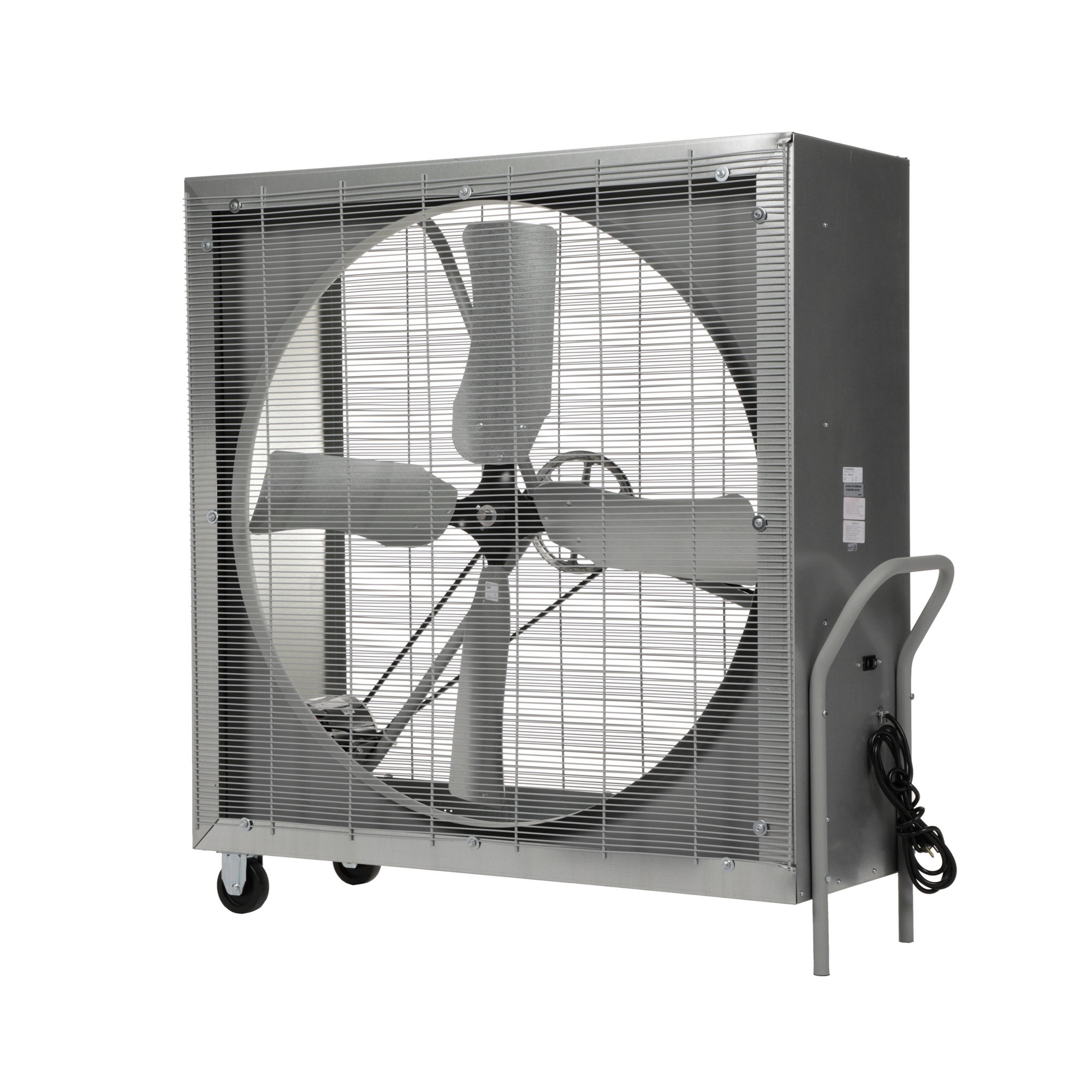

TPI Portable Square Blower - 48in. Fan Diameter, 23,500 CFM, 1 HP, Belt Drive, Model# PCBT48B

Item# 4229451
TPI Portable Square Blower - 48in. Fan Diameter, 23,500 CFM, 1 HP, Belt Drive, Model# PCBT48B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Portable Square Blower - 48in. Fan Diameter, 23,500 CFM, 1 HP, Belt Drive, Model# PCBT48B

Click or Tap image to Zoom

$3015.68

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • High velocity square housing made of 18-gauge galvanized steel

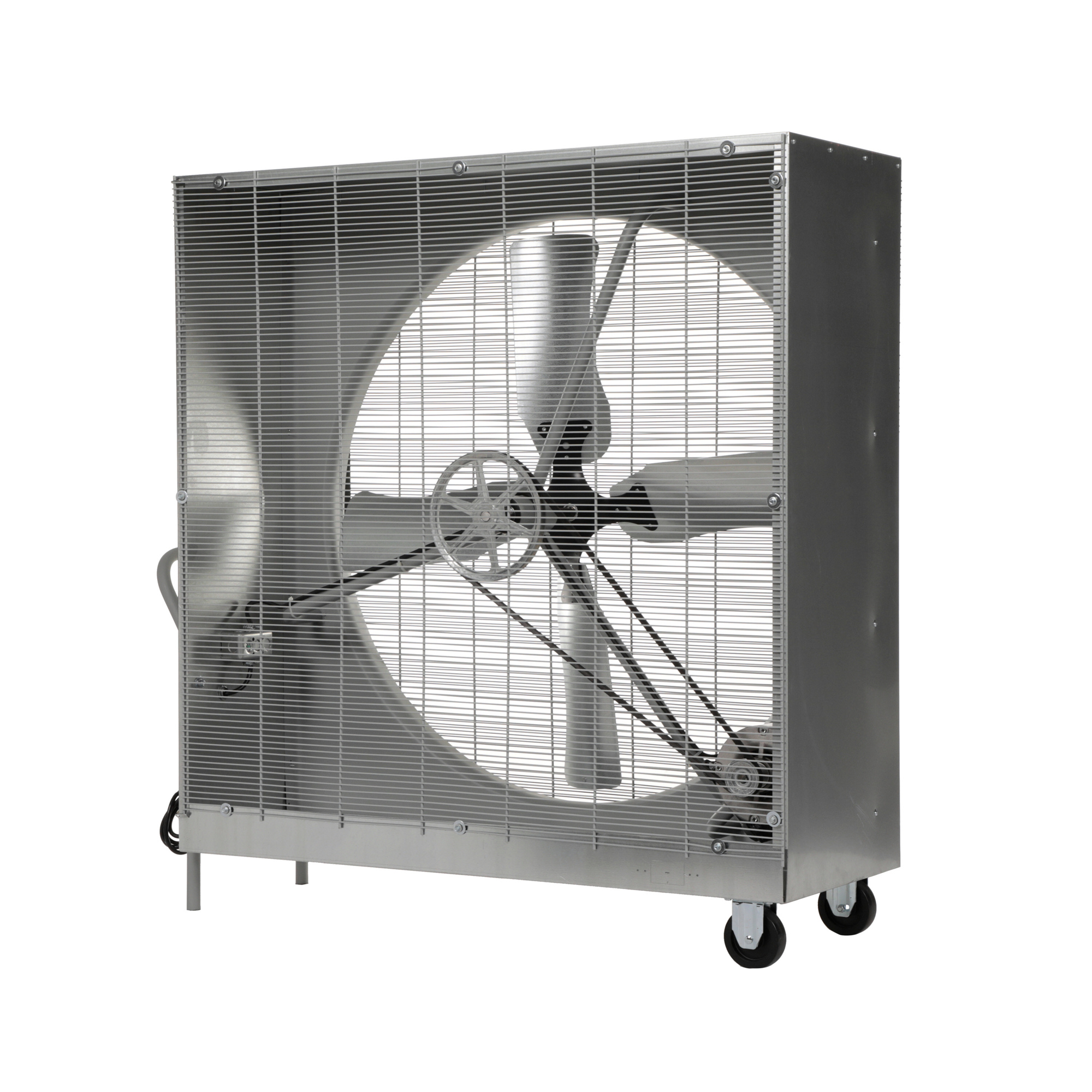

  • Belt drive motor uses a 48" aluminum 4-paddle blade generating 23,500 CFM's
  • On-off rocker switch with single speed control, includes 12' long grounded 3-prong SJT cordset
  • All steel construction includes 20-gauge venturi, front and rear grills - all with a powder coated finish
  • Operates at 120-Volts and single-phase generating 15.0-amps

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

All steel construction - flat top design is liked by contractors

What's Included

    (1) Fan unit, handle and casters; assembled

Features + Benefits

  • High velocity square housing made of 18-gauge galvanized steel
  • Belt drive motor uses a 48" aluminum 4-paddle blade generating 23,500 CFM's
  • On-off rocker switch with single speed control, includes 12' long grounded 3-prong SJT cordset
  • All steel construction includes 20-gauge venturi, front and rear grills - all with a powder coated finish
  • Operates at 120-Volts and single-phase generating 15.0-amps
  • Single speed, 1-HP belt drive motor constructed of ball bearing, open drip proof and permanently lubricated
  • Portable blower includes two 4" casters and pulling handle
  • Grill meets OSHA standards
  • USA Made and includes 1-year warranty

Key Specs

AttributeSpecification

item#

4229451

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

185.0 LB

Fan Diameter

48 in

Air Delivery

23,500 cfm

Volts

120

Watts

1,800

Drive Type

Belt

Speeds (qty.)

1

Max. Fan Speed

725 rpm
AttributeSpecification

Outdoor Rated

No

Phase

Single-phase

Noise Level

79 dB

Hardwired

No

Power Cord Length

12 ft

Primary Color

Silver

Secondary Color

Other

Assembly Required

No

Product Weight

145.0000 lb

Dimensions L x W x H (in.)

18.5 x 40.25 x 62.5 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
