Product Summary

Great value for clean environments such as garages, gyms, and general workstations

What's Included

    (4) Frame, grill, blade, & motor

Features + Benefits

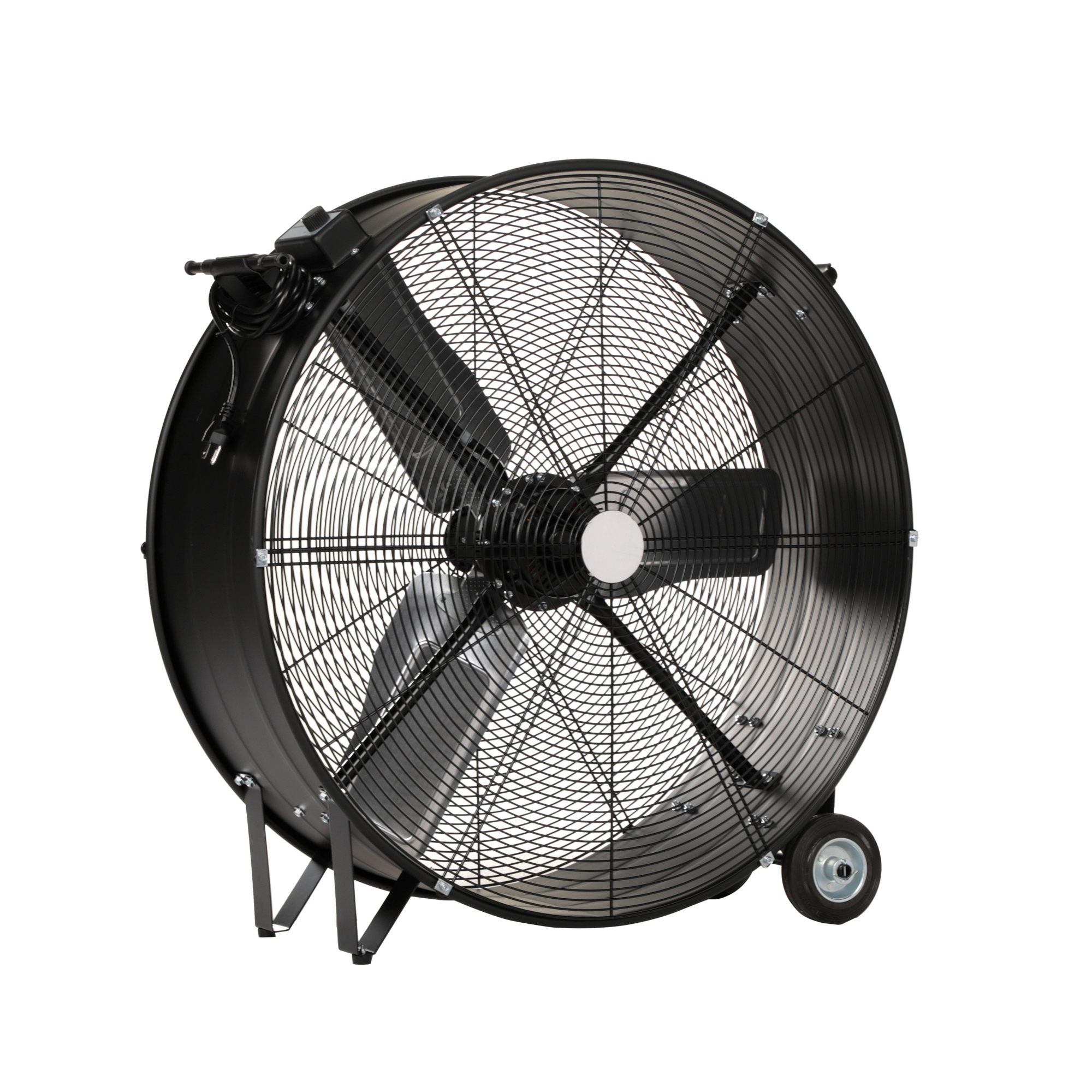

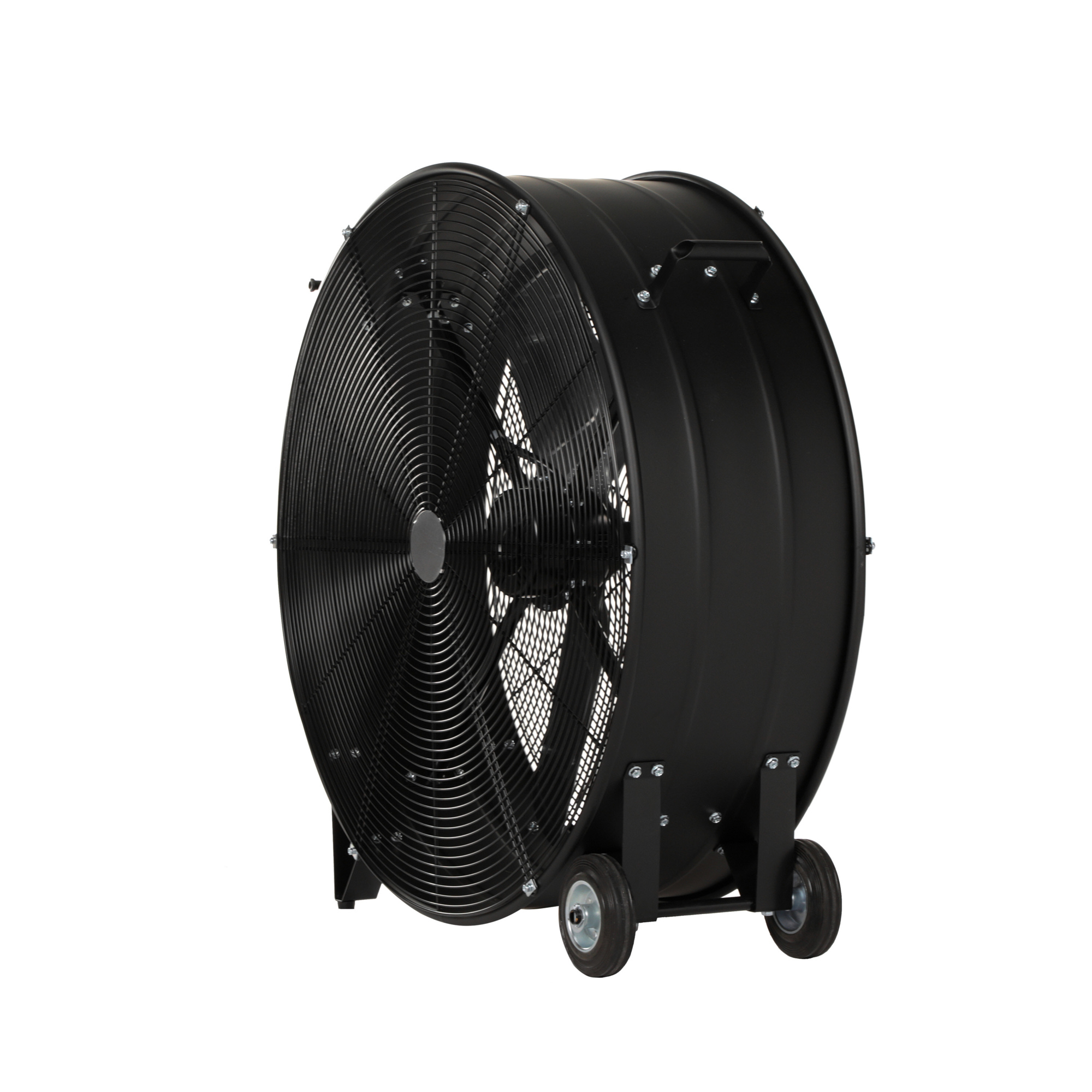

  • Commercial Portable Blower, 30" blade diameter, direct drive with stationary housing
  • Operates at 120-Volts generating up to 4.8-amps on single phase
  • Includes 9' long black SJT 3-conductor grounded molded plug
  • All steel construction with a high gloss powder coated black finish
  • Two speed, 1/5-HP direct drive motor constructed of an open ventilated, ball bearing, and is permanently lubricated

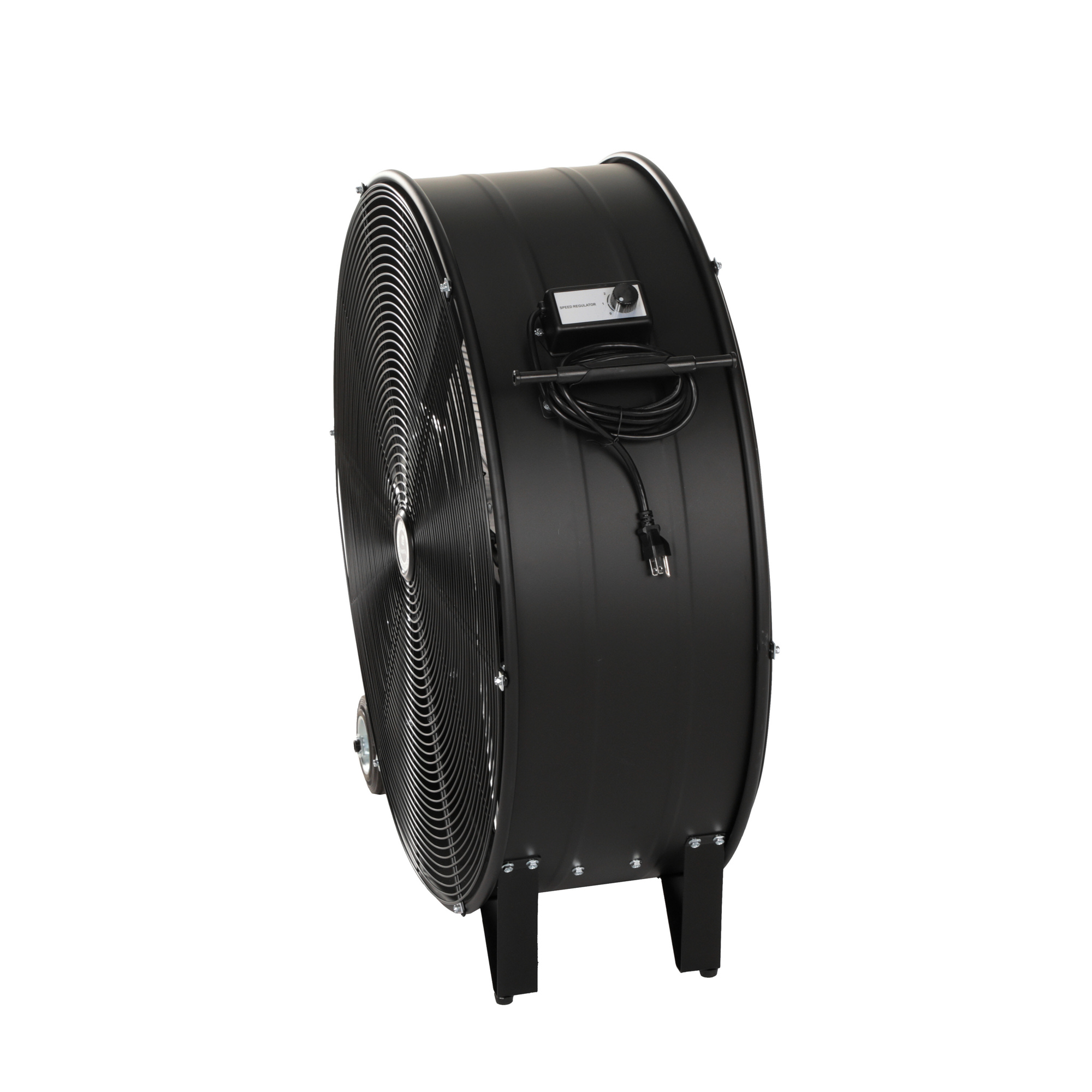

  • Rotary switch to operate the two speeds, fan housing does not pivot
  • Uses a 30" aluminum 3-paddle blade generating 6,700 CFM's
  • OSHA approved steel spiral wire guards are powder coated with a black finish
  • Includes 5" rubber wheels and pulling handles
  • UL Listed for the USA and Canada

Key Specs

AttributeSpecification

item#

4228651

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

52.0 LB

Fan Diameter

30 in

Air Delivery

6,700 cfm

Volts

120

Drive Type

Direct

Watts

313

Amps

2.73

Speeds (qty.)

2
AttributeSpecification

Outdoor Rated

No

Phase

Single-phase

Noise Level

55 dB

Hardwired

No

Power Cord Length

9 ft

Primary Color

Black

Secondary Color

Bright Aluminum

Assembly Required

Yes

Horsepower

0.2 HP

Product Weight

42.0000 lb

Dimensions L x W x H (in.)

32.6875 x 33.25 x 12.0 in

Warranty

Manufacturer's Warranty

1 year limited warranty
