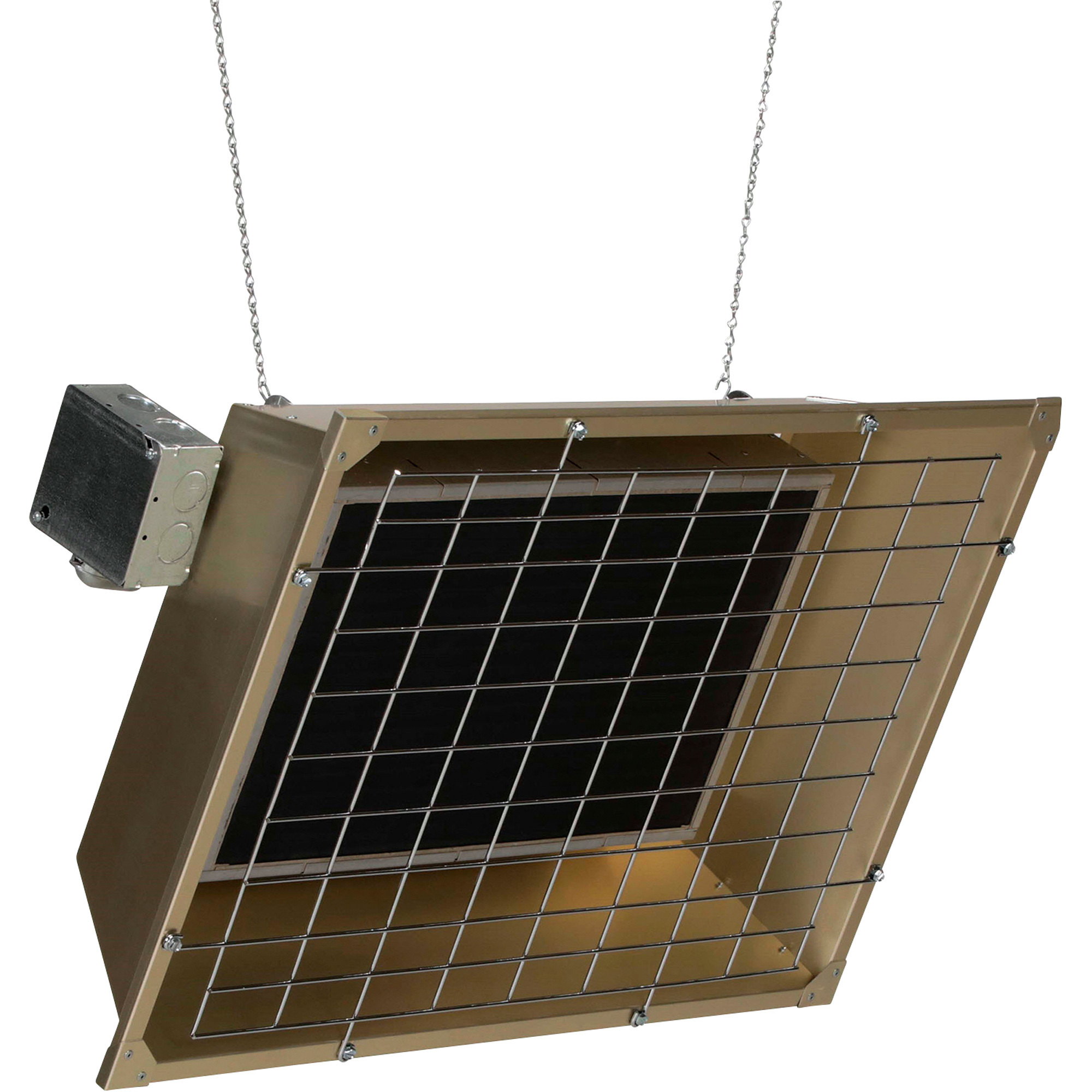

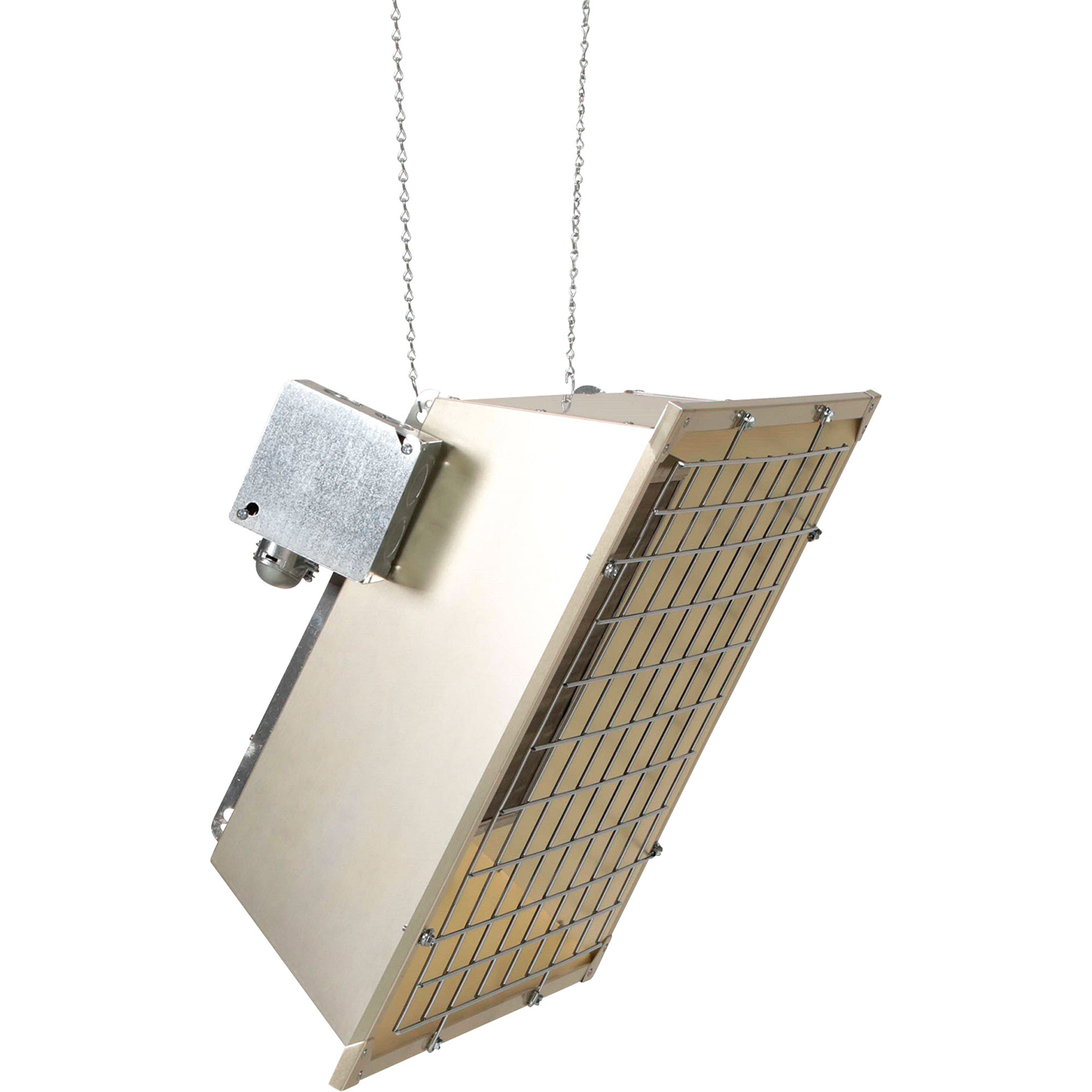

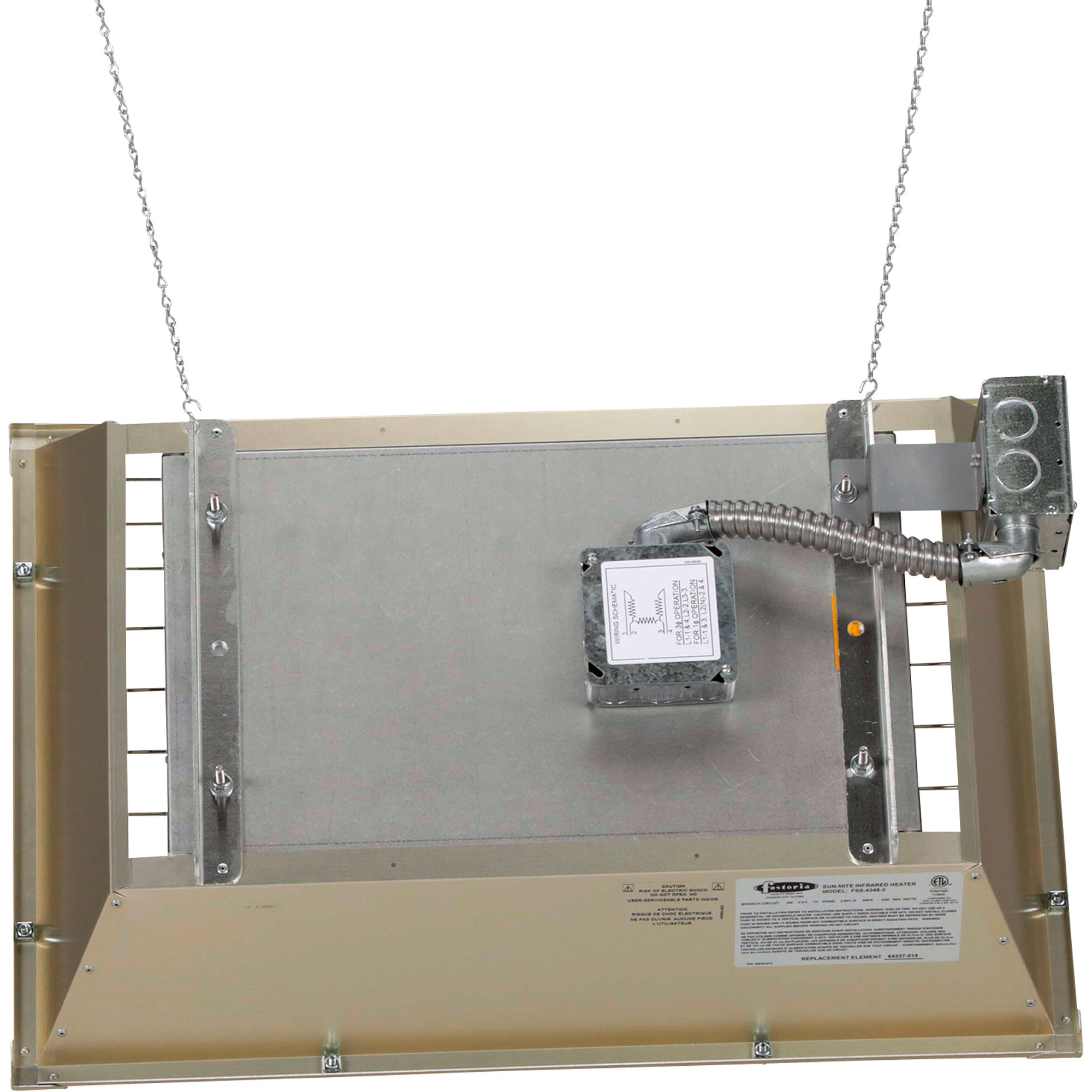

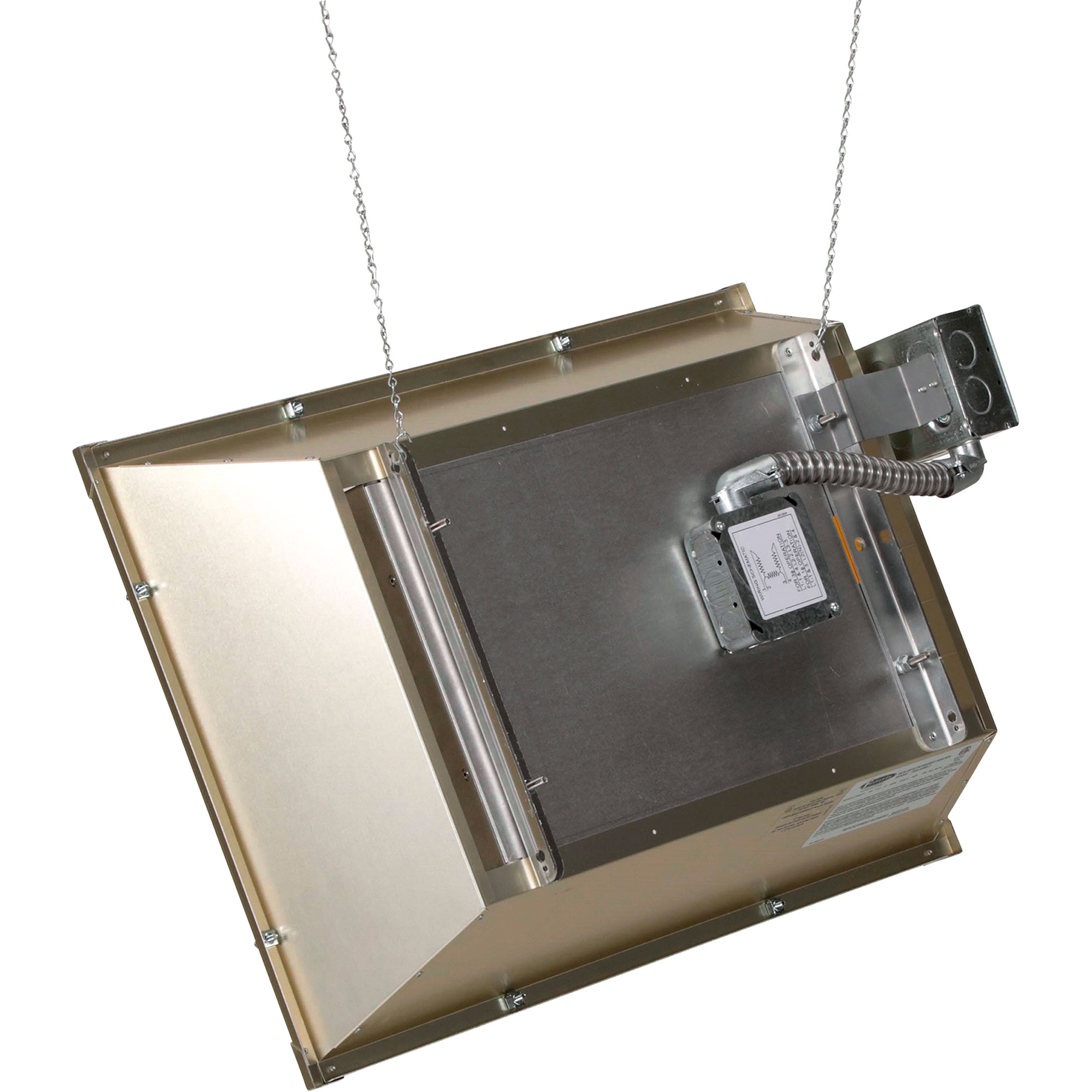

Fostoria Overhead Flat Panel Electric Infrared Heater, 4.3kW, 208V, 14,672 BTU, Model# FSS-4320-3

Item# 52777
Fostoria Overhead Flat Panel Electric Infrared Heater, 4.3kW, 208V, 14,672 BTU, Model# FSS-4320-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fostoria Overhead Flat Panel Electric Infrared Heater, 4.3kW, 208V, 14,672 BTU, Model# FSS-4320-3

Click or Tap image to Zoom

$1368.32

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ideal for spot heating or total area heating in high-bay industrial buildings, including steel mills, warehouses and material handling areas
  • Single-element flat electric infrared heaters deliver a concentration of heat without fumes or open flames
  • Designed for harsh, rugged environments
  • Can be suspended vertically or horizontally by chain or mounted rigidly with included angle iron
  • Durable element assembly contains no glass and has a life expectancy of 25,000 hours

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Fostoria Overhead Flat Panel Electric Infrared Heater by TPI is ideal for spot heating or total area heating in high-bay industrial buildings, including steel mills, warehouses and material handling areas. These single-element flat electric infrared heaters deliver a concentration of heat without fumes or open flames. Designed for harsh, rugged environments, each heater can be suspended vertically or horizontally by chain or mounted rigidly with included angle iron. Durable element assembly contains no glass and has a life expectancy of 25,000 hours. Housing is gold anodized aluminum and delivers a 60° symmetrical heat pattern. Medium wave emitter operates at 78.5% radiant efficiency. Includes electrical enclosure for direct wire installation plus zinc-plated, heavy-gauge safety screens. ETL C/US listed for suspended high-bay indoor applications. Requires hardwired electrical connection. Professional installation recommended. Units ship fully assembled.

What's Included

    (1) Heater

Features + Benefits

  • Ideal for spot heating or total area heating in high-bay industrial buildings, including steel mills, warehouses and material handling areas
  • Single-element flat electric infrared heaters deliver a concentration of heat without fumes or open flames
  • Designed for harsh, rugged environments
  • Can be suspended vertically or horizontally by chain or mounted rigidly with included angle iron
  • Durable element assembly contains no glass and has a life expectancy of 25,000 hours
  • Housing is gold anodized aluminum and delivers a 60° symmetrical heat pattern
  • Medium wave emitter operates at 78.5% radiant efficiency
  • Includes electrical enclosure for direct wire installation plus zinc-plated, heavy-gauge safety screens
  • ETL C/US listed for suspended high-bay indoor applications
  • Requires hardwired electrical connection
  • Professional installation recommended
  • Units ship fully assembled

Key Specs

AttributeSpecification

item#

52777

Brand

Fostoria

Manufacturer's Warranty

1 year limited warranty

Ship Weight

30.0 LB

Heat Type

Infrared

Heat Output

14,672 Btu/hour

Hardwired

Yes
AttributeSpecification

Indoor-Outdoor Use

Indoor and Outdoor

Volts

208

Watts

4,300

Amps

20

Product Weight

lb

Dimensions L x W x H (in.)

20.0 x 9.0 x 32.0 in

Reviews

Questions & Answers

Questions

  1. Can it be mounted in the ceiling ? Flush

    1 answer

    1. Yes, the TPI Overhead Flat Panel Electric Infrared Heater can be mounted flush to the ceiling. It can be suspended vertically or horizontally by chain or mounted rigidly with the included angle iron.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
